Ventline / Dexter Powered Roof Vents / Outlet Fans & Vents V2525 Northern Breeze Parts Diagram · Exploded View

Roof Vent · 2 assemblies · 6 diagram sheets · 33 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Powered Roof Vents / Outlet Fans & Vents V2525 Northern Breeze roof vent fan: 2 assemblies (Exploded View, Replacement Vent) and 33 manufacturer part numbers.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

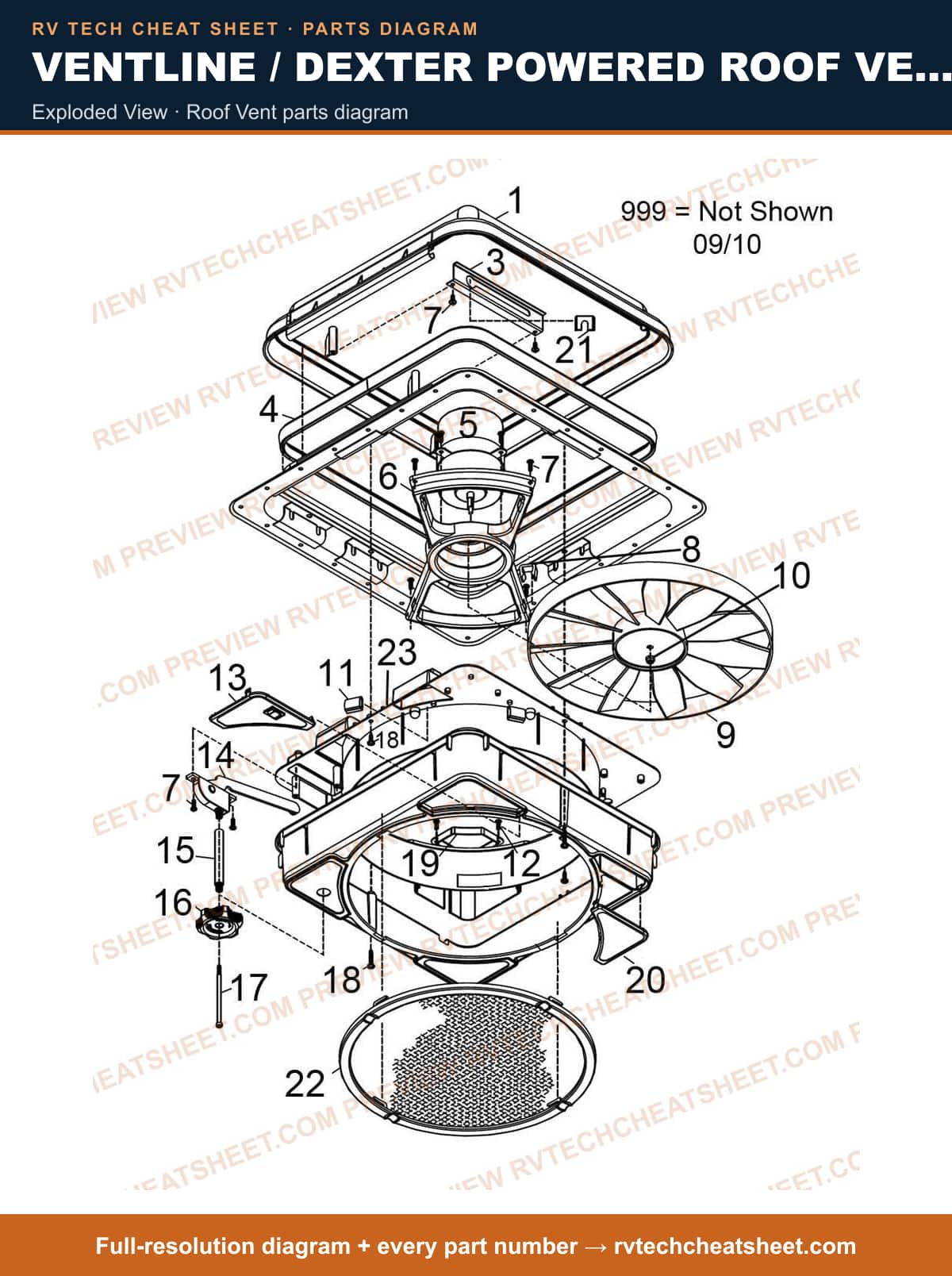

Exploded View

Components

30 items

1. #Roof Vent Lid; For Northern Breeze Roof Vents; 14-1/4 Inch x 14-1/4 Inch; White; Polypropylene; Round Profile MFR # BVB056801
2. #Roof Vent Lid; For Northern Breeze Roof Vents; 14-1/4 Inch x 14-1/4 Inch; Smoke (Blue/Grey); Polypropylene; Round Profile MFR # VB056804
3. #Roof Vent Cross Bar; For Northern Breeze Roof Vent Model V2525 MFR # VC038400
4. #Roof Vent Lid Seal; Fits Northern Breeze Roof Vents; 50-1/2 Inch Length; Vinyl MFR # VD041600
5. #Roof Vent Motor; Replacement For Northern Breeze V2525-01-S46-M/ V2525-04-S46-M; 12 Volt DC; Single Speed; 400 CFM MFR # VD033700
6. #Roof Vent Motor; Replacement For Northern Breeze V2525-01-S46-M/ V2525-04-S46-M; 12 Volt DC; Variable Speed; 400 CFM MFR # VD033701
7. #BAR,FAN MOTOR MFR # VC037400
8. #Roof Vent Screw; Replacement For Northern Breeze Exhaust Fan; Fits Motor To Motor Bar/ Motor Bar To Frame/ Operator/ Operator Guide Bar; #8-19 Thread x 1/2 Inch MFR # VC047600
9. #CLIP,WIRE RETAINER MFR # VC038200
10. #Fan Blade; Replaces For Northern Breeze Roof Vent V2525-01-S46-M/ V2525-04-S46-M MFR # VC037300
11. #NUT LOCK,NYLON INSERT #10-32 MFR # VC035500
12. #RETAINER WIRE,SELF ADHESIVE MFR # VC048800
13. #SCREW,SHEET METAL # 6 -18 X 1/2" MFR # CB040700
14. #MODULE,RIGHT SIDE SWITCH MFR # VB059703
15. #Roof Vent Crank Handle; Replacement For Ventline Old Style Rounded Dome Roof Vents; Single Straight Arm; 6-5/8 Inch Arm Length; With Operator/ Knob/ Mounting Screw; Single MFR # BV011504
16. #Roof Vent Crank Handle Extension; Replacement For Ventline Northern Breeze V2525; 2-27/32 Inch Length MFR # VB023302
17. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle; Black; Plastic; With Screw Camper; Single MFR # BVD042100
18. #Roof Vent Lift Arm Knob; Replacement Roof Vent Crank Handle V2092/ V2110/ V2094/ V2128/ V2525; Black; Plastic; With Screw Camper MFR # BVD042115
19. #Roof Vent Screw; Replacement For Northern Breeze Roof Vent Knob Mounting Screw; Fits V2525 Northern Breeze Vent; #8-32 Thread x 3-1/8 Inch MFR # V042304
20. #SCREW, #8-18 X 7/8" MFR # VD034000
21. #COVER,WIRING COMPARTMENT MFR # VC044000
22. #INSERT BLANK, LEFT SIDE MFR # VC037701
23. #Roof Vent Lift Arm Clip; For Ventline Roof Vent V2110/ V2092/ V2094 MFR # VA028000
24. #Roof Vent Screen; For Northern Breeze Roof Vents MFR # BVD023100
25. #Roof Vent Housing; Replacement For Northern Breeze Roof Vent V2525; Upper Housing MFR # VC037501
26. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 3-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044527
27. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 1-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044525
28. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 2-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044526
29. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 4-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044528
30. #Roof Vent Trim Ring; 14-1/4 Inch x 14-1/4 Inch; 5-1/8 Inch Depth; With Radius Corner; Birch White MFR # VA044529

Replacement Vent

Components

3 items

1. #Roof Vent; Northern Breeze; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; 400 CFM Single Speed Fan MFR # V2525-04-S46-M
2. #Roof Vent; Manual Opening; With 400 CFM Single Speed Fan; Steel Vent Base; Exhaust Only MFR # V2525MP-01
3. #Roof vent; Northern Breeze; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; 400 CFM Single Speed Fan MFR # V2525-01-S46-M
