Ventline / Dexter Powered Roof Vents / Outlet Fans & Vents V3094 Series Parts Diagram · Replacement Vent

Roof Vent · 2 assemblies · 6 diagram sheets · 21 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Ventline / Dexter Powered Roof Vents / Outlet Fans & Vents V3094 Series roof vent fan: 2 assemblies (Replacement Vent, Exploded View) and 21 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

Vent model labels are on the interior garnish frame or on the fan housing behind the screen. Lid, motor and lift-kit parts differ between manual, 12 V and thermostatic models of the same size, so confirm which you have.

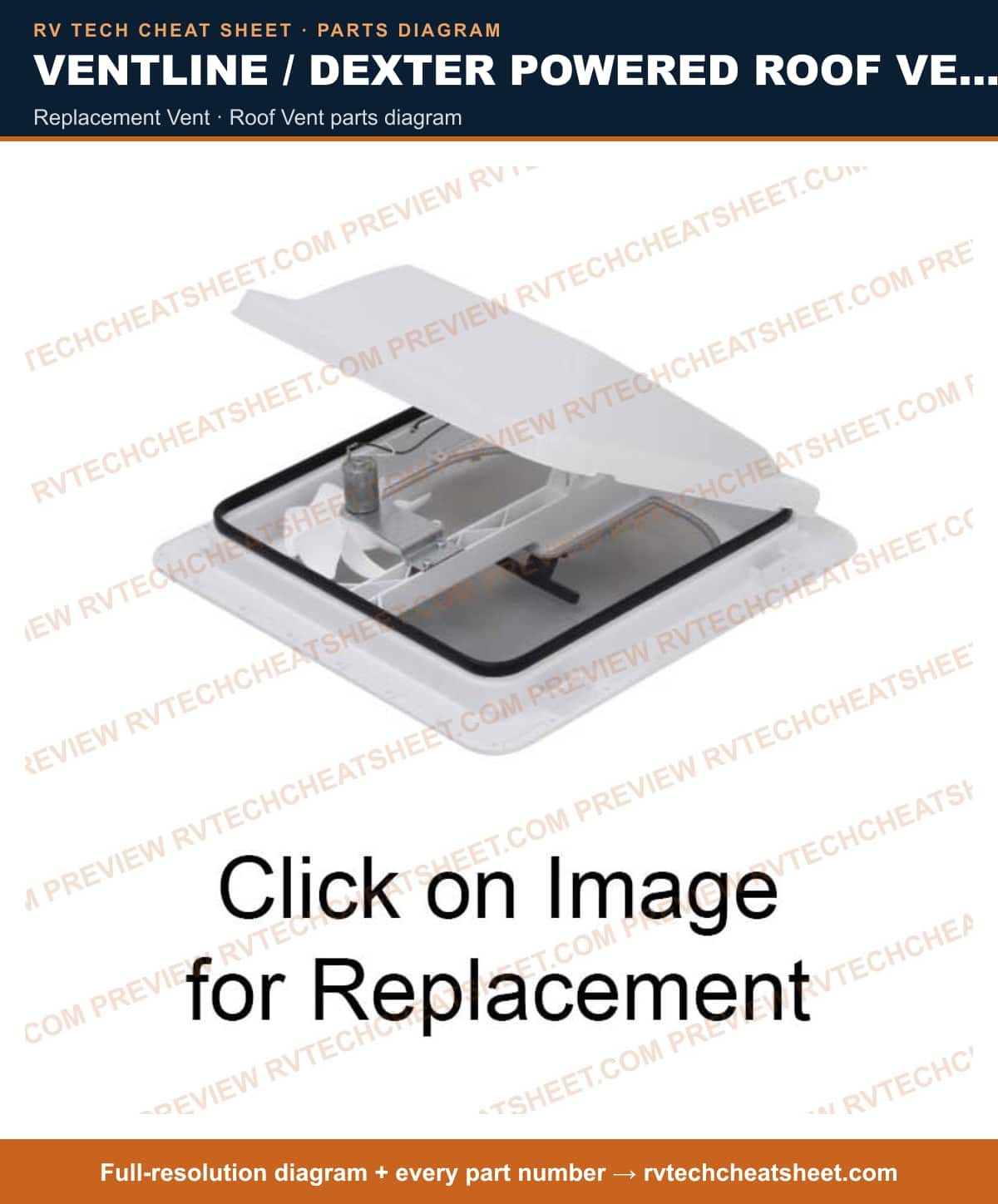

Replacement Vent

Components

4 items

1. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With Smoke Lid/ Two Piece Polar White Screen Frame/ Plastic Flange MFR # V309460300
2. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With White Lid/ Two Piece Polar White Screen Frame/ Plastic Flange; CSA (Canadian Standards Association) Listed MFR # V3094-601-00C
3. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With White Lid/ Two Piece Polar White Screen Frame/ Plastic Flange MFR # V309460100
4. #Roof Vent; Manual Opening; 14-1/4 Inch x 14-1/4 Inch; With Screen; With 12 Volt Fan; Polypropylene; With Smoke Lid/ Two Piece Polar White Screen Frame/ Plastic Flange; CSA (Canadian Standards Association) Listed MFR # V3094-603-00C

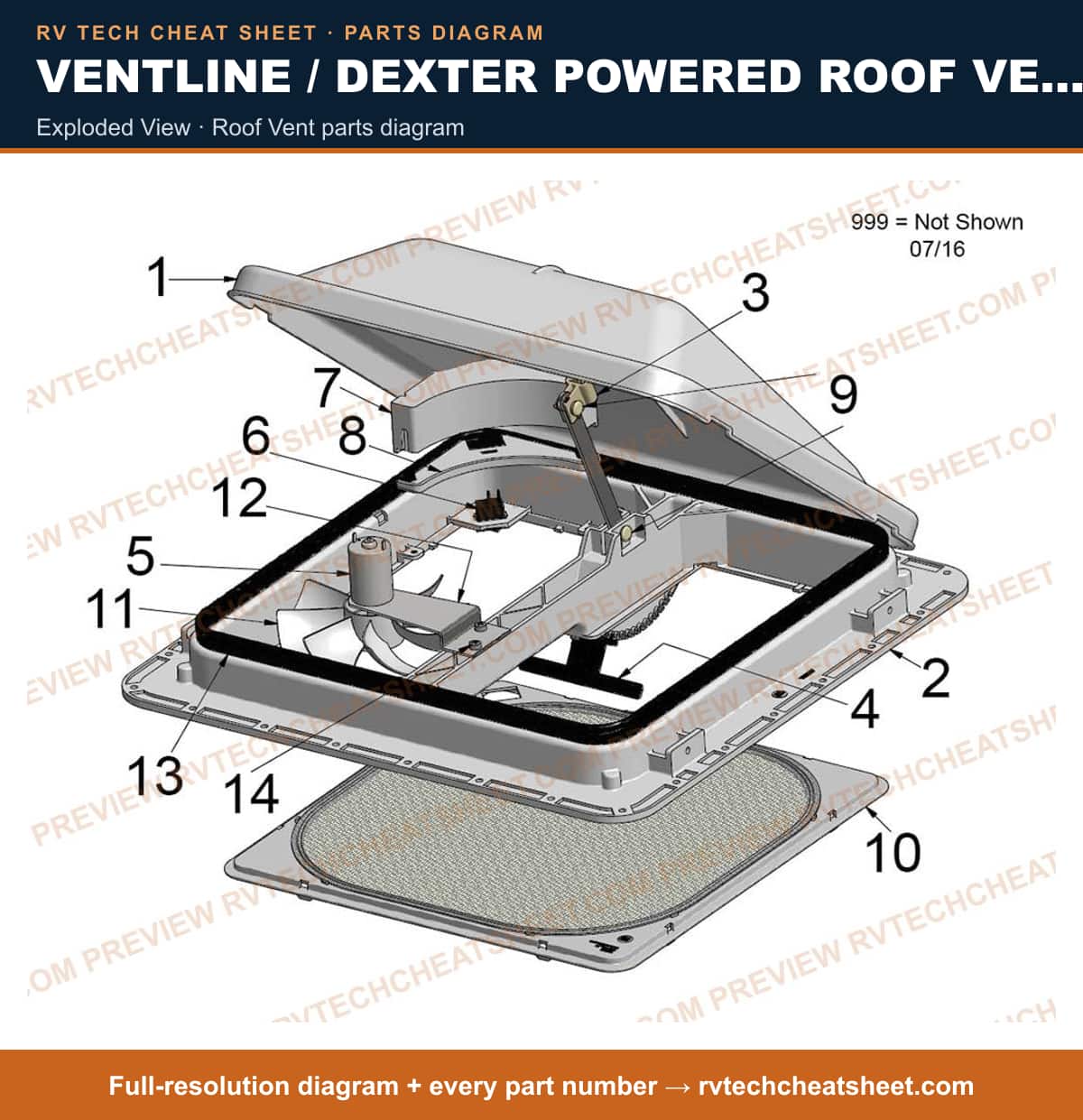

Exploded View

Components

17 items

1. #Roof Vent Lid; For Use With Ventline V3092/ V3094 Series E-Z Lift Ventadome Trailer Roof Vents; Wedge Shape; White; Polypropylene MFR # BVE010800 Superseded: see description
2. #Roof Vent Lid; For 14 Inch x 14 Inch Vents; Use With Ventline V3094 Powered/ V3092 Non-Powered Roof Vents; Dome Assembly; Wedge Shape; Smoke MFR # BVE010803 Superseded: see description
3. #ROOF FLANGE MFR # VE010700
4. #DOME SLIDER CLIP MFR # VE010200
5. #Roof Vent Opening Handle; Replacement Handle Assembly For Ventline Ventadome Trailer Roof Vents; With VE0102-00 Slider Clip/ VE0103-00 Snap-In Clip/ Plastic Mounting Flange MFR # BVC058000
6. #Roof Vent Motor; Replacement For Vanair V2094/ V2119/ VP-543; 13.6 Volt DC; With Motor/ Motor Lead Wires/ Screws; Single MFR # BVD021800
7. #Stove Vent Hood Switch; Replacement Mini-Rocker Switch For Ventline Ventadome Trailer Roof Vents; Light/ Fan Motor On/ Off Switch; 12 Volt; Black; Single MFR # BL010800
8. #WIRING COMPARTMENT FOR CSA MODELS ONLY MFR # VE010400
9. #WIRING COMPARTMENT COVER FOR CSA MODELS ONLY MFR # VE010500
10. #SNAP-IN CLIP MFR # VE010300
11. #SCREEN FRAME, POLAR WHITE, F/12V VENTS MFR # BVE010600
12. #FAN BLADE, 5" DIAM, CCW ROT, 8 BLADES MFR # BVE011400
13. #MOTOR BRACKET W/SCREWS, FOR 12V FAN MFR # BVE012500
14. #EPDM VINYL DOME SEAL, 51-1/2"L MFR # BVE012700
15. #Roof Vent Screw; Replacement For Northern Breeze Exhaust Fan; Fits Motor To Motor Bar/ Motor Bar To Frame/ Operator/ Operator Guide Bar; #8-19 Thread x 1/2 Inch MFR # VC047600
16. #CEILING GARNISH MFR # VA0445TAB
17. #VENTILATION RV; SCREW, MACHINE M2.6 MFR # VD021900
