Lippert In-Wall (Schwintech) Slide-Out Parts Diagram · Custom

Slide-Out · 11 assemblies · 11 diagram sheets · 58 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Lippert In-Wall (Schwintech) Slide-Out slide-out system: 11 assemblies (Custom, Inverted (With 1.56" Notch), Repair Kit (Without Gear Racks), Triple (With 1.56" Notch), Motor and more) and 58 manufacturer part numbers.

Slide-out mechanisms are identified by the motor/gearbox label and the controller part number. Lippert Schwintek, through-frame and hydraulic systems use entirely different parts, so confirm the system type first.

Custom

Components

1 item

1. #Upper Flat Hook (Fixed and Float) 1.56" Notch 1.75" Notch Pinnacle Notch 2.0625" Notch MFR # 268774

Inverted (With 1.56" Notch)

Components

4 items

1. #Black Inverted Fixed Repair Kit MFR # 366212
2. #Clear Inverted Fixed Repair Kit MFR # 366158
3. #Clear Inverted Float Repair Kit MFR # 366159
4. #Black Inverted Float Repair Kit MFR # 366213

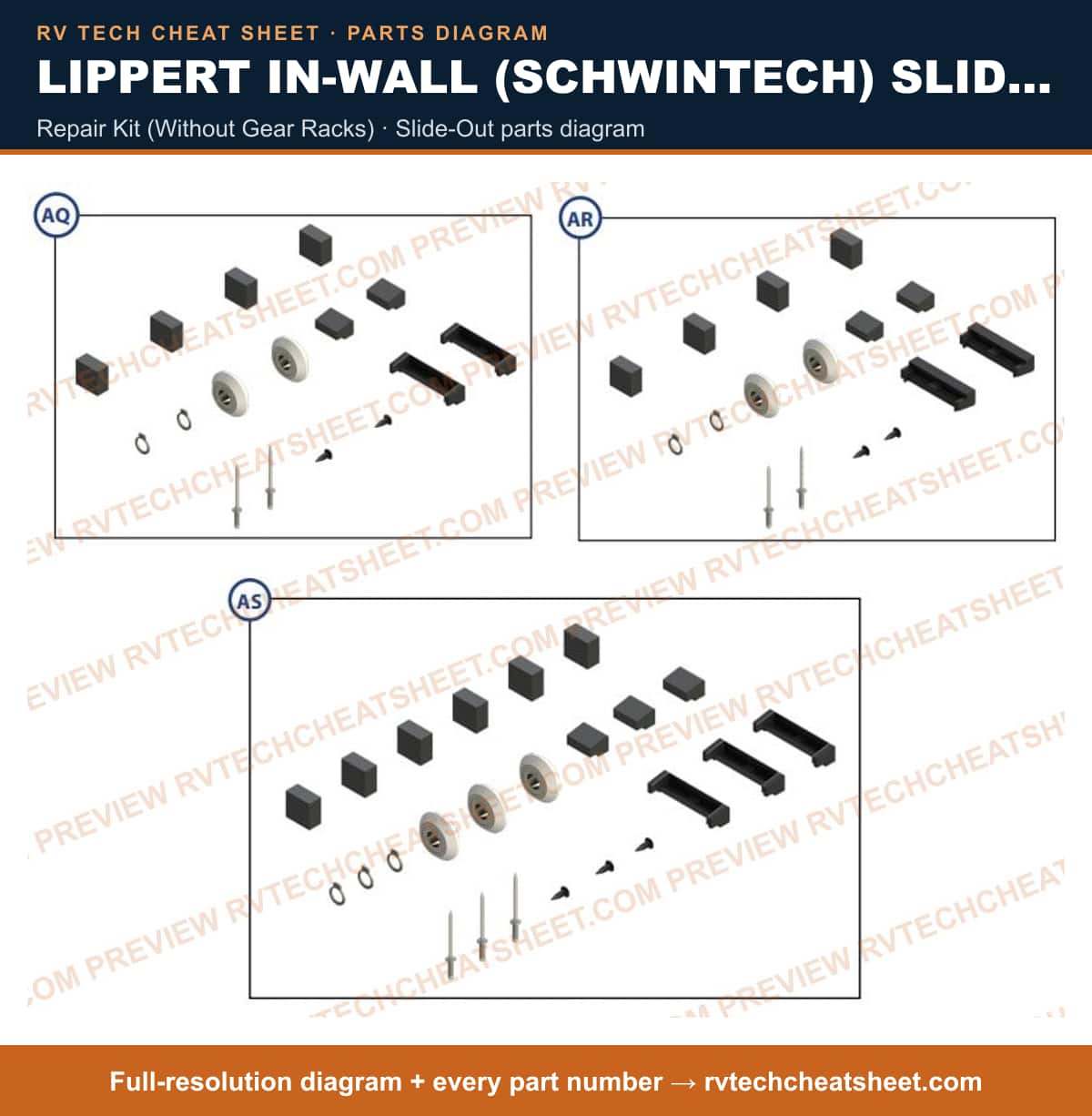

Repair Kit (Without Gear Racks)

Components

3 items

1. #Inverted (without gear racks) MFR # 366120
2. #Triple (without gear racks) MFR # 366106
3. #Standard (without gear racks) MFR # 366121

Triple (With 1.56" Notch)

Components

4 items

1. #Black Triple Float Repair Kit MFR # 366215
2. #Black Triple Fixed Repair Kit MFR # 366214
3. #Clear Triple Float Repair Kit MFR # 366161
4. #Clear Triple Fixed Repair Kit MFR # 366160

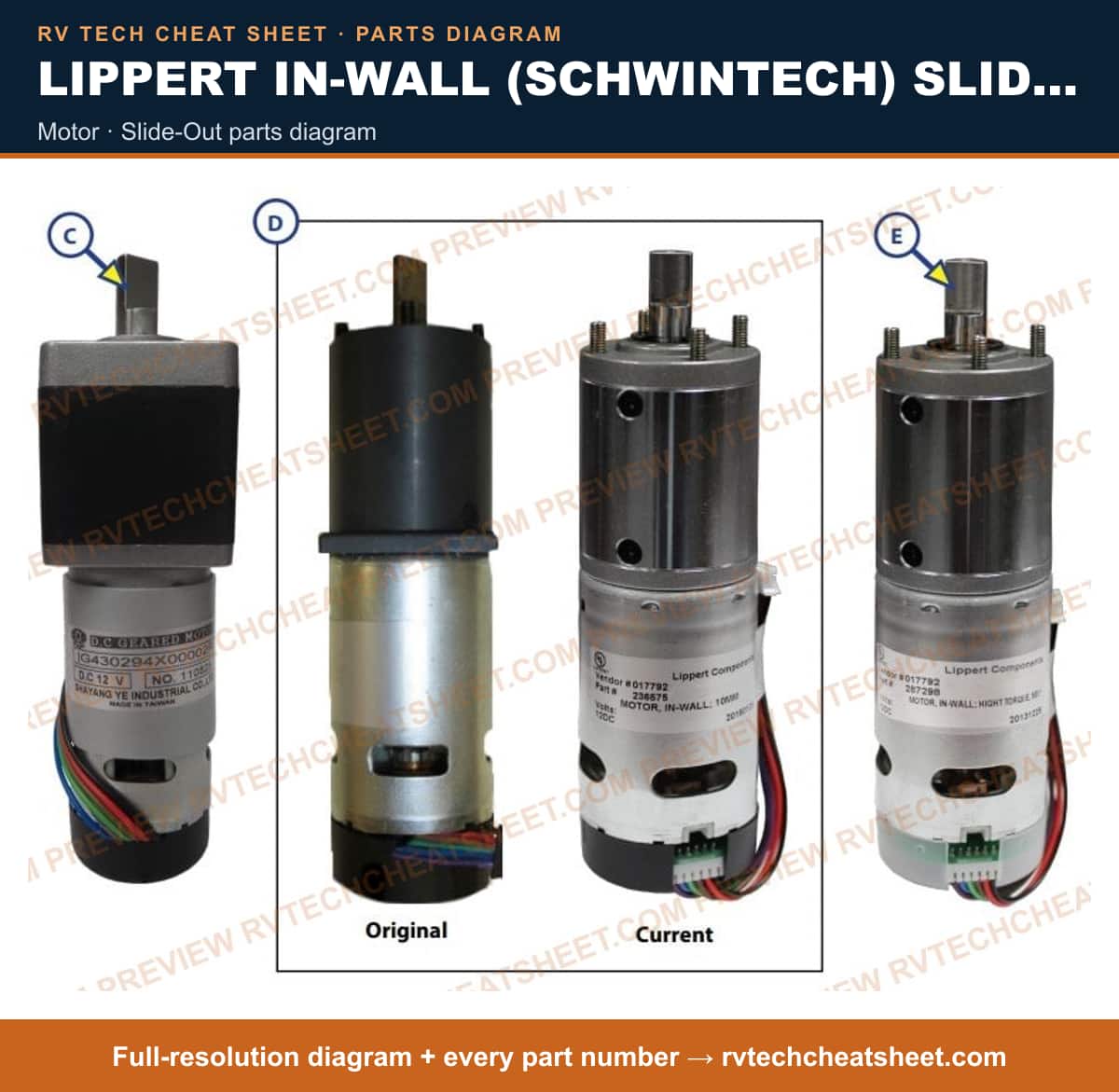

Motor

Components

2 items

1. #Motor, 300:1 OBSOLETE MFR # 229466
2. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 287298

Seals

Components

10 items

1. #Slide-Out Seal MFR # 300614
2. #KE Black Single Wiper with Leg MFR # 240448
3. #EK Design Flap MFR # 239667
4. #Bulb Seal MFR # 366736
5. #Sweep Seal (OBSOLETE) MFR # 132733
6. #D-Seal MFR # 260406
7. #Flat Side Wiper MFR # 240410
8. #Optional Seal MFR # 862251
9. #Winnebago Double Bulb Seal MFR # 253344
10. #Seal (OBSOLETE) MFR # 156603

Drive Assembly

Components

11 items

1. #Steel Torque Shaft MFR # 259065
2. #In-Wall Column Clamp (1.5" x 16") MFR # 701324
3. #Coupler - Old Style (for 229466 Motor) MFR # 238461
4. #Aluminum Torque Shaft MFR # 238462
5. #V-Roller Assembly MFR # 292801
6. #Hex Torque Shaft MFR # 295873
7. #In-Wall Column Clamp (1.44" x Varies) MFR # 389787
8. #Spur Gear MFR # 238893
9. #Copper Infused Spur Gear MFR # 292435
10. #Hex Spur Gear MFR # 285085
11. #Hex Coupler MFR # 285083

Bearing Block Repair Kit (With 1.56" Notch Gear Rack)

Components

4 items

1. #Inverted Bearing Block Repair Kit MFR # 379076
2. #Triple Bearing Block Repair Kit MFR # 379720
3. #Narrow Bearing Block w/ Composite Gibs Repair Kit MFR # 379077
4. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 379060

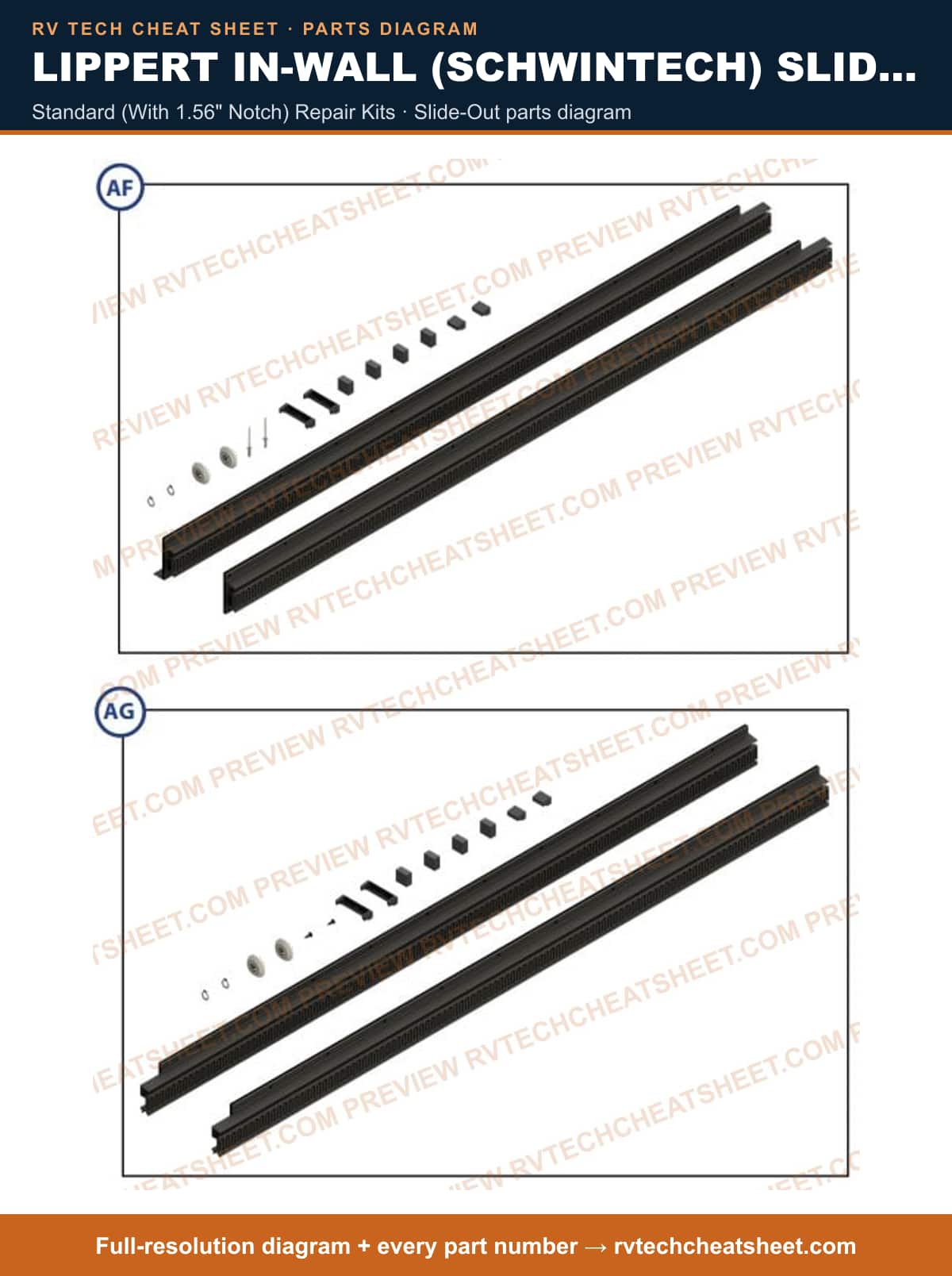

Standard (With 1.56" Notch) Repair Kits

Components

4 items

1. #Black Standard Fixed Repair Kit MFR # 366209
2. #Black Standard Float Repair Kit MFR # 366211
3. #Clear Standard Fixed Repair Kit MFR # 366154
4. #Clear Standard Float Repair Kit MFR # 366156

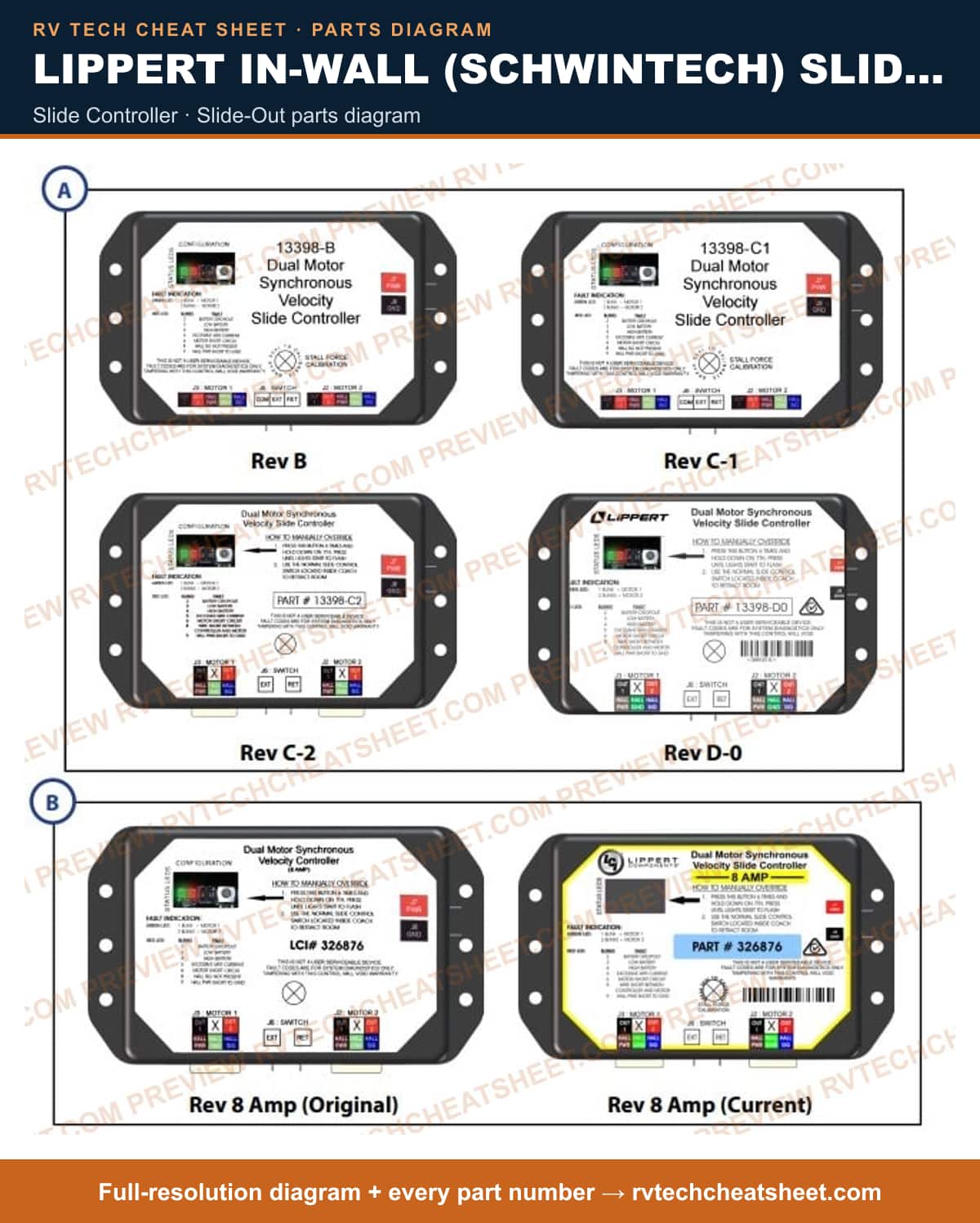

Slide Controller

Components

2 items

1. #8 Amp Dual Motor Synchronous Velocity Slide Controller (Original) MFR # 326876
2. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 211852

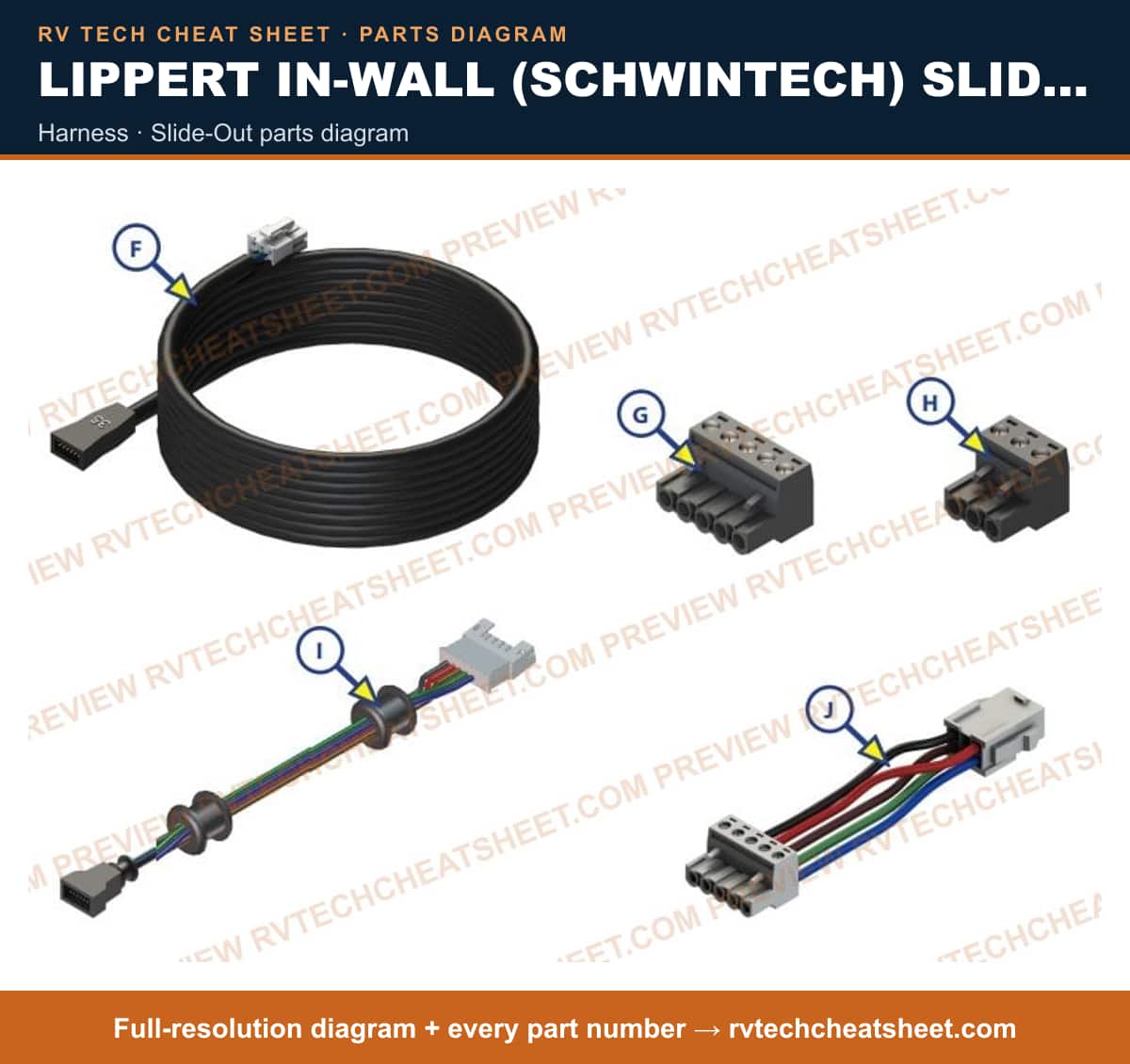

Harness

Components

13 items

1. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn't functioning like it should. That's why, at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 247768
2. #5ft. Controller to Motor Harness MFR # 238744
3. #5 ft. Interconnect Harness MFR # 241834
4. #Maximize your space with the In-Wall® Slide system! MFR # 238991
5. #6" Pigtail Harness (OBSOLETE) MFR # 258760
6. #10ft. Controller to Motor Harness MFR # 238990
7. #8 ft. Interconnect Harness MFR # 241836
8. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn't functioning like it should. That's why, at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 229755
9. #6 ft. Interconnect Harness MFR # 241835
10. #9 Harness Connector 3 Wires (OBSOLETE) MFR # 229759
11. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 238992
12. #8 Harness Connector 5 Wires (OBSOLETE) MFR # 229758
13. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn't functioning like it should. That's why, at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 229756
