Lippert Slim Rack Parts Diagram · Gear Rack

Slide-Out · 7 assemblies · 7 diagram sheets · 62 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Lippert Slim Rack slide-out system: 7 assemblies (Gear Rack, Channel, Motor, Drive Shaft / D-Seal, Drive Mechanism and more) and 62 manufacturer part numbers.

Slide-out mechanisms are identified by the motor/gearbox label and the controller part number. Lippert Schwintek, through-frame and hydraulic systems use entirely different parts, so confirm the system type first.

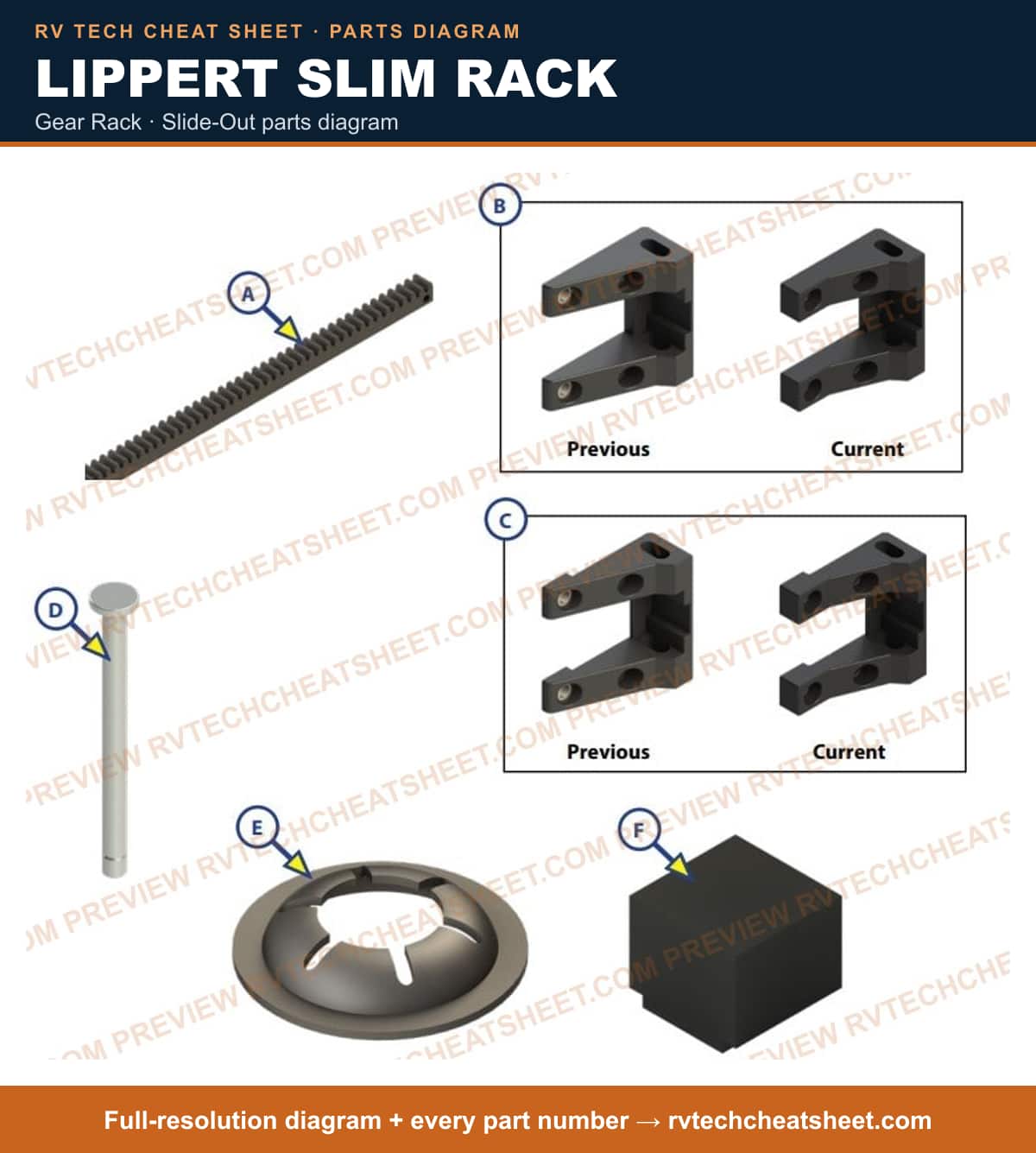

Gear Rack

Components

6 items

1. #End Bracket (Flat) MFR # 369727
2. #Grooved Pin MFR # 368977
3. #End Bracket (Notched) MFR # 369731
4. #Push Nut MFR # 368947
5. #Foam Bumper MFR # 366740
6. #Gear Rack MFR # 366882

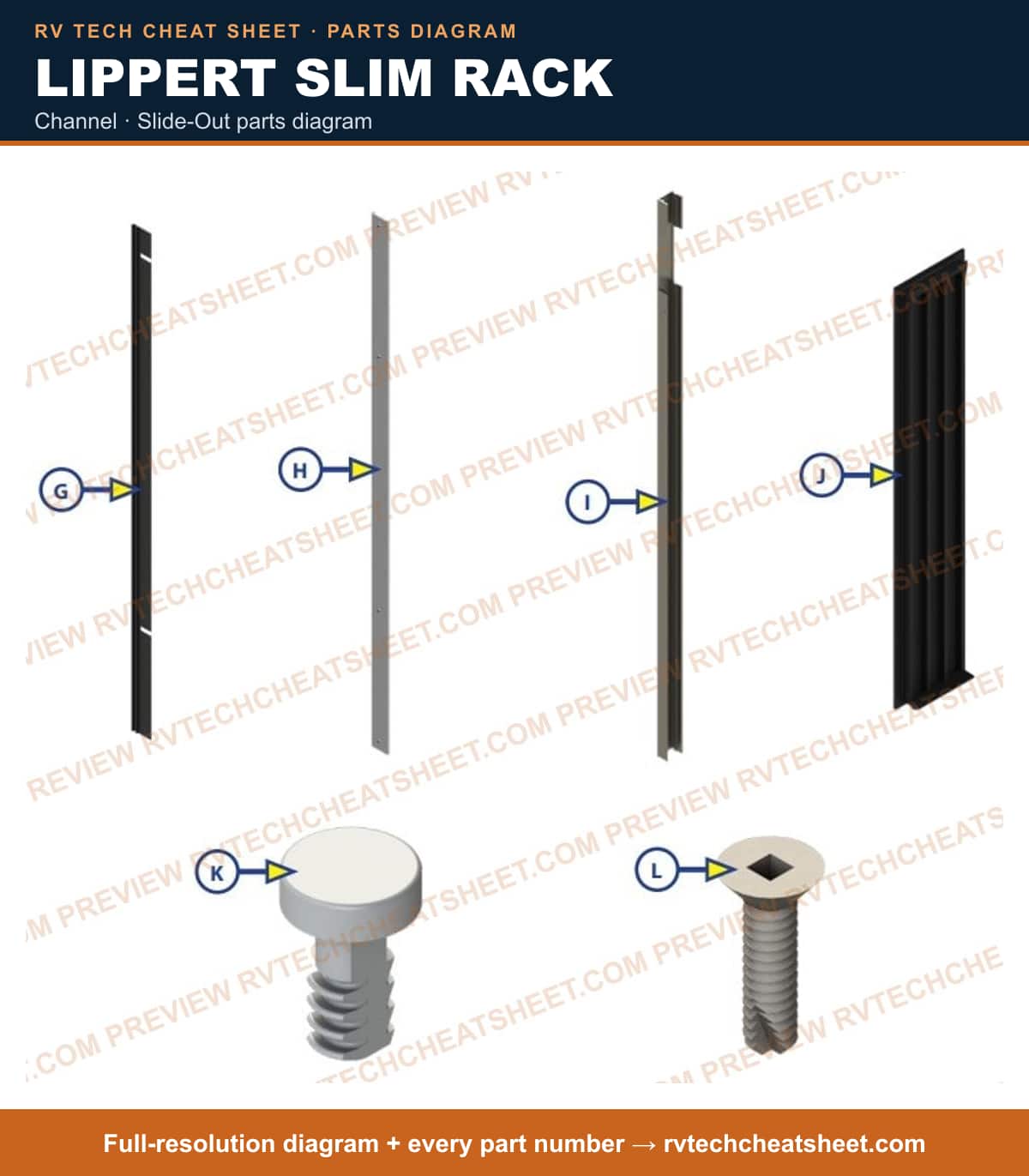

Channel

Components

5 items

1. #Screw MFR # 406687
2. #Drive Shaft MFR # N/A
3. #X-Tree Rivet MFR # 368945
4. #Motor Opening Cover MFR # 366724
5. #Gasket Seal MFR # 366706

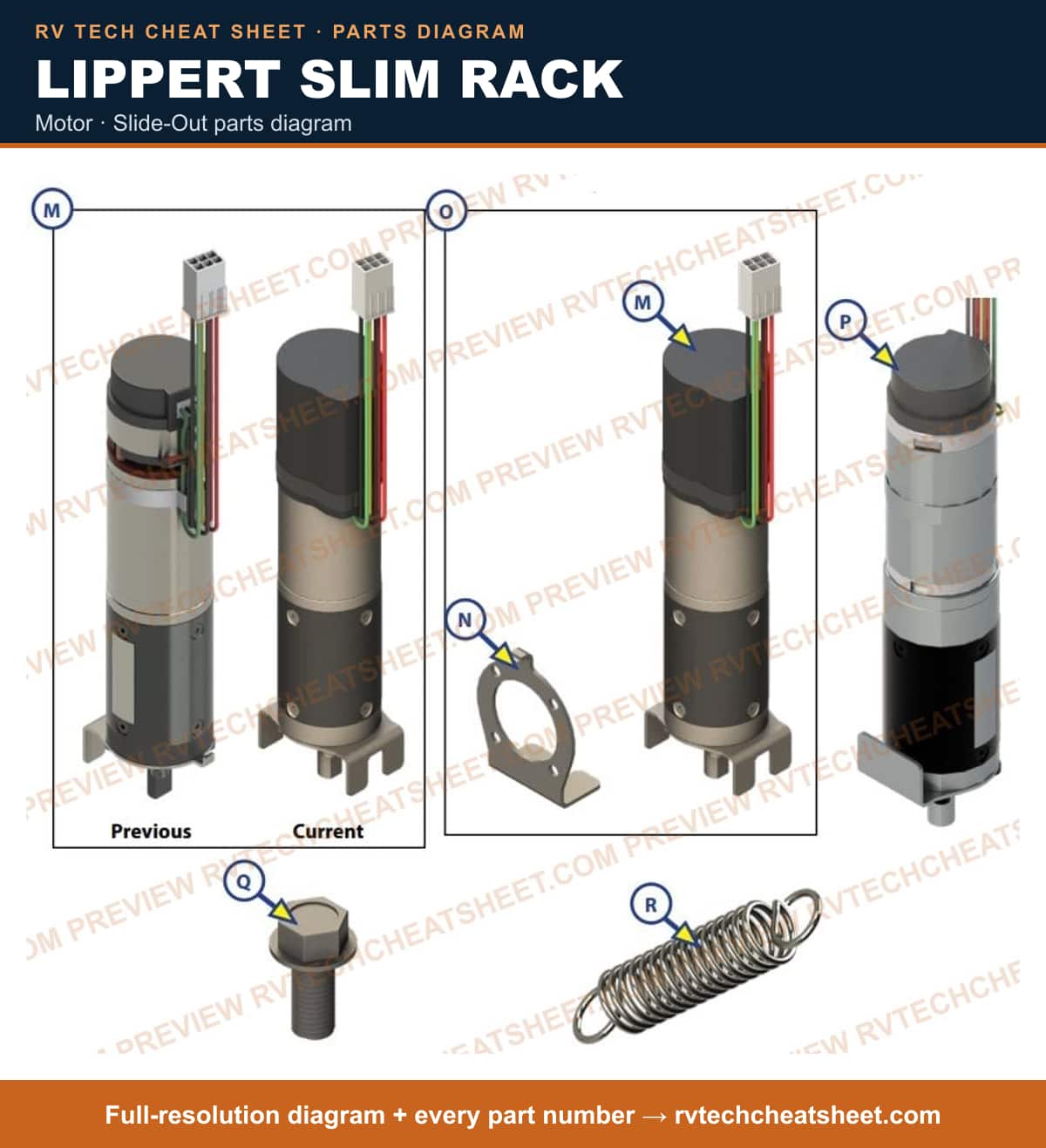

Motor

Components

6 items

1. ##12 - 16 x 1/2" Screw MFR # 369630
2. #Motor Bracket MFR # 389061
3. #Motor (without Brake) MFR # 366698
4. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 364262
5. #SlimRack Motor Kit MFR # 722005
6. #Motor Retention Spring MFR # 366937

Drive Shaft / D-Seal

Components

2 items

1. #Drive Shaft MFR # N/A
2. #D-Seal MFR # 260406

Drive Mechanism

Components

7 items

1. #Bearing Flange MFR # 369623
2. #8 Spur Gear MFR # 366728
3. #Felt Pad MFR # 366739
4. #Spring Clip MFR # 366764
5. #9 Coupler MFR # 368949
6. #Drive Block (Right Side) MFR # 366644
7. #Drive Block (Left Side) MFR # 366645

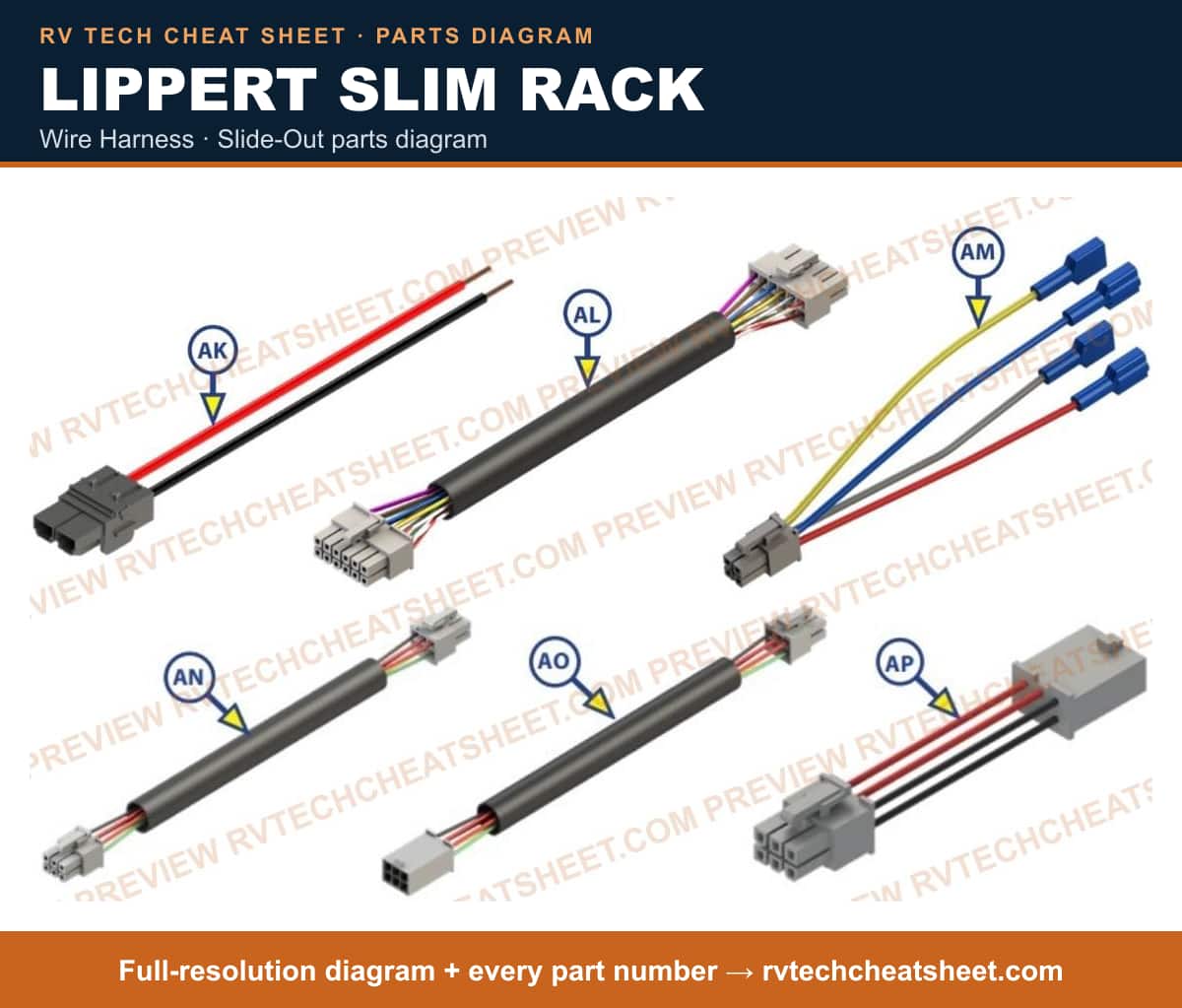

Wire Harness

Components

28 items

1. #Motor Harness (15') MFR # 370286
2. #Motor Harness (30') MFR # 370695
3. #Motor Harness (5') MFR # 370643
4. #Motor Harness (20') MFR # 370288
5. #Motor Extension Harness (36") MFR # 366873
6. #Rocker Switch Harness (20') MFR # 370705
7. #Motor Extension Harness (54") MFR # 370707
8. #Motor Extension Harness (78") MFR # 370273
9. #Power Harness MFR # 366700
10. #Touch Pad Harness (15') MFR # 370655
11. #Rocker Switch Harness (10') MFR # 370704
12. #Motor Extension Harness (60") MFR # 366875
13. #Touch Pad Harness (20') MFR # 370654
14. #Touch Pad Harness (5') MFR # 370696
15. #Touch Pad Harness (30') MFR # 370700
16. #Adapter Wire Harness (6") (WGO Service Only) MFR # 387587
17. #Motor Extension Harness (72") MFR # 366876
18. #Motor Extension Harness (104") MFR # 428903
19. #Motor Extension Harness (96") MFR # 429458
20. #Motor Extension Harness (48") MFR # 366874
21. #Touch Pad Harness (35') MFR # 370701
22. #6 Rocker Switch Harness (30') MFR # 370706
23. #Motor Harness (40') MFR # 370389
24. #Touch Pad Harness (10') MFR # 370697
25. #Motor Harness (10') MFR # 370279
26. #Motor Extension Harness (84") MFR # 366877
27. #Touch Pad Harness (40') MFR # 370702
28. #Touch Pad Harness (25') MFR # 370698

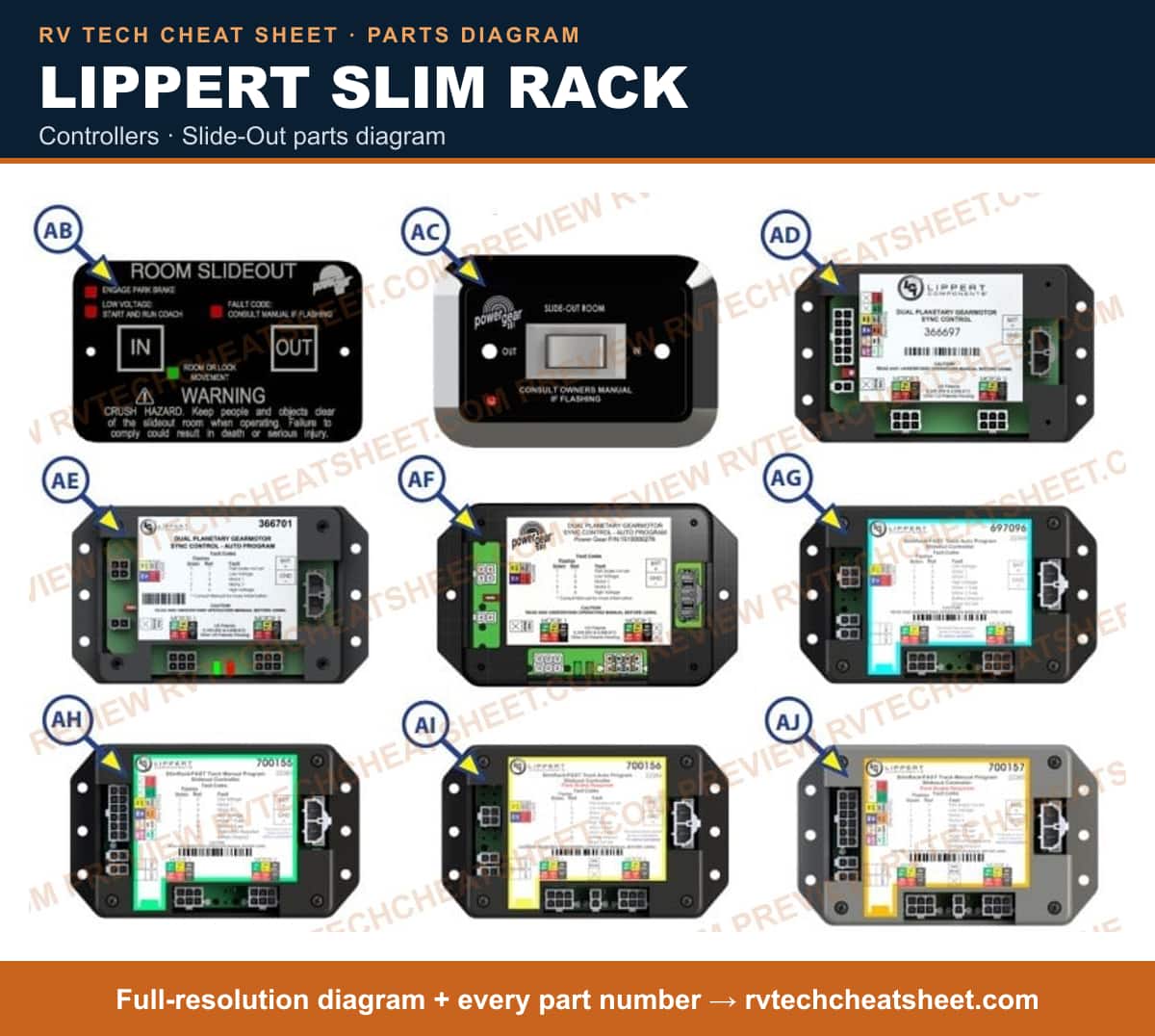

Controllers

Components

9 items

1. #Touch Pad (Programmable) MFR # 363984
2. #Controller (Auto Programmable Motorized) MFR # 700156
3. #Controller (Manual Programmable Towable) MFR # 700155
4. #Controller (Auto Programmable Towable) MFR # 697096
5. #Controller (Auto Programmable) - OBSOLETE MFR # 366701
6. #Controller (Manual Programmable Motorized) MFR # 700157
7. #Controller (Auto Programmable, Winnebago only) - OBSOLETE MFR # 366703
8. #Wall Switch (Auto Programmable) MFR # 370720
9. #Controller (Programmable) - OBSOLETE MFR # 366697
