Lippert Through Frame Slide-out Parts Diagram · 2.5 X 2.5 Hydraulic Through Frame Slide-out

Slide-Out · 7 assemblies · 46 diagram sheets · 182 parts · by Andrew Strick, mobile RV technician

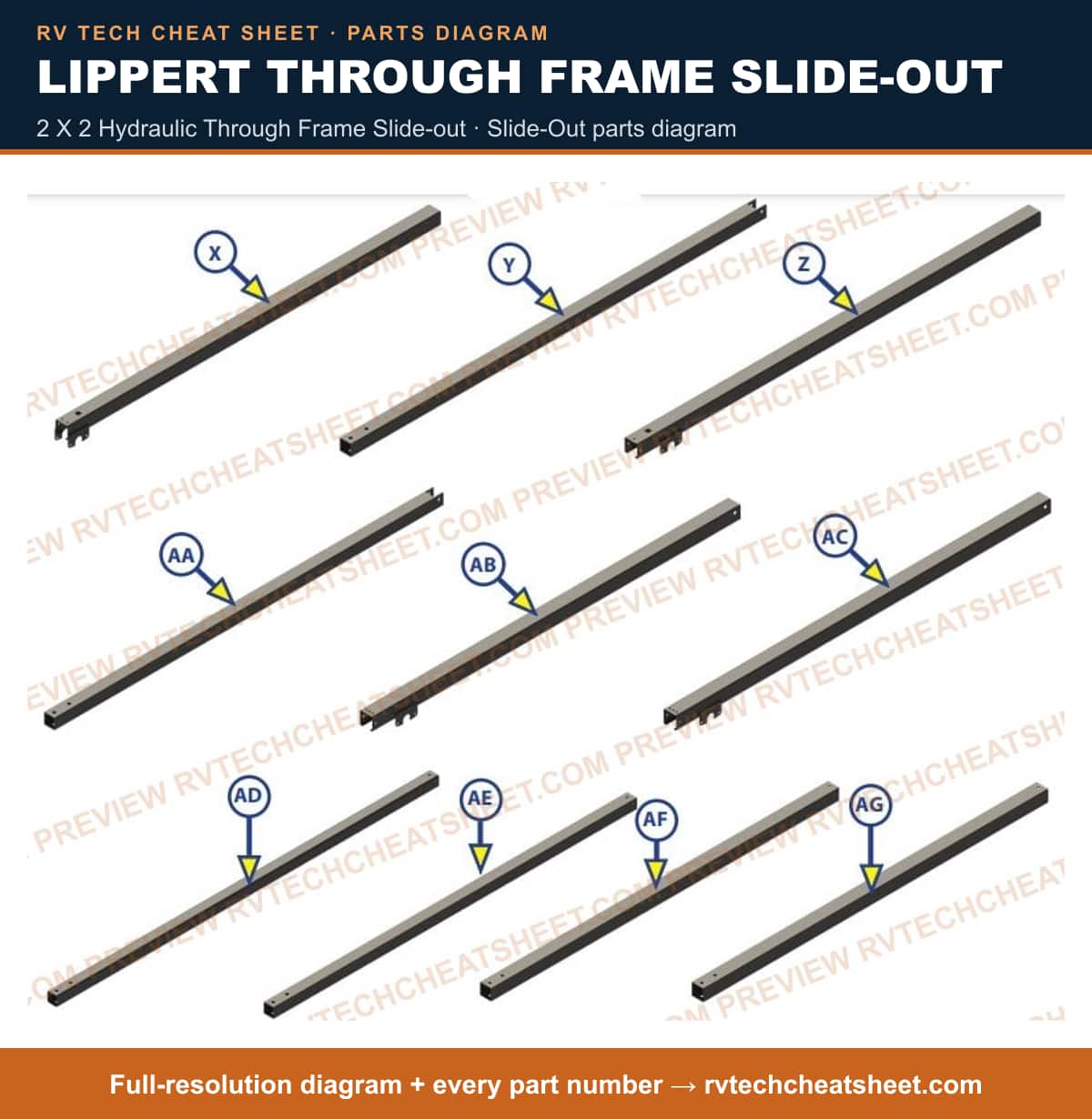

OEM exploded parts diagrams for the Lippert Through Frame Slide-out slide-out system: 7 assemblies (2.5 X 2.5 Hydraulic Through Frame Slide-out, 2.5 X 2.5 Electric Through Frame, 3 X 3 Pivot Rail Electric Through Frame Slide-out, 2X2 Electric Through Frame Slide-out, 2 X 3 Hydraulic Through Frame Slide-out and more) and 182 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

Slide-out mechanisms are identified by the motor/gearbox label and the controller part number. Lippert Schwintek, through-frame and hydraulic systems use entirely different parts, so confirm the system type first.

2.5 X 2.5 Hydraulic Through Frame Slide-out

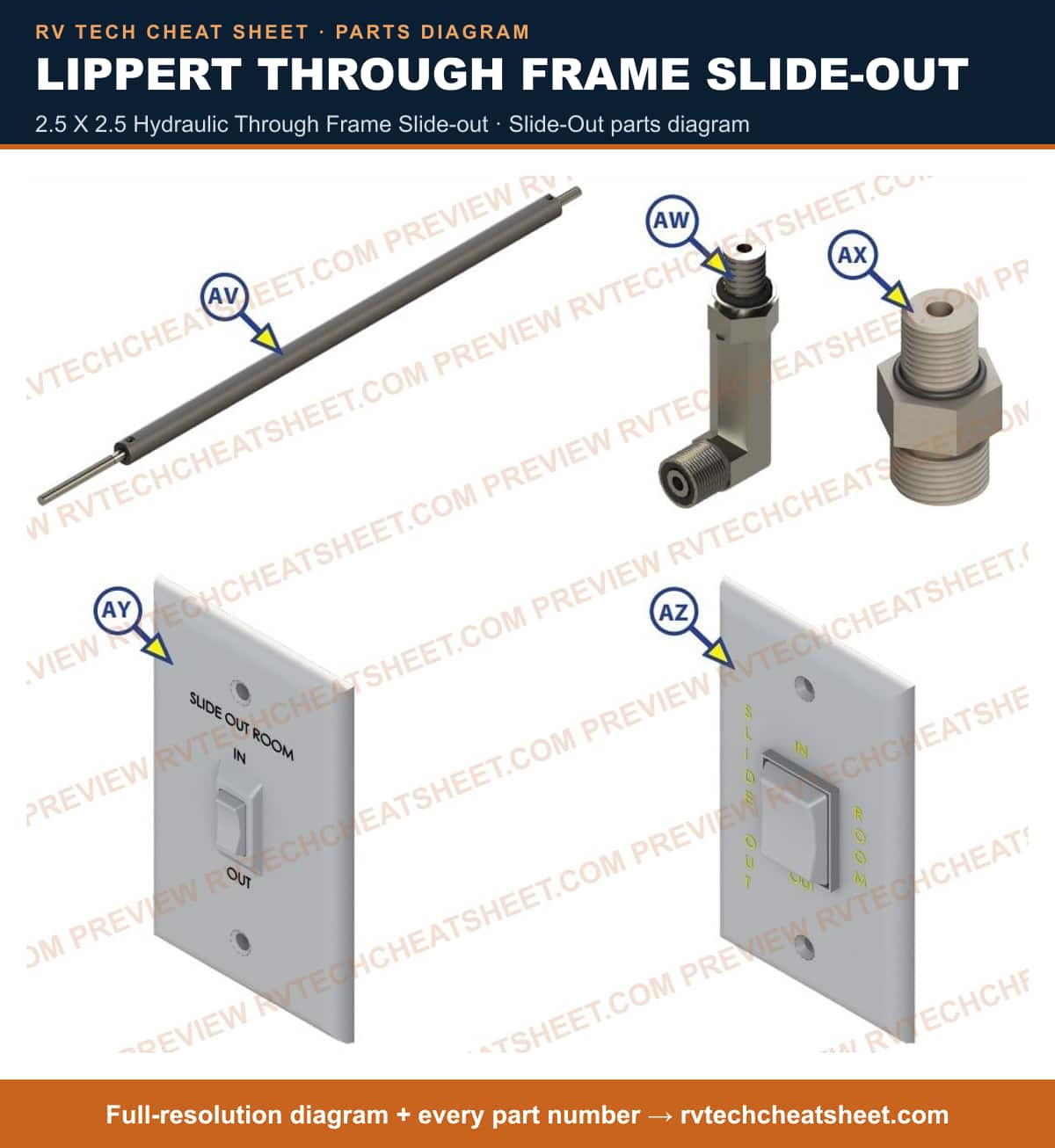

Components

62 items

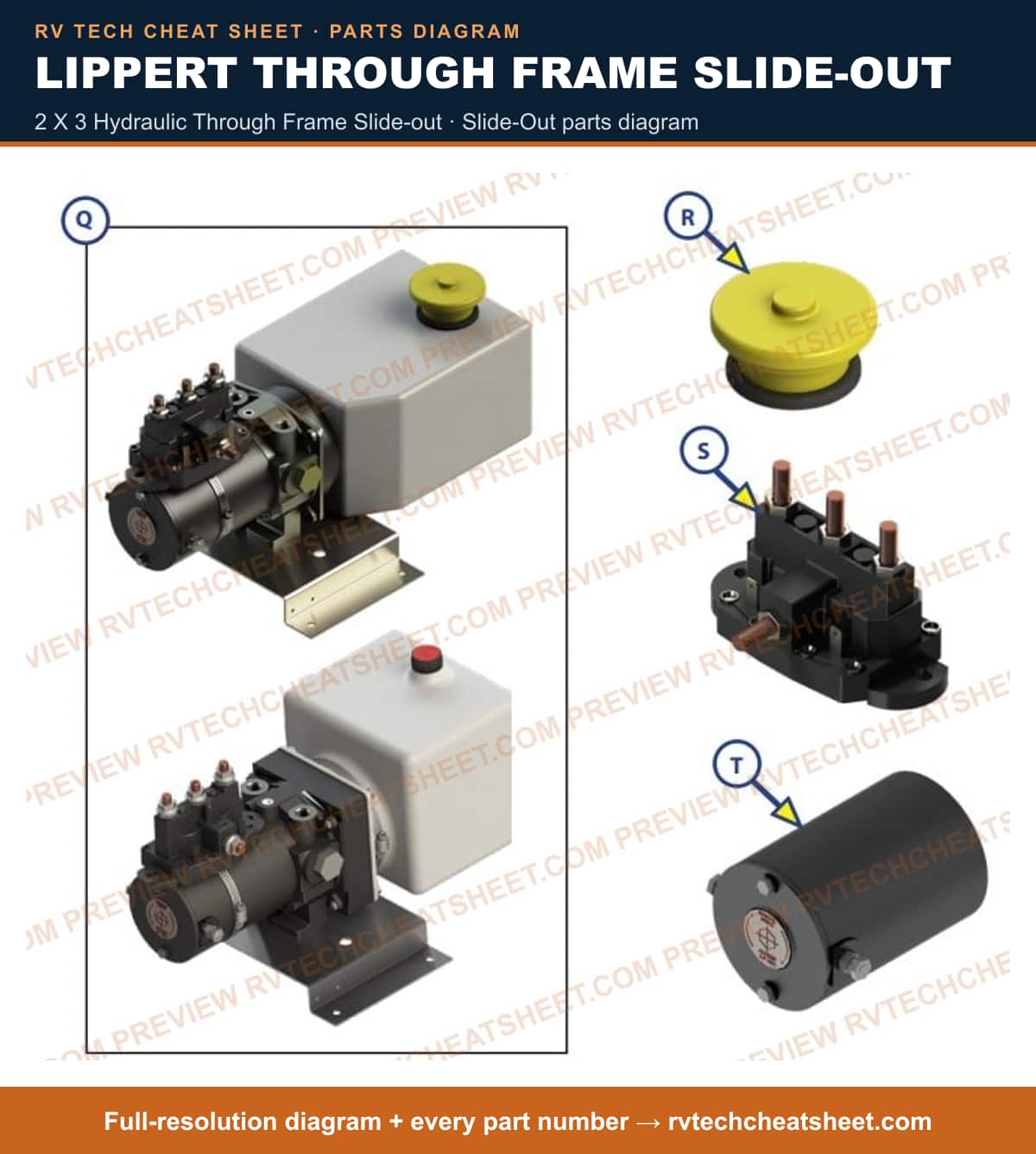

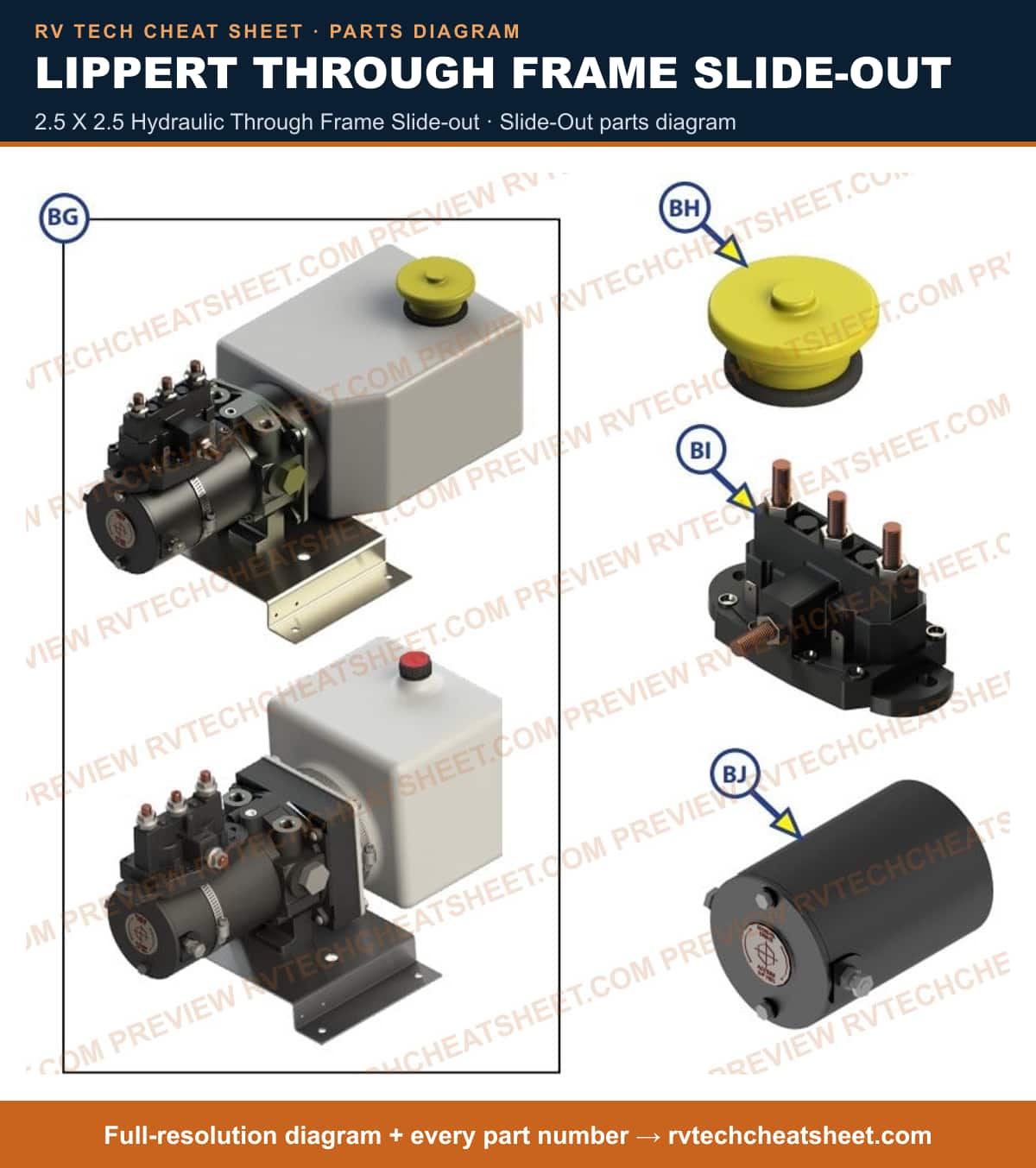

1. #Yellow Fill Cap MFR # 157505
2. #Power Unit Motor MFR # 167576
3. #Most commonly used in Lippert hydraulic slide-out systems, this hydraulic power unit is a staple. Additionally, you can purchase the 2-qt. pump reservoir kit and the yellow fill cap separately. MFR # 141111
4. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn't functioning like it should. That's why, at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 118246
5. #Nut, 1/4" - 20 MFR # 118092
6. #Inner Cross Shaft MFR # 117606
7. #Outer Cross Shaft MFR # 117630
8. #Bolt, 1/4" - 20 x 2" MFR # 119066
9. #Cross Shaft Insert MFR # 123365
10. #Hydraulic Cylinder (30" Stroke) MFR # 354178
11. #When it comes to replacement parts for your RV, finding the right match for your rig is easy with Lippert. Our genuine replacement parts help you take the guesswork out of getting your RV up and running like usual. MFR # 342328
12. #6 Prong Interior Switch with Wall Plate MFR # 140530
13. #O-Ring Face Seal Elbow Fitting MFR # 173738
14. #Our replacement In/Out switch assembly will help you get your RV's In-Wall® slide-out back in business. As an exact-match part, this interior switch assembly installs just like your original equipment with no assembly required. MFR # 120639
15. #CSTM NON LIT SEVLE 98-04 MFR # 339031
16. #O-Ring Face Seal Straight Fitting MFR # 141109
17. #Hydraulic Cylinder (43" Stroke) MFR # 354184
18. #Inboard Outer Arm (Drive) OBSOLETE MFR # 143677
19. #Inboard Inner Arm (15 Tooth) MFR # 143710
20. #Inboard Inner Arm (18 Tooth) MFR # 296121
21. #Inboard Inner Arm (18 Tooth) MFR # 334648
22. #Outboard Outer Arm (Idler) MFR # 143674
23. #Outboard Inner Arm (15 Tooth) MFR # 143707
24. #Outboard Inner Arm (18 Tooth w/ Rear Roller) MFR # 334647
25. #Outboard Inner Arm (No Rear Roller) OBSOLETE MFR # 317322
26. #Flush Adjustable, Tall & Extended Head Assembly MFR # 124000
27. #Flush Adjustable, Tall & Extended Head Assembly MFR # 123999
28. #Flush Fixed Head Assembly MFR # 118127
29. #1 3/8" Fixed Head Assembly MFR # 145389
30. #1 3/8" Fixed Head Assembly MFR # 151475
31. #Flush Adjustable Head Assembly MFR # 119157
32. #Flush Fixed, Tall & Extended Head Assembly MFR # 145388
33. #Flush Fixed, Tall & Extended Head Assembly MFR # 151474

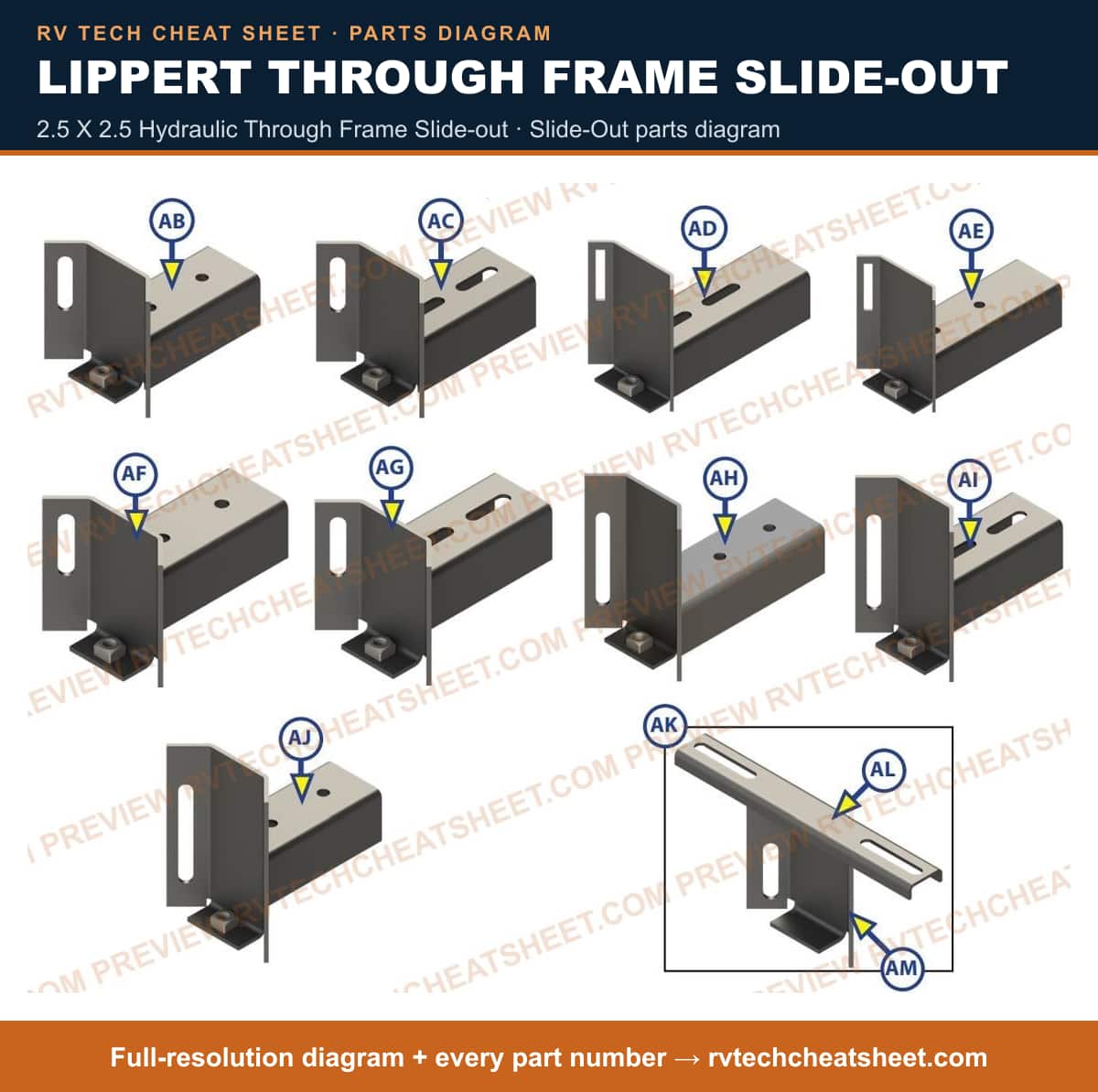

34. #Room Bar Mounting Assembly MFR # 180461
35. #Room Bar Bracket MFR # 105966
36. #1 3/8" Adjustable Head Assembly MFR # 146612
37. #Slide-Out Mounting Bracket MFR # 103139
38. #Stiffener MFR # 102357
39. #Adjustable Head Assembly (1 1/4") MFR # 122854
40. #Adjustable Flush Head Assembly MFR # 119047
41. #Flush Floor End Condition MFR # 166536
42. #Slide-Out Mounting Bracket MFR # 104851
43. #Fixed Head Assembly (1 1/4") MFR # 122855
44. #Slide Head Assembly (12" Room Bar) MFR # 226347
45. #Fixed Flush Head Assembly MFR # 119048
46. #Room Bar (Use for up to 80") MFR # 183949 Superseded: see description
47. #Room Bar (Use for 81" to 154") MFR # 183950 Superseded: see description
48. #Rear Roller Shaft MFR # 105892
49. #18 Tooth Gear (12 DP/ 14.50 PA) MFR # 122739
50. #Our slide-out wear tabs will help you get your RV's inboard or outboard electric/hydraulic slide-out system back in operation. This easy-to-install replacement wear tab is exactly like your RV's original equipment, helping you take the guesswork out of finding the right parts for your rig. MFR # 103480
51. #Wear Tab (for 317322 Outboard Inner Arm) MFR # 277882
52. #Rear Roller MFR # 104474
53. #Rear Cylinder Bracket MFR # 106040
54. #Trim Plate MFR # 106030
55. #Front Cylinder Bracket MFR # 113535
56. #Rod, 2.5 X 2.5 Drive Shaft MFR # 296415
57. #Rod, 2.5 X 2.5 Drive Shaft Latch, Heavy Duty MFR # 124150
58. #15 Tooth Gear (10DP/20PA), Heavy Duty MFR # 328044
59. #Bearing Side Plate, Graphite - 4.000 X 1.641 MFR # 372865
60. #2.5 X 2.5 Gear Pack Roller - .625 X 2.365 MFR # 288625
61. #Steel 2.5 X 2.5 Gear Pack Roller - .625 X 2.365 MFR # 101256
62. #15 Tooth Gear (10DP/20PA) MFR # 700612

2.5 X 2.5 Electric Through Frame

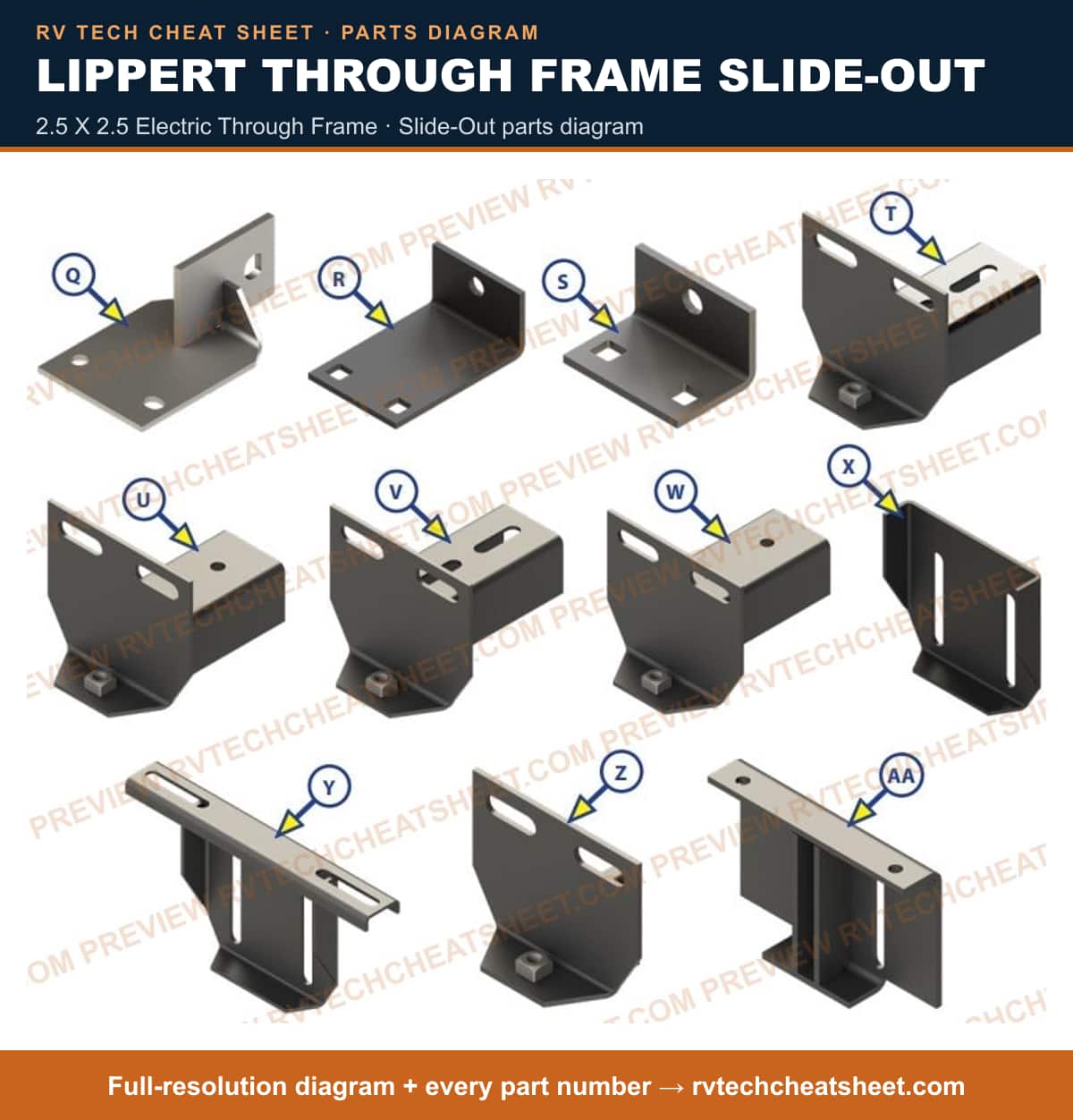

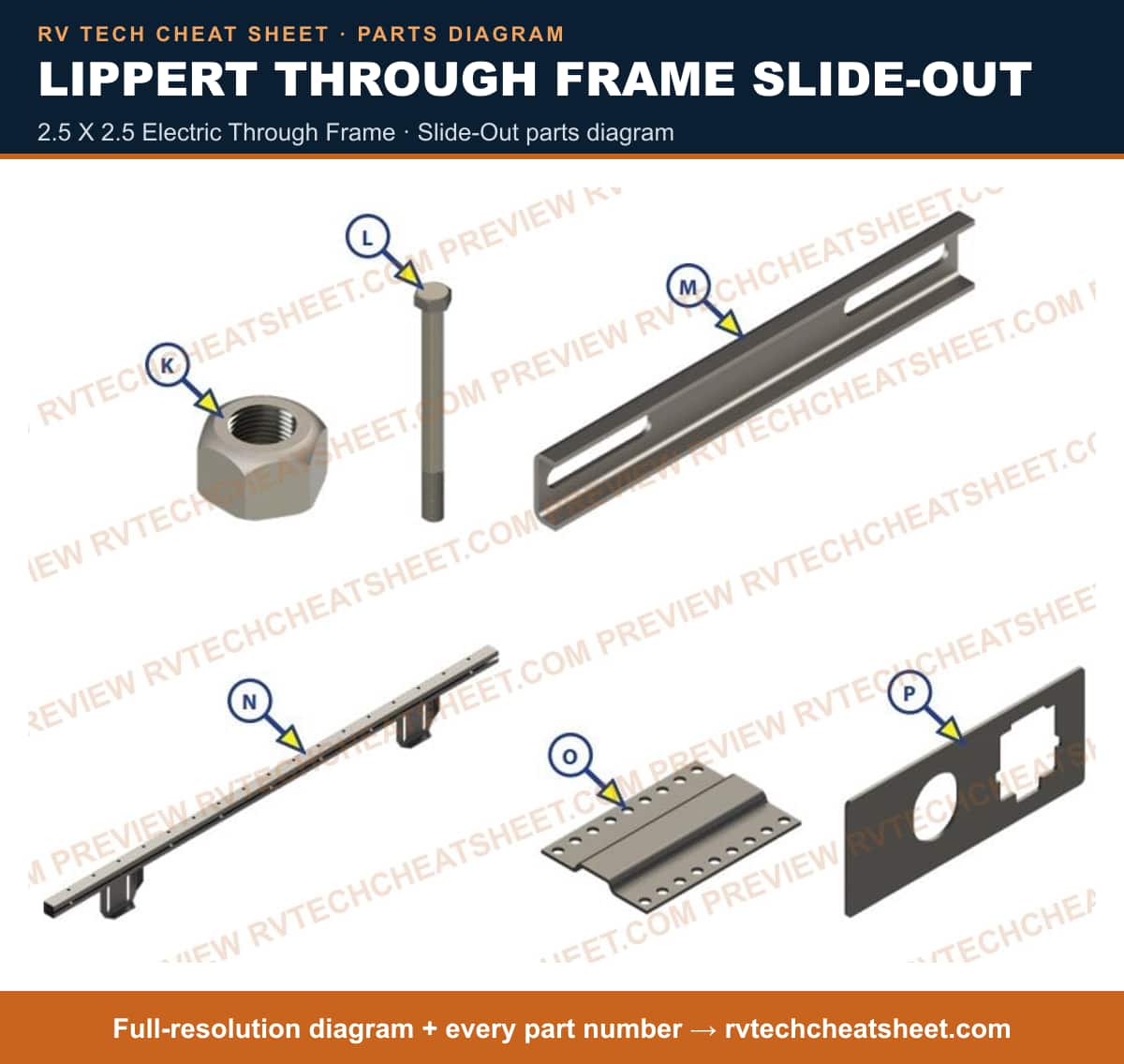

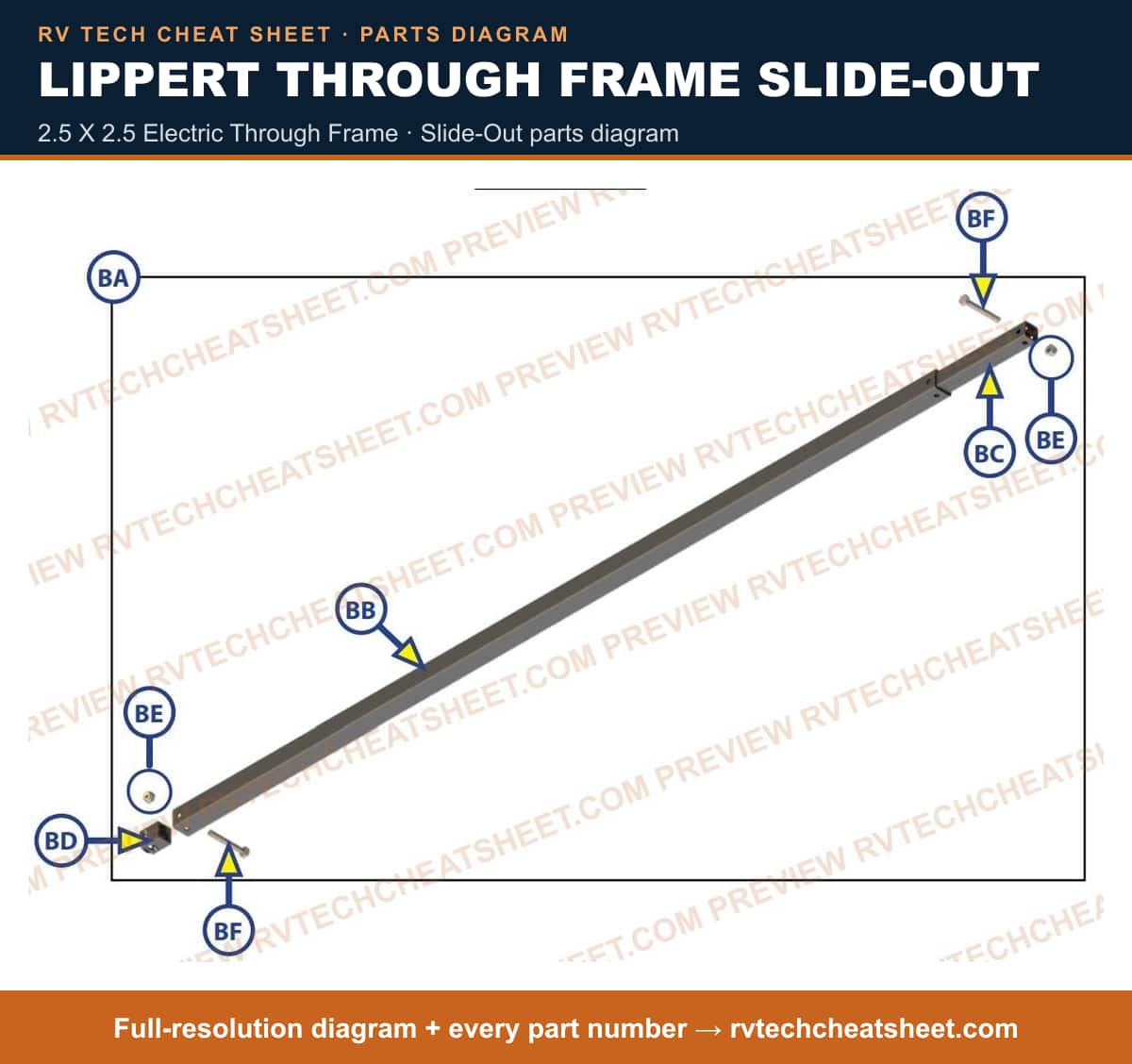

Components

81 items

1. #15 Tooth Gear (10DP/20PA), Heavy Duty MFR # 328044
2. #Our slide-out wear tabs will help you get your RV's inboard or outboard electric/hydraulic slide-out system back in operation. This easy-to-install replacement wear tab is exactly like your RV's original equipment, helping you take the guesswork out of finding the right parts for your rig. MFR # 103480
3. #15 Tooth Spur Gear MFR # 101941
4. #Rear Roller Shaft MFR # 105892
5. #Rear Roller MFR # 104474
6. #AUTOLOC BULL HORN MFR # 122840
7. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 123356
8. #Our replacement 15-tooth gear pack assembly will help you get your RV's Through-Frame slide-out back in business. As an exact-match part, this standard gear assembly installs just like your original equipment with no assembly required. MFR # 324869
9. #Wear Tab (for 317322 Outboard Inner Arm) MFR # 277882
10. #18 Tooth Gear (12 DP/ 14.50 PA) MFR # 122739
11. #Room Bar Bracket MFR # 105966
12. #Hat MFR # 105965
13. #Gear Pack Mounting Nut 3/8" - 16 MFR # 119073
14. #Room Bar (Use for up to 80") MFR # 183949 Superseded: see description
15. #Gear Pack Mounting Bolt 3/8" - 16 x 4 1/2" MFR # 351909
16. #Trim Plate MFR # 1164401
17. #Room Bar (Use for 81" to 154") MFR # 183950 Superseded: see description
18. #Slide-Out Mounting Bracket MFR # 104851
19. #Slide Head Assembly (12" Room Bar) MFR # 226347
20. #Fixed Flush Head Assembly MFR # 119048
21. #Adjustable Head Assembly (1 1/4") MFR # 122854
22. #Left Mounting Bracket MFR # 105961
23. #Front Actuator Mounting Bracket MFR # 122852
24. #Right Mounting Bracket MFR # 105962
25. #Adjustable Flush Head Assembly MFR # 119047
26. #Flush Floor Head Assembly MFR # 158744
27. #Flush Floor End Condition MFR # 166536
28. #Fixed Head Assembly (1 1/4") MFR # 122855
29. #Inboard Inner Arm (15 Tooth) MFR # 143710
30. #Outboard Inner Arm (18 Tooth w/ Rear Roller) MFR # 334647
31. #Inboard Outer Arm (Drive) OBSOLETE MFR # 143677
32. #Inboard Inner Arm (18 Tooth) MFR # 334648
33. #Inboard Inner Arm (18 Tooth) MFR # 296121
34. #Outboard Inner Arm (15 Tooth) MFR # 143707
35. #Outboard Outer Arm (Idler) MFR # 143674
36. #M-150N Motor MFR # 138448
37. #Klauber F-300 MFR # 321395
38. #RecPro Actuator & 18:1 Motor (40") MFR # RP-785615
39. #Our replacement 28:1 Venture replacement motor will help you get your RV's Through-Frame slide-out back in business. As an exact-match part, this motor installs just like your original equipment with no assembly required. MFR # 136373
40. #F-350 Motor MFR # 143701
41. #AP Products Aftermarket - Replacement Slide Out Motor; D-300 MFR # 014-138449
42. #AP Products Aftermarket - Slide Out Motor; 2-1/2 Inch Inner Gear; 28:1 Venture Actuator Motor MFR # 014-136373
43. #H-350 Motor MFR # 325502
44. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 132682
45. #AP Products Aftermarket - Slide Out Motor; 2-1/4 Inch Inner Gear; 18:1 Venture Actuator Motor MFR # 014-132682
46. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 125802
47. #Klauber E-300 Motor (OBSOLETE) MFR # 140201
48. #AP Products Aftermarket - Slide Out Motor; 9000 RPM; 18:1 Motor MFR # 014-125802
49. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 138449
50. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 145595
51. #Venture Actuator and 18:1 Motor (43") MFR # 404683
52. #3 Venture Replacement Gear Set 28:1 MFR # 191073
53. #Tuson 18:1 Actuator & Motor (24") MFR # 145185
54. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 168956
55. #Need a replacement motor for your Lippert® Through-Frame Slide-Out? This dependable and durable motor will get your slide-out back in action and provide reliable operation for years to come! To ensure you order the correct motor for your slide-out, please get specifications from your systems current motor label and order accordingly. 18:1 Venture Motor and Venture Actuator also available for individual purchase. MFR # 122747
56. #Venture Actuator and 28:1 Motor (43") MFR # 158457
57. #AP Products Aftermarket - Venture Replacement gear set 18:1 MFR # 014-191072
58. #Venture Actuator and 18:1 Motor (40") MFR # 119129
59. #AP Products Aftermarket - 18:1 Actuator Only (40") MFR # 014-145595
60. #Venture Replacement Gear Set 18:1 MFR # 191072
61. #AP Products Aftermarket - High Speed Actuator and 18:1 Motor (40'') MFR # 014-168956
62. #Actuator Replacement Rod MFR # 157488
63. #Need a replacement motor for your Lippert® Through-Frame Slide-Out? This dependable and durable motor will get your slide-out back in action and provide reliable operation for years to come! To ensure you order the correct motor for your slide-out, please get specifications from your systems current motor label and order accordingly. 18:1 Venture Motor and Venture Actuator also available for individual purchase. MFR # 119128
64. #Venture Replacement Gear Set 58:1 MFR # 191074
65. #Cross Shaft Insert MFR # 123365
66. #Outer Cross Shaft MFR # 117630
67. #Inner Cross Shaft MFR # 117606
68. #Slide-Out Cross Shaft Assembly MFR # 157523
69. #Nut, 1/4" - 20 MFR # 118092
70. #Bolt, 1/4" - 20 x 2" MFR # 119066
71. #This replacement standard manual stabilizer crank handle will raise or lower your manual or electric stabilizers with ease. This durable crank handle will give you peace of mind at the campsite should a power failure occur, causing you to retract your electric jacks manually. This crank requires no assembly and is universal for all Lippert manual and electric stabilizers. This same handle is also used for our 5th wheel landing gear jacks, both power and manual. MFR # 119226
72. #Switch Plate (Black) MFR # 117419
73. #Switch Plate (White) MFR # 117420
74. #Switch (Black) MFR # 117426
75. #Our replacement switch assembly will help you get your RV's Above-Floor or Through-Frame slide-out back in business. As an exact-match part, this switch assembly installs just like your original equipment with no assembly required. This switch will allow you to extend and retract your slide-out with a push of a button! The "new" style switch configuration was installed in Lippert slide-out mechanisms after May of 2006. In order to figure out what switch assembly to order, look at the switch configuration on your harness. Replacement white switch and bezel also available on their own. MFR # 117460
76. #Our replacement switch assembly will help you get your RV's Above-Floor or Through-Frame slide-out back in business. As an exact-match part, this switch assembly installs just like your original equipment with no assembly required. This switch will allow you to extend and retract your slide-out with a push of a button! The "new" style switch configuration was installed in Lippert slide-out mechanisms after May of 2006. In order to figure out what switch assembly to order, look at the switch configuration on your harness. Replacement white switch and bezel also available on their own. MFR # 117461
77. #AP Products Aftermarket - Manual Crank Handle MFR # 014-119226
78. #Switch Wire Harness MFR # 178436
79. #Switch (White) MFR # 129003
80. #Wire Harness MFR # 135696
81. #Our replacement controller assembly will help you get your RV's Above-Floor or Through-Frame slide-out back in business. As an exact-match part, this controller installs just like your original equipment with no assembly required. MFR # 135666

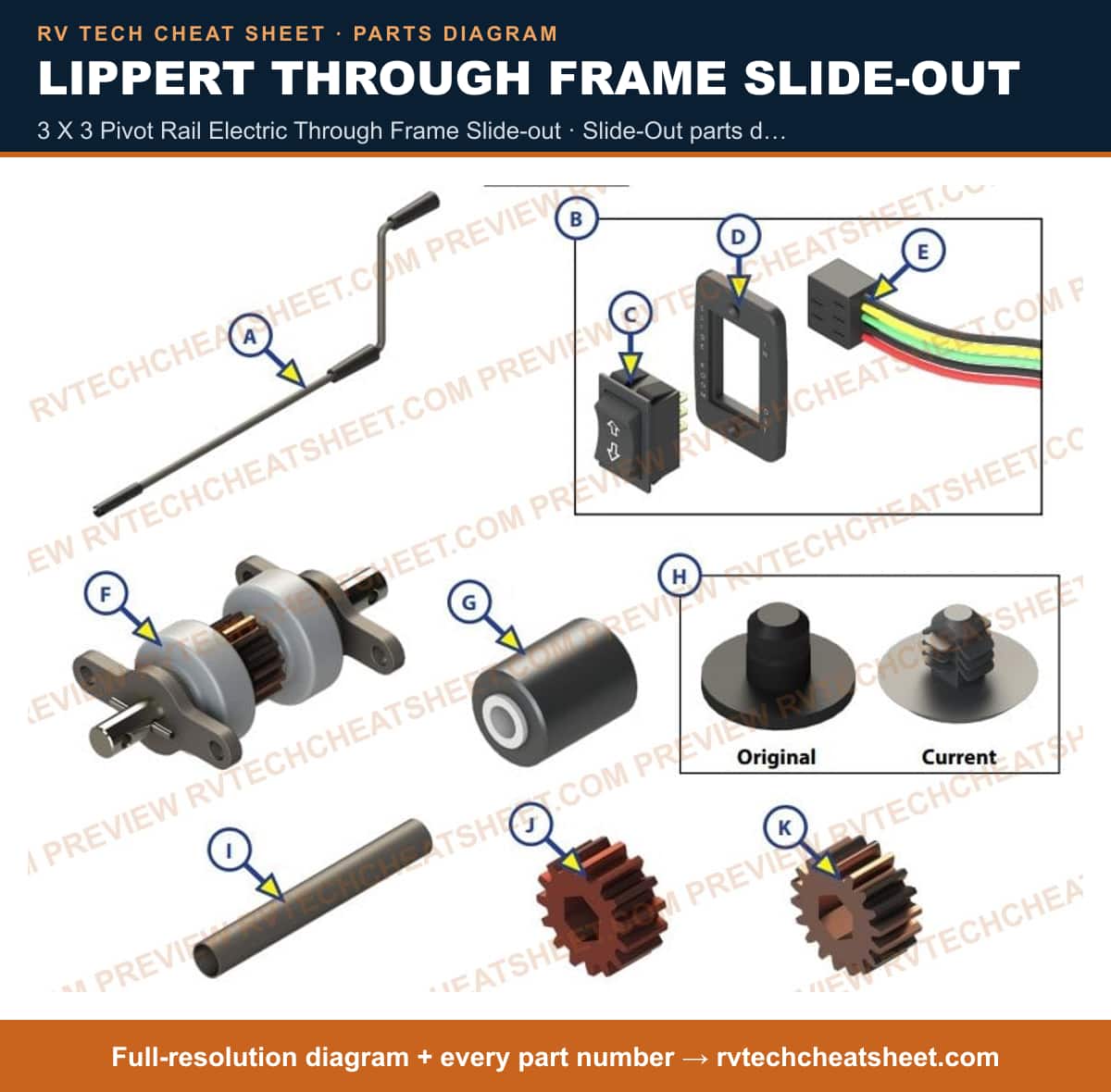

3 X 3 Pivot Rail Electric Through Frame Slide-out

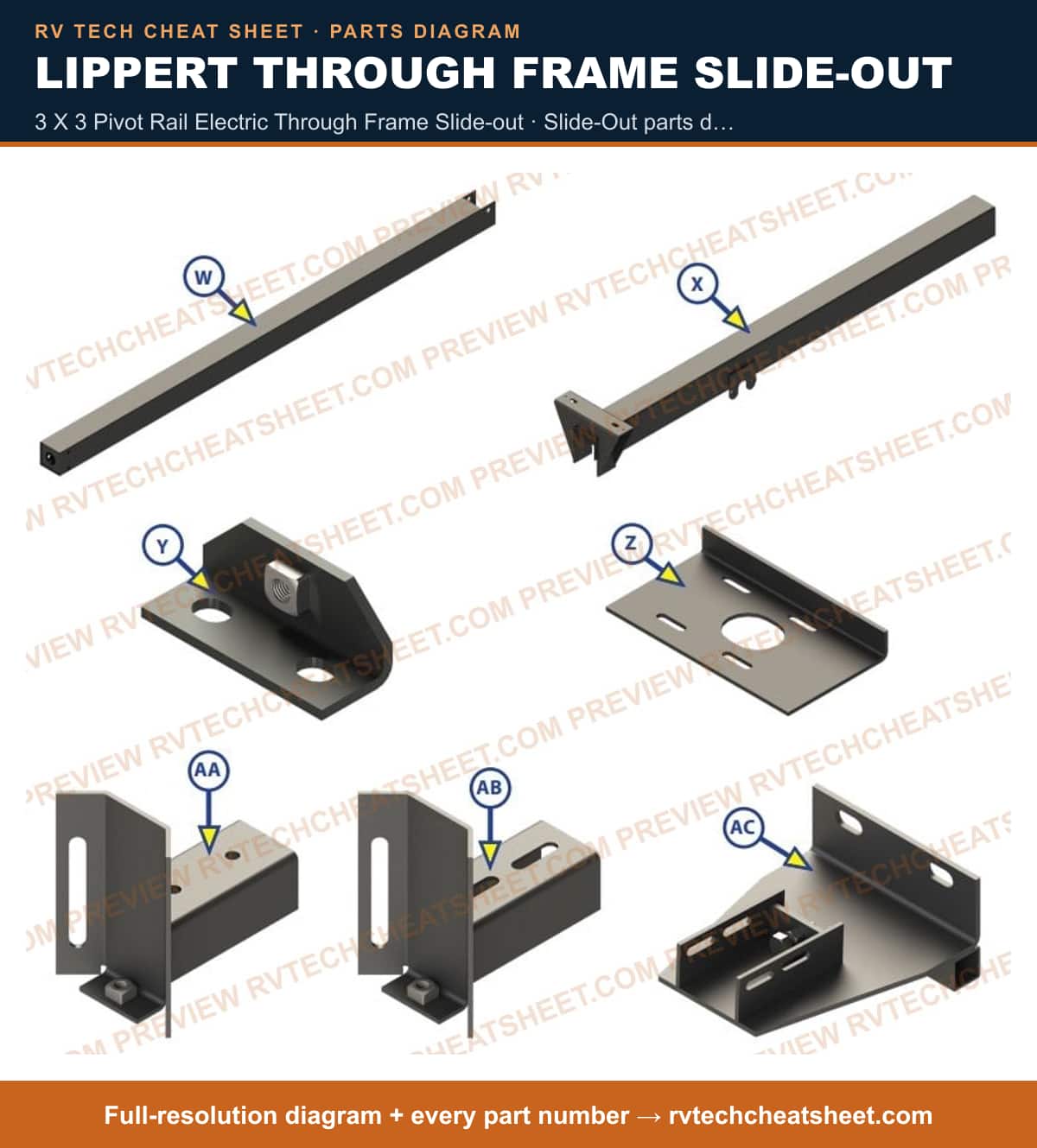

Components

28 items

1. #Motor Bracket MFR # 141583
2. #Pivot/Full Wall Inner Arm MFR # 153935
3. #1" Drop Adjustable Head Assembly Tall and Extended MFR # 301865
4. #Full Wall Head Assembly MFR # 142510
5. #Pivot/Full Wall Outer Arm (OBSOLETE) MFR # 177837
6. #1" Drop Fixed Head Assembly Tall and Extended MFR # 301874
7. #Timing Disk, Inner Cross Shaft (OBSOLETE) MFR # 229347
8. #Inner Cross Shaft Tube MFR # 180638
9. #Nylon Insert Lock Nut; 1/4" - 20 MFR # 118042
10. #Timing Plate MFR # 105482
11. #Cross Shaft Adapter MFR # 102674
12. #Cross Shaft Kit - 35/32 MFR # 166045
13. #Timing Disk Assembly MFR # 115512
14. #Outer Cross Shaft Tube MFR # 180637
15. #Hex Flange Bolt; 1/4" - 20 x 3/4" MFR # 117916
16. #Cross Shaft Insert MFR # 123365
17. #Cross Shaft Kit - 40/38 MFR # 166046
18. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 138449
19. #Switch (Black) MFR # 117426
20. #Roller MFR # 101255
21. #Our slide-out wear tabs will help you get your RV's inboard or outboard electric/hydraulic slide-out system back in operation. This easy-to-install replacement wear tab is exactly like your RV's original equipment, helping you take the guesswork out of finding the right parts for your rig. MFR # 103480
22. #Our replacement switch assembly will help you get your RV's Above-Floor or Through-Frame slide-out back in business. As an exact-match part, this switch assembly installs just like your original equipment with no assembly required. This switch will allow you to extend and retract your slide-out with a push of a button! The "new" style switch configuration was installed in Lippert slide-out mechanisms after May of 2006. In order to figure out what switch assembly to order, look at the switch configuration on your harness. Replacement white switch and bezel also available on their own. MFR # 117460
23. #18 Tooth Gear (12 DP/ 14.50 PA) MFR # 122739
24. #Switch Wire Harness MFR # 178436
25. #This replacement standard manual stabilizer crank handle will raise or lower your manual or electric stabilizers with ease. This durable crank handle will give you peace of mind at the campsite should a power failure occur, causing you to retract your electric jacks manually. This crank requires no assembly and is universal for all Lippert manual and electric stabilizers. This same handle is also used for our 5th wheel landing gear jacks, both power and manual. MFR # 119226
26. #Our replacement 15-tooth gear pack assembly will help you get your RV's Through-Frame slide-out back in business. As an exact-match part, this standard gear assembly installs just like your original equipment with no assembly required. MFR # 140409
27. #Switch Plate (Black) MFR # 117419
28. #15 Tooth Spur Gear MFR # 101941

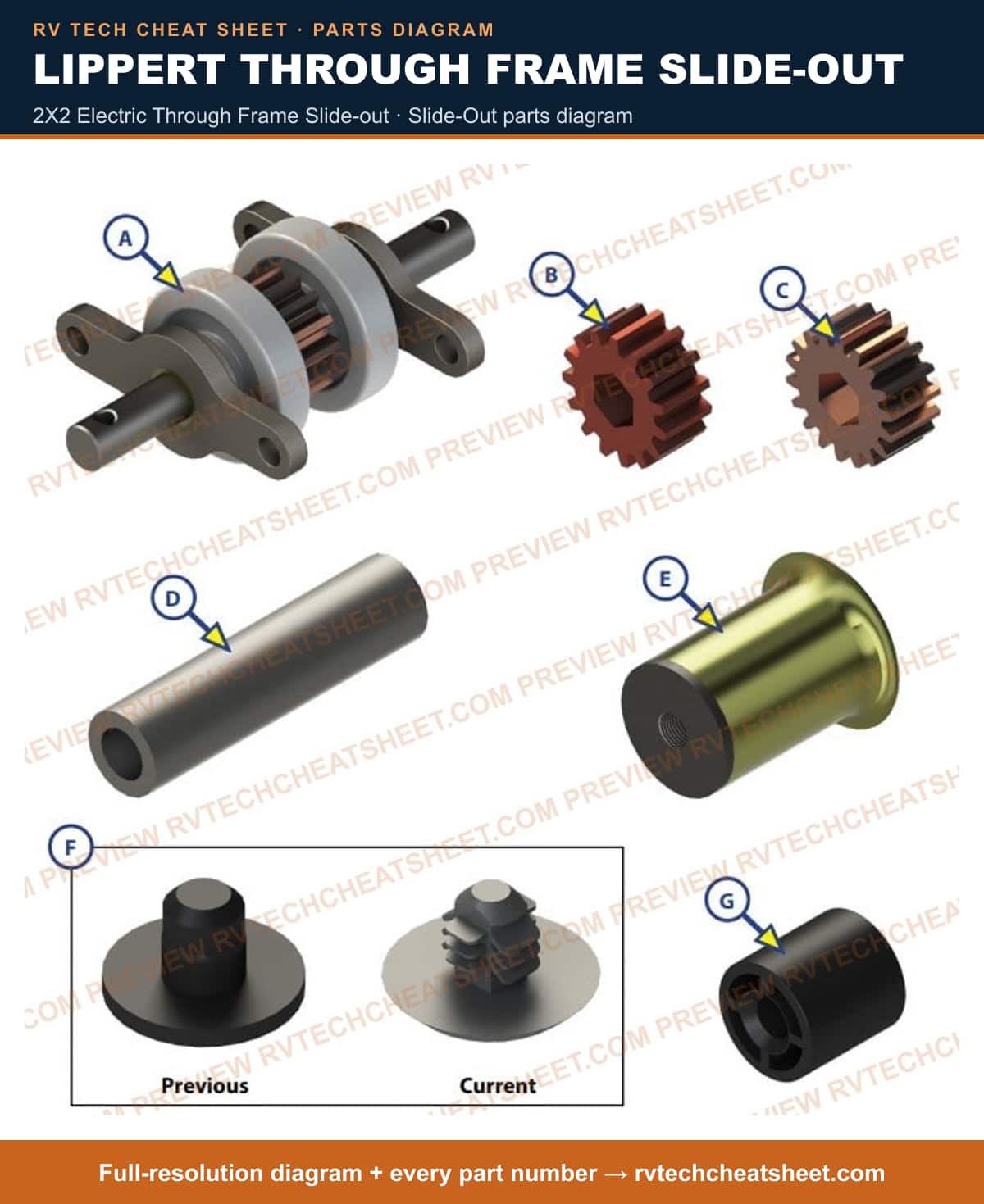

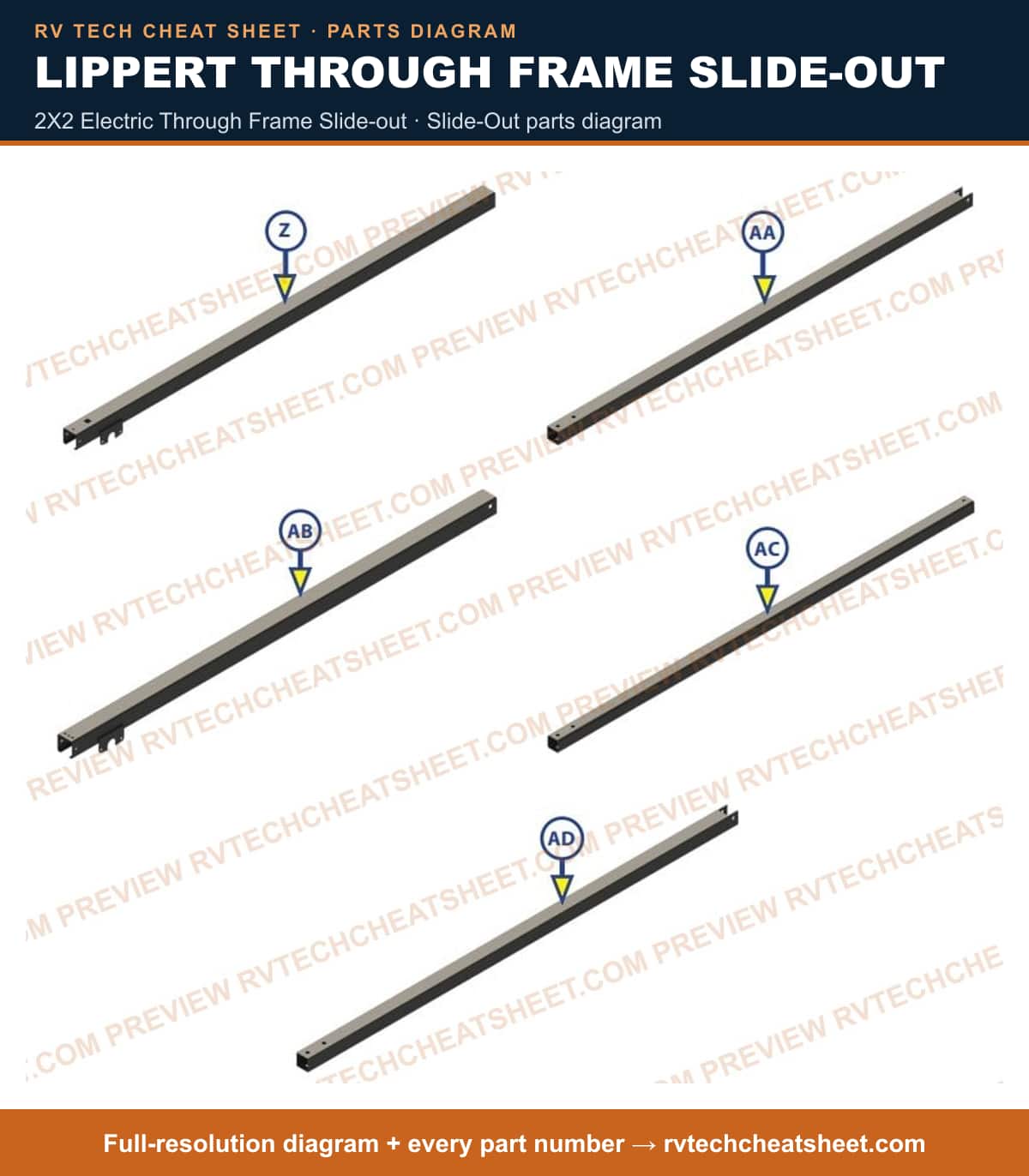

2X2 Electric Through Frame Slide-out

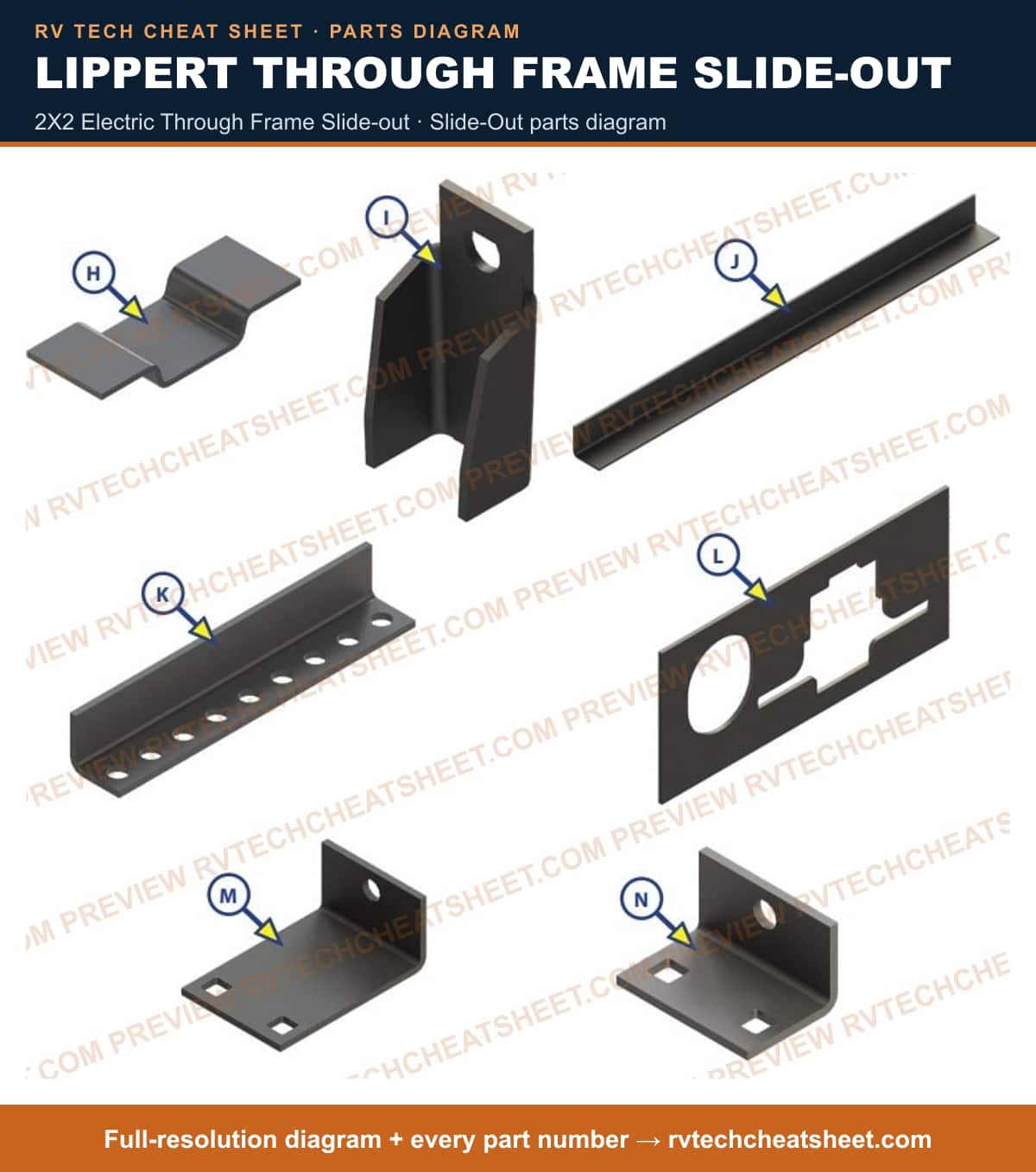

Components

70 items

1. #Switch Plate (Black) MFR # 117419
2. #Switch (Black) MFR # 117426
3. #Switch (White) MFR # 129003
4. #Switch Wire Harness MFR # 178436
5. #Switch Plate (White) MFR # 117420
6. #This replacement standard manual stabilizer crank handle will raise or lower your manual or electric stabilizers with ease. This durable crank handle will give you peace of mind at the campsite should a power failure occur, causing you to retract your electric jacks manually. This crank requires no assembly and is universal for all Lippert manual and electric stabilizers. This same handle is also used for our 5th wheel landing gear jacks, both power and manual. MFR # 119226
7. #Wire Harness MFR # 135696
8. #Our replacement switch assembly will help you get your RV's Above-Floor or Through-Frame slide-out back in business. As an exact-match part, this switch assembly installs just like your original equipment with no assembly required. This switch will allow you to extend and retract your slide-out with a push of a button! The "new" style switch configuration was installed in Lippert slide-out mechanisms after May of 2006. In order to figure out what switch assembly to order, look at the switch configuration on your harness. Replacement white switch and bezel also available on their own. MFR # 117461
9. #AP Products Aftermarket - Manual Crank Handle MFR # 014-119226
10. #Our replacement switch assembly will help you get your RV's Above-Floor or Through-Frame slide-out back in business. As an exact-match part, this switch assembly installs just like your original equipment with no assembly required. This switch will allow you to extend and retract your slide-out with a push of a button! The "new" style switch configuration was installed in Lippert slide-out mechanisms after May of 2006. In order to figure out what switch assembly to order, look at the switch configuration on your harness. Replacement white switch and bezel also available on their own. MFR # 117460
11. #Our replacement controller assembly will help you get your RV's Above-Floor or Through-Frame slide-out back in business. As an exact-match part, this controller installs just like your original equipment with no assembly required. MFR # 135666
12. #RecPro Actuator & 18:1 Motor (40") MFR # RP-785615
13. #AP Products Aftermarket - High Speed Actuator and 18:1 Motor (40'') MFR # 014-168956
14. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 145595
15. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 168956
16. #Venture Actuator and 18:1 Motor (43") MFR # 404683
17. #3 Venture Replacement Gear Set 28:1 MFR # 191073
18. #Venture Replacement Gear Set 18:1 MFR # 191072
19. #AP Products Aftermarket - 18:1 Actuator Only (40") MFR # 014-145595
20. #Need a replacement motor for your Lippert® Through-Frame Slide-Out? This dependable and durable motor will get your slide-out back in action and provide reliable operation for years to come! To ensure you order the correct motor for your slide-out, please get specifications from your systems current motor label and order accordingly. 18:1 Venture Motor and Venture Actuator also available for individual purchase. MFR # 119128
21. #Venture Actuator and 18:1 Motor (40") MFR # 119129
22. #Venture Actuator and 28:1 Motor (43") MFR # 158457
23. #AP Products Aftermarket - Venture Replacement gear set 18:1 MFR # 014-191072
24. #Need a replacement motor for your Lippert® Through-Frame Slide-Out? This dependable and durable motor will get your slide-out back in action and provide reliable operation for years to come! To ensure you order the correct motor for your slide-out, please get specifications from your systems current motor label and order accordingly. 18:1 Venture Motor and Venture Actuator also available for individual purchase. MFR # 122747
25. #Tuson 18:1 Actuator & Motor (24") MFR # 145185
26. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 125802
27. #M-150N Motor MFR # 138448
28. #AP Products Aftermarket - Slide Out Motor; 2-1/4 Inch Inner Gear; 18:1 Venture Actuator Motor MFR # 014-132682
29. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 132682
30. #Our replacement 28:1 Venture replacement motor will help you get your RV's Through-Frame slide-out back in business. As an exact-match part, this motor installs just like your original equipment with no assembly required. MFR # 136373
31. #AP Products Aftermarket - Replacement Slide Out Motor; D-300 MFR # 014-138449
32. #Klauber E-300 Motor (OBSOLETE) MFR # 140201
33. #AP Products Aftermarket - Slide Out Motor; 2-1/2 Inch Inner Gear; 28:1 Venture Actuator Motor MFR # 014-136373
34. #Klauber F-300 MFR # 321395
35. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 138449
36. #H-350 Motor MFR # 325502
37. #F-350 Motor MFR # 143701
38. #AP Products Aftermarket - Slide Out Motor; 9000 RPM; 18:1 Motor MFR # 014-125802
39. #2 x 2 Inboard Inner Tube (18 Tooth) MFR # 334650
40. #Inboard Outer Arm 70" (Idler and Drive) MFR # 159389
41. #Inboard Inner Arm (15 Tooth) MFR # 301393
42. #Inboard Inner Arm (15 Tooth) MFR # 163778
43. #Inboard Outer Arm 76" (Idler and Drive) MFR # 173204
44. #Inboard Outer Arm 69" (Idler and Drive) MFR # 161014
45. #2 x 2 Outboard Inner Tube (18 Tooth) MFR # 334649
46. #Outboard Inner Arm (15 Tooth) MFR # 296090
47. #Outboard Inner Arm (15 Tooth) MFR # 145736
48. #Outboard Outer Arm (Idler and Drive) MFR # 145734
49. #1 3/8" Adjustable Head Assembly MFR # 141792
50. #Slide-Out Mounting Bracket MFR # 104851
51. #Room Bar (Use for 81" to 154") MFR # 183950 Superseded: see description
52. #Standard Flush Fixed Head Assembly MFR # 173593
53. #Standard Flush Adjustable Head Assembly MFR # 173594
54. #Flush Adjustable Head Assembly MFR # 163049
55. #Standard Weld-On Head Assembly MFR # 159624
56. #Room Bar (Use for up to 80") MFR # 183949 Superseded: see description
57. #Trim Plate MFR # 131317
58. #Left Mounting Bracket MFR # 1059611
59. #Hat Channel MFR # 106059
60. #Right Mounting Bracket MFR # 1059621
61. #Front Actuator Mounting Bracket MFR # 134707
62. #Stiffener MFR # 102357
63. #Mounting Bracket MFR # 158814
64. #Rear Roller Shaft MFR # 105893
65. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 281331
66. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 123356
67. #Our slide-out wear tabs will help you get your RV's inboard or outboard electric/hydraulic slide-out system back in operation. This easy-to-install replacement wear tab is exactly like your RV's original equipment, helping you take the guesswork out of finding the right parts for your rig. MFR # 103480
68. #15 Tooth Spur Gear MFR # 101941
69. #Rear Roller MFR # 104475
70. #AUTOLOC BULL HORN MFR # 122840

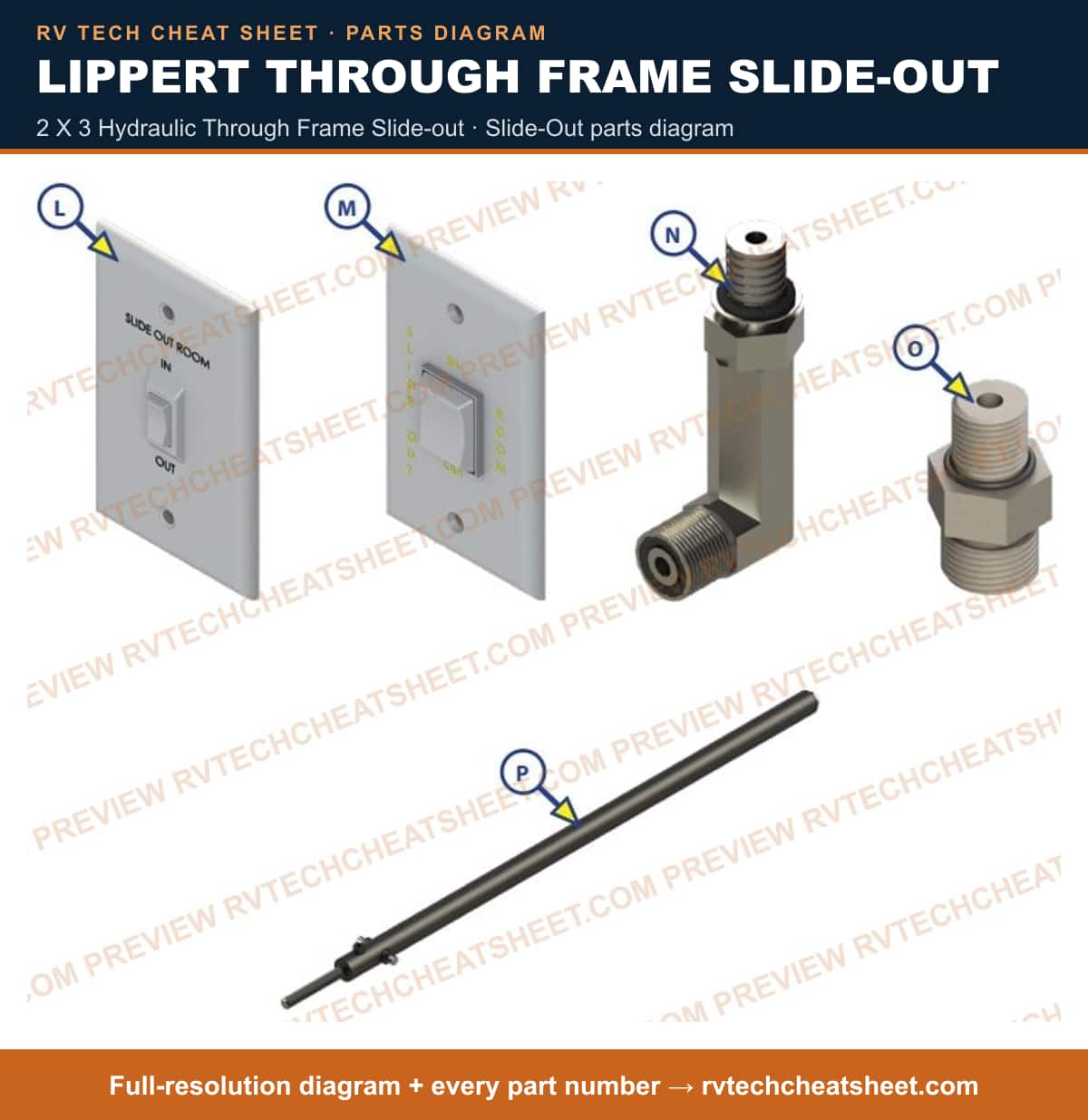

2 X 3 Hydraulic Through Frame Slide-out

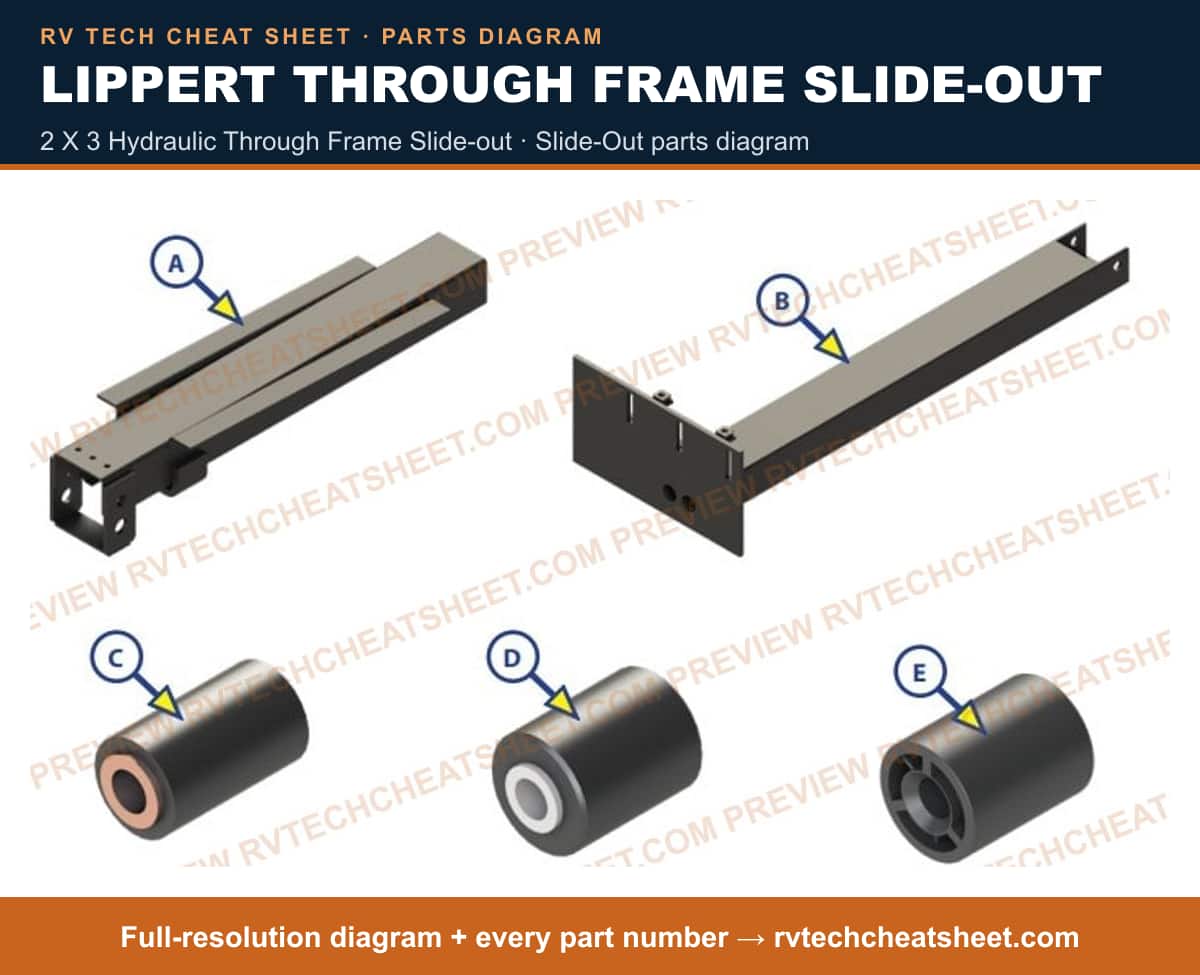

Components

25 items

1. #Most commonly used in Lippert hydraulic slide-out systems, this hydraulic power unit is a staple. Additionally, you can purchase the 2-qt. pump reservoir kit and the yellow fill cap separately. MFR # 141111
2. #Power Unit Motor MFR # 167576
3. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn't functioning like it should. That's why, at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 118246
4. #Yellow Fill Cap MFR # 157505
5. #O-Ring Face Seal Elbow Fitting MFR # 173738
6. #36 1/2" Hydraulic Cylinder MFR # 213750
7. #6 Prong Interior Switch with Wall Plate MFR # 140530
8. #Our replacement In/Out switch assembly will help you get your RV's In-Wall® slide-out back in business. As an exact-match part, this interior switch assembly installs just like your original equipment with no assembly required. MFR # 120639
9. #O-Ring Face Seal Straight Fitting MFR # 141109
10. #30 1/2" Hydraulic Cylinder MFR # 138720
11. #32 1/2" Hydraulic Cylinder MFR # 158499
12. #Rear Roller MFR # 104474
13. #36" Stroke Outer Arm Assembly MFR # 213654
14. #30" Full Wall Passive Arm Outer Assembly MFR # 203470
15. #16" Stroke Outer Arm Assembly MFR # 201709
16. #Roller Assembly (OBSOLETE) MFR # 135435
17. #31 1/2" Stroke Outer Arm Assembly MFR # 158564
18. #Roller MFR # 101255
19. #36" Stroke Inner Arm Assembly MFR # 213655
20. #30 1/2" Stroke Outer Arm Assembly MFR # 201708
21. #30" Full Wall Drive Arm Outer Assembly MFR # 203468
22. #16" Stroke Inner Arm Assembly MFR # 179024
23. #30" Full Wall Drive Arm Inner Assembly MFR # 157692
24. #31 1/2" Stroke Inner Arm Assembly MFR # 158565
25. #30 1/2" Stroke Inner Arm Assembly MFR # 179124

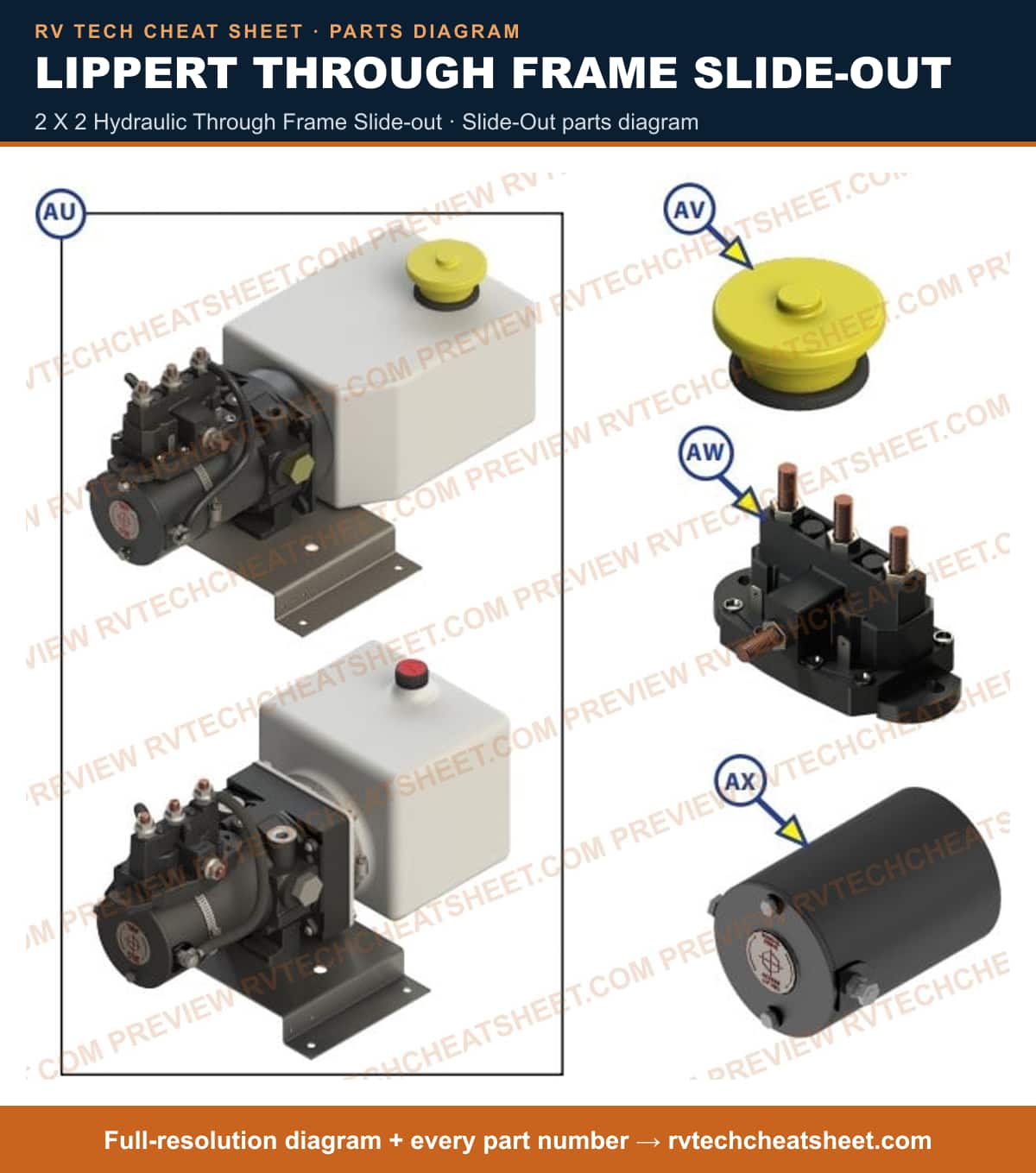

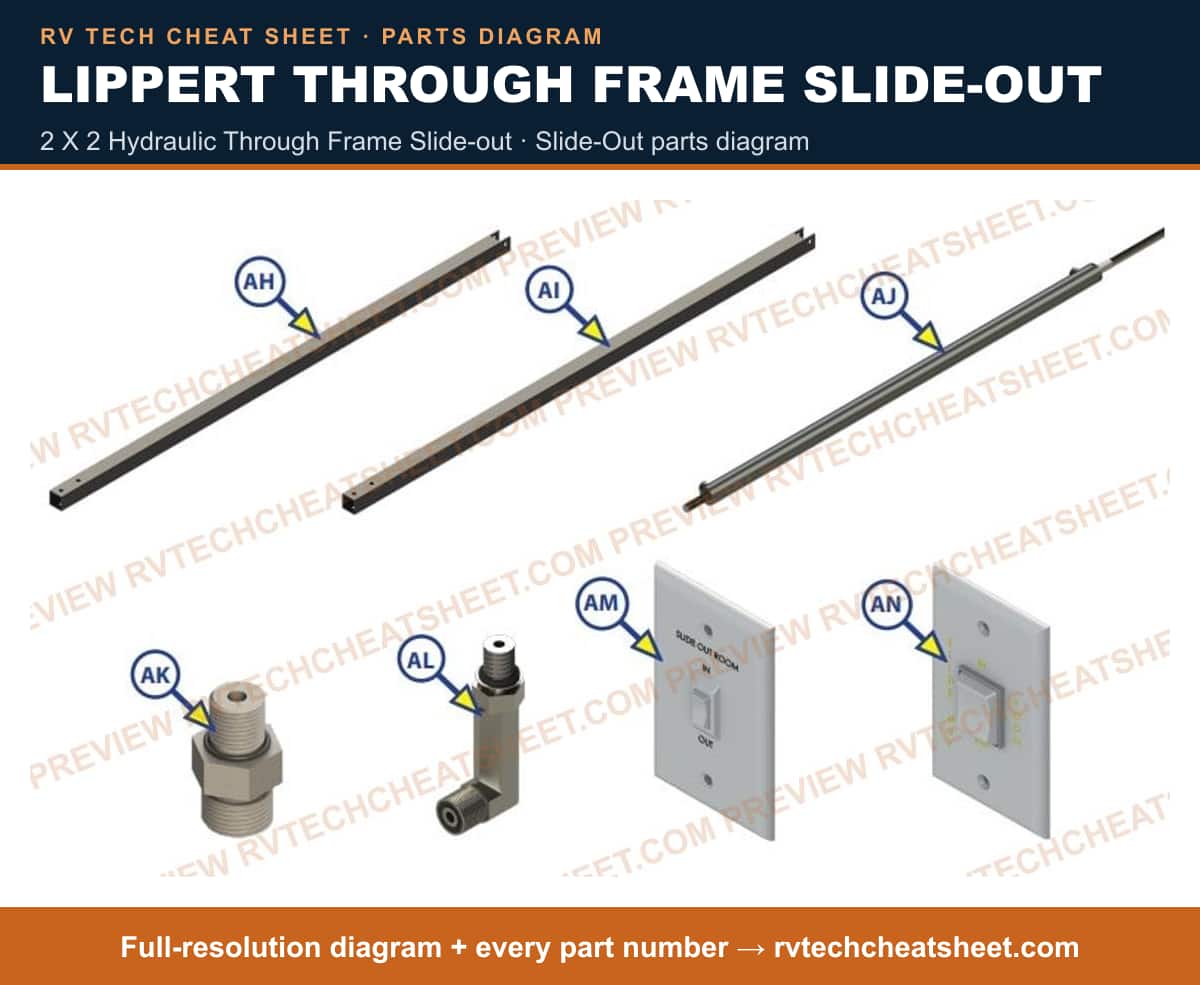

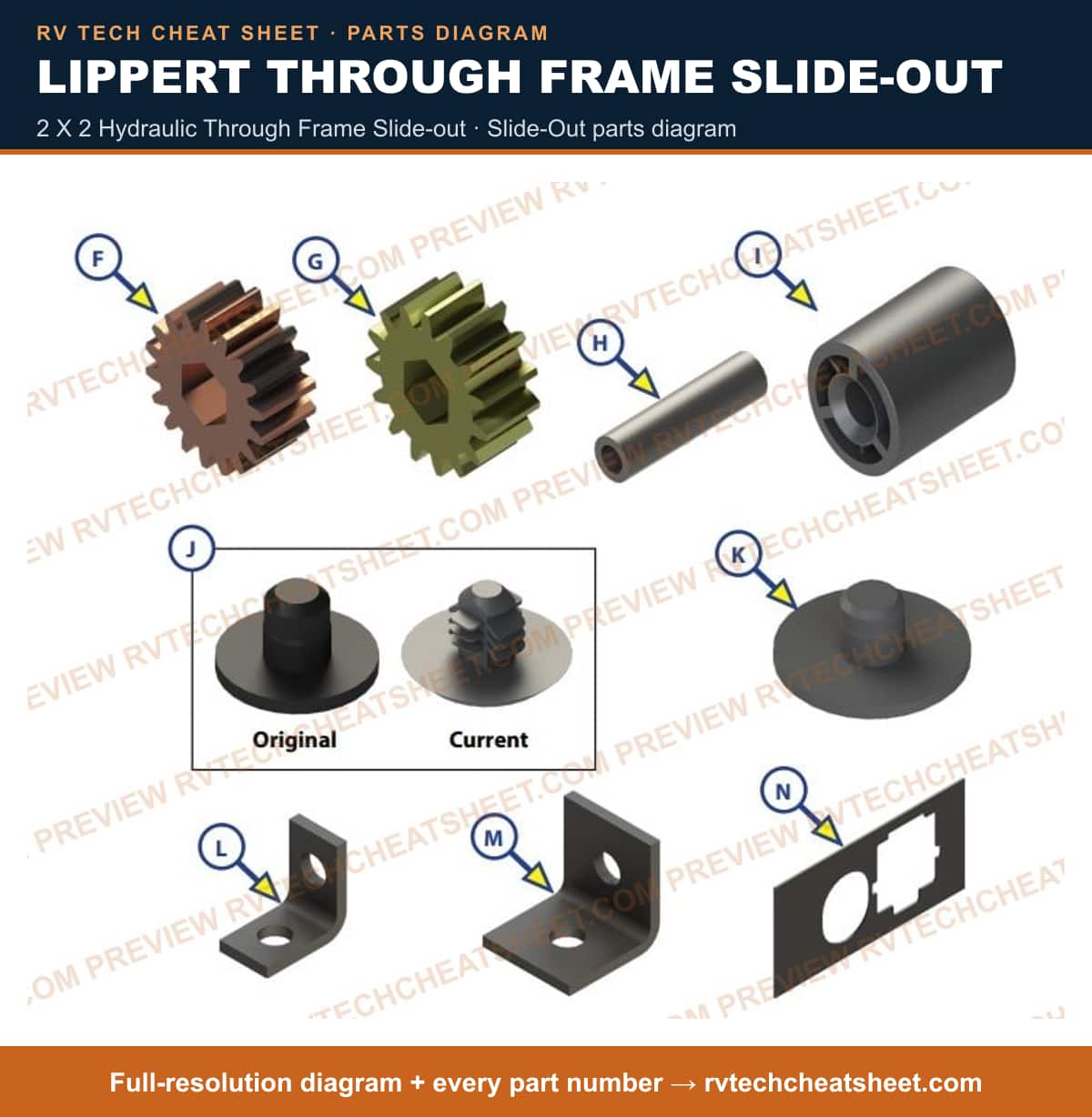

2 X 2 Hydraulic Through Frame Slide-out

Components

52 items

1. #Power Unit Motor MFR # 167576
2. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn't functioning like it should. That's why, at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 118246
3. #Yellow Fill Cap MFR # 157505
4. #Most commonly used in Lippert hydraulic slide-out systems, this hydraulic power unit is a staple. Additionally, you can purchase the 2-qt. pump reservoir kit and the yellow fill cap separately. MFR # 141111
5. #Cross Shaft Insert MFR # 123365
6. #Bolt, 1/4" - 20 x 2" MFR # 119066
7. #Nut, 1/4" - 20 MFR # 118092
8. #Outer Cross Shaft MFR # 117630
9. #Inner Cross Shaft MFR # 117606
10. #CSTM NON LIT SEVLE 98-04 MFR # 339031
11. #Hydraulic Cylinder (43" Stroke) MFR # 354184
12. #Hydraulic Cylinder 30" MFR # 354179
13. #2 x 2 Outboard Inner Tube (18 Tooth) MFR # 334649
14. #Our replacement In/Out switch assembly will help you get your RV's In-Wall® slide-out back in business. As an exact-match part, this interior switch assembly installs just like your original equipment with no assembly required. MFR # 120639
15. #When it comes to replacement parts for your RV, finding the right match for your rig is easy with Lippert. Our genuine replacement parts help you take the guesswork out of getting your RV up and running like usual. MFR # 342328
16. #O-Ring Face Seal Straight Fitting MFR # 141109
17. #2 x 2 Inboard Inner Tube (18 Tooth) MFR # 334650
18. #6 Prong Interior Switch with Wall Plate MFR # 140530
19. #O-Ring Face Seal Elbow Fitting MFR # 173738
20. #Inboard Inner Arm (15 Tooth) MFR # 301393
21. #Inboard Inner Arm (15 Tooth) MFR # 163778
22. #Outboard Inner Arm (15 Tooth) MFR # 296090
23. #Inboard Outer Arm 69" (Idler and Drive) MFR # 161014
24. #Outboard Inner Arm (15 Tooth) MFR # 145736
25. #Inboard Outer Arm 76" (Idler and Drive) MFR # 173204
26. #Outboard Outer Arm (Idler and Drive) MFR # 145734
27. #Inboard Outer Arm 70" (Idler and Drive) MFR # 159389
28. #Inboard Inner Arm (18 Tooth) MFR # 296121
29. #Outboard Inner Arm (No Rear Roller) OBSOLETE MFR # 317322
30. #Room Bar (Use for 81" to 154") MFR # 183950 Superseded: see description
31. #Slide-Out Mounting Bracket MFR # 104851
32. #Standard Weld-On Head Assembly MFR # 159624
33. #Flush Adjustable Head Assembly MFR # 163049
34. #Hat Channel MFR # 106059
35. #Stiffener MFR # 102357
36. #Standard Flush Adjustable Head Assembly MFR # 173594
37. #Standard Flush Fixed Head Assembly MFR # 173593
38. #Room Bar (Use for up to 80") MFR # 183949 Superseded: see description
39. #1 3/8" Adjustable Head Assembly MFR # 141792
40. #Our slide-out wear tabs will help you get your RV's inboard or outboard electric/hydraulic slide-out system back in operation. This easy-to-install replacement wear tab is exactly like your RV's original equipment, helping you take the guesswork out of finding the right parts for your rig. MFR # 103480
41. #18 Tooth Gear (12 DP/ 14.50 PA) MFR # 122739
42. #Trim Plate MFR # 106030
43. #Rear Roller MFR # 104474
44. #Rear Roller Shaft MFR # 105892
45. #15 Tooth Gear (10DP/20PA), Heavy Duty MFR # 328044
46. #Wear Tab (for 317322 Outboard Inner Arm) MFR # 277882
47. #Rear Cylinder Bracket MFR # 106040
48. #Front Cylinder Bracket MFR # 113535
49. #Rod, 2 X 2 Drive Shaft MFR # 271138
50. #2 X 2 Gear Pack Roller - .625 X 2.365 MFR # 271137
51. #15 Tooth Gear (10DP/20PA) MFR # 700612
52. #Bearing Side Plate, Graphite - 4.000 X 1.641 MFR # 372865

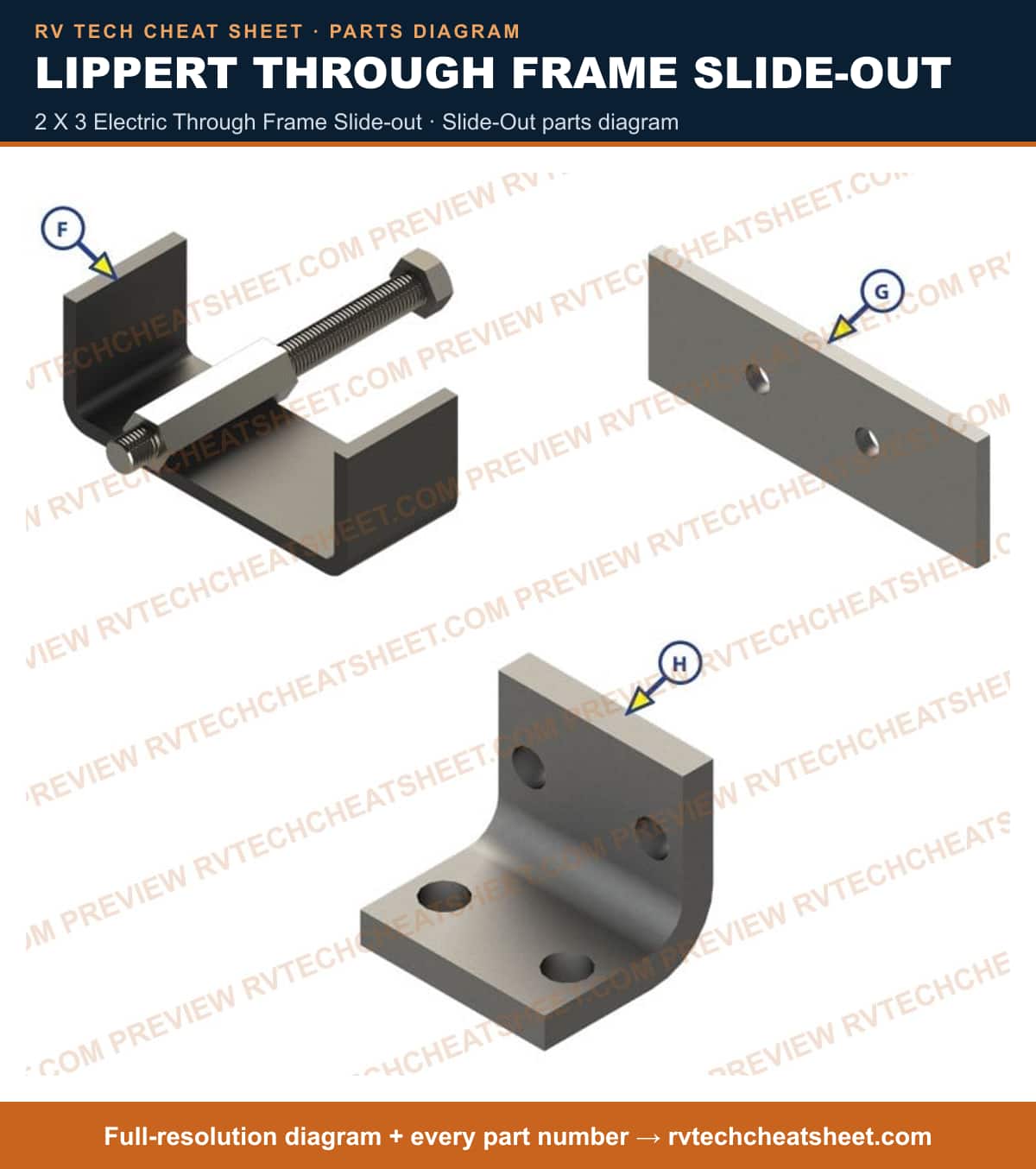

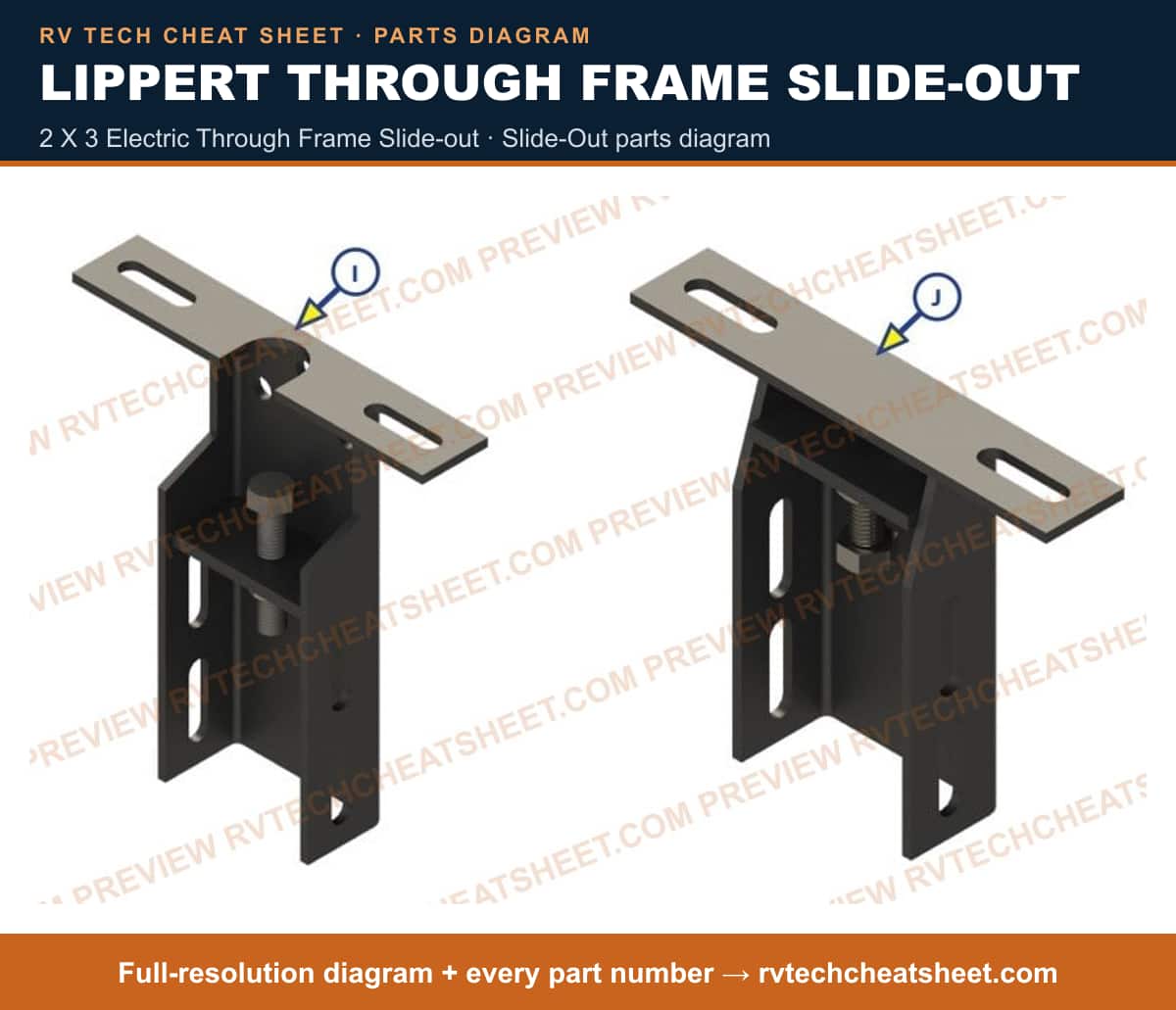

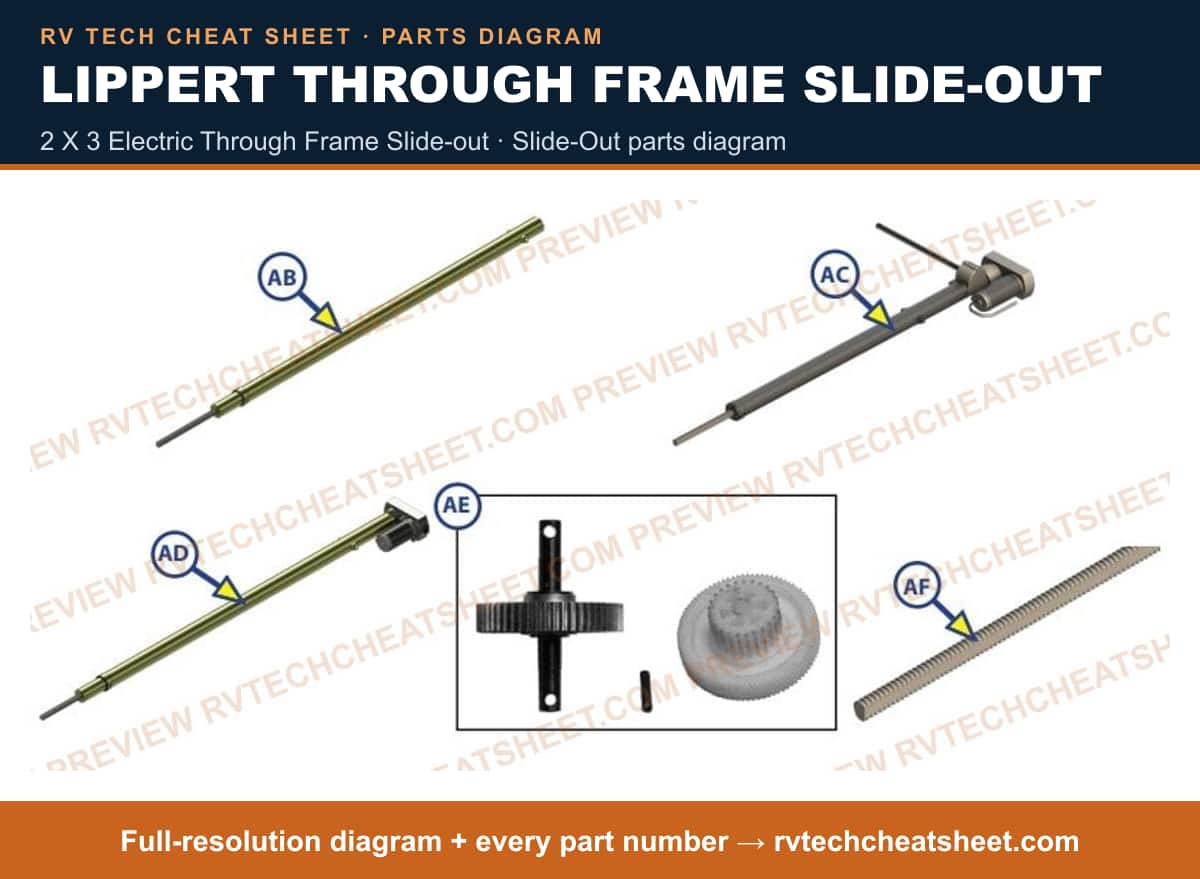

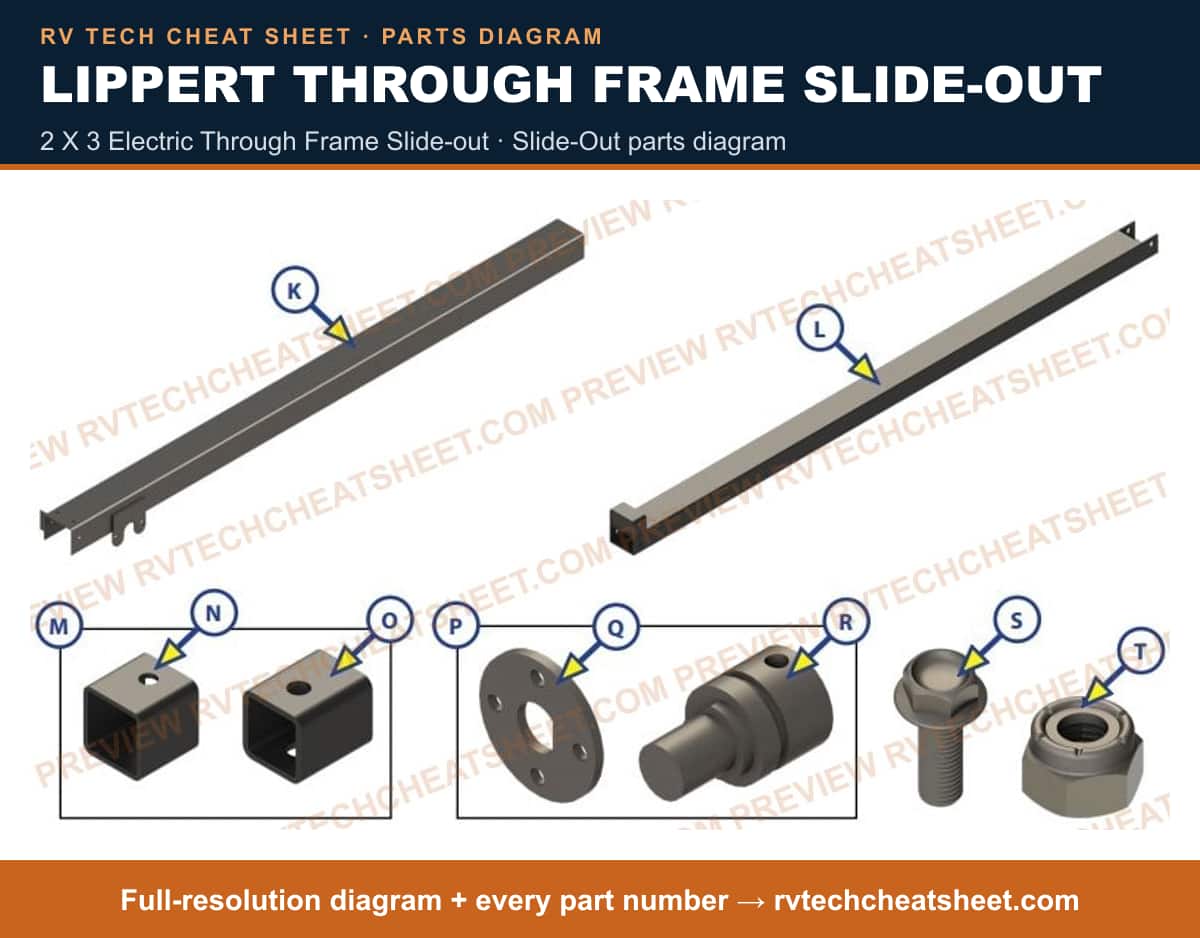

2 X 3 Electric Through Frame Slide-out

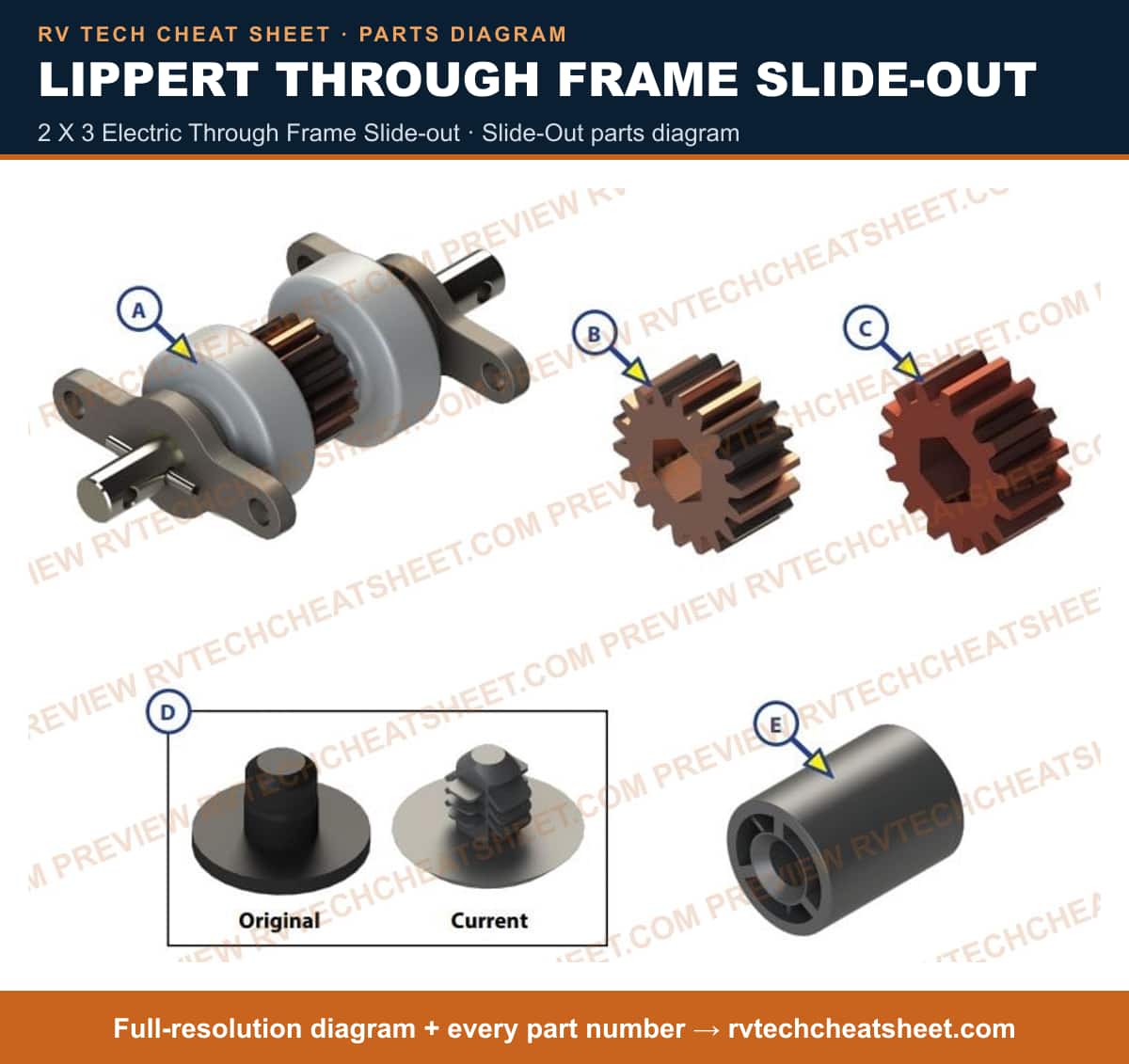

Components

59 items

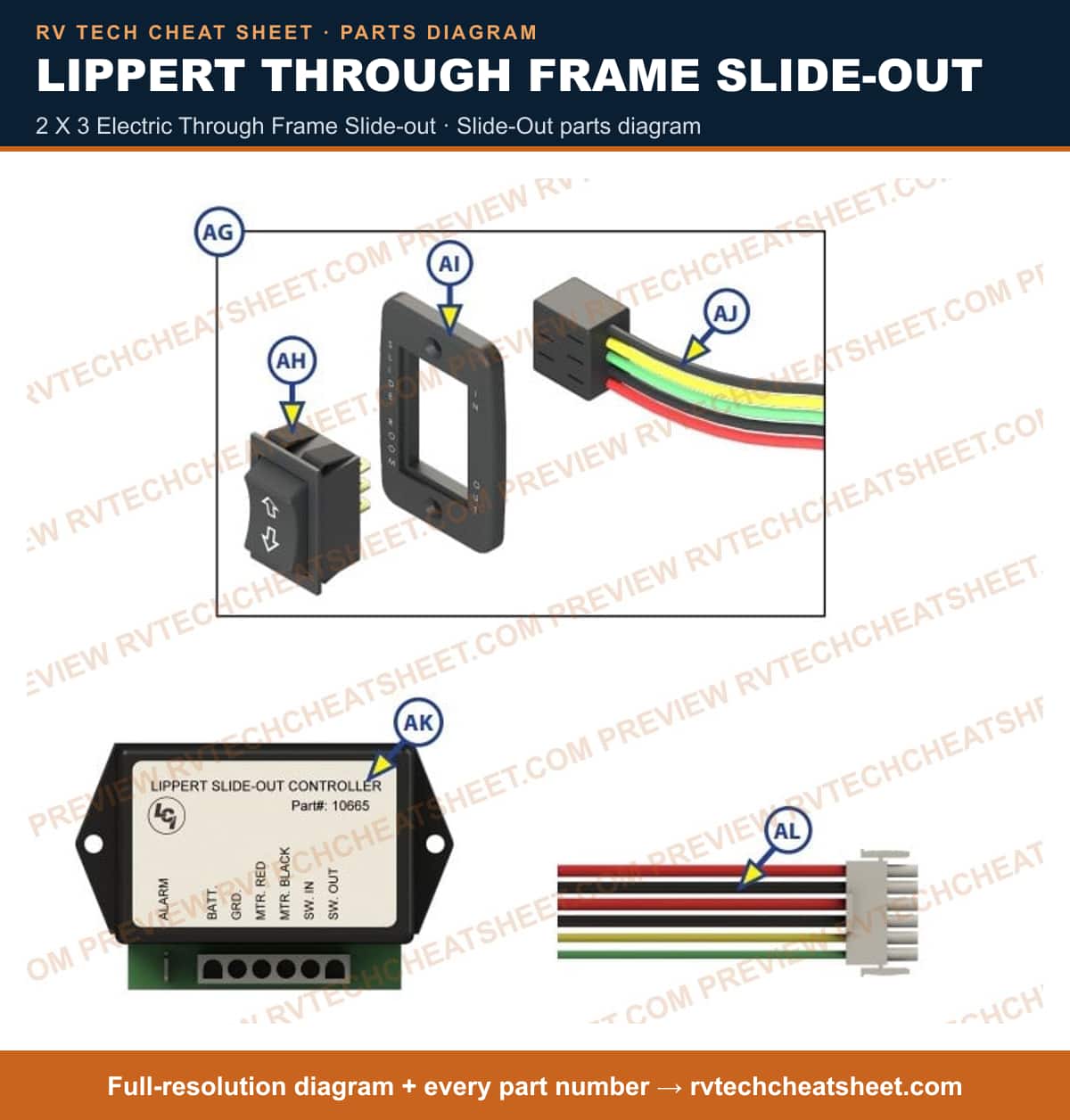

1. #Wire Harness MFR # 135696
2. #Switch (White) MFR # 129003
3. #Switch Plate (Black) MFR # 117419
4. #Our replacement controller assembly will help you get your RV's Above-Floor or Through-Frame slide-out back in business. As an exact-match part, this controller installs just like your original equipment with no assembly required. MFR # 135666
5. #Switch (Black) MFR # 117426
6. #Switch Wire Harness MFR # 178436
7. #Our replacement switch assembly will help you get your RV's Above-Floor or Through-Frame slide-out back in business. As an exact-match part, this switch assembly installs just like your original equipment with no assembly required. This switch will allow you to extend and retract your slide-out with a push of a button! The "new" style switch configuration was installed in Lippert slide-out mechanisms after May of 2006. In order to figure out what switch assembly to order, look at the switch configuration on your harness. Replacement white switch and bezel also available on their own. MFR # 117460
8. #Our replacement switch assembly will help you get your RV's Above-Floor or Through-Frame slide-out back in business. As an exact-match part, this switch assembly installs just like your original equipment with no assembly required. This switch will allow you to extend and retract your slide-out with a push of a button! The "new" style switch configuration was installed in Lippert slide-out mechanisms after May of 2006. In order to figure out what switch assembly to order, look at the switch configuration on your harness. Replacement white switch and bezel also available on their own. MFR # 117461
9. #Switch Plate (White) MFR # 117420
10. #Actuator Replacement Rod MFR # 157488
11. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 145595
12. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 168956
13. #AP Products Aftermarket - High Speed Actuator and 18:1 Motor (40'') MFR # 014-168956
14. #Tuson 18:1 Actuator & Motor (24") MFR # 145185
15. #3 Venture Replacement Gear Set 28:1 MFR # 191073
16. #Venture Replacement Gear Set 18:1 MFR # 191072
17. #AP Products Aftermarket - Venture Replacement gear set 18:1 MFR # 014-191072
18. #Venture Replacement Gear Set 58:1 MFR # 191074

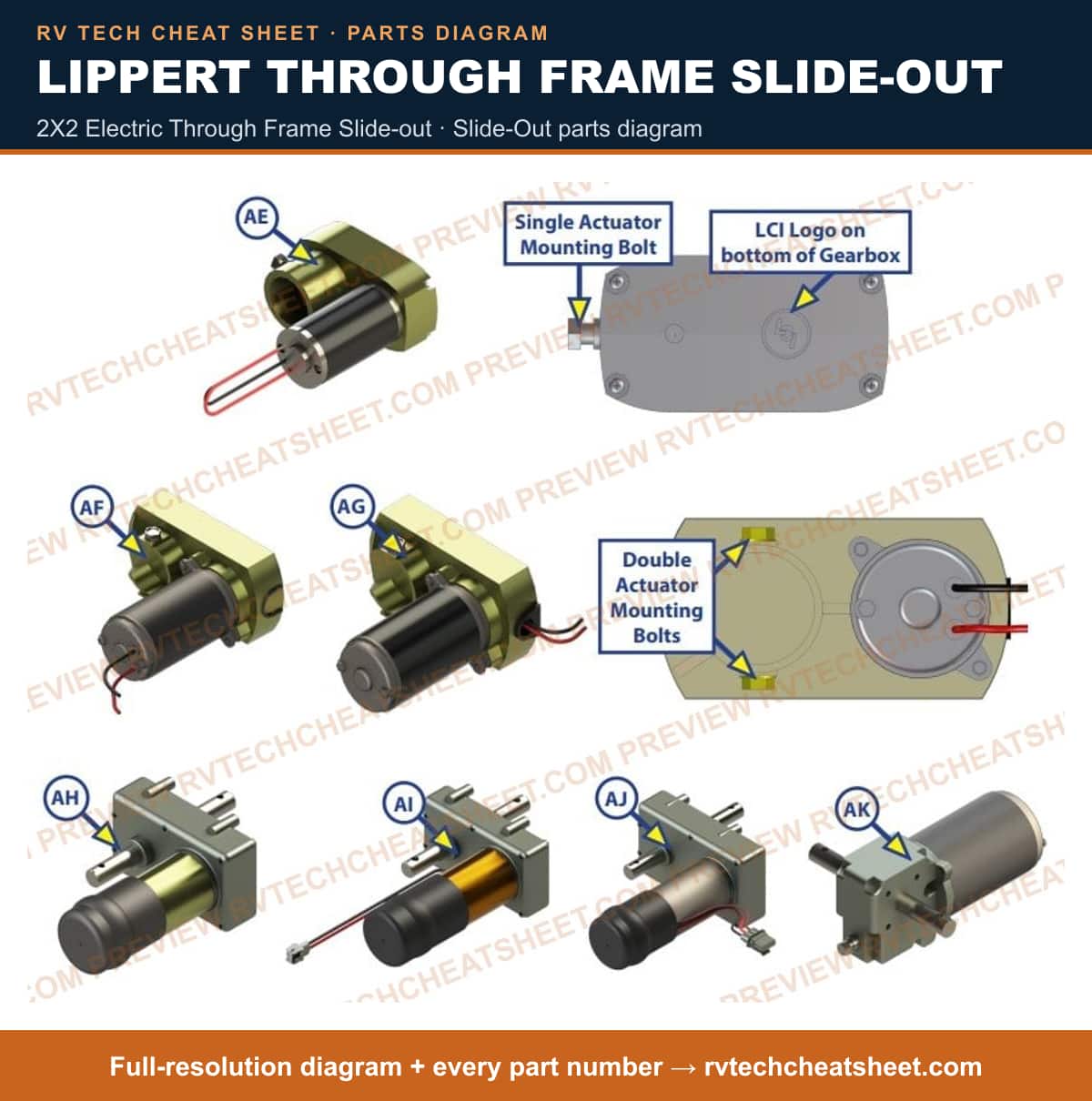

19. #Need a replacement motor for your Lippert® Through-Frame Slide-Out? This dependable and durable motor will get your slide-out back in action and provide reliable operation for years to come! To ensure you order the correct motor for your slide-out, please get specifications from your systems current motor label and order accordingly. 18:1 Venture Motor and Venture Actuator also available for individual purchase. MFR # 119128
20. #Need a replacement motor for your Lippert® Through-Frame Slide-Out? This dependable and durable motor will get your slide-out back in action and provide reliable operation for years to come! To ensure you order the correct motor for your slide-out, please get specifications from your systems current motor label and order accordingly. 18:1 Venture Motor and Venture Actuator also available for individual purchase. MFR # 122747
21. #AP Products Aftermarket - 18:1 Actuator Only (40") MFR # 014-145595
22. #Venture Actuator and 28:1 Motor (43") MFR # 158457
23. #Venture Actuator and 18:1 Motor (40") MFR # 119129
24. #RecPro Actuator & 18:1 Motor (40") MFR # RP-785615
25. #Venture Actuator and 18:1 Motor (43") MFR # 404683
26. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 132682
27. #Klauber E-300 Motor (OBSOLETE) MFR # 140201
28. #F-350 Motor MFR # 143701
29. #AP Products Aftermarket - Slide Out Motor; 2-1/4 Inch Inner Gear; 18:1 Venture Actuator Motor MFR # 014-132682
30. #Klauber F-300 MFR # 321395
31. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 125802
32. #M-150N Motor MFR # 138448
33. #AP Products Aftermarket - Replacement Slide Out Motor; D-300 MFR # 014-138449
34. #H-350 Motor MFR # 325502
35. #Nobody wants to sit at home, missing a fun weekend of camping, because their RV equipment isn’t functioning like it should. That’s why at Lippert, we help you take the guesswork out of replacement parts by providing direct replacement components that will get your rig up and running like usual. MFR # 138449
36. #AP Products Aftermarket - Slide Out Motor; 2-1/2 Inch Inner Gear; 28:1 Venture Actuator Motor MFR # 014-136373
37. #AP Products Aftermarket - Slide Out Motor; 9000 RPM; 18:1 Motor MFR # 014-125802
38. #Our replacement 28:1 Venture replacement motor will help you get your RV's Through-Frame slide-out back in business. As an exact-match part, this motor installs just like your original equipment with no assembly required. MFR # 136373
39. #Inner Cross Shaft Tube MFR # 180638
40. #Outer Cross Shaft Tube MFR # 180637
41. #Timing Disk Assembly MFR # 115512
42. #Nylon Insert Lock Nut; 1/4" - 20 MFR # 118042
43. #Cross Shaft Kit - 40/38 MFR # 166046
44. #Timing Plate MFR # 105482
45. #Outer Arm Assembly MFR # 157654
46. #Cross Shaft Adapter MFR # 102674
47. #Inner Arm Assembly MFR # 157653
48. #Cross Shaft Kit - 35/32 MFR # 166045
49. #Hex Flange Bolt; 1/4" - 20 x 3/4" MFR # 117916
50. #Main Room Heads with Head Hardware Kit MFR # 115251
51. #Kitchen Heads with Head Hardware Kit MFR # 116045
52. #Wear Bar Plate (3" x 1") MFR # 115375
53. #Front Stop Bracket MFR # 125699
54. #Rear Stop Bracket MFR # 1057901
55. #18 Tooth Gear (12 DP/ 14.50 PA) MFR # 122739
56. #15 Tooth Spur Gear MFR # 101941
57. #Our slide-out wear tabs will help you get your RV's inboard or outboard electric/hydraulic slide-out system back in operation. This easy-to-install replacement wear tab is exactly like your RV's original equipment, helping you take the guesswork out of finding the right parts for your rig. MFR # 103480
58. #Our replacement 15-tooth gear pack assembly will help you get your RV's Through-Frame slide-out back in business. As an exact-match part, this standard gear assembly installs just like your original equipment with no assembly required. MFR # 140409
59. #Rear Roller MFR # 104474
