Thetford Aqua Magic 038 10-20 Parts Diagram · Exploded View

Toilet · 2 assemblies · 6 diagram sheets · 66 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Thetford Aqua Magic 038 10-20 RV toilet: 2 assemblies (Exploded View, 03625 Mechanism I) and 66 manufacturer part numbers. 12 parts are marked as superseded — the description gives the replacement number to order instead.

Thetford and Dometic toilet model numbers are on a sticker at the back of the base or under the bowl rim. The same family (Aqua-Magic, 300/310) has high- and low-profile versions with different valves and seals.

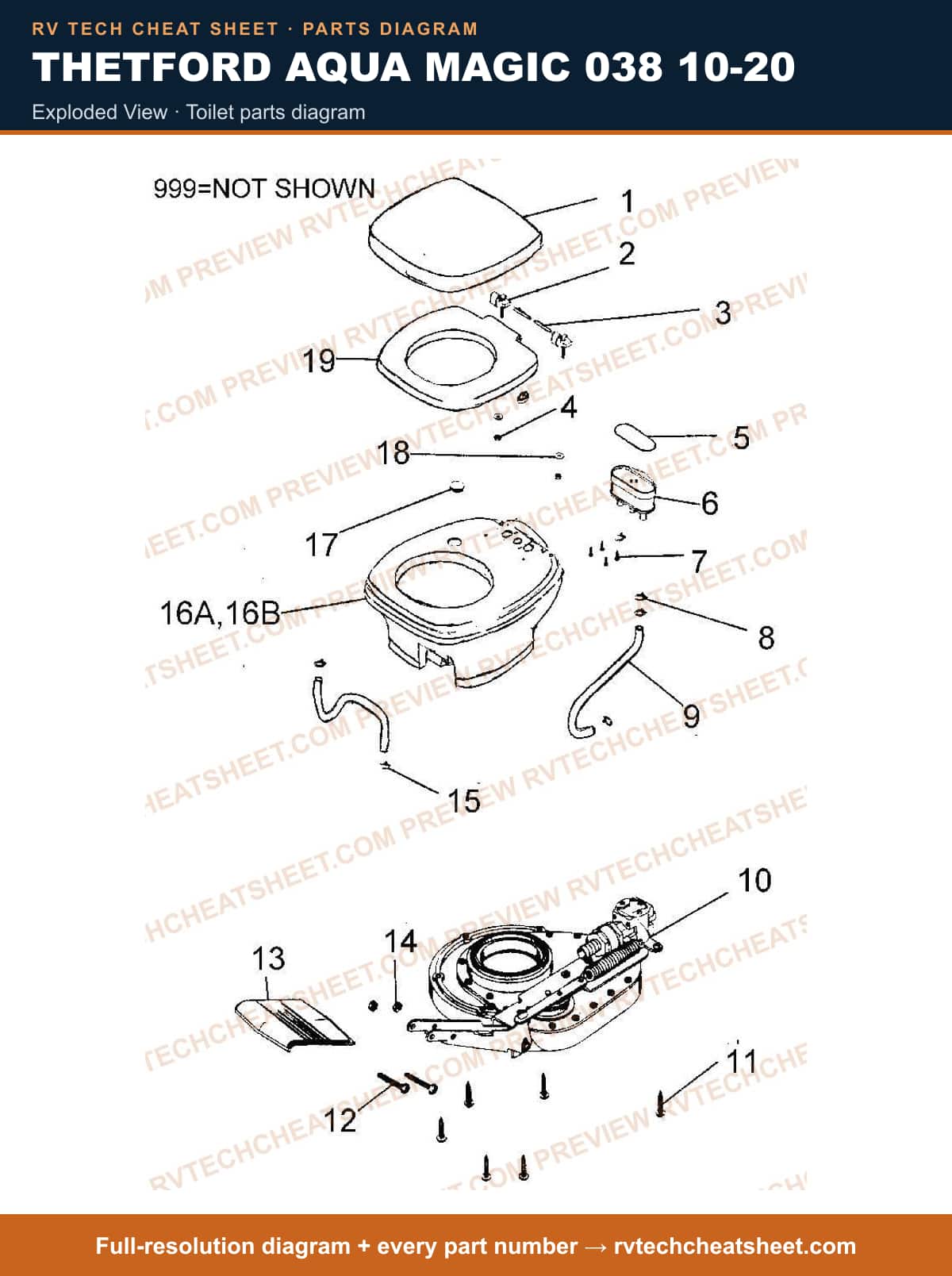

Exploded View

Components

45 items

1. #SEAT,GOLD MFR # 848703
2. #SEAT,IVORY GL/GH SERIES MFR # 848710
3. #COVER,SEAT WHITE USE 2092362 MFR # 371504 Superseded: see description
4. #SEAT MFR # 8487
5. #TOILET COMPONENTS RV; Cover Seatsl/Sh MFR # 3715
6. #COVER,SEAT IVORY USE 33373 MFR # 371510 Superseded: see description
7. #SEAT,PARCHMENT USE 848762 MFR # 848757 Superseded: see description
8. #SEAT,WHITE USE 848762 MFR # 848704 Superseded: see description
9. #TOILET COMPONENTS RV; Seat Whitesl /Sh & Gl/Gh MFR # 33015
10. #TOILET COMPONENTS RV; Seat--Gl/Gh White MFR # 848762
11. #TOILET COMPONENTS RV; Hinge Post Sl/Sh Wht MFR # 3717
12. #TOILET COMPONENTS RV; Hinge Post Sl/Sh White MFR # 371762
13. #TOILET COMPONENTS RV; HINGE PIN MFR # 12986
14. #Toilet Seat Hinge Pin; Replacement For Aqua Magic ® Galaxy; Single MFR # 33326
15. #PIN, HINGE MFR # 5212
16. #PUP PLANK MINI MFR # 33248
17. #NUT MFR # 2690
18. #PLATE,INSERT MFR # 2533
19. #CLS B W/S CVR FORD TRANSIT 17-18 MFR # 2525
20. #SCREW USE 33260 MFR # 3796T Superseded: see description
21. #TOILET COMPONENTS RV; Screw MFR # 33260
22. #TOILET COMPONENTS RV; Clamp MFR # 33247
23. #HUSKY ADJ MOUNT STEP PLATFORM MFR # 33257
24. #MECHANISM USE 1528310 MFR # 3625T Superseded: see description
25. #MECHANISM IVORY MFR # 1528310
26. #TOILET COMPONENTS RV; Screw #03994 MFR # 3994
27. #PEDAL PKG USE 20930 DOUBLE MFR # 9866 Superseded: see description
28. #TOILET COMPONENTS RV; Double Pedal Package Parc MFR # 20930
29. #SCREW (2) MFR # 3648
30. #HITCH 2' RECEIVER SELECT CHRYSLER MFR # 2020
31. #TOILET COMPONENTS RV; Nut MFR # 33238
32. #CLAMP (4) MFR # 3752T
33. #N/A HOPPER ASM LONG IVORY MFR # 560310
34. #N/A HOPPER ASM SHORT IVORY MFR # 560210
35. #N/A HOPPER ASM SHORT WHITE MFR # 560204
36. #N/A HOPPER ASM LONG WHITE MFR # 560304
37. #PLUG HOLE PARCHMENT MFR # 33085
38. #TOILET COMPONENTS RV; Hole Plug Ivory MFR # 389557
39. #TOILET COMPONENTS RV; Hole Plug White MFR # 389562
40. #PLUG,HOLE IVORY MFR # 389510
41. #PLUG,HOLE WHITE USE 33008 MFR # 389504 Superseded: see description
42. #PLUG, HOLE PARCHMENT USE 33085 MFR # 3895 Superseded: see description
43. #TOILET COMPONENTS RV; Hole Plug White MFR # 33008
44. #WASHER PART RP3669 MFR # 5190
45. #SEAT MFR # 3714T

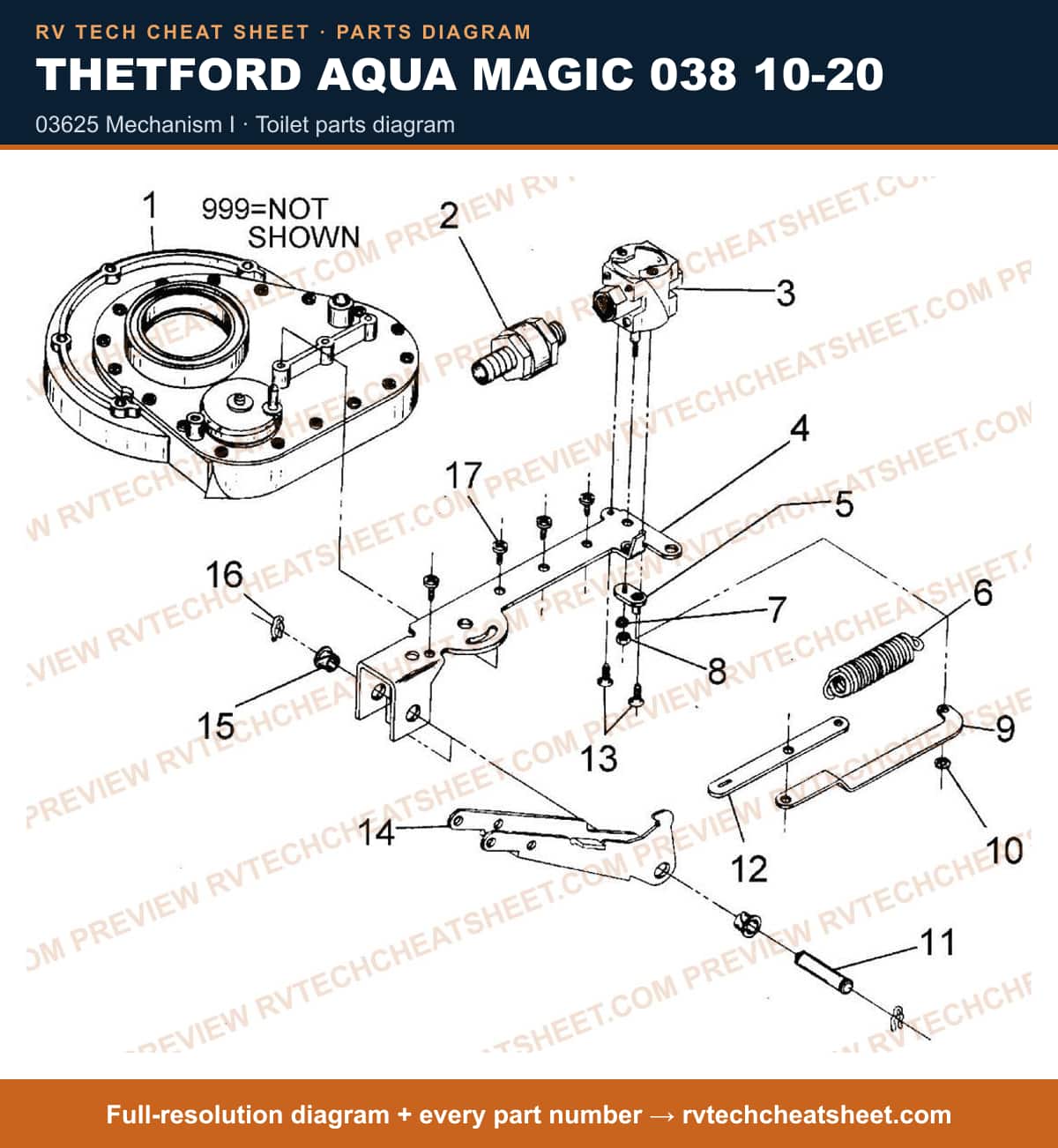

03625 Mechanism I

Components

23 items

1. #BASE & COVER ASSEMBLY MFR # 5613
2. #RIDRITE F250/350/450 2017 MFR # 2600
3. #VALVE PKG,BALL OLD MFR # 9869
4. #COVER-TJ-METAL TOP MFR # 2777T
5. #MRBF DUAL OUTPUT 30 - 300 A MFR # 3602
6. #SPRING MFR # 2395
7. #PUP PLANK XL SPORT - CAMO MFR # 33250
8. #TOILET COMPONENTS RV; Nut MFR # 33238
9. #HITCH 2' RECEIVER SELECT CHRYSLER MFR # 2020
10. #DRIVE ARM MFR # 2389
11. #TOILET COMPONENTS RV; Retainer Ring MFR # 2394
12. #PIVOT PIN MFR # 3807T
13. #TOILET COMPONENTS RV; Push Link MFR # 8986
14. #APPLIANCE COMPONENTS RV; LARGE HEAT EXCHANGER SERVICE KIT MFR # 33302
15. #SCREW MFR # 8535T
16. #TOILET COMPONENTS RV; Arm Pedal Use 33351 MFR # 19266 Superseded: see description
17. #ARM, PEDAL USE 19266 MFR # 3603 Superseded: see description
18. #PEDAL ARM USE 83-8950 MFR # 33351 Superseded: see description
19. #HUSKY 2-5/16' PINTLE COMBO 20K/10T MFR # 33258
20. #TOILET COMPONENTS RV; Bushing-- MFR # 3749
21. #Toilet Cotter Pin; Replacement For Aqua Magic ® Starlite/ Galaxy Permanent Toilet MFR # 33259
22. #TOILET COMPONENTS RV; Cotter Pin MFR # 3765
23. #TOILET COMPONENTS RV; Screw MFR # 2388
