Thetford Aqua Magic Aurora Parts Diagram · Exploded View

Toilet · 2 assemblies · 6 diagram sheets · 56 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Thetford Aqua Magic Aurora RV toilet: 2 assemblies (Exploded View, Replacement) and 56 manufacturer part numbers. 17 parts are marked as superseded — the description gives the replacement number to order instead.

Thetford and Dometic toilet model numbers are on a sticker at the back of the base or under the bowl rim. The same family (Aqua-Magic, 300/310) has high- and low-profile versions with different valves and seals.

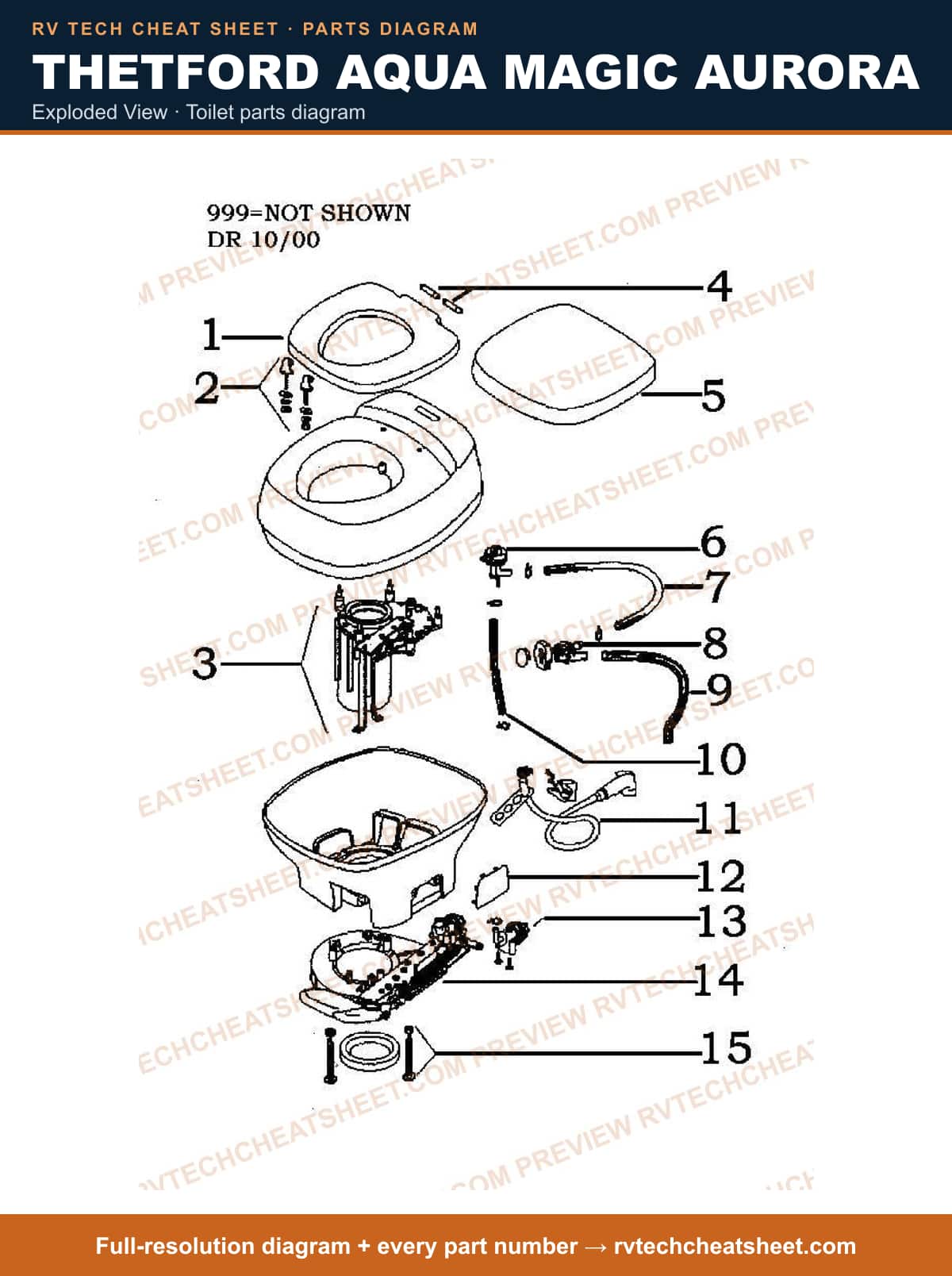

Exploded View

Components

41 items

1. #SEAT,WHITE USE 33038 AURORA MFR # 1927632 Superseded: see description
2. #Toilet Seat; Square Front; Closed Front; White; Without Logo; With Cover MFR # 36768
3. #Toilet Seat; Square Seat; Closed Front; Parchment White; Without Logo; With Cover MFR # 36769
4. #2015-2020 RAM BRAKE CONTROL HARNESS MFR # 33038
5. #SEAT,BONE USE 33039 AURORA MFR # 1927695 Superseded: see description
6. #POST,HINGE BONE USE 33059 PACKAGE OF 2 AURORA MFR # 1927795 Superseded: see description
7. #DOORS RV; KIT, SVC DOOR ASM L #34 WHT MFR # 33059
8. #POST,HINGE WHITE USE 33060 PKG OF 2 MFR # 1927732 Superseded: see description
9. #WIRING & SERVICE ACCESSORYS RV; KIT SVC DC DF WIRING HARNESS MFR # 33060
10. #UPPER MECHANISM USE 33185 MFR # 33041 Superseded: see description
11. #MECHANISM PKG UPPER USE 33041 BONE AURORA MFR # 1928495 Superseded: see description
12. #Toilet Flush Mechanism; Use With Aqua-Magic ® Aurora Permanent Toilets; Manual Flush; Upper Mechanism; White MFR # 33185 Superseded: see description
13. #MECHANISM PKG USE 33185 W/HOSE MFR # 1928432 Superseded: see description
14. #Toilet Seat Hinge Pin; Replacement For Aqua Magic ® Aurora Permanent Toilet; Set Of 2 MFR # 19292
15. #COVER, SEAT REPL *USE 83-8825* MFR # 33042 Superseded: see description
16. #TOILET COMPONENTS RV; Seat Cover Bone Aurora MFR # 1929395
17. #COVER,SEAT WHITE USE 33042 AURORA MFR # 1929332 Superseded: see description
18. #TOILET COMPONENTS RV; Seat Cover (Bone) MFR # 33188
19. #Toilet Vacuum Breaker; Use With Aqua-Magic ® Aurora Permanent Toilets MFR # 19278 Superseded: see description
20. #TOILET COMPONENTS RV; Flush Tube MFR # 19280
21. #Toilet Flush Nozzle Kit; Replacement For Aqua- Magic ® Aurora Permanent Toilets; White MFR # 33184
22. #Toilet Flush Nozzle Kit; Replacement For Thetford Aqua Magic ® Aurora Permanent Toilet; Bone MFR # 33183
23. #TOILET COMPONENTS RV; Flush Nozzle (Aurora) MFR # 1927995
24. #TOILET COMPONENTS RV; Flush Nozzle (Aurora) MFR # 1927932
25. #TRAP,TUBE MFR # 33352
26. #WATER SUPPLY TUBE (AURORA) MFR # 19282
27. #Toilet Flush Hand Sprayer Kit; Use With Aria® Classic/ Aqua-Magic® Style Plus/ Aqua-Magic® Style Lite/ Aqua-Magic® Style II/ Aqua-Magic® Aurora Permanent Toilets; Chrome Plated MFR # 19289 Superseded: see description
28. #TOILET COMPONENTS RV; Access Cover Replacement MFR # 33190
29. #TOILET COMPONENTS RV; Access Cover Aurora--Whit MFR # 1929832
30. #Toilet Holding Tank Sliding Cover; Use With Thetford Aurora Model MFR # 1929895 Superseded: see description
31. #Toilet Water Valve Module; Use With Aqua-Magic MFR # 19283 Superseded: see description
32. #MECHANISM,LOWER USE 33187 AURORA MFR # 1928532 Superseded: see description
33. #16K 5TH WHEEL UPRIGHTS MFR # 33187
34. #Toilet Flush Mechanism; Use With Thetford Aqua Magic ® Aurora Permanent Toilet; Manual Flush; Lower Mechanism; Bone MFR # 33186 Superseded: see description
35. #MECHANISM,LOWER USE 33186 AURORA MFR # 1928595 Superseded: see description
36. #BALLHAG25/1630K MFR # 19309
37. #LIP SEAL 24654 MFR # 33366
38. #Toilet Seat Bumper; Replacement For Thetford Aqua Magic Aurora Permanent Toilet; White MFR # 33191
39. #Toilet Flush Mechanism Repair Kit; Used For Aqua-Magic ® Aurora Permanent Toilets MFR # 28100
40. #TOILET COMPONENTS RV; Seat Bumper MFR # 1930232
41. #TOILET COMPONENTS RV; Seat Bumper MFR # 1930295

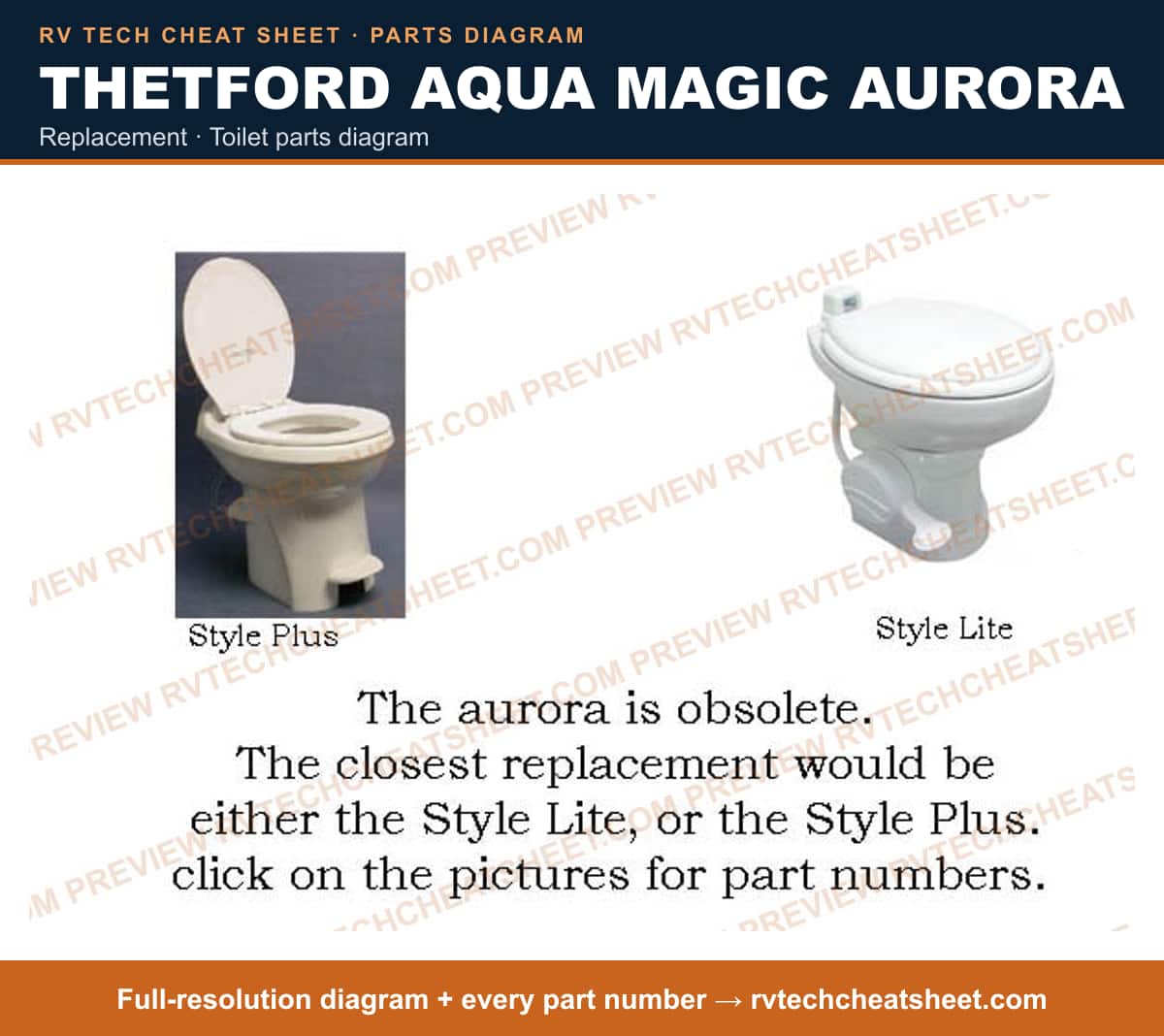

Replacement

Components

15 items

1. #TOILET COMPONENTS RV; Style Lite China Bowl Wht MFR # 34071
2. #TOILET COMPONENTS RV; Style Lite MFR # 34076
3. #TOILET COMPONENTS RV; AQUA-MAGIC STYLE LITE HI MFR # 34069
4. #STYL LITE BOWL&SPRAY BON(HIGH) MFR # 34074
5. #STYLE LITE BOWL&SPRAY WHT(LOW) MFR # 34073
6. #STYL LITE BOWL&SPRAY WHT(HIGH) MFR # 34070
7. #TOILET COMPONENTS RV; AQUA-MAGIC STYLE LITE HIG MFR # 34068
8. #STYLE LITE CHINA BOWL BON(LOW) RMD MFR # 34075
9. #Toilet; Aqua-Magic ® Style Plus; Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 21- 13/16 Inch Length x 16 Inch Width x 20 Inch Height; With Water-Saving Hand Sprayer MFR # 34431
10. #KIT, SVC FLEX ADAPTER PLATE MFR # 34438
11. #Toilet; Aqua-Magic ® Style Plus; Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Black; 21- 13/16 Inch Length x 16 Inch Width x 20 Inch Height; With Water-Saving Hand Sprayer MFR # 34443
12. #Toilet; Aqua-Magic ® Style Plus; Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 21-13/16 Inch Length x 16 Inch Width x 15 Inch Height; Without Water-Saving Hand Sprayer MFR # 34433
13. #Toilet; Aqua-Magic ® Style Plus; Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Bone; 21-13/16 Inch Length x 16 Inch Width x 15 Inch Height; With Water-Saving Hand Sprayer MFR # 34439
14. #Toilet; Aqua-Magic ® Style Plus; Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 21- 13/16 Inch Length x 16 Inch Width x 20 Inch Height; Without Water-Saving Hand Sprayer MFR # 34429
15. #Toilet; Aqua-Magic ® Style Plus; Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Bone; 21- 13/16 Inch Length x 16 Inch Width x 20 Inch Height; With Water-Saving Hand Sprayer MFR # 34435
