Thetford Aqua Magic Bravura Parts Diagram · Replacement Toilet

Toilet · 2 assemblies · 6 diagram sheets · 50 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Thetford Aqua Magic Bravura RV toilet: 2 assemblies (Replacement Toilet, Exploded View) and 50 manufacturer part numbers. 14 parts are marked as superseded — the description gives the replacement number to order instead.

Thetford and Dometic toilet model numbers are on a sticker at the back of the base or under the bowl rim. The same family (Aqua-Magic, 300/310) has high- and low-profile versions with different valves and seals.

Replacement Toilet

Components

10 items

1. #Toilet; Aqua-Magic ® Bravura; Permanent; Low Profile; Round Seat With 13-1/8 Inch Seat Height; Pedal Flush Control; Pulsating Flush; Parchment White; 20-3/16 Inch Length x 16-9/16 Inch Width x 14 Inch Height; Without Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem MFR # 31119
2. #Toilet; Aqua-Magic ® Bravura; Permanent; High Profile; Round Seat With 16-1/4 Inch Seat Height; Pedal Flush Control; Pulsating Flush; White; 20- 3/16 Inch Length x 16-9/16 Inch Width x 17-7/8 Inch Height; With Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem MFR # 31100
3. #Toilet Mounting Bolts;;Replacement For Aqua- Magic ® Galaxy/ Aqua-Magic ® Starlite Permanent Toilets MFR # THF42069
4. #Toilet; Aqua-Magic ® Bravura; Permanent; High Profile; Round Seat With 16-1/4 Inch Seat Height; Pedal Flush Control; Pulsating Flush; White; 20- 3/16 Inch Length x 16-9/16 Inch Width x 17-7/8 Inch Height; Without Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem MFR # 31084
5. #Toilet; Aqua-Magic ® Bravura; Permanent; Low Profile; Round Seat With 13-1/8 Inch Seat Height; Pedal Flush Control; Pulsating Flush; White; 20- 3/16 Inch Length x 16-9/16 Inch Width x 14 Inch Height; Without Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem MFR # 31120
6. #TOILET,BRAVURA USE 31120 LOW PROFILE WHITE MFR # 31086N Superseded: see description
7. #TOILET,BRAVURA USE 31121T W/WTR SAVR L/PROFILE PARCHMENT MFR # 31103N Superseded: see description
8. #HANDLE CRANK-(31121) MFR # 31121
9. #TOILET, BRAVURA USE 31119 PARCHMENT MFR # 31087N Superseded: see description
10. #TOILET,GALAXY USE 31084N WHITE,TAN SEAT COVER MFR # 24909N Superseded: see description

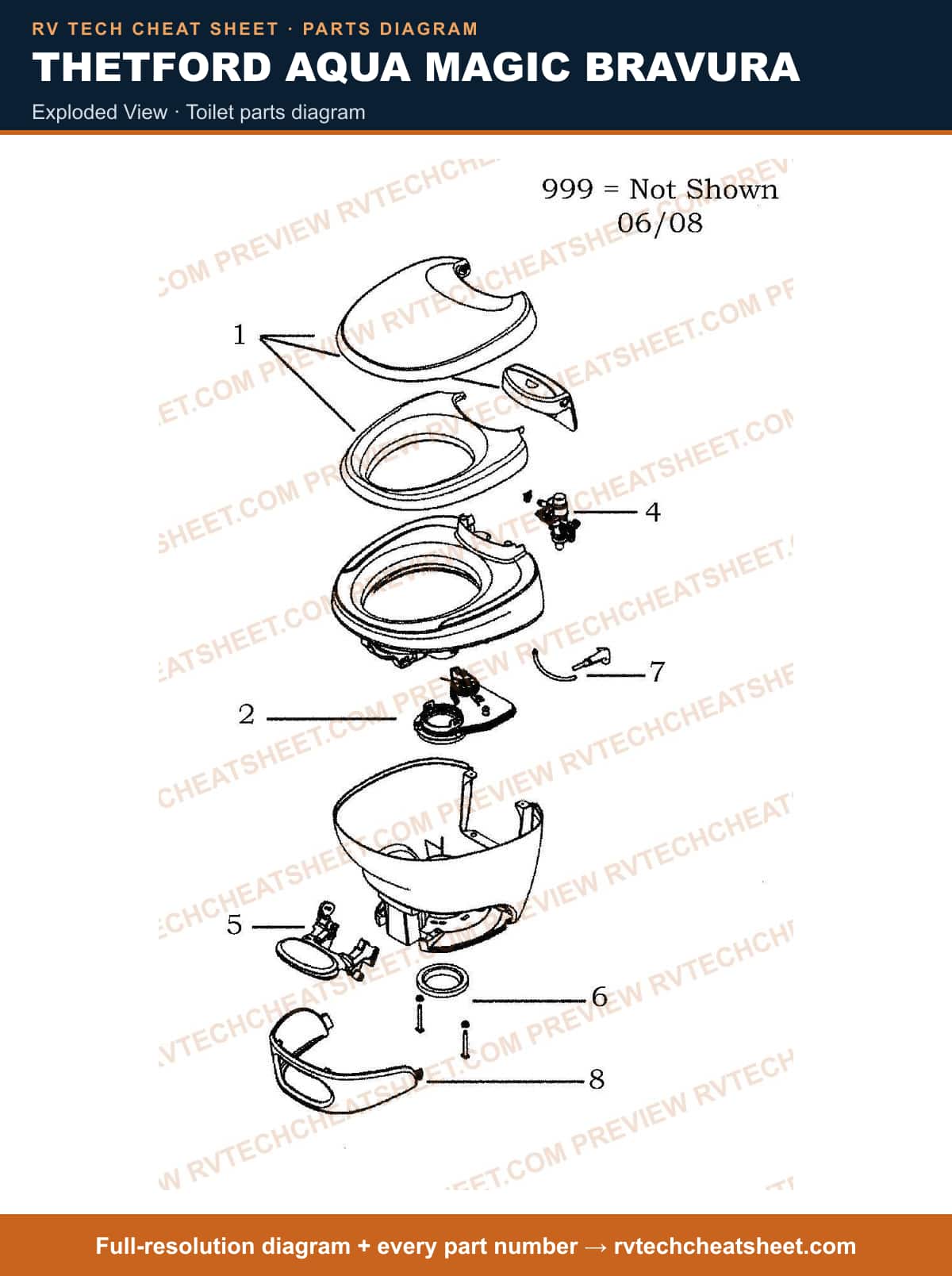

Exploded View

Components

40 items

1. #SEAT F/BRAVURA MFR # 31109
2. #POD (BRAVURA) — PARCHMENT MFR # 33378
3. #Toilet Seat; Use With Aqua Magic® Bravura Toilets; Parchment; With Cover And Pod MFR # 36767 Superseded: see description
4. #TOILET COMPONENTS RV; Pod (Bravura) White MFR # 33379
5. #TOILET COMPONENTS RV; BRAVURA SEAT COVER- PARCH MFR # 33374
6. #TOILET COMPONENTS RV; Seat (Bravura) - MFR # 33377
7. #Toilet Seat; Use With Aqua Magic® Bravura Toilets; White; With Cover And Pod MFR # 36766 Superseded: see description
8. #COVER,SEAT USE 33374 *N* PARCHMENT MFR # 3110857 Superseded: see description
9. #SEAT,PARCHMENT USE 33376 F/BRAVURA MFR # 3110957 Superseded: see description
10. #TOILET COMPONENTS RV; BRAVURA SEAT- PARCHMENT MFR # 33376
11. #TOILET COMPONENTS RV; Bravura Pod MFR # 3111057
12. #TOILET COMPONENTS RV; Bravura Seat Cover White MFR # 3110862
13. #Toilet Flush Mechanism; Use With Aqua-Magic ® Bravura; Manual Flush; Lower Mechanism; With Mechanism Assembly/ Closet Flange Seal MFR # 31111 Superseded: see description
14. #Furnace Blower Wheel; Replacement For Atwood AFSD Model Hydroflame Furnace MFR # 31113
15. #Toilet Flush Pedal; Replacement For Thetford Aqua Magic ® Bravura Permanente Toilet; Built- In; White; With 2 Link Retainer Clips/ 2 Screws And Return Spring MFR # 33372
16. #SERVICE PKG,PEDAL USE 33372 MFR # 3111462 Superseded: see description
17. #TOILET COMPONENTS RV; Bravura Pedal Serv Pkg Pa MFR # 3111457
18. #Dometic 31114 Refrigerator Door Latch Strike Plate MFR # 31114
19. #Toilet Mounting Bolts; Replacement For Aqua- Magic ® Bravura Permanent Toilets; With Closet Flange Seal/ 2 Closet Bolts/ 2 Nuts MFR # 31115
20. #SERVICE PKG USE 3111662 F/WATER SAVER PARCHMENT MFR # 3111657 Superseded: see description
21. #SERVICE PKG WATER SAVER MFR # 31116
22. #SERVICE PKG USE 33226T WHITE MFR # 3111662 Superseded: see description
23. #TOILET COMPONENTS RV; BRAVURA SHROUD HIGH- WHIT MFR # 33381
24. #TOILET COMPONENTS RV; Bravura Shroud Hi- Pro Par MFR # 3111757
25. #Toilet Flush Mechanism Cover; Aqua-Magic ® Bravura; Replacement For Thetford Aqua Magic Bravura High Profile Foot Flush Toilet; Parchment MFR # 33380
26. #TOILET COMPONENTS RV; Shroud Lo Parch Ser. Pkg MFR # 33382
27. #TOILET COMPONENTS RV; Bravura Shroud Low-Pro Wh MFR # 3111862
28. #ANGLE BRACKT TYPE 1-40AMP MFR # 31117
29. #SHROUD,LOW USE 33382 PARCHMENT MFR # 3111857 Superseded: see description
30. #TOILET COMPONENTS RV; BRAVURA SHROUD LOW- WHITE MFR # 33383
31. #SHROUD,LOW MFR # 31118
32. #TOILET COMPONENTS RV; Bravura Shroud Hi- Pro Whi MFR # 3111762
33. #LINK, MECHANSISM, PEDAL (HIGH) MFR # 31037T
34. #Toilet Flush Mechanism Repair Kit; Used For Aqua-Magic ® Bravura Permanent Toilets; With Blade Seal/ Hub Seal/ Mechanism Seal/ Closet Flange Seal/ Link Retainer Clip MFR # 31112
35. #ROD,LINKAGE USE 31037T BRAVURA HIGH PROFILE MFR # 33387 Superseded: see description
36. #ROD,LINKAGE BRAVURA LOW PROFILE MFR # 33388
37. #TOILET COMPONENTS RV; Water Saver Clip Pk Parch MFR # 33227
38. #MECHANISM,PEDAL LINK LOW MFR # 31038T
39. #TOILET COMPONENTS RV; Water Saver Bracket MFR # 33224
40. #TOILET COMPONENTS RV; Water Saver Bracket MFR # 33223
