Thetford Aqua Magic III Parts Diagram · Exploded View

Toilet · 2 assemblies · 6 diagram sheets · 54 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Thetford Aqua Magic III RV toilet: 2 assemblies (Exploded View, Replacement Toilet) and 54 manufacturer part numbers. 14 parts are marked as superseded — the description gives the replacement number to order instead.

Thetford and Dometic toilet model numbers are on a sticker at the back of the base or under the bowl rim. The same family (Aqua-Magic, 300/310) has high- and low-profile versions with different valves and seals.

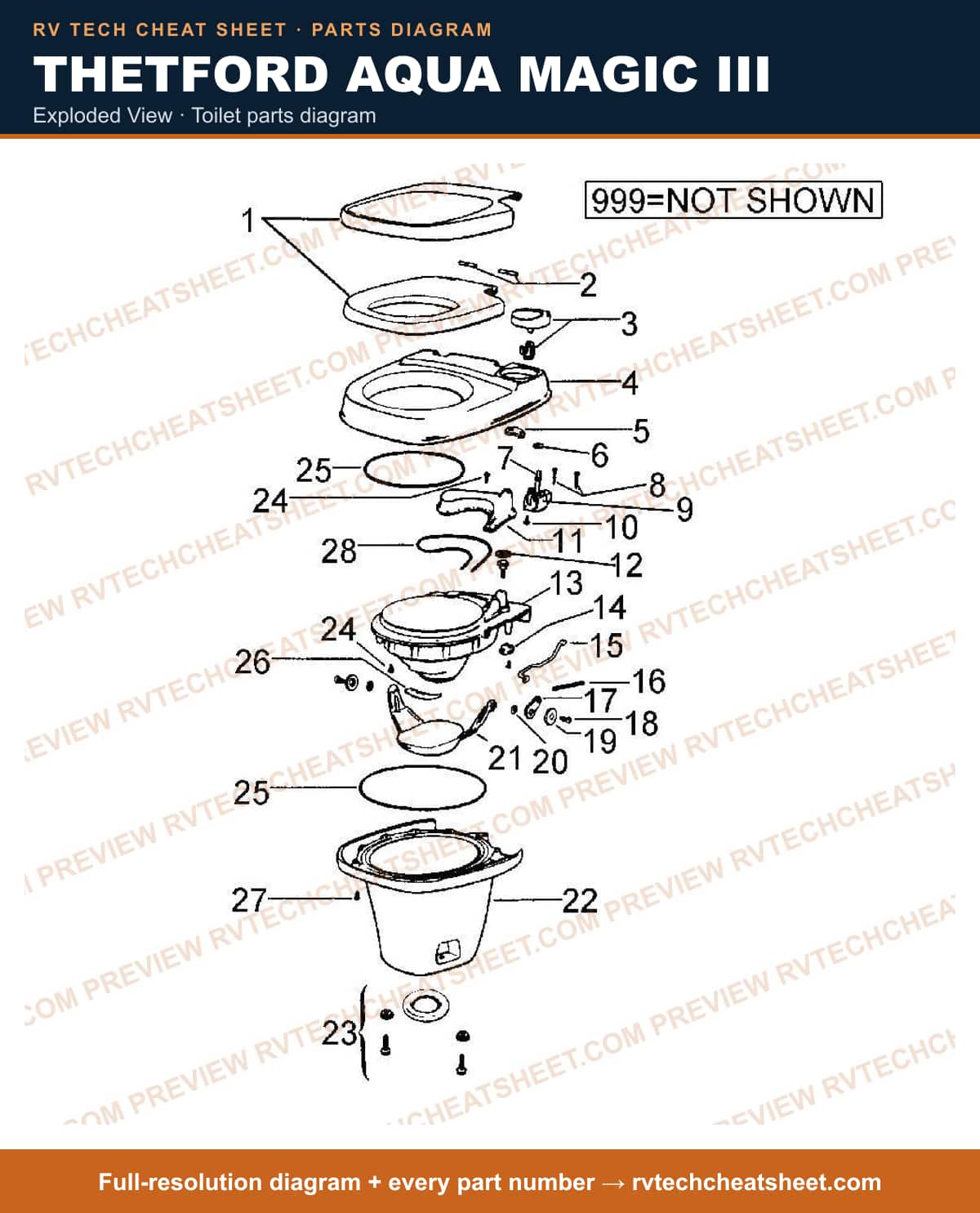

Exploded View

Components

49 items

1. #TOILET COMPONENTS RV; Seat & Cover MFR # 33021
2. #TOILET COMPONENTS RV; Seat & Cover Asm Parchmen MFR # 20932
3. #TOILET COMPONENTS RV; Pin Hinge Aqua MFR # 8905
4. #KNOB MFR # 8979
5. #TOILET COMPONENTS RV; Knob Asm Flush MFR # 33019
6. #KNOB GOLD MFR # 897903
7. #KNOB,IVORY USE 33019 MFR # 897910 Superseded: see description
8. #KNOB,PARCHMENT AQUA MAGIC III MFR # 20933
9. #KNOB ASM,WHITE USE 33020 MFR # 897904 Superseded: see description
10. #ROCKER ARM MFR # 33020
11. #TOP,AM III PARCHMENT MFR # 877957
12. #WING NUTS 1 OF 3/8" AND 2 OF 5/16" MFR # 8779
13. #TOILET COMPONENTS RV; Stem Washer MFR # 33299
14. #TOILET COMPONENTS RV; Stem Washer MFR # 8902
15. #STEM,BALL VALVE USE 33296 ALSO NEED TO ORDER 8213 MFR # 8879 Superseded: see description
16. #TOILET COMPONENTS RV; Stem Ball Valve Also MFR # 33296
17. #SCREW MFR # 33297
18. #TOILET COMPONENTS RV; Screw MFR # 8894
19. #Toilet Water Valve Module; Use With Aqua-Magic MFR # 9989 Superseded: see description
20. #Screw; Use With Thetford Model Aqua Magic III MFR # 33298 Superseded: see description
21. #TOILET COMPONENTS RV; Screw MFR # 8896
22. #TOILET COMPONENTS RV; Cover Vacuum Breakeraqua MFR # 8785
23. #TOILET COMPONENTS RV; Bowl Ivory MFR # 878210
24. #BOWL - WHITE MFR # 878262
25. #BOWL,AQUA MAGIC USE 878210 III PARCHMENT MFR # 878257 Superseded: see description
26. #1QT 890 ROOF COATING MFR # 8904
27. #APPLIANCE COMPONENTS RV; MEDIUM HEAT EXCHANGER SERVICE KIT MFR # 33301
28. #TOILET COMPONENTS RV; Spring MFR # 33295
29. #TOILET COMPONENTS RV; Spring MFR # 8876
30. #CRANK,WATER TRAP MFR # 8873
31. #TOILET COMPONENTS RV; Screw MFR # 33306
32. #FORD BLACK MFR # 12050
33. #TOILET COMPONENTS RV; Water Trap Washer MFR # 8872
34. #KIT, SVC REMOTE TEMP.SENSOR 6" MFR # 33294
35. #SEAL,WATER TRAP HINGE MFR # 8878
36. #TRAP,WATER USE 878304 MFR # 8783 Superseded: see description
37. #TRAP,WATER USE 878304 MFR # 878362 Superseded: see description
38. #TRAP,WATER AM III WHITE MFR # 878304
39. #BASE AQ MGC III HIGH PARC HMENT MFR # 878457
40. #BASE,AQUA HIGH IVORY AQUA MAGIC III MFR # 878410
41. #BASE,AQUA MAGIC USE 878410 III HIGH MFR # 8784 Superseded: see description
42. #TOILET COMPONENTS RV; Closet Bolt Package MFR # 9031
43. #SCREW USE 33260 MFR # 3796T Superseded: see description
44. #TOILET COMPONENTS RV; Screw MFR # 33260
45. #CLTS-PLUS 800-1400# 2-5/16' BALL MFR # 33303
46. #TOILET COMPONENTS RV; Water Trap Seal MFR # 9101
47. #TOILET COMPONENTS RV; Seal MFR # 9972
48. #TOILET COMPONENTS RV; Ring Crescent *S* MFR # 8142
49. #RING,CRESCENT USE 8142 MFR # 33010 Superseded: see description

Replacement Toilet

Components

5 items

1. #Toilet; Aqua-Magic ® V; Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 17-13/16 Inch Length x 15-1/8 Inch Width x 18-1/2 Inch Height; Without Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem; Also Use New Number 31835 MFR # 31671 Superseded: see description
2. #Toilet; Aqua-Magic ® V; Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; One Handle Flush Control; Full Bowl Flush; White; 17- 13/16 Inch Length x 15-1/8 Inch Width x 18-1/2 Inch Height; Without Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem MFR # 31667
3. #Toilet; Aqua-Magic ® V; Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 17-13/16 Inch Length x 15-1/8 Inch Width x 14 Inch Height; Without Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem; Also Use New Number 31833 MFR # 31650 Superseded: see description
4. #Toilet; Aqua-Magic ® V; Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Parchment White; 17-13/16 Inch Length x 15-1/8 Inch Width x 14 Inch Height; With Sample 8 Ounce Bottle Aqua Kem; Also Use New Number 31834 MFR # 31651 Superseded: see description
5. #Toilet; Aqua-Magic ® V; Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; One Handle Flush Control; Full Bowl Flush; White; 17- 13/16 Inch Length x 15-1/8 Inch Width x 14 Inch Height; Without Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem MFR # 31646
