Thetford Aqua Magic IV Low Foot Flush Parts Diagram · Exploded View

Toilet · 2 assemblies · 6 diagram sheets · 55 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Thetford Aqua Magic IV Low Foot Flush RV toilet: 2 assemblies (Exploded View, Replacement Toilet) and 55 manufacturer part numbers. 13 parts are marked as superseded — the description gives the replacement number to order instead.

Thetford and Dometic toilet model numbers are on a sticker at the back of the base or under the bowl rim. The same family (Aqua-Magic, 300/310) has high- and low-profile versions with different valves and seals.

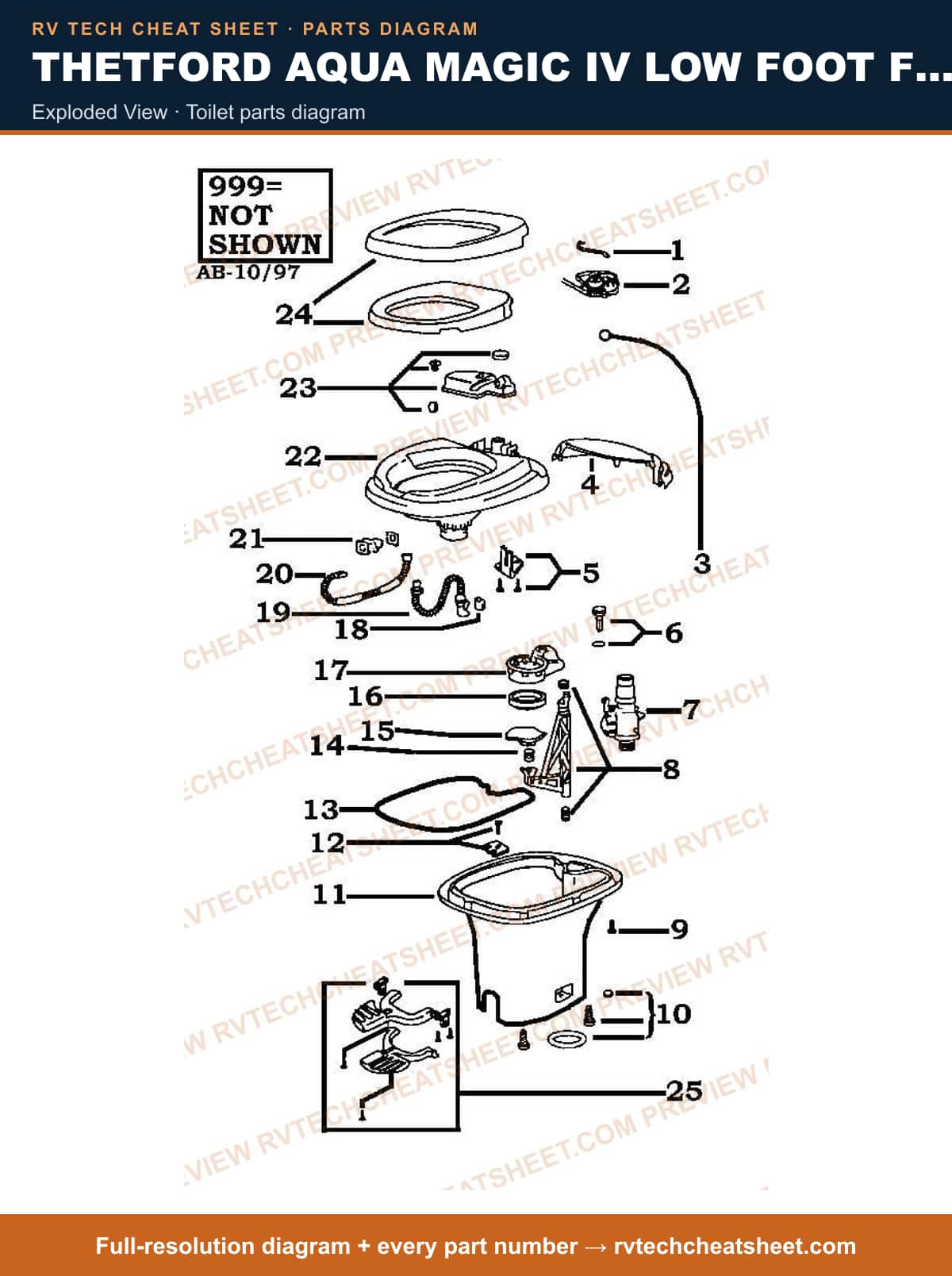

Exploded View

Components

53 items

1. #Toilet Water Valve Link; Replacement For Aqua-Magic ® IV Permanent Toilets MFR # 33315
2. #VALVE LINK USE 33315 MFR # 12513 Superseded: see description
3. #Toilet Flush Mechanism Repair Kit; Used For Aqua-Magic ® IV Foot Flush Permanent Toilets MFR # 24571
4. #Toilet Flush Mechanism Cover; Replacement For Thetford Aqua Magic IV Foot Flush Toilets; Parchment MFR # 33199
5. #TRAILER WIRING JUNCTION BOX BAGGED MFR # 33200
6. #TOILET COMPONENTS RV; Mechanism Cover-- Am Iv Fp MFR # 2086562
7. #Toilet Flush Mechanism Cover; Replacement For Thetford Aqua Magic IV High Foot Toilets MFR # 2086557
8. #FLOAT ASSEMBLY MFR # 24631
9. #Toilet Water Valve Module; Use With Aqua-Magic ® IV Permanent Toilets; With Water Valve/ Flange Seal/ Screws MFR # 13168 Superseded: see description
10. #CLTS PLUS TRUNNION KIT (EACH) MFR # 33309
11. #Toilet Actuator; Use With Thetford Aqua Magic ® IV Hand Flush Permanent Toilet; Low Profile; White; Plastic; With Spring MFR # 24632 Superseded: see description
12. #TOILET COMPONENTS RV; Screw MFR # 12659
13. #DOORS RV; KIT, SVC DOOR GASKET LG MFR # 33322
14. #Toilet Mounting Bolts; Replacement For Aqua-Magic ® V/ Aqua-Magic ® IV Permanent Toilets; With Flange Seal/ 2 Acorn Nuts MFR # 12524
15. #TOILET COMPONENTS RV; Base Am Iv Low MFR # 1293562
16. #BASE,LOW WHITE MFR # 33106
17. #TOILET COMPONENTS RV; Base Am Iv Low MFR # 1293557
18. #TOILET COMPONENTS RV; Base Am Iv Low MFR # 33105
19. #TOILET COMPONENTS RV; Retainer Assembly MFR # 24636
20. #Toilet Blade Spring; Replacement For Aqua-Magic ® IV Permanent Toilets; Single MFR # 33317
21. #SPRING USE 33317 MFR # 12519 Superseded: see description
22. #BLADE,WHITE USE 33308 MFR # 1248262 Superseded: see description
23. #Toilet Blade; Replacement For Aqua-Magic ® IV Permanent Toilets; White; With Blade Only MFR # 33308
24. #Toilet Seal; Replacement For Aqua-Magic ® IV Permanent Toilets; Blade Seal; Single MFR # 33027
25. #CENTER LINE LIFT TOOL MFR # 33318
26. #Toilet Blade Track; Replacement For Aqua Magic® IV High And Low Model Toilets MFR # 12520
27. #TOILET COMPONENTS RV; Flapper MFR # 12512
28. #TOILET COMPONENTS RV; Tube Overflow MFR # 33313
29. #Toilet Flush Tube; Replacement For Aqua-Magic ® IV Permanent Toilets MFR # 33312
30. #Toilet Flush Nozzle Kit; Replacement For Aqua- Magic ® IV Permanent Toilets MFR # 24637
31. #TOILET COMPONENTS RV; Bowl Parchment-- Am Iv Ha MFR # 1458257
32. #HUSKY 2-5/16' PINTLE COM KIT MFR # 33110
33. #BOWL,AM IV FPF USE 1458257 MFR # 2097257 Superseded: see description
34. #BOWL - WHITE MFR # 2097262
35. #AGC GLASS FUSE-30 AMP MFR # 24630
36. #TOILET COMPONENTS RV; Seat&Cover Assy. (Use 83- MFR # 2464157 Superseded: see description
37. #Toilet Seat; Square Seat; Closed Front; Parchment White; Without Logo; With Cover MFR # 36787
38. #2.0K 4-4.00 IDLER;L44610/L44610;BS MFR # 33080
39. #Toilet Seat; Square Seat; Closed Front; White; Without Logo; With Cover MFR # 36788
40. #SEAT & COVER ASM USE 33081 WHITE MFR # 2464162 Superseded: see description
41. #Furnace Low Air Flow Switch; Replacement For Atwood AF/ Dometic DF Small Series Furnaces With Serial Number After 72498929; Sail Switch; Tan MFR # 33081
42. #PEDAL PACKAGE USE 33198 WHITE MFR # 2082162 Superseded: see description
43. #Toilet Flush Pedal; Replacement For Aqua-Magic ® IV Foot Flush Permanent Toilets; Built-In; Parchment White; With Mounting Screws MFR # 20821
44. #Toilet Flush Pedal; Replacement For Aqua-Magic ® IV Foot Flush Permanent Toilets; Built-In; White; With Mounting Screws MFR # 33198
45. #TOILET COMPONENTS RV; Lever Water Wht Use 33101 MFR # 1251432 Superseded: see description
46. #Sewer Hose Connector; Curved Hose Adapter To Connect Sewer Hose To Dump Station; 45 Degree Angled Connector To Attach 3 Inch Sewer Hose; White MFR # 1665T
47. #CLTS PLUS 800-1400 SPRING BAR (1PC) MFR # 33307
48. #Toilet Flush Lever; Replacement For Aqua-Magic ® IV Hand Flush Permanent Toilets; White MFR # 33101
49. #SEAL,ADAPTER USE 33018 MFR # 8857 Superseded: see description
50. #TOILET COMPONENTS RV; Flush Lever MFR # 1251573
51. #Toilet Flush Lever; Replacement For Aqua-Magic MFR # 33102
52. #TOILET COMPONENTS RV; Gasket For Thetford Adpt. MFR # 33018
53. #NOT REPLACEABLE MFR # ***

Replacement Toilet

Components

2 items

1. #Toilet; Aqua-Magic ® V; Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Parchment White; 17-13/16 Inch Length x 15-1/8 Inch Width x 14 Inch Height; With Sample 8 Ounce Bottle Aqua Kem; Also Use New Number 31834 MFR # 31651 Superseded: see description
2. #Toilet; Aqua-Magic ® V; Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 17-13/16 Inch Length x 15-1/8 Inch Width x 14 Inch Height; Without Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem; Also Use New Number 31833 MFR # 31650 Superseded: see description
