Thetford Aqua Magic IV Low Hand Flush Parts Diagram · Exploded View

Toilet · 2 assemblies · 6 diagram sheets · 55 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Thetford Aqua Magic IV Low Hand Flush RV toilet: 2 assemblies (Exploded View, Replacement Toilet) and 55 manufacturer part numbers. 13 parts are marked as superseded — the description gives the replacement number to order instead.

Thetford and Dometic toilet model numbers are on a sticker at the back of the base or under the bowl rim. The same family (Aqua-Magic, 300/310) has high- and low-profile versions with different valves and seals.

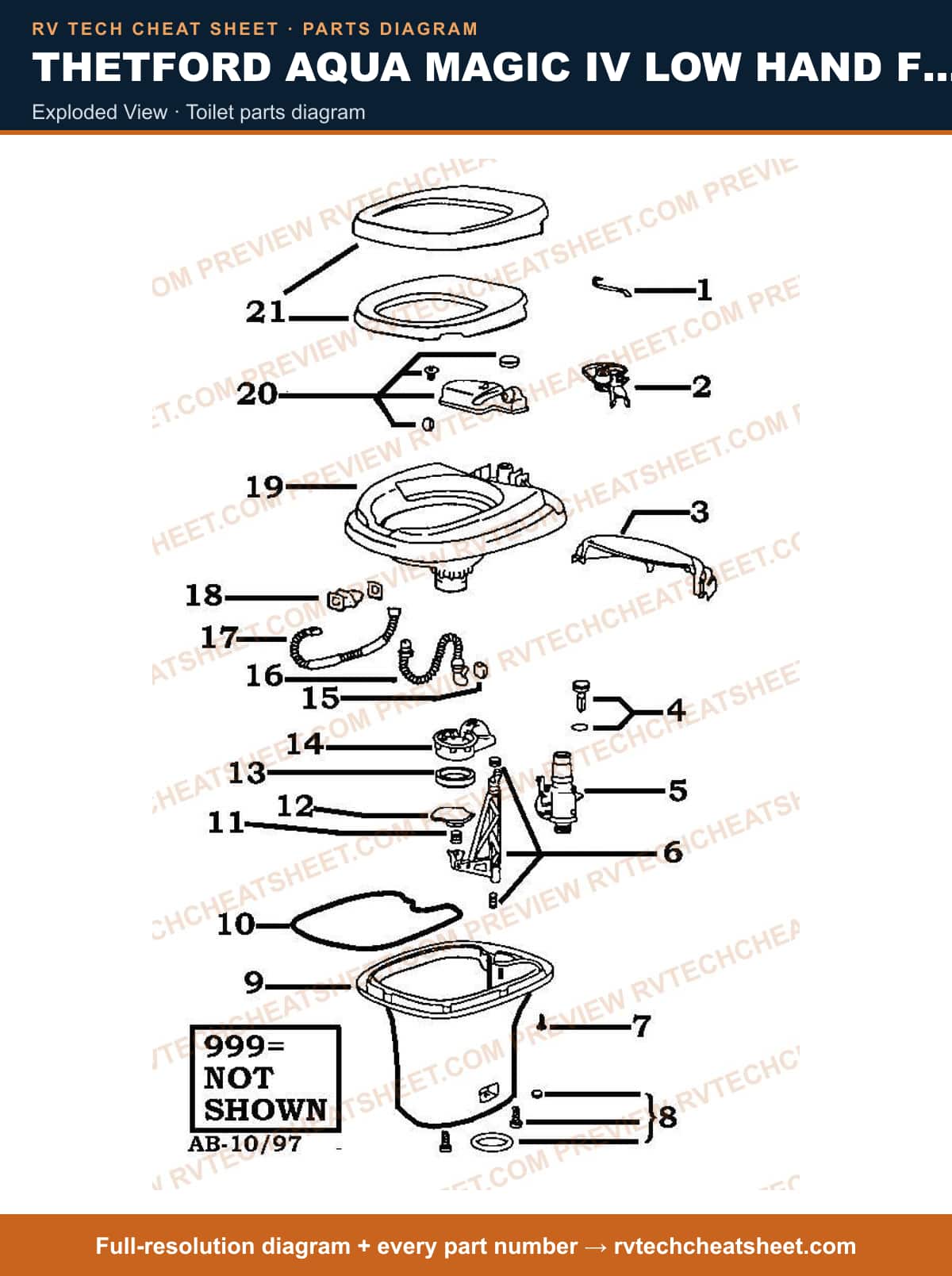

Exploded View

Components

54 items

1. #Toilet Water Valve Link; Replacement For Aqua-Magic ® IV Permanent Toilets MFR # 33315
2. #VALVE LINK USE 33315 MFR # 12513 Superseded: see description
3. #Toilet Flush Lever; Replacement For Aqua-Magic MFR # 24629
4. #HUSKY LOCKING PINS SET MFR # 33112
5. #COVER,MECHANISM USE 1458357 IVORY MFR # 1458310 Superseded: see description
6. #TOILET COMPONENTS RV; Mechanism MFR # 33113
7. #TOILET COMPONENTS RV; Mechanism Cover (White) MFR # 1458362
8. #Toilet Flush Mechanism Cover; Replacement For Thetford Aqua Magic IV Hand Flush Toilets; Parchment MFR # 1458357
9. #FLOAT ASSEMBLY MFR # 24631
10. #CLTS PLUS TRUNNION KIT (EACH) MFR # 33309
11. #Toilet Water Valve Module; Use With Aqua-Magic ® IV Permanent Toilets; With Water Valve/ Flange Seal/ Screws MFR # 13168 Superseded: see description
12. #Toilet Actuator; Use With Thetford Aqua Magic ® IV Hand Flush Permanent Toilet; Low Profile; White; Plastic; With Spring MFR # 24632 Superseded: see description
13. #DOORS RV; KIT, SVC DOOR GASKET LG MFR # 33322
14. #TOILET COMPONENTS RV; Screw MFR # 12659
15. #Toilet Mounting Bolts; Replacement For Aqua-Magic ® V/ Aqua-Magic ® IV Permanent Toilets; With Flange Seal/ 2 Acorn Nuts MFR # 12524
16. #BASE,LOW WHITE MFR # 33106
17. #TOILET COMPONENTS RV; Base Am Iv Low MFR # 33105
18. #BASE,LOW IVORY MFR # 1293510
19. #TOILET COMPONENTS RV; Base Am Iv Low MFR # 1293557
20. #TOILET COMPONENTS RV; Base Am Iv Low MFR # 1293562
21. #Toilet Blade Spring; Replacement For Aqua-Magic ® IV Permanent Toilets; Single MFR # 33317
22. #SPRING USE 33317 MFR # 12519 Superseded: see description
23. #BLADE,WHITE USE 33308 MFR # 1248262 Superseded: see description
24. #Toilet Blade; Replacement For Aqua-Magic ® IV Permanent Toilets; White; With Blade Only MFR # 33308
25. #Toilet Seal; Replacement For Aqua-Magic ® IV Permanent Toilets; Blade Seal; Single MFR # 33027
26. #CENTER LINE LIFT TOOL MFR # 33318
27. #Toilet Blade Track; Replacement For Aqua Magic® IV High And Low Model Toilets MFR # 12520
28. #TOILET COMPONENTS RV; Flapper MFR # 12512
29. #TOILET COMPONENTS RV; Tube Overflow MFR # 33313
30. #Toilet Flush Tube; Replacement For Aqua-Magic ® IV Permanent Toilets MFR # 33312
31. #Toilet Flush Nozzle Kit; Replacement For Aqua- Magic ® IV Permanent Toilets MFR # 24637
32. #HUSKY 2-5/16' PINTLE COM KIT MFR # 33110
33. #HUSKY REPLACEMENT PINS MFR # 33111
34. #TOILET COMPONENTS RV; Bowl Parchment-- Am Iv Ha MFR # 1458257
35. #BOWL,IVORY USE 1458257 AQUAMAGIC IV W/HAND FLUSH MFR # 1458210 Superseded: see description
36. #TOILET COMPONENTS RV; Bowl (White)--Am Iv MFR # 1458262
37. #AGC GLASS FUSE-30 AMP MFR # 24630
38. #SEAT & COVER ASM USE 33081 WHITE MFR # 2464162 Superseded: see description
39. #Toilet Seat; Square Seat; Closed Front; White; Without Logo; With Cover MFR # 36788
40. #2.0K 4-4.00 IDLER;L44610/L44610;BS MFR # 33080
41. #TOILET COMPONENTS RV; Seat&Cover Assy. (Use 83- MFR # 2464157 Superseded: see description
42. #Toilet Seat; Square Seat; Closed Front; Parchment White; Without Logo; With Cover MFR # 36787
43. #SEAT & COVER USE 33216 IVORY MFR # 2464110 Superseded: see description
44. #Furnace Low Air Flow Switch; Replacement For Atwood AF/ Dometic DF Small Series Furnaces With Serial Number After 72498929; Sail Switch; Tan MFR # 33081
45. #Toilet Seat; Square Seat; Closed Front; Ivory; Without Logo; With Cover MFR # 36789
46. #SEAT/CVR ASM USE 83-8954 MFR # 33216 Superseded: see description
47. #TOILET COMPONENTS RV; Gasket For Thetford Adpt. MFR # 33018
48. #Toilet Flush Lever; Replacement For Aqua-Magic MFR # 33102
49. #SEAL,ADAPTER USE 33018 MFR # 8857 Superseded: see description
50. #CLTS PLUS 800-1400 SPRING BAR (1PC) MFR # 33307
51. #TOILET COMPONENTS RV; Lever Water Wht Use 33101 MFR # 1251432 Superseded: see description
52. #TOILET COMPONENTS RV; Flush Lever MFR # 1251573
53. #Sewer Hose Connector; Curved Hose Adapter To Connect Sewer Hose To Dump Station; 45 Degree Angled Connector To Attach 3 Inch Sewer Hose; White MFR # 1665T
54. #Toilet Flush Lever; Replacement For Aqua-Magic ® IV Hand Flush Permanent Toilets; White MFR # 33101

Replacement Toilet

Components

1 item

1. #Toilet; Aqua-Magic ® V; Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; One Handle Flush Control; Full Bowl Flush; White; 17- 13/16 Inch Length x 15-1/8 Inch Width x 14 Inch Height; Without Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem MFR # 31646
