Diagrams › Thetford › Aqua Magic Residence Thetford Aqua Magic Residence Parts Diagram · Replacement Toilet
Toilet · 2 assemblies · 6 diagram sheets · 26 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Thetford Aqua Magic Residence RV toilet: 2 assemblies (Replacement Toilet, Exploded View) and 26 manufacturer part numbers. 9 parts are marked as superseded — the description gives the replacement number to order instead.
Thetford and Dometic toilet model numbers are on a sticker at the back of the base or under the bowl rim. The same family (Aqua-Magic, 300/310) has high- and low-profile versions with different valves and seals.
Replacement Toilet
Thetford Aqua Magic Residence replacement toilet — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →
Thetford Aqua Magic Residence replacement toilet — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →
Thetford Aqua Magic Residence replacement toilet — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 8 items # RAKE, COLLAPSIBLE MFR # 42171 # Toilet; Aqua Magic ® Residence; Permanent; Low Profile; Round Seat With 12-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Bone; 19- 3/4 Inch Length x 15-1/4 Inch Width x 13-3/4 Inch Height; With Water-Saving Hand Sprayer MFR # 42176 # Toilet; Aqua Magic ® Residence; Permanent; Low Profile; Round Seat With 12-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Bone; 19- 3/4 Inch Length x 15-1/4 Inch Width x 13-3/4 Inch Height; Without Water-Saving Hand Sprayer MFR # 42172 # FLYING INSECT SCREEN-WH6GEA WATER HEATER DOMETIC (E) MFR # 42169 # Toilet; Aqua Magic ® Residence; Permanent; Low Profile; Round Seat With 12-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 19- 3/4 Inch Length x 15-1/4 Inch Width x 13-3/4 Inch Height; With Water-Saving Hand Sprayer MFR # 42174 # Toilet; Aqua Magic ® Residence; Permanent; High Profile; Round Seat With 18 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 19-3/4 Inch Length x 15-1/4 Inch Width x 19-1/2 Inch Height; With Water-Saving Hand Sprayer MFR # 42173 # Toilet; Aqua Magic ® Residence; Permanent; High Profile; Round Seat With 18 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Bone; 19-3/4 Inch Length x 15-1/4 Inch Width x 19-1/2 Inch Height; With Water-Saving Hand Sprayer MFR # 42175 # Toilet; Aqua Magic ® Residence; Permanent; Low Profile; Round Seat With 12-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 19- 3/4 Inch Length x 15-1/4 Inch Width x 13-3/4 Inch Height; Without Water-Saving Hand Sprayer MFR # 42170
Exploded View

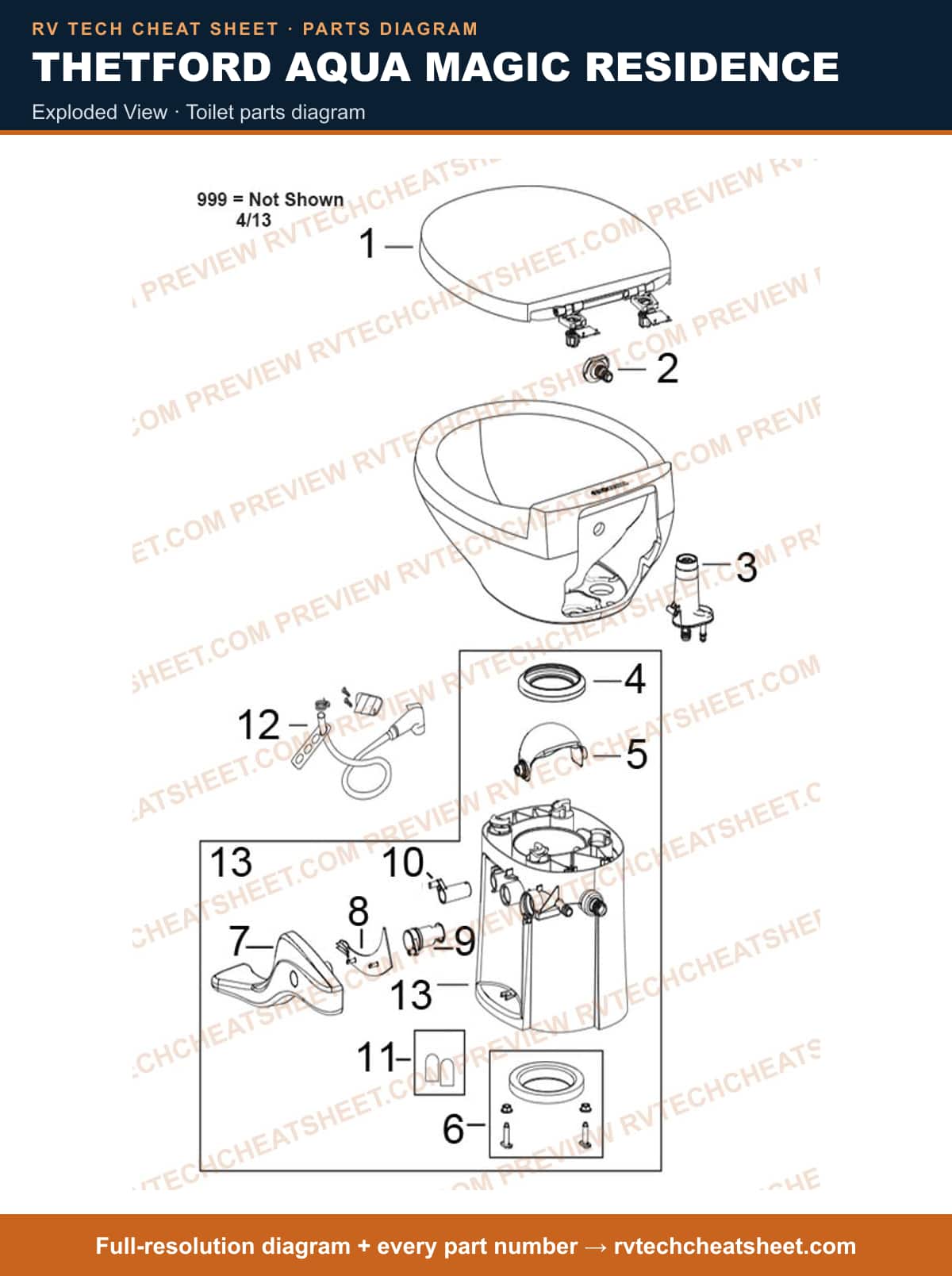

Thetford Aqua Magic Residence exploded view — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →
Thetford Aqua Magic Residence exploded view — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →
Thetford Aqua Magic Residence exploded view — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 18 items # Toilet Seat; Round; Closed Front; Bone; With Cover; With Hinge Assembly MFR # 42179 # Toilet Flush Nozzle Kit; Replacement For Aqua- Magic ® Style Lite/ Aqua-Magic ® Style II/ Aqua- Magic ® Residence Permanent Toilets; White; With Nozzle/ Clamp/ Nut/ Gasket/ Flush Hose/ Closet Flange Seal MFR # 34124 # Toilet Flush Nozzle Kit; Replacement For Thetford Aqua-Magic ® Residence/ Aqua-Magic ® Style Lite Permanent Toilet; Bone MFR # 34125 # Toilet Vacuum Breaker; Use With Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite/ Aqua-Magic
® Style II Permanent Toilets; With Vacuum Breaker Sub-Assembly/ Clamps/ Flush Hose/ Closet Flange Seal/ Tape VAC MFR # 34122 Superseded: see description # Toilet Seal; Replacement For Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite/ Aqua-Magic ® Style II/ Aqua-Magic ® Residence Permanent Toilets; Waste Ball Seal MFR # 34120 # FLYING INSECT SCREEN-FUR200, SUBURBAN,DUOTHERM, 2PK, BLISTER MFR # 42141 # Toilet Waste Ball; Use With Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite/ Aqua-Magic ® Style II Permanent Toilets; White; Also Use New Number 42209 MFR # 34117 Superseded: see description # Toilet Flush Pedal; Replacement Foot Pedal For Aqua Magic ® Style II Toilets; White MFR # 42078 # KIT,PEDAL COVER HI BNE,STYLEII MFR # 42081 # Toilet Flush Pedal; Use With Thetford Style II Toilets; Cover Only; White MFR # 42080 Superseded: see description # Toilet Water Valve Module; Use With Aqua-Magic
® Style II Permanent Toilets; With Water Valve Cartridge/ Drive Arm Seal/ Water Inlet Seal/ Water Inlet Spring/ Spring Retainer/ Closet Flange Seal MFR # 42049 Superseded: see description # Toilet Waste Ball Drive Arm; Replacement For Aqua-Magic ® Style II/ Aqua-Magic ® Residence Permanent Toilets; Also Use New Number 42209 MFR # 42048 Superseded: see description # Toilet Waste Ball; Use With Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite/ Aqua-Magic ® Style II Permanent Toilets; White; With Waste Ball Assembly/ Closet Flange Seal/ Waste Ball Seal/ Waste Ball Drive Arm MFR # 42209 Superseded: see description # Toilet Mounting Bolt Cap; For Thetford Aqua Magic ® Style II Toilets; Bone MFR # 42112 # Toilet Flush Hand Sprayer Kit; Use With Aria® Classic/ Aqua-Magic® Style Plus/ Aqua-Magic® Style Lite/ Aqua-Magic® Style II/ Aqua-Magic® Aurora Permanent Toilets; Chrome Plated MFR # 19289 Superseded: see description # Toilet Base; For Thetford Aqua Magic ® Style II Low Profile Toilets; Bone MFR # 42136 # Toilet Base; Use With Aqua Magic ® Residence/ Aqua Magic ® Style II High Profile Permanent Toilets; Bone; With Waste Ball Seal/ Waste Ball/ Mounting Bolts/ Flush Pedal/ Flush Pedal Cover Insert/ Water Valve/ Waste Ball Drive Arm/ Bolt Cap MFR # 42138 Superseded: see description # Toilet Base; Use With Aqua-Magic ® Residence/ Aqua-Magic ® Style II High Profile Permanent Toilets; White; With Waste Ball Seal/ Waste Ball/ Closet Bolt/ Pedal/ Pedal Cover Insert/ Water Valve/ Waste Ball Drive Arm/ Bolt Caps MFR # 42137 Superseded: see description
