Thetford Aqua Magic Starlite (sh/sl) Parts Diagram · Replacement Toilet

Toilet · 2 assemblies · 6 diagram sheets · 35 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Thetford Aqua Magic Starlite (sh/sl) RV toilet: 2 assemblies (Replacement Toilet, Exploded View) and 35 manufacturer part numbers. 12 parts are marked as superseded — the description gives the replacement number to order instead.

Thetford and Dometic toilet model numbers are on a sticker at the back of the base or under the bowl rim. The same family (Aqua-Magic, 300/310) has high- and low-profile versions with different valves and seals.

Replacement Toilet

Components

4 items

1. #Toilet; Aqua-Magic ® Bravura; Permanent; Low Profile; Round Seat With 13-1/8 Inch Seat Height; Pedal Flush Control; Pulsating Flush; White; 20- 3/16 Inch Length x 16-9/16 Inch Width x 14 Inch Height; Without Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem MFR # 31120
2. #Toilet; Aqua-Magic ® Bravura; Permanent; High Profile; Round Seat With 16-1/4 Inch Seat Height; Pedal Flush Control; Pulsating Flush; White; 20- 3/16 Inch Length x 16-9/16 Inch Width x 17-7/8 Inch Height; Without Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem MFR # 31084
3. #Toilet; Aqua-Magic ® Bravura; Permanent; Low Profile; Round Seat With 13-1/8 Inch Seat Height; Pedal Flush Control; Pulsating Flush; Parchment White; 20-3/16 Inch Length x 16-9/16 Inch Width x 14 Inch Height; Without Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem MFR # 31119
4. #HANDLE CRANK-(31121) MFR # 31121

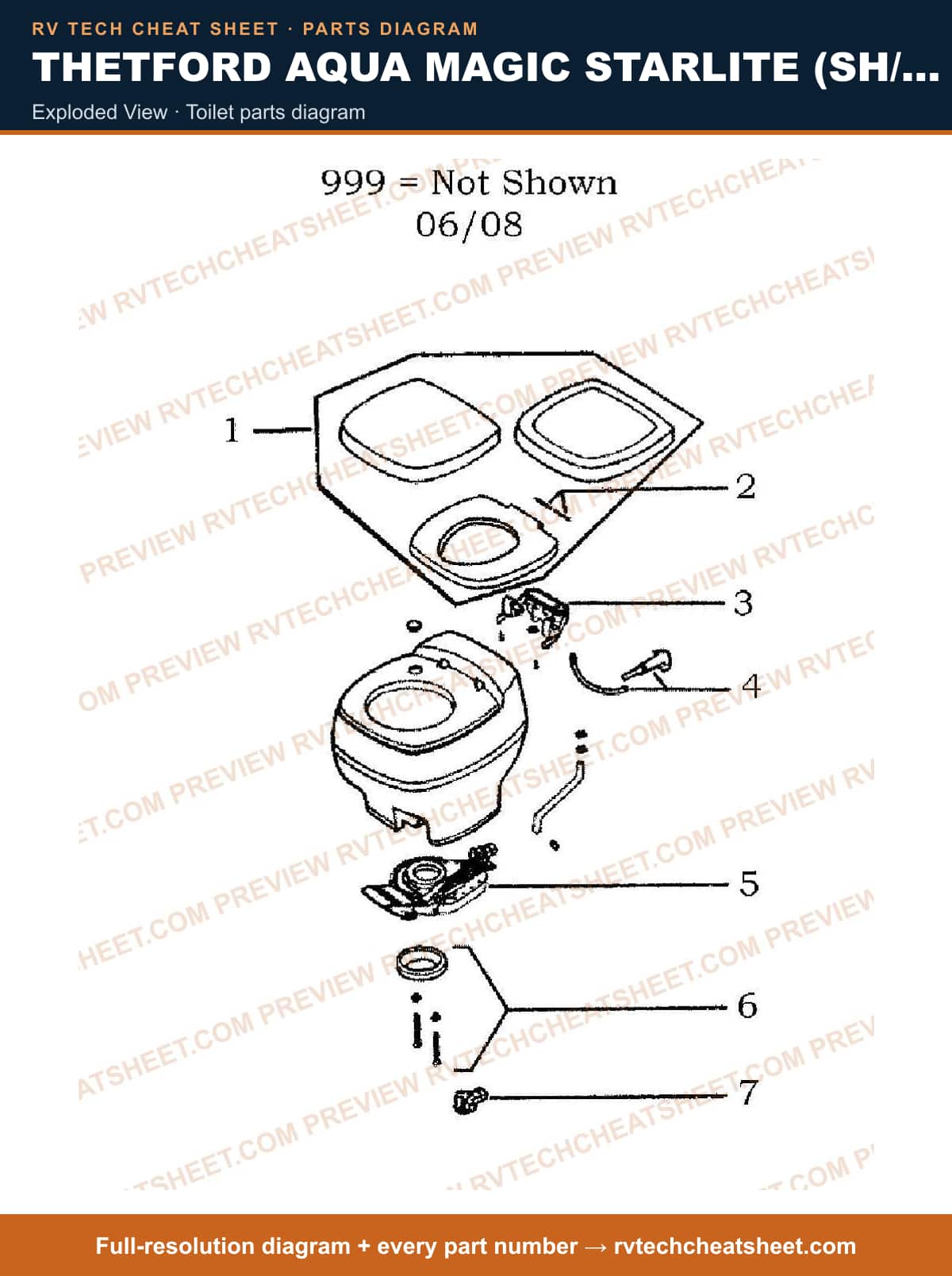

Exploded View

Components

31 items

1. #USE 46-7618 COVER,SEAT BONE MFR # 2092395 Superseded: see description
2. #TOILET COMPONENTS RV; Cover Padded Ivory Cove MFR # 8803IT
3. #COVER,SEAT PADDED IVORY BROWN PAD MFR # 8803IB
4. #COVER,SEAT WHITE USE 33201 MFR # 2092362 Superseded: see description
5. #GM 1500 CUSTOM 5THWHEEL INSTALL KIT MFR # 33201
6. #Toilet Seat; Square Front; Closed Front; White; Without Logo; With Cover MFR # 36768
7. #APPLIANCE COMPONENTS RV; KIT, SVC EXHAUST ADAPTER N/R MFR # 33166
8. #Toilet Seat; Square Seat; Closed Front; Parchment White; Without Logo; With Cover MFR # 36769
9. #SEAT,GOLD MFR # 848703
10. #TOILET COMPONENTS RV; Seat--Gl/Gh White MFR # 848762
11. #HITCH LOCK 1/2 DIA MFR # 33165
12. #USE 46-7618 COVER,SEAT PARCHMENT *N* MFR # 20923 Superseded: see description
13. #TOILET COMPONENTS RV; HINGE PIN MFR # 12986
14. #Toilet Seat Hinge Pin; Replacement For Aqua Magic ® Galaxy; Single MFR # 33326
15. #Toilet Vacuum Breaker; Use With Aqua-Magic ® Galaxy/ Aqua-Magic ® Starlite Permanent Toilets MFR # 20830 Superseded: see description
16. #HAND SPRAY USE 24884 MFR # 8659 Superseded: see description
17. #Toilet Flush Hand Sprayer Kit; Use With Aqua- Magic ® Galaxy/ Aqua-Magic ® Starlite Permanent Toilets; White; With Spray Hose/ T- Diverter/ Mount Clip/ Worm Gear Clamp/ Clamp/Bride/ Screws MFR # 8993 Superseded: see description
18. #Toilet Flush Hand Sprayer Kit; Replacement For Thetford Aqua Magic ® Starlite Permanente Toilet MFR # 24884
19. #MECHANISM WHITE USE 33031 MFR # 1528304 Superseded: see description
20. #Toilet Flush Mechanism; Use With Aqua-Magic ® Galaxy Permanent Toilets; Manual Flush; Lower Mechanism; White; ABS Plastic; With Handle MFR # 33031 Superseded: see description
21. #2011-20RAM OEM GN BALL & ANCHOR KIT MFR # 33213
22. #Toilet Flush Mechanism; Use With Aqua-Magic ® Galaxy/ Aqua-Magic ® Starlite Permanent Toilets; Manual Flush; Lower Mechanism; Ivory MFR # 14622 Superseded: see description
23. #Toilet Flush Mechanism; Use With Aqua-Magic ® Galaxy/ Aqua-Magic ® Starlite Permanent Toilets; Manual Flush; Lower Mechanism; Parchment White MFR # 24203 Superseded: see description
24. #Toilet Mounting Bolts; Replacement For Aqua- Magic ® Galaxy/ Aqua-Magic ® Starlite Permanent Toilets; With Closet Flange Seal/ 2 Hex Nut MFR # 08975
25. #SEAL,HOPPER USE 33035 POST 1985 MFR # 15786 Superseded: see description
26. #TOILET COMPONENTS RV; Tube--14 Inch MFR # 33256
27. #TOILET COMPONENTS RV; Hopper Seal MFR # 33035
28. #LIP SEAL 24654 MFR # 33366
29. #SEAL,LIP USE 24654 MFR # 8308 Superseded: see description
30. #SEAL,LIP MFR # 24654
31. #Toilet Seat Bumper; Replacement For Thetford Aqua Magic Aurora Permanent Toilet; White MFR # 33191
