Thetford Aqua Magic Style II Parts Diagram · Exploded View

Toilet · 2 assemblies · 6 diagram sheets · 29 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Thetford Aqua Magic Style II RV toilet: 2 assemblies (Exploded View, Replacement Toilet) and 29 manufacturer part numbers. 10 parts are marked as superseded — the description gives the replacement number to order instead.

Thetford and Dometic toilet model numbers are on a sticker at the back of the base or under the bowl rim. The same family (Aqua-Magic, 300/310) has high- and low-profile versions with different valves and seals.

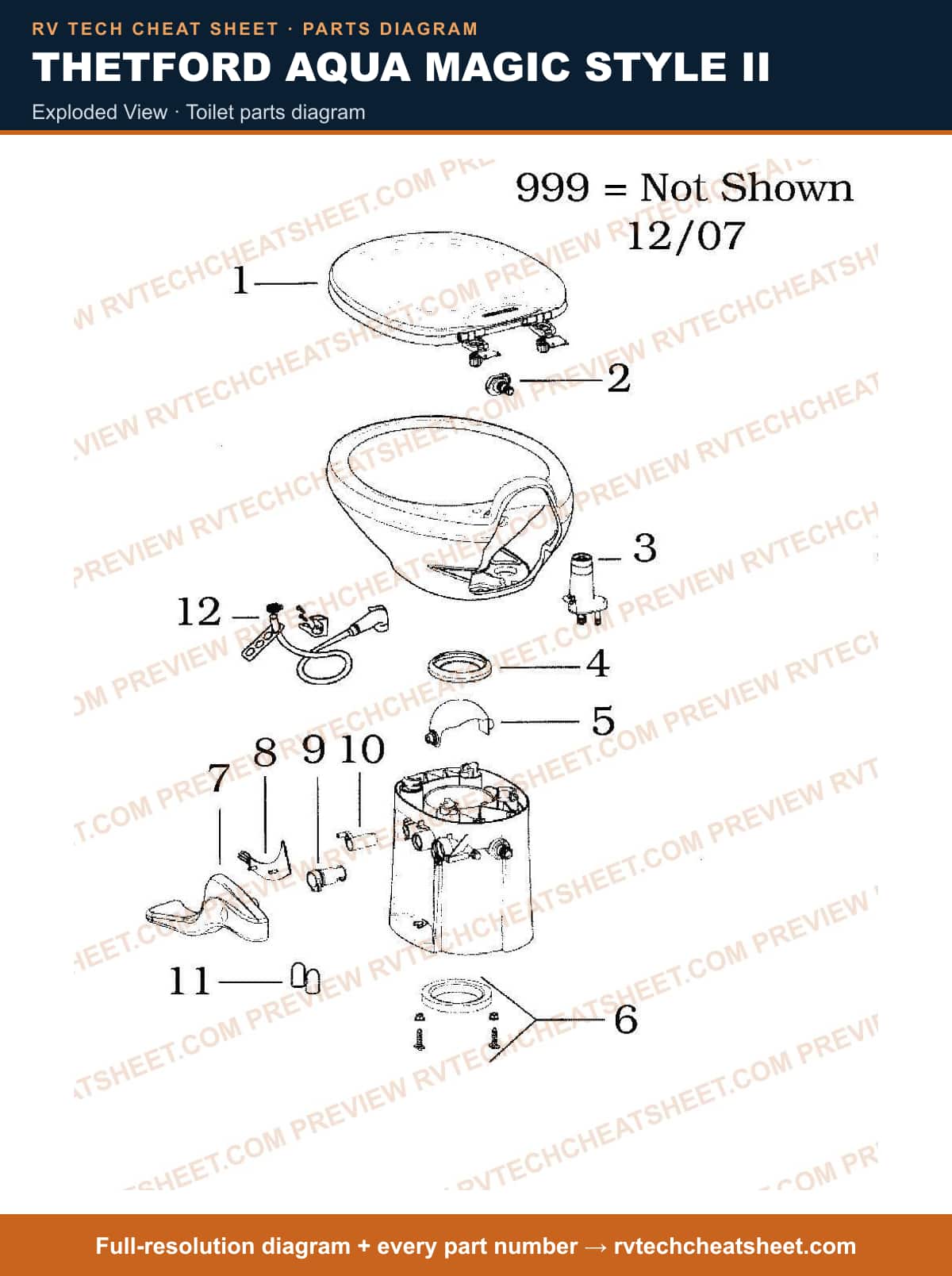

Exploded View

Components

22 items

1. #Toilet Seat; Round Seat; Closed Front; White; Without Logo; With Cover; With 2 Bolts/ 2 Nuts/ 4 Washer/ Hinge Post MFR # 42036
2. #Toilet Seat; Round; Closed Front; Bone; With Cover; With Hinge Assembly MFR # 42179
3. #Toilet Seat; Round Seat; Closed Front; Bone; Without Logo; With Cover; With 2 Bolts/ 2 Nuts/ 4 Washer/ Hinge Post MFR # 42037
4. #Toilet Flush Nozzle Kit; Replacement For Aqua- Magic ® Style Lite/ Aqua-Magic ® Style II/ Aqua- Magic ® Residence Permanent Toilets; White; With Nozzle/ Clamp/ Nut/ Gasket/ Flush Hose/ Closet Flange Seal MFR # 34124
5. #Toilet Flush Nozzle Kit; Replacement For Thetford Aqua-Magic ® Residence/ Aqua-Magic ® Style Lite Permanent Toilet; Bone MFR # 34125
6. #Toilet Vacuum Breaker; Use With Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite/ Aqua-Magic ® Style II Permanent Toilets; With Vacuum Breaker Sub-Assembly/ Clamps/ Flush Hose/ Closet Flange Seal/ Tape VAC MFR # 34122 Superseded: see description
7. #FLYING INSECT SCREEN-FUR200, SUBURBAN,DUOTHERM, 2PK, BLISTER MFR # 42141
8. #Toilet Waste Ball; Use With Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite/ Aqua-Magic ® Style II Permanent Toilets; White; With Waste Ball Assembly/ Closet Flange Seal/ Waste Ball Seal/ Waste Ball Drive Arm MFR # 42209 Superseded: see description
9. #Toilet Waste Ball; Use With Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite/ Aqua-Magic ® Style II Permanent Toilets; White; With Drive Assembly MFR # 34090 Superseded: see description
10. #Toilet Waste Ball; Use With Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite/ Aqua-Magic ® Style II Permanent Toilets; White; Also Use New Number 42209 MFR # 34117 Superseded: see description
11. #Toilet Mounting Bolts; Replacement For Aqua- Magic ® Style II Permanent Toilets; With Closet Flange Seal/ 2 Hex Nut MFR # 42115
12. #Toilet Flush Pedal; Replacement For Thetford Style II ® High Profile/ Aqua Magic ® Residence Permanent Toilets; Built-In; White MFR # 42067
13. #Toilet Flush Pedal; Replacement Foot Pedal For Aqua Magic ® Style II Toilets; White MFR # 42078
14. #Toilet Flush Pedal; Use With Thetford Style II Toilets; Cover Only; White MFR # 42080 Superseded: see description
15. #KIT,PEDAL COVER HI BNE,STYLEII MFR # 42081
16. #Toilet Water Valve Module; Use With Aqua-Magic ® Style II Permanent Toilets; With Water Valve Cartridge/ Drive Arm Seal/ Water Inlet Seal/ Water Inlet Spring/ Spring Retainer/ Closet Flange Seal MFR # 42049 Superseded: see description
17. #Toilet Waste Ball Drive Arm; Replacement For Aqua-Magic ® Style II/ Aqua-Magic ® Residence Permanent Toilets; Also Use New Number 42209 MFR # 42048 Superseded: see description
18. #Toilet Mounting Bolt Cap; For Thetford Aqua Magic ® Style II Toilets; Bone MFR # 42112
19. #Toilet Flush Hand Sprayer Kit; Use With Aria® Classic/ Aqua-Magic® Style Plus/ Aqua-Magic® Style Lite/ Aqua-Magic® Style II/ Aqua-Magic® Aurora Permanent Toilets; Chrome Plated MFR # 19289 Superseded: see description
20. #Toilet Base; Use With Aqua Magic ® Residence/ Aqua Magic ® Style II High Profile Permanent Toilets; Bone; With Waste Ball Seal/ Waste Ball/ Mounting Bolts/ Flush Pedal/ Flush Pedal Cover Insert/ Water Valve/ Waste Ball Drive Arm/ Bolt Cap MFR # 42138 Superseded: see description
21. #Toilet Base; For Thetford Aqua Magic ® Style II Low Profile Toilets; Bone MFR # 42136
22. #Toilet Base; Use With Aqua-Magic ® Residence/ Aqua-Magic ® Style II High Profile Permanent Toilets; White; With Waste Ball Seal/ Waste Ball/ Closet Bolt/ Pedal/ Pedal Cover Insert/ Water Valve/ Waste Ball Drive Arm/ Bolt Caps MFR # 42137 Superseded: see description

Replacement Toilet

Components

7 items

1. #DE-FLAPPER 2 PACK MFR # 42061
2. #Toilet; Aqua Magic ® Style II; Permanent; High Profile; Round Seat With 17-7/8 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 20 Inch Length x 15 Inch Width x 19-1/2 Inch Height; MFR # 42118
3. #Toilet; Aqua Magic ® Style II; Permanent; High Profile; Round Seat With 17-7/8 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 20 Inch Length x 15 Inch Width x 19-1/2 Inch Height; With Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem MFR # 42060
4. #Toilet; Aqua Magic ® Style II; Permanent; Low Profile; Round Seat With 12 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 20 Inch Length x 15 Inch Width x 14 Inch Height; Without Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem MFR # 42059
5. #Toilet; Aqua Magic ® Style II; Permanent; High Profile; Round Seat With 17-7/8 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Bone; 20 Inch Length x 15 Inch Width x 19-1/2 Inch Height; With Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem MFR # 42064
6. #Toilet; Aqua Magic ® Style II; Permanent; Low Profile; Round Seat With 12 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Bone; 20 Inch Length x 15 Inch Width x 14 Inch Height; Without Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem MFR # 42063
7. #Toilet; Aqua Magic ® Style II; Permanent; High Profile; Round Seat With 17-7/8 Inch Seat Height; Pedal Flush Control With Cover; Full Bowl Flush; White; 20 Inch Length x 15 Inch Width x 19-1/2 Inch Height; With Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem MFR # 42105
