Thetford Aqua Magic Style Lite Parts Diagram · Replacement Toilet

Toilet · 2 assemblies · 6 diagram sheets · 43 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Thetford Aqua Magic Style Lite RV toilet: 2 assemblies (Replacement Toilet, Exploded View) and 43 manufacturer part numbers. 9 parts are marked as superseded — the description gives the replacement number to order instead.

Thetford and Dometic toilet model numbers are on a sticker at the back of the base or under the bowl rim. The same family (Aqua-Magic, 300/310) has high- and low-profile versions with different valves and seals.

Replacement Toilet

Components

8 items

1. #STYLE LITE BOWL&SPRAY WHT(LOW) MFR # 34073
2. #STYL LITE BOWL&SPRAY BON(HIGH) MFR # 34074
3. #STYL LITE BOWL&SPRAY WHT(HIGH) MFR # 34070
4. #TOILET COMPONENTS RV; AQUA-MAGIC STYLE LITE HI MFR # 34069
5. #TOILET COMPONENTS RV; Style Lite China Bowl Wht MFR # 34071
6. #TOILET COMPONENTS RV; AQUA-MAGIC STYLE LITE HIG MFR # 34068
7. #STYLE LITE CHINA BOWL BON(LOW) RMD MFR # 34075
8. #TOILET COMPONENTS RV; Style Lite MFR # 34076

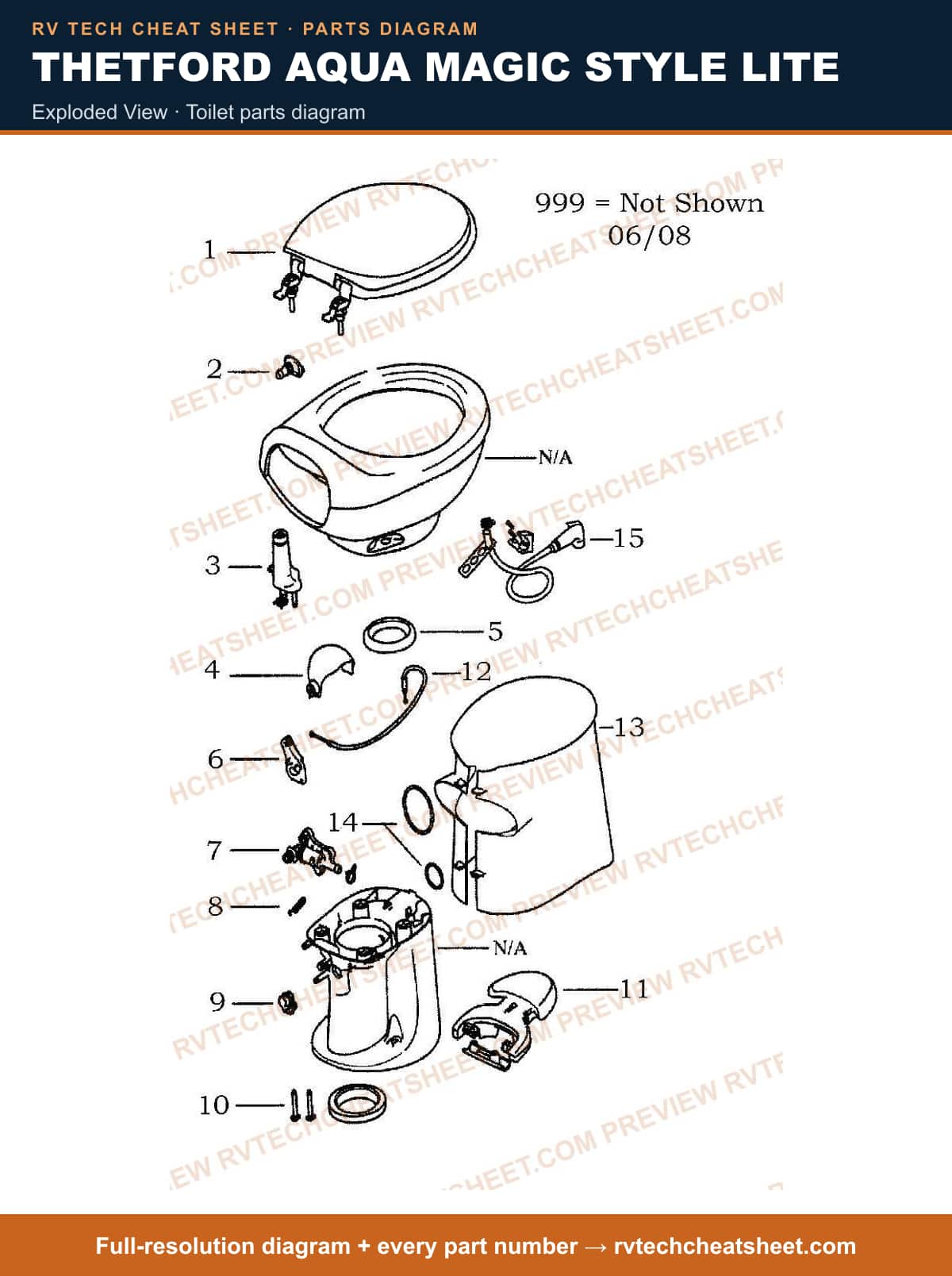

Exploded View

Components

35 items

1. #Toilet Seat; For Use With Thetford Aqua Magic ® Style Plus/ Style Lite Toilets; Full Size Residential Style/ Elongated; Closed Front; White; Without Logo; With Cover MFR # 34144 Superseded: see description
2. #Toilet Seat; For Use With Thetford Aqua Magic ® Style Plus/ Style Lite Toilets; Full Size Residential Style/ Elongated; Closed Front; Bone; Without Logo; With Cover; With Hinge And Pintle MFR # 34145 Superseded: see description
3. #TOILET COMPONENTS RV;;THETFORD SEAT & COVER ASS MFR # 34146
4. #Toilet Flush Nozzle Kit; Replacement For Aqua- Magic ® Style Lite/ Aqua-Magic ® Style II/ Aqua- Magic ® Residence Permanent Toilets; White; With Nozzle/ Clamp/ Nut/ Gasket/ Flush Hose/ Closet Flange Seal MFR # 34124
5. #Toilet Flush Nozzle Kit; Replacement For Aqua- Magic ® Style Plus Permanent Toilets; White; With Nozzle/ Clamp/ Nut/ Gasket/ Flush Hose/ Closet Flange Seal MFR # 34127
6. #Toilet Vacuum Breaker; Use With Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite/ Aqua-Magic ® Style II Permanent Toilets; With Vacuum Breaker Sub-Assembly/ Clamps/ Flush Hose/ Closet Flange Seal/ Tape VAC MFR # 34122 Superseded: see description
7. #Toilet Waste Ball;;Use With Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite/ Aqua-Magic ® Style II MFR # THF34117 Superseded: see description
8. #Toilet Waste Ball; Use With Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite/ Aqua-Magic ® Style II Permanent Toilets; White; With Drive Assembly MFR # 34090 Superseded: see description
9. #Toilet Waste Ball; Use With Thetford Style Plus Toilets; Black MFR # 34118 Superseded: see description
10. #Toilet Waste Ball; Use With Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite/ Aqua-Magic ® Style II Permanent Toilets; White; With Waste Ball Assembly/ Closet Flange Seal/ Waste Ball Seal/ Waste Ball Drive Arm MFR # 42209 Superseded: see description
11. #Toilet Seal; Replacement For Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite/ Aqua-Magic ® Style II/ Aqua-Magic ® Residence Permanent Toilets; Waste Ball Seal MFR # 34120
12. #FLYING INSECT SCREEN-FUR200, SUBURBAN,DUOTHERM, 2PK, BLISTER MFR # 42141
13. #Toilet Water Valve Module; Use With Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite Permanent Toilets; With Water Valve Sub-Assembly/ Water Valve Drive Arm/ Clamp/ Mounting Screws/ Closet Flange Seal MFR # 34100 Superseded: see description
14. #TOILET COMPONENTS RV; THETFORD WATER VALVE DRIV MFR # 34104
15. #Toilet Water Valve Return Spring; Replacement For Aqua-Magic ® Style Lite/ Aqua-Magic ® Style Plus/ Aqua-Magic ® Style II Permanent Toilets; With Return Spring/ Closet Flange Seal MFR # 34110
16. #Toilet Waste Ball Drive Arm; Replacement For Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite Permanent Toilets; With Waste Ball Drive Arm/ Screw/ Closet Flange Seal MFR # 34102
17. #Toilet Mounting Bolts; Replacement For Aqua- Magic ® Style Plus/ Aqua-Magic ® Style Lite Permanent Toilets; With Closet Flange Seal/ 2 White Bolt Caps MFR # 28971
18. #Toilet Mounting Bolts; Replacement For Thetford Style Lite/ Aqua Magic ® Style Plus Permanent Toilet; With 2 Closet Bolts/ Closet Flange Seal/ 2 Bone Bolt Caps MFR # 28972
19. #THETFORD PEDAL- WHITE MFR # 34112
20. #Toilet Flush Pedal; Replacement Foot Pedal For Style Lite Toilets; Bone MFR # 34113
21. #Toilet Flush Pedal Cable; Replacement For Aqua- Magic ® Style Plus/ Aqua-Magic ® Style Lite Permanent Toilets; With Cable/ Waste Ball Seal/ Closet Flange Seal MFR # 34106
22. #TOILET COMPONENTS RV; STYL PLUS HIGH SHROUD-BLK MFR # 34142
23. #Bowl Warp; Bone; Replacement For Style Lite Toilet MFR # 34134
24. #Bowl Warp; White; Replacement For Style Lite Toilet MFR # 34133
25. #TOILET COMPONENTS RV; Styl Plus High Shroud-Wht MFR # 34138
26. #TOILET COMPONENTS RV; Styl Pls High Shroud-Bone MFR # 34140
27. #TOILET COMPONENTS RV; Styl Plus Low Shroud-Bone MFR # 34141
28. #TOILET COMPONENTS RV; STYLE PLUS LOW SHROUD-WHT MFR # 34139
29. #TOILET COMPONENTS RV; Style Plus Shroud O-Ring MFR # 34136
30. #TOILET COMPONENTS RV; Styl Plus Shroud Oring Bp MFR # 34137
31. #Toilet Flush Hand Sprayer Kit; Use With Aria® Classic/ Aqua-Magic® Style Plus/ Aqua-Magic® Style Lite/ Aqua-Magic® Style II/ Aqua-Magic® Aurora Permanent Toilets; Chrome Plated MFR # 19289 Superseded: see description
32. #Toilet Mounting Bolt Cap; Replacement For Thetford Aqua Magic ® V Foot Flush Permanent Toilet; Parchment White; Single MFR # 31724
33. #TOILET COMPONENTS RV; Thetford Style Elite Pod MFR # 34130
34. #TOILET COMPONENTS RV; Thetford Pod- White MFR # 34129
35. #Toilet Mounting Bolt Cap; Replacement For Thetford Style Lite And Aqua Magic® V Foot Flush Permanent Toilet; White; Single MFR # 31713
