Thetford Aqua Magic Style Plus Parts Diagram · Exploded View

Toilet · 2 assemblies · 6 diagram sheets · 40 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Thetford Aqua Magic Style Plus RV toilet: 2 assemblies (Exploded View, Replacement Toilets) and 40 manufacturer part numbers. 9 parts are marked as superseded — the description gives the replacement number to order instead.

Thetford and Dometic toilet model numbers are on a sticker at the back of the base or under the bowl rim. The same family (Aqua-Magic, 300/310) has high- and low-profile versions with different valves and seals.

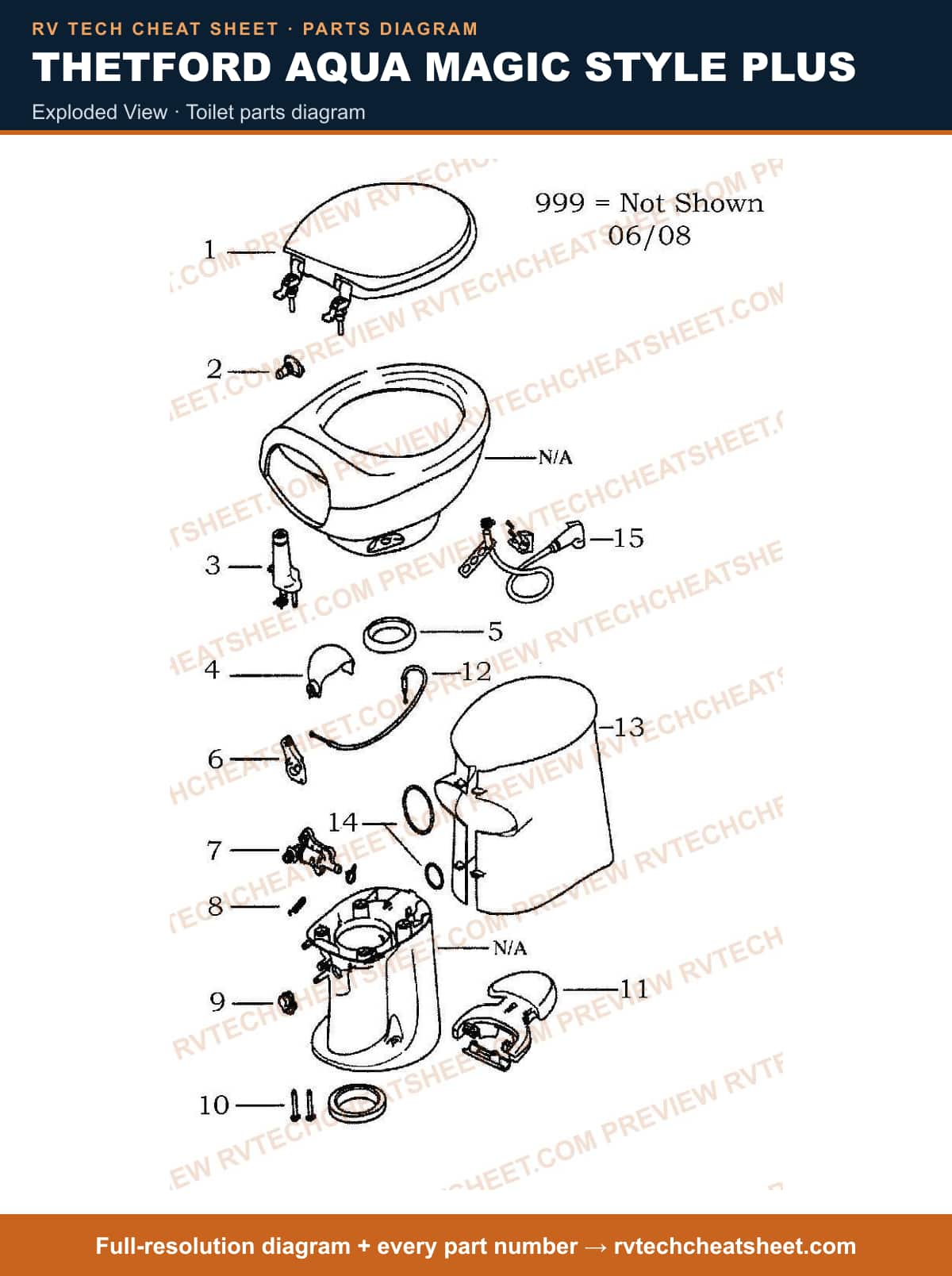

Exploded View

Components

29 items

1. #Toilet Seat; For Use With Thetford Aqua Magic ® Style Plus/ Style Lite Toilets; Full Size Residential Style/ Elongated; Closed Front; Bone; Without Logo; With Cover; With Hinge And Pintle MFR # 34145 Superseded: see description
2. #Toilet Seat; For Use With Thetford Aqua Magic ® Style Plus/ Style Lite Toilets; Full Size Residential Style/ Elongated; Closed Front; White; Without Logo; With Cover MFR # 34144 Superseded: see description
3. #TOILET COMPONENTS RV;;THETFORD SEAT & COVER ASS MFR # 34146
4. #Toilet Flush Nozzle Kit; Replacement For Aqua- Magic ® Style Plus Permanent Toilets; White; With Nozzle/ Clamp/ Nut/ Gasket/ Flush Hose/ Closet Flange Seal MFR # 34127
5. #Toilet Vacuum Breaker; Use With Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite/ Aqua-Magic ® Style II Permanent Toilets; With Vacuum Breaker Sub-Assembly/ Clamps/ Flush Hose/ Closet Flange Seal/ Tape VAC MFR # 34122 Superseded: see description
6. #Toilet Waste Ball; Use With Thetford Style Plus Toilets; Black MFR # 34118 Superseded: see description
7. #Toilet Waste Ball; Use With Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite/ Aqua-Magic ® Style II Permanent Toilets; White; With Waste Ball Assembly/ Closet Flange Seal/ Waste Ball Seal/ Waste Ball Drive Arm MFR # 42209 Superseded: see description
8. #Toilet Waste Ball;;Use With Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite/ Aqua-Magic ® Style II MFR # THF34117 Superseded: see description
9. #FLYING INSECT SCREEN-FUR200, SUBURBAN,DUOTHERM, 2PK, BLISTER MFR # 42141
10. #Toilet Seal; Replacement For Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite/ Aqua-Magic ® Style II/ Aqua-Magic ® Residence Permanent Toilets; Waste Ball Seal MFR # 34120
11. #Toilet Water Valve Module; Use With Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite Permanent Toilets; With Water Valve Sub-Assembly/ Water Valve Drive Arm/ Clamp/ Mounting Screws/ Closet Flange Seal MFR # 34100 Superseded: see description
12. #TOILET COMPONENTS RV; THETFORD WATER VALVE DRIV MFR # 34104
13. #Toilet Water Valve Return Spring; Replacement For Aqua-Magic ® Style Lite/ Aqua-Magic ® Style Plus/ Aqua-Magic ® Style II Permanent Toilets; With Return Spring/ Closet Flange Seal MFR # 34110
14. #Toilet Waste Ball Drive Arm; Replacement For Aqua-Magic ® Style Plus/ Aqua-Magic ® Style Lite Permanent Toilets; With Waste Ball Drive Arm/ Screw/ Closet Flange Seal MFR # 34102
15. #Toilet Mounting Bolts; Replacement For Thetford Style Lite/ Aqua Magic ® Style Plus Permanent Toilet; With 2 Closet Bolts/ Closet Flange Seal/ 2 Bone Bolt Caps MFR # 28972
16. #Toilet Mounting Bolts; Replacement For Aqua- Magic ® Style Plus/ Aqua-Magic ® Style Lite Permanent Toilets; With Closet Flange Seal/ 2 White Bolt Caps MFR # 28971
17. #Toilet Flush Pedal; Replacement Foot Pedal For Aqua Magic ® Style Plus Toilets; Black MFR # 34116
18. #Toilet Flush Pedal; Use With Thetford Style Plus ® Permanent Toilet; Built-In; Bone MFR # 34115 Superseded: see description
19. #Toilet Flush Pedal; Replacement For Thetford Aqua Magic ® Style Plus Permanent Toilet; Built- In; White; Without Pedal Cable MFR # 34114
20. #Toilet Flush Pedal Cable; Replacement For Aqua- Magic ® Style Plus/ Aqua-Magic ® Style Lite Permanent Toilets; With Cable/ Waste Ball Seal/ Closet Flange Seal MFR # 34106
21. #TOILET COMPONENTS RV; Styl Plus Low Shroud-Bone MFR # 34141
22. #TOILET COMPONENTS RV; Styl Pls High Shroud-Bone MFR # 34140
23. #TOILET COMPONENTS RV; Styl Plus High Shroud-Wht MFR # 34138
24. #TOILET COMPONENTS RV; STYLE PLUS LOW SHROUD-WHT MFR # 34139
25. #TOILET COMPONENTS RV; STYL PLUS HIGH SHROUD-BLK MFR # 34142
26. #TOILET COMPONENTS RV; Styl Plus Shroud Oring Bp MFR # 34137
27. #TOILET COMPONENTS RV; Style Plus Shroud O-Ring MFR # 34136
28. #Toilet Flush Hand Sprayer Kit; Use With Aria® Classic/ Aqua-Magic® Style Plus/ Aqua-Magic® Style Lite/ Aqua-Magic® Style II/ Aqua-Magic® Aurora Permanent Toilets; Chrome Plated MFR # 19289 Superseded: see description
29. #TOILET COMPONENTS RV; NYLON WASHER MFR # 38065

Replacement Toilets

Components

11 items

1. #Toilet;Aqua-Magic (R) Style Plus;Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; MFR # THF34443
2. #Toilet; Aqua-Magic ® Style Plus; Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Bone; 21-13/16 Inch Length x 16 Inch Width x 15 Inch Height; With Water-Saving Hand Sprayer MFR # 34439
3. #Toilet; Aqua-Magic ® Style Plus; Permanent; High Profile; Round Wood Seat With 17-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 21-13/16 Inch Length x 16 Inch Width x 20 Inch Height; With Water-Saving Hand Sprayer MFR # 34437
4. #Toilet; Aqua-Magic ® Style Plus; Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Bone; 21- 13/16 Inch Length x 16 Inch Width x 20 Inch Height; With Water-Saving Hand Sprayer MFR # 34435
5. #PERMANENT; HIGH PROFILE; ROUND SEAT WITH 17-1/2 INCH SEAT HEIGHT; PEDAL FLUSH CONTROL MFR # 34442
6. #Toilet; Aqua-Magic ® Style Plus; Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 21- 13/16 Inch Length x 16 Inch Width x 20 Inch Height; With Water-Saving Hand Sprayer MFR # 34431
7. #Toilet; Aqua-Magic ® Style Plus; Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 21-13/16 Inch Length x 16 Inch Width x 15 Inch Height; With Water-Saving Hand Sprayer MFR # 34434
8. #Toilet; Aqua-Magic ® Style Plus; Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Bone; 21- 13/16 Inch Length x 16 Inch Width x 20 Inch Height; Without Water-Saving Hand Sprayer MFR # 34430
9. #Toilet; Aqua-Magic ® Style Plus; Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 21- 13/16 Inch Length x 16 Inch Width x 20 Inch Height; Without Water-Saving Hand Sprayer MFR # 34429
10. #KIT, SVC FLEX ADAPTER PLATE MFR # 34438
11. #Toilet; Aqua-Magic ® Style Plus; Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 21-13/16 Inch Length x 16 Inch Width x 15 Inch Height; Without Water-Saving Hand Sprayer MFR # 34433
