Diagrams › Thetford › Aqua Magic V Foot Flush Thetford Aqua Magic V Foot Flush Parts Diagram · Exploded View
Toilet · 2 assemblies · 6 diagram sheets · 25 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Thetford Aqua Magic V Foot Flush RV toilet: 2 assemblies (Exploded View, Replacement Toilet) and 25 manufacturer part numbers. 9 parts are marked as superseded — the description gives the replacement number to order instead.
Thetford and Dometic toilet model numbers are on a sticker at the back of the base or under the bowl rim. The same family (Aqua-Magic, 300/310) has high- and low-profile versions with different valves and seals.
Exploded View

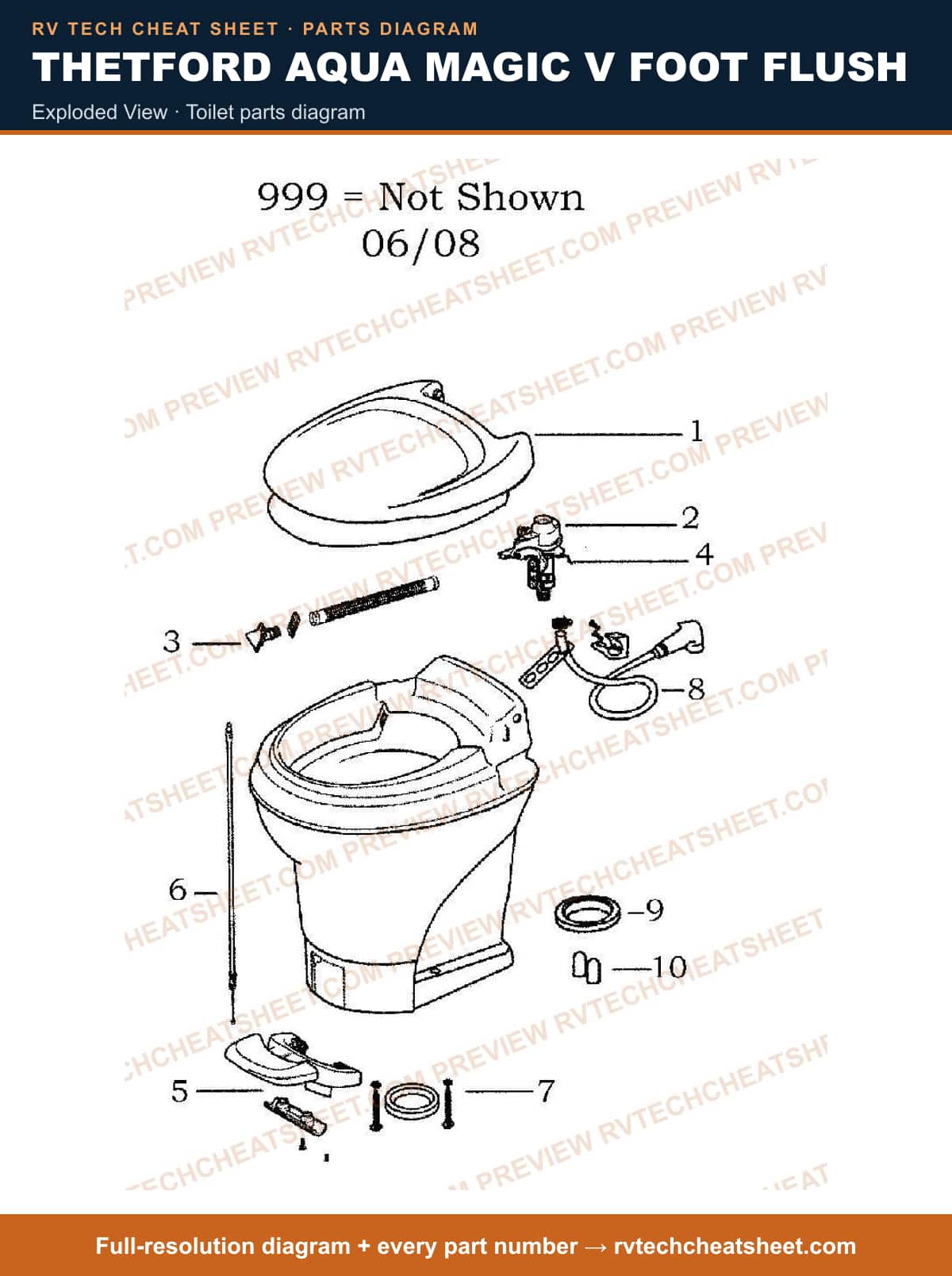

Thetford Aqua Magic V Foot Flush exploded view — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →
Thetford Aqua Magic V Foot Flush exploded view — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →
Thetford Aqua Magic V Foot Flush exploded view — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 15 items # Toilet Seat; Round; Closed Front; Parchment White; Plastic; Without Logo; With Cover MFR # 31704 # Toilet Seat; Round Seat; Closed Front; White; Without Logo; With Cover MFR # 31703 # Toilet Water Valve Module; Use With Aqua-Magic
® V Permanent Toilets; With Water Valve/ Flange Seal/ Screws MFR # 31705 Superseded: see description # Toilet Flush Nozzle Kit; Replacement For Aqua Magic V Permanent Toilets MFR # 31706 # Toilet Flush Tube; Replacement For Aqua-Magic
® V Permanent Toilets MFR # 31738 # LINK,WATER MODULE USE 36528 AM V MFR # 31621 Superseded: see description # Toilet Water Valve Link; Replacement For Aqua- Magic ® V Permanent Toilets MFR # 36528 # Toilet Flush Pedal; Replacement For Thetford Aqua Magic ® V Permanent Toilet; Built-In; Parchment White MFR # 31710 # Toilet Flush Pedal Cable; Replacement For Aqua- Magic ® V Permanent Toilets; With Cable/ Waste Ball Seal/ Closet Flange Seal MFR # 31711 # Toilet Mounting Bolts; Replacement For Aqua-Magic ® V/ Aqua-Magic ® IV Permanent Toilets; With Flange Seal/ 2 Acorn Nuts MFR # 12524 # Toilet Flush Hand Sprayer Kit; Use With Aria® Classic/ Aqua-Magic® Style Plus/ Aqua-Magic® Style Lite/ Aqua-Magic® Style II/ Aqua-Magic® Aurora Permanent Toilets; Chrome Plated MFR # 19289 Superseded: see description # Toilet Seal; Replacement For Aqua-Magic ® V Permanent Toilets; Blade Seal; Single MFR # 31708 # Toilet Mounting Bolt Cap; Replacement For Thetford Aqua Magic ® V Foot Flush Permanent Toilet; Parchment White; Single MFR # 31724 # Toilet Mounting Bolt Cap; Replacement For Thetford Style Lite And Aqua Magic® V Foot Flush Permanent Toilet; White; Single MFR # 31713 # JACK REPAIR PART MFR # 28962
Replacement Toilet
Thetford Aqua Magic V Foot Flush replacement toilet — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →
Thetford Aqua Magic V Foot Flush replacement toilet — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →
Thetford Aqua Magic V Foot Flush replacement toilet — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 10 items # Toilet; Aqua-Magic ® V; Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 17-13/16 Inch Length x 15-1/8 Inch Width x 18-1/2 Inch Height; Without Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem; Also Use New Number 31835 MFR # 31671 Superseded: see description # Toilet; Aqua-Magic ® V; Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 17-13/16 Inch Length x 15-1/8 Inch Width x 14 Inch Height; With Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem; Also Use New Number 31837 MFR # 31661 Superseded: see description # Toilet; Aqua-Magic ® V; Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 17-13/16 Inch Length x 15-1/8 Inch Width x 14 Inch Height; Without Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem; Also Use New Number 31833 MFR # 31650 Superseded: see description # PERMANENT; LOW PROFILE; ROUND SEAT WITH 12-15/16 INCH SEAT HEIGHT; PEDAL FLUSH CONTROL; WHITE MFR # 31736 # Toilet; Aqua-Magic ® V; Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Parchment White; 17-13/16 Inch Length x 15-1/8 Inch Width x 14 Inch Height; Without Water-Saving Hand Sprayer And Chemical Sample; OEM Model MFR # 31752 # Toilet; Aqua-Magic ® V; Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Parchment White; 17-13/16 Inch Length x 15-1/8 Inch Width x 18-1/2 Inch Height; With Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem; Also Use New Number 31840 MFR # 31680 Superseded: see description # Toilet; Aqua-Magic ® V; Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 17-13/16 Inch Length x 15-1/8 Inch Width x 18-1/2 Inch Height; With Water-Saving Hand Sprayer; With Sample 8 Ounce Bottle Aqua Kem; Also Use New Number 31839 MFR # 31679 Superseded: see description # PERMANENT; HIGH PROFILE; ROUND SEAT WITH 17-1/2 INCH SEAT HEIGHT; PEDAL FLUSH CONTROL; WHITE MFR # 31735 # Toilet; Aqua-Magic ® V; Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; Hand Flush Control; Full Bowl Flush; White; 17-13/16 Inch Length x 15-1/8 Inch Width x 18-1/2 Inch Height; Without Water-Saving Hand Sprayer MFR # 31762 # Toilet; Aqua-Magic ® V; Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Parchment White; 17-13/16 Inch Length x 15-1/8 Inch Width x 14 Inch Height; With Sample 8 Ounce Bottle Aqua Kem; Also Use New Number 31834 MFR # 31651 Superseded: see description
