Thetford Aqua Magic V Hand Flush Parts Diagram · Exploded View

Toilet · 2 assemblies · 6 diagram sheets · 21 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Thetford Aqua Magic V Hand Flush RV toilet: 2 assemblies (Exploded View, Replacement Toilet) and 21 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

Thetford and Dometic toilet model numbers are on a sticker at the back of the base or under the bowl rim. The same family (Aqua-Magic, 300/310) has high- and low-profile versions with different valves and seals.

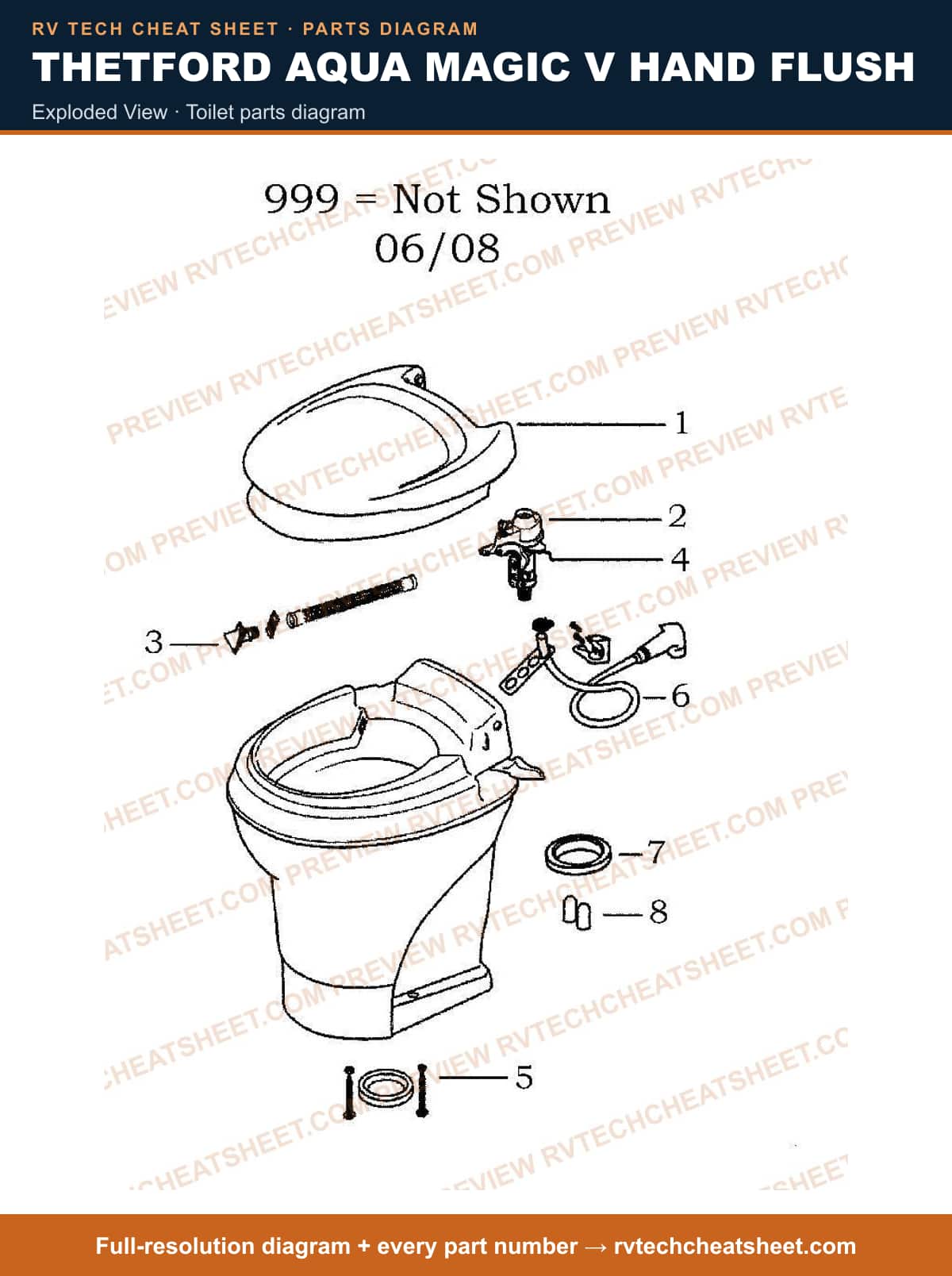

Exploded View

Components

10 items

1. #Toilet Seat; Round Seat; Closed Front; White; Without Logo; With Cover MFR # 31703
2. #Toilet Seat; Round; Closed Front; Parchment White; Plastic; Without Logo; With Cover MFR # 31704
3. #Toilet Water Valve Module; Use With Aqua-Magic ® V Permanent Toilets; With Water Valve/ Flange Seal/ Screws MFR # 31705 Superseded: see description
4. #Toilet Flush Tube; Replacement For Aqua-Magic ® V Permanent Toilets MFR # 31738
5. #Toilet Water Valve Link; Replacement For Aqua- Magic ® V Permanent Toilets MFR # 36528
6. #Toilet Mounting Bolts; Replacement For Aqua-Magic ® V/ Aqua-Magic ® IV Permanent Toilets; With Flange Seal/ 2 Acorn Nuts MFR # 12524
7. #Toilet Flush Hand Sprayer Kit; Use With Aria® Classic/ Aqua-Magic® Style Plus/ Aqua-Magic® Style Lite/ Aqua-Magic® Style II/ Aqua-Magic® Aurora Permanent Toilets; Chrome Plated MFR # 19289 Superseded: see description
8. #Toilet Seal; Replacement For Aqua-Magic ® V Permanent Toilets; Blade Seal; Single MFR # 31708
9. #Toilet Mounting Bolt Cap; Replacement For Thetford Style Lite And Aqua Magic® V Foot Flush Permanent Toilet; White; Single MFR # 31713
10. #Toilet Mounting Bolt Cap; Replacement For Thetford Aqua Magic ® V Foot Flush Permanent Toilet; Parchment White; Single MFR # 31724

Replacement Toilet

Components

11 items

1. #Toilet;Aqua-Magic (R) V;Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; One Handl MFR # THF31676
2. #PERMANENT; LOW PROFILE; ROUND SEAT WITH 12-15/16 INCH SEAT HEIGHT; ONE HANDLE FLUSH CONTROL MFR # 31750
3. #Toilet;Aqua-Magic (R) V;Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; One Handl MFR # THF31667
4. #Toilet;Aqua-Magic (R) V;Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; One Handl MFR # THF31668
5. #Toilet;Aqua-Magic (R) V;Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; One Handl MFR # THF31675
6. #Toilet;Aqua-Magic (R) V;Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; One Hand MFR # THF31647
7. #Toilet;Aqua-Magic (R) V;Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; One Hand MFR # THF31658
8. #Toilet;Aqua-Magic (R) V;Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; One Hand MFR # THF31646
9. #Toilet; Aqua-Magic ® V; Permanent; High Profile; Round Seat With 17-1/2 Inch Seat Height; One Handle Flush Control; Full Bowl Flush; Parchment White; 17-13/16 Inch Length x 15-1/8 Inch Width x 18-1/2 Inch Height; Without Water-Saving Hand Sprayer And Chemical Sample; OEM Model MFR # 31751
10. #Toilet;Aqua-Magic (R) V;Permanent; Low Profile; Round Seat With 12-15/16 Inch Seat Height; One Hand MFR # THF31657
11. #PERMANENT; LOW PROFILE; ROUND SEAT WITH 12-15/16 INCH SEAT HEIGHT; ONE HANDLE FLUSH CONTROL MFR # 31734
