Thetford Aqua Magic VI Parts Diagram · Replacement

Toilet · 2 assemblies · 6 diagram sheets · 24 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Thetford Aqua Magic VI RV toilet: 2 assemblies (Replacement, Exploded View) and 24 manufacturer part numbers. 1 part is marked as superseded — the description gives the replacement number to order instead.

Thetford and Dometic toilet model numbers are on a sticker at the back of the base or under the bowl rim. The same family (Aqua-Magic, 300/310) has high- and low-profile versions with different valves and seals.

Replacement

Components

8 items

1. #Toilet; Aqua-Magic ® VI; Permanent; High Profile; Round SloClose ™ Seat And Cover With 17-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 17-13/16 Inch Length x 15-1/8 Inch Width x 18-1/2 Inch Height; Without Water-Saving Hand Sprayer MFR # 31835
2. #Toilet; Aqua-Magic ® VI; Permanent; Low Profile; Round SloClose ™ Seat And Cover With 12- 15/16 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Parchment; 17-13/16 Inch Length x 15-1/8 Inch Width x 14 Inch Height; With Water- Saving Hand Sprayer MFR # 31838
3. #16K/26K 5TH WHEEL X-MEMBER HARDWARE MFR # 31839
4. #Toilet; Aqua-Magic ® VI; Permanent; High Profile; Round SloClose ™ Seat And Cover With 17-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Parchment; 17-13/16 Inch Length x 15-1/8 Inch Width x 18-1/2 Inch Height; With Water- Saving Hand Sprayer MFR # 31840
5. #Toilet; Aqua-Magic ® VI; Permanent; Low Profile; Round SloClose ™ Seat And Cover With 12- 15/16 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Parchment; 17-13/16 Inch Length x 15-1/8 Inch Width x 14 Inch Height; Without Water-Saving Hand Sprayer MFR # 31834
6. #Toilet; Aqua-Magic ® VI; Permanent; High Profile; Round SloClose ™ Seat And Cover With 17-1/2 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; Parchment; 17-13/16 Inch Length x 15-1/8 Inch Width x 18-1/2 Inch Height; Without Water- Saving Hand Sprayer MFR # 31836
7. #Toilet; Aqua-Magic ® VI; Permanent; Low Profile; Round SloClose ™ Seat And Cover With 12- 15/16 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 17-13/16 Inch Length x 15-1/8 Inch Width x 14 Inch Height; Without Water- Saving Hand Sprayer MFR # 31833
8. #Toilet; Aqua-Magic ® VI; Permanent; Low Profile; Round SloClose ™ Seat And Cover With 12- 15/16 Inch Seat Height; Pedal Flush Control; Full Bowl Flush; White; 17-13/16 Inch Length x 15-1/8 Inch Width x 14 Inch Height; With Water-Saving Hand Sprayer MFR # 31837

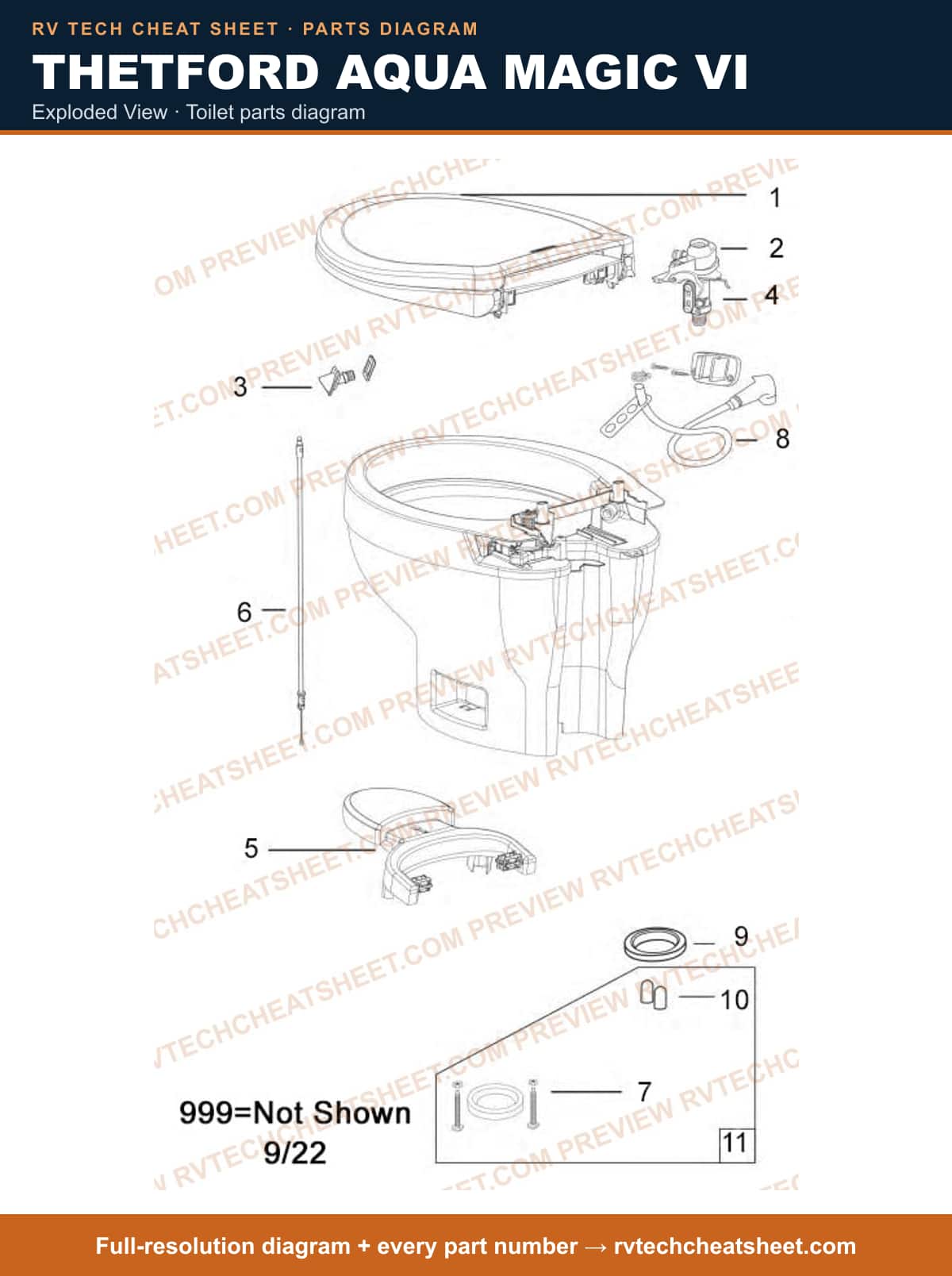

Exploded View

Components

16 items

1. #TOILETS RV; SEAT & COVER AMVI PARCHMENT MFR # 31859
2. #TOILETS RV; SEAT & COVER AMVI WHITE MFR # 31856
3. #Toilet Water Valve Module; Use With Aqua-Magic ® V Permanent Toilets; With Water Valve/ Flange Seal/ Screws MFR # 31705 Superseded: see description
4. #SNAPS LITE W/ 3/8' PIN ( MFR # 31857
5. #TOILET COMPONENTS RV; FLUSH TUBE & NOZZLE ASSY PARCH MFR # 31860
6. #Toilet Water Valve Link; Replacement For Aqua- Magic ® V Permanent Toilets MFR # 36528
7. #PEDAL, PARCHMENT MFR # 31861
8. #TOILET COMPONENTS RV; PEDAL, WHITE MFR # 31858
9. #Toilet Flush Pedal Cable; Replacement For Aqua- Magic ® V Permanent Toilets; With Cable/ Waste Ball Seal/ Closet Flange Seal MFR # 31711
10. #Toilet Mounting Bolts; Replacement For Aqua-Magic ® V/ Aqua-Magic ® IV Permanent Toilets; With Flange Seal/ 2 Acorn Nuts MFR # 12524
11. #Toilet Seal; Replacement For Aqua-Magic ® V Permanent Toilets; Blade Seal; Single MFR # 31708
12. #Toilet Mounting Bolt Cap; Replacement For Thetford Aqua Magic ® V Foot Flush Permanent Toilet; Parchment White; Single MFR # 31724
13. #Toilet Mounting Bolt Cap; Replacement For Thetford Style Lite And Aqua Magic® V Foot Flush Permanent Toilet; White; Single MFR # 31713
14. #Toilet Mounting Bolts; Replacement For Aqua- Magic ® Style Plus/ Aqua-Magic ® Style Lite Permanent Toilets; With Closet Flange Seal/ 2 White Bolt Caps MFR # 28971
15. #Toilet Mounting Bolts; Replacement For Thetford Style Lite/ Aqua Magic ® Style Plus Permanent Toilet; With 2 Closet Bolts/ Closet Flange Seal/ 2 Bone Bolt Caps MFR # 28972
16. #Toilet Seal; Replacement For Electra Magic ® Model 80 Recirculating Toilets/ Aqua-Magic ® Galaxy/ Aqua-Magic ® Starlite Permanent Toilets; Closet Flange Seal; Rubber; Single MFR # 33239
