Atwood / Dometic Wh Series WH-10GEA Parts Diagram

Water Heater · 1 diagram sheet · 21 parts · by Andrew Strick, mobile RV technician

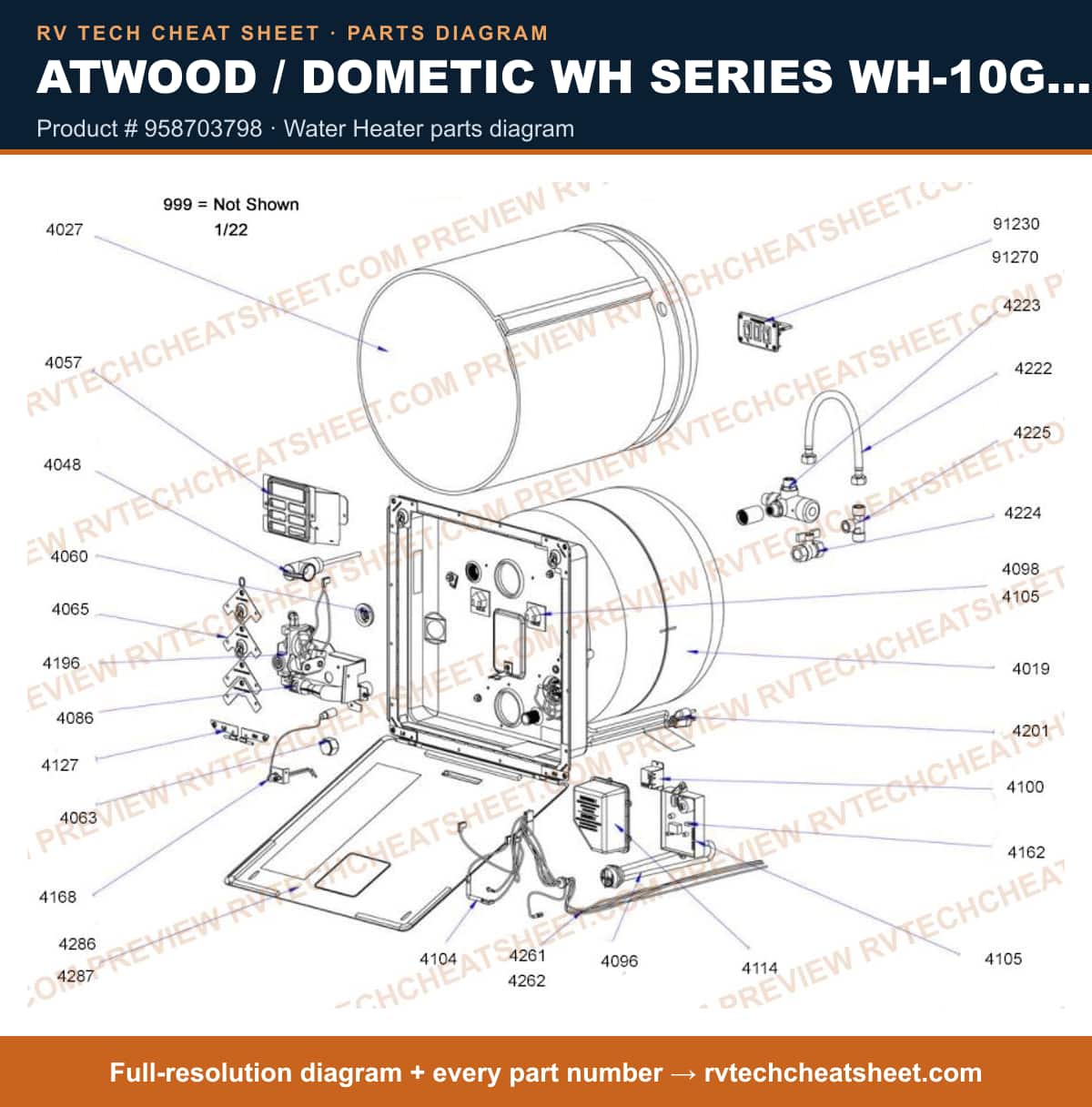

OEM exploded parts diagram for the Atwood / Dometic Wh Series WH-10GEA RV water heater: 21 manufacturer part numbers.

The rating plate is inside the exterior access door, usually on the left of the burner area. Suburban model numbers encode capacity and ignition (e.g. SW6DE = 6 gal, DSI, electric); the serial number dates the board and thermostat generation.

Product # 958703798

Components

21 items

1. #SVC,10GAL EC TANK MFR # 4471006319
2. #SVC,INSULATION WRAP 10G MFR # 4471006328
3. #Dometic 90028 Refrigerator Thermistor Temperature Sensor MFR # 90028
4. #KIT, SVC FLUE BOX ASSY MFR # 92103
5. #KIT, SVC GROMMET, PAN MFR # 92069
6. #Dometic 9100 Power Awning Motor Assembly MFR # 92102
7. #Dometic Water Heater Mounting Brackets for all Double Latch Doors MFR # 4471005952
8. #Water Heater Element; Screw-In; 1400 Watt; 110 Volt; With Gasket MFR # 92249
9. #Dometic 93849 Lower Door Bin Assembly MFR # 93849
10. #SVC,THERMAL CUT-OFF MFR # 93866
11. #Dometic Refrigerator Door Catch Strike Plate MFR # 91447
12. #KIT, SVC JUNCTION BOX MFR # 92106
13. #SVC,WH HINGES RH/LH 1PAIR MFR # 4471004796
14. #Dometic 92104 Refrigerator Door Striker Catch Plate MFR # 92104
15. #SVC,10GAL GAS SYSTEM MFR # 4471006318
16. #KIT, SVC POWER CORD MFR # 92107
17. #KIT, SVC WIRING EC MFR # 92109
18. #Dometic Brisk Air II 15K BTU Rooftop Air Conditioner Upper Unit Assembly MFR # 9610002430
19. #Dometic 8500 Series Furnace Sail Switch MFR # 9610002431
20. #Dometic CFX3 Compressor Cooling Unit 12/24V DC Portable Refrigerator MFR # 9108873700
21. #SVC,MFG,SWITCH DUAL BLACK MFR # 9108873707
