Atwood / Dometic Wh Series WH-6GEA Parts Diagram

Water Heater · 1 diagram sheet · 27 parts · by Andrew Strick, mobile RV technician

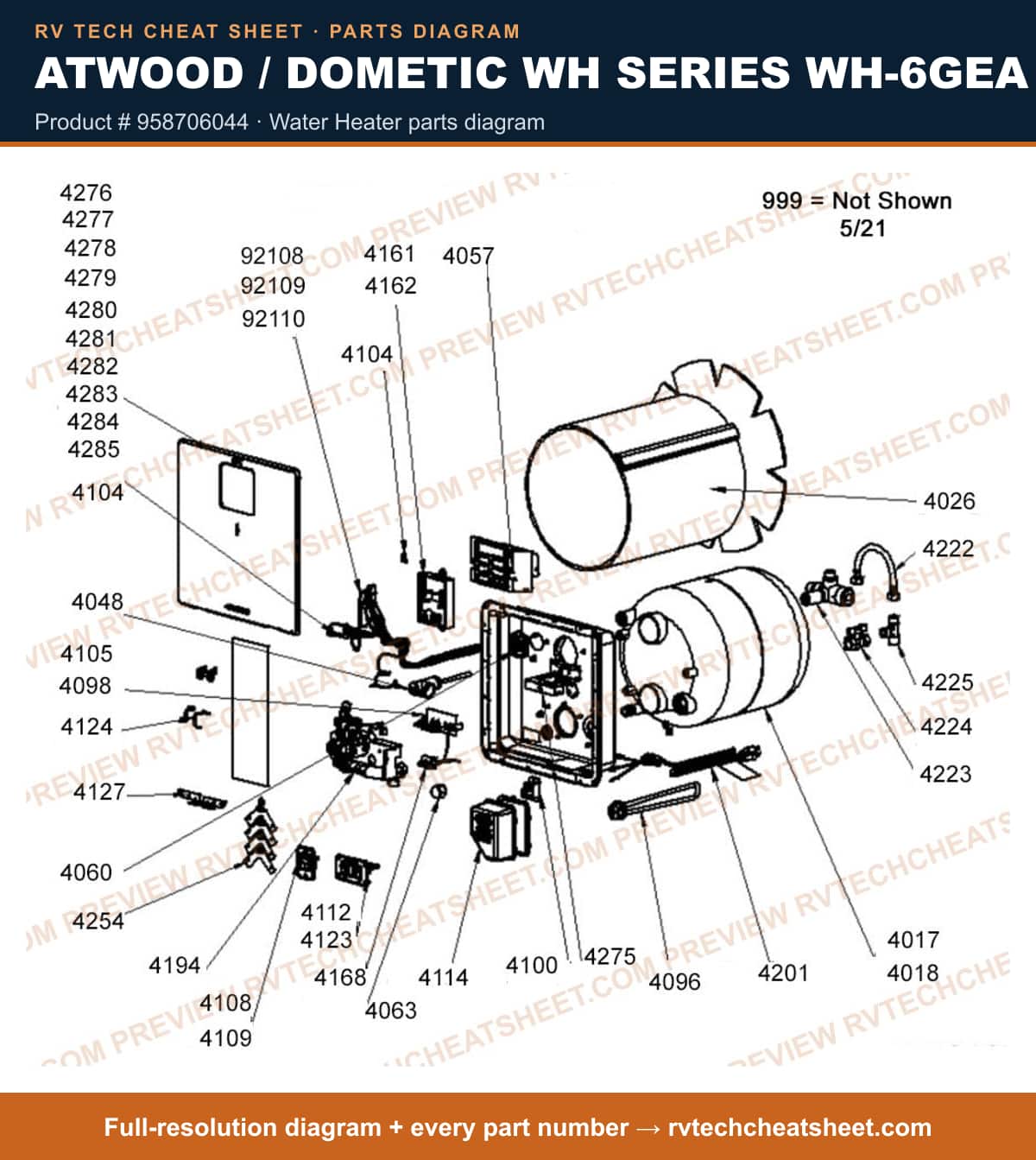

OEM exploded parts diagram for the Atwood / Dometic Wh Series WH-6GEA RV water heater: 27 manufacturer part numbers. 1 part is marked as superseded — the description gives the replacement number to order instead.

The rating plate is inside the exterior access door, usually on the left of the burner area. Suburban model numbers encode capacity and ignition (e.g. SW6DE = 6 gal, DSI, electric); the serial number dates the board and thermostat generation.

Product # 958706044

Components

27 items

1. #WATER HEATERS RV; SVC,WH HINGES RH/LH 1PAIR MFR # 94955
2. #Water Heater Access Door; For Dometic WH- 6GA/ WH-6GEA/ WH-9GEA Water Heaters; Conversion Kit For Use When Replacing An Old Style Atwood/ Dometic Rectangular Access Door; Black #44; With Center Latch On Rectangular Door And 2 Adapter Plates; Also Use New Number 94951 MFR # 94067 Superseded: see description
3. #Dometic Refrigerator Door Latch Strike Plate MFR # 90145
4. #Dometic RM2652 Refrigerator Door Latch Assembly MFR # 4471008518
5. #Dometic 92099 Refrigerator Door Handle Black MFR # 92099
6. #KIT, SVC INSULATION MFR # 92105
7. #Dometic 90028 Refrigerator Thermistor Temperature Sensor MFR # 90028
8. #KIT, SVC FLUE BOX ASSY MFR # 92103
9. #KIT, SVC GROMMET, PAN MFR # 92069
10. #Dometic 9100 Power Awning Motor Assembly MFR # 92102
11. #Water Heater Element; Screw-In; 1400 Watt; 110 Volt; With Gasket MFR # 92249
12. #Dometic 93849 Lower Door Bin Assembly MFR # 93849
13. #SVC,THERMAL CUT-OFF MFR # 93866
14. #Dometic Refrigerator Door Catch Strike Plate MFR # 91447
15. #WATER HEATER SERVICE PARTS DUAL PANEL SWITCH KIT MFR # 91230
16. #KIT, SVC JUNCTION BOX MFR # 92106
17. #KIT, SVC MFG SWITCH DUEL BLACK MFR # 91270
18. #Dometic 92101 Refrigerator Piezo Igniter MFR # 92101
19. #Dometic 91365 Refrigerator Door Bin White MFR # 91365
20. #Dometic 92104 Refrigerator Door Striker Catch Plate MFR # 92104
21. #Dometic 92100 Refrigerator Door Lock Assembly MFR # 92100
22. #KIT, SVC POWER CORD MFR # 92107
23. #FASTENER BRACKET MFR # 93969
24. #WATER HEATERS RV; DOOR,6G ASM OYSTER WHITE #52 MFR # 94052
25. #WATER HEATERS RV; DOOR,6G ASM TAN #50 MFR # 94053
26. #WATER HEATERS RV; DOOR,6G ASM CHAMPAGNE #54 WH MFR # 94058
27. #BIT & HAND TOOLS PLAN-O-GRAM MFR # 94010
