Atwood / Dometic Wh Series WH-9GEA Parts Diagram · Product # 958706061

Water Heater · 2 assemblies · 2 diagram sheets · 29 parts · by Andrew Strick, mobile RV technician

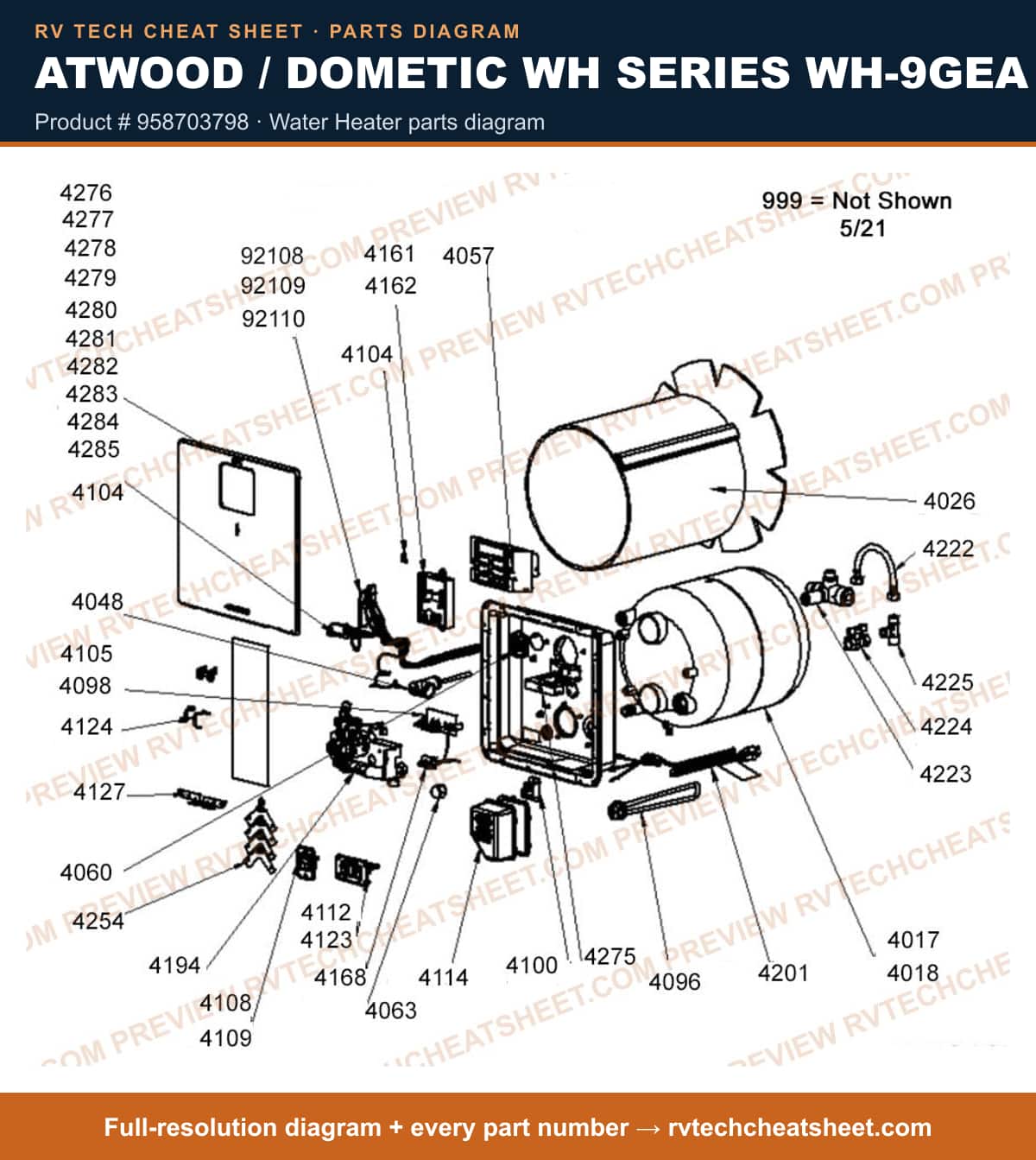

OEM exploded parts diagrams for the Atwood / Dometic Wh Series WH-9GEA RV water heater: 2 assemblies (Product # 958706061, Product # 958703798) and 29 manufacturer part numbers. 1 part is marked as superseded — the description gives the replacement number to order instead.

The rating plate is inside the exterior access door, usually on the left of the burner area. Suburban model numbers encode capacity and ignition (e.g. SW6DE = 6 gal, DSI, electric); the serial number dates the board and thermostat generation.

Product # 958706061

Components

29 items

1. #Water Heater Access Door; For Dometic WH- 6GA/ WH-6GEA/ WH-9GEA Water Heaters; Conversion Kit For Use When Replacing An Old Style Atwood/ Dometic Rectangular Access Door; Black #44; With Center Latch On Rectangular Door And 2 Adapter Plates; Also Use New Number 94951 MFR # 94067 Superseded: see description
2. #NOT AVAILABLE AS INDIVIDUAL PART. MFR # ******
3. #Dometic 92099 Refrigerator Door Handle Black MFR # 92099
4. #KIT, SVC INSULATION MFR # 92105
5. #Dometic 90028 Refrigerator Thermistor Temperature Sensor MFR # 90028
6. #KIT, SVC FLUE BOX ASSY MFR # 92103
7. #KIT, SVC GROMMET, PAN MFR # 92069
8. #Dometic 9100 Power Awning Motor Assembly MFR # 92102
9. #Water Heater Element; Screw-In; 1400 Watt; 110 Volt; With Gasket MFR # 92249
10. #Dometic Refrigerator Piezo Igniter Electrode Assembly MFR # 91547
11. #Dometic 93849 Lower Door Bin Assembly MFR # 93849
12. #SVC,THERMAL CUT-OFF MFR # 93866
13. #WATER HEATER SERVICE PARTS DUAL PANEL SWITCH KIT MFR # 91230
14. #KIT, SVC JUNCTION BOX MFR # 92106
15. #KIT, SVC MFG SWITCH DUEL BLACK MFR # 91270
16. #Dometic 92101 Refrigerator Piezo Igniter MFR # 92101
17. #Dometic 91365 Refrigerator Door Bin White MFR # 91365
18. #Dometic 92104 Refrigerator Door Striker Catch Plate MFR # 92104
19. #Dometic 92100 Refrigerator Door Lock Assembly MFR # 92100
20. #KIT, SVC POWER CORD MFR # 92107
21. #KIT, SVC 9" HOSE (6 GALLON) MFR # 90032
22. #Dometic 90029 Gravity Drain Plug Cap MFR # 90029
23. #KIT, SVC BALL VALVE MFR # 90030
24. #KIT, SVC 1/2" TEE MFR # 90031
25. #FASTENER BRACKET MFR # 93969
26. #WATER HEATERS RV; DOOR,6G ASM OYSTER WHITE #52 MFR # 94052
27. #WATER HEATERS RV; DOOR,6G ASM TAN #50 MFR # 94053
28. #WATER HEATERS RV; DOOR,6G ASM CHAMPAGNE #54 WH MFR # 94058
29. #BIT & HAND TOOLS PLAN-O-GRAM MFR # 94010

Product # 958703798

Components

28 items

1. #Water Heater Access Door; For Dometic WH- 6GA/ WH-6GEA/ WH-9GEA Water Heaters; Conversion Kit For Use When Replacing An Old Style Atwood/ Dometic Rectangular Access Door; Black #44; With Center Latch On Rectangular Door And 2 Adapter Plates; Also Use New Number 94951 MFR # 94067 Superseded: see description
2. #Dometic 92099 Refrigerator Door Handle Black MFR # 92099
3. #KIT, SVC INSULATION MFR # 92105
4. #Dometic 90028 Refrigerator Thermistor Temperature Sensor MFR # 90028
5. #KIT, SVC FLUE BOX ASSY MFR # 92103
6. #KIT, SVC GROMMET, PAN MFR # 92069
7. #Dometic 9100 Power Awning Motor Assembly MFR # 92102
8. #Water Heater Element; Screw-In; 1400 Watt; 110 Volt; With Gasket MFR # 92249
9. #Dometic Refrigerator Piezo Igniter Electrode Assembly MFR # 91547
10. #Dometic 93849 Lower Door Bin Assembly MFR # 93849
11. #SVC,THERMAL CUT-OFF MFR # 93866
12. #WATER HEATER SERVICE PARTS DUAL PANEL SWITCH KIT MFR # 91230
13. #KIT, SVC JUNCTION BOX MFR # 92106
14. #KIT, SVC MFG SWITCH DUEL BLACK MFR # 91270
15. #Dometic 92101 Refrigerator Piezo Igniter MFR # 92101
16. #Dometic 91365 Refrigerator Door Bin White MFR # 91365
17. #Dometic 92104 Refrigerator Door Striker Catch Plate MFR # 92104
18. #Dometic 92100 Refrigerator Door Lock Assembly MFR # 92100
19. #KIT, SVC POWER CORD MFR # 92107
20. #KIT, SVC 9" HOSE (6 GALLON) MFR # 90032
21. #Dometic 90029 Gravity Drain Plug Cap MFR # 90029
22. #KIT, SVC BALL VALVE MFR # 90030
23. #KIT, SVC 1/2" TEE MFR # 90031
24. #FASTENER BRACKET MFR # 93969
25. #WATER HEATERS RV; DOOR,6G ASM OYSTER WHITE #52 MFR # 94052
26. #WATER HEATERS RV; DOOR,6G ASM TAN #50 MFR # 94053
27. #WATER HEATERS RV; DOOR,6G ASM CHAMPAGNE #54 WH MFR # 94058
28. #BIT & HAND TOOLS PLAN-O-GRAM MFR # 94010
