Furrion FWH09A Parts Diagram

Water Heater · 1 diagram sheet · 20 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Furrion FWH09A RV water heater: 20 manufacturer part numbers.

The rating plate is inside the exterior access door, usually on the left of the burner area. Suburban model numbers encode capacity and ignition (e.g. SW6DE = 6 gal, DSI, electric); the serial number dates the board and thermostat generation.

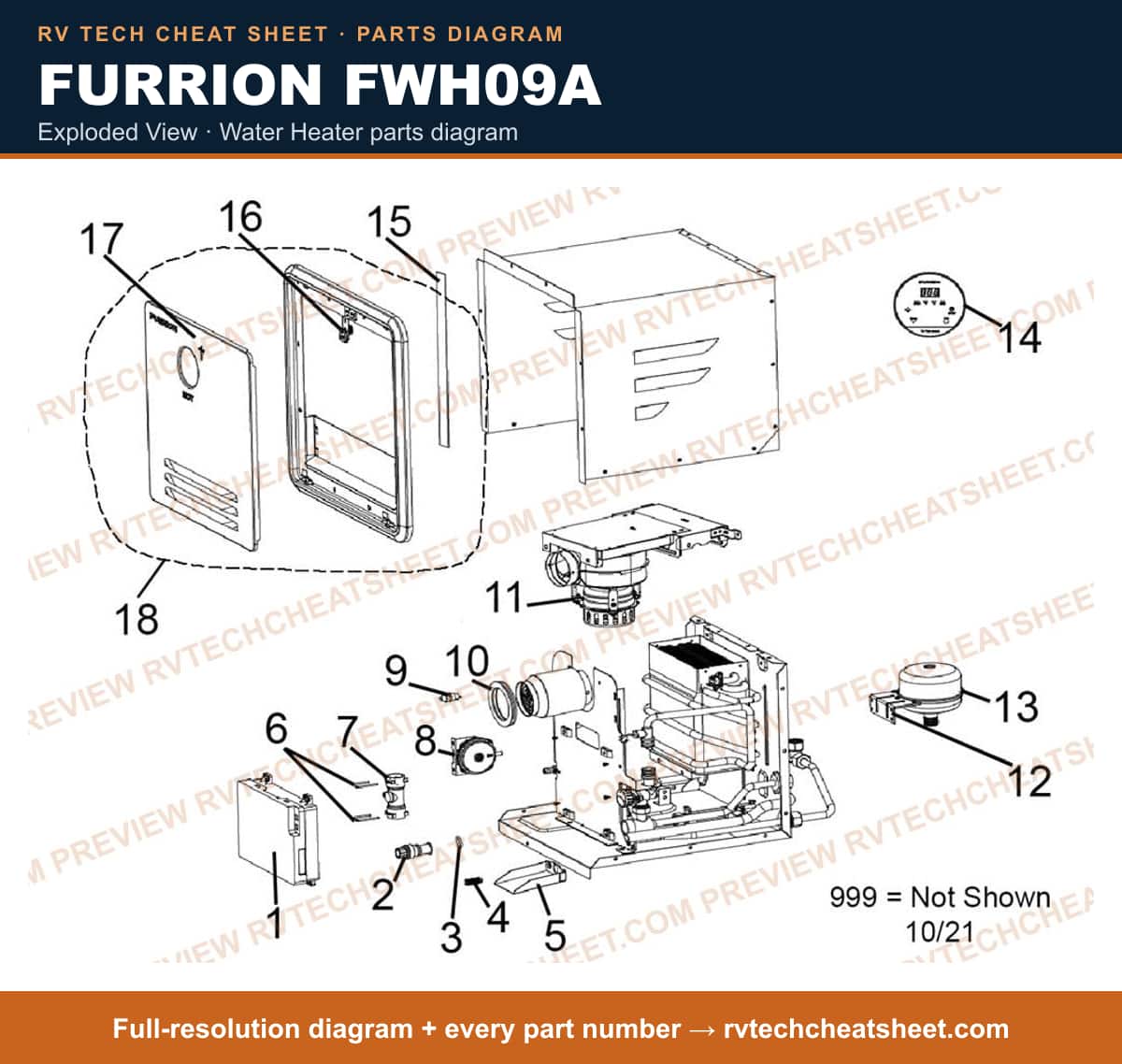

Exploded View

Components

20 items

1. #CONTROLLER UNIT MFR # C-FWH09A-002
2. #NOT AVAILABLE AS INDIVIDUAL PART. MFR # ******
3. #WATER HEATERS RV; FILTER ASSEMBLY MFR # 210683
4. #Water Heater Burner Orifice; Water Heater Drain Plug; Replacement For Furrion FWH09A Water Heater; Filter Assembly MFR # C-FWH09A-005
5. #Water Heater Drain Plug; Replacement For Furrion FWH09A Water Heater; Drain Pipe End Plug MFR # C-FWH09A-007
6. #WATER HEATERS RV; DRAIN PIPE END PLUG MFR # 210685
7. #Water Heater Drain Plug; Replacement For Furrion FWH09A Water Heater; Drain Exit Channel MFR # C-FWH09A-012
8. #SENSOR; WATER FLOW SENSOR MFR # C-FWH09A-004
9. #EXHAUST PRESSURE SWITCH MFR # C-FWH09A-006
10. #WATER HEATERS RV; FUSE -ITEM39 MFR # 210687
11. #APPLIANCE COMPONENTS RV; FLU DUCT SEAL MFR # 210689
12. #FLUE FAN ASSEMBLY MFR # C-FWH09A-003
13. #WATER TANK MFR # C-FWH09A-008
14. #CIRCUIT BOARDS & TESTERS RV; WALL CONTROLLER FOR WATER HEATER MFR # 210832
15. #Water Heater Access Door Hardware; Replacement For Furrion FWH09A Water Heater; Foam Tape MFR # C-FWH09A-014
16. #DOOR LOCKER ASSEMBLY (WHITE) MFR # C-FWH09A-010
17. #Water Heater Access Door; For Replacing Suburban 4/ 6 Gallon Water Heater Doors; Black; Steel; 16-1/8 Inch Length x 16-1/8 Inch Width MFR # FWH09EA-BL-AM
18. #DOOR PANEL-BLACK -410*410 MFR # FWH09EA-BL-AM-002
19. #WATER HEATERS RV; DOOR PANEL - 410*410 MFR # 210831
20. #APPLIANCE COMPONENTS RV; WATER HEATER DOOR 410 X 410MM - AM MFR # 110963
