Suburban DSI Series DSI10 Parts Diagram · Exploded View

Water Heater · 2 assemblies · 2 diagram sheets · 91 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban DSI Series DSI10 RV water heater: 2 assemblies (Exploded View, Replacement Appliance) and 91 manufacturer part numbers. 28 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is inside the exterior access door, usually on the left of the burner area. Suburban model numbers encode capacity and ignition (e.g. SW6DE = 6 gal, DSI, electric); the serial number dates the board and thermostat generation.

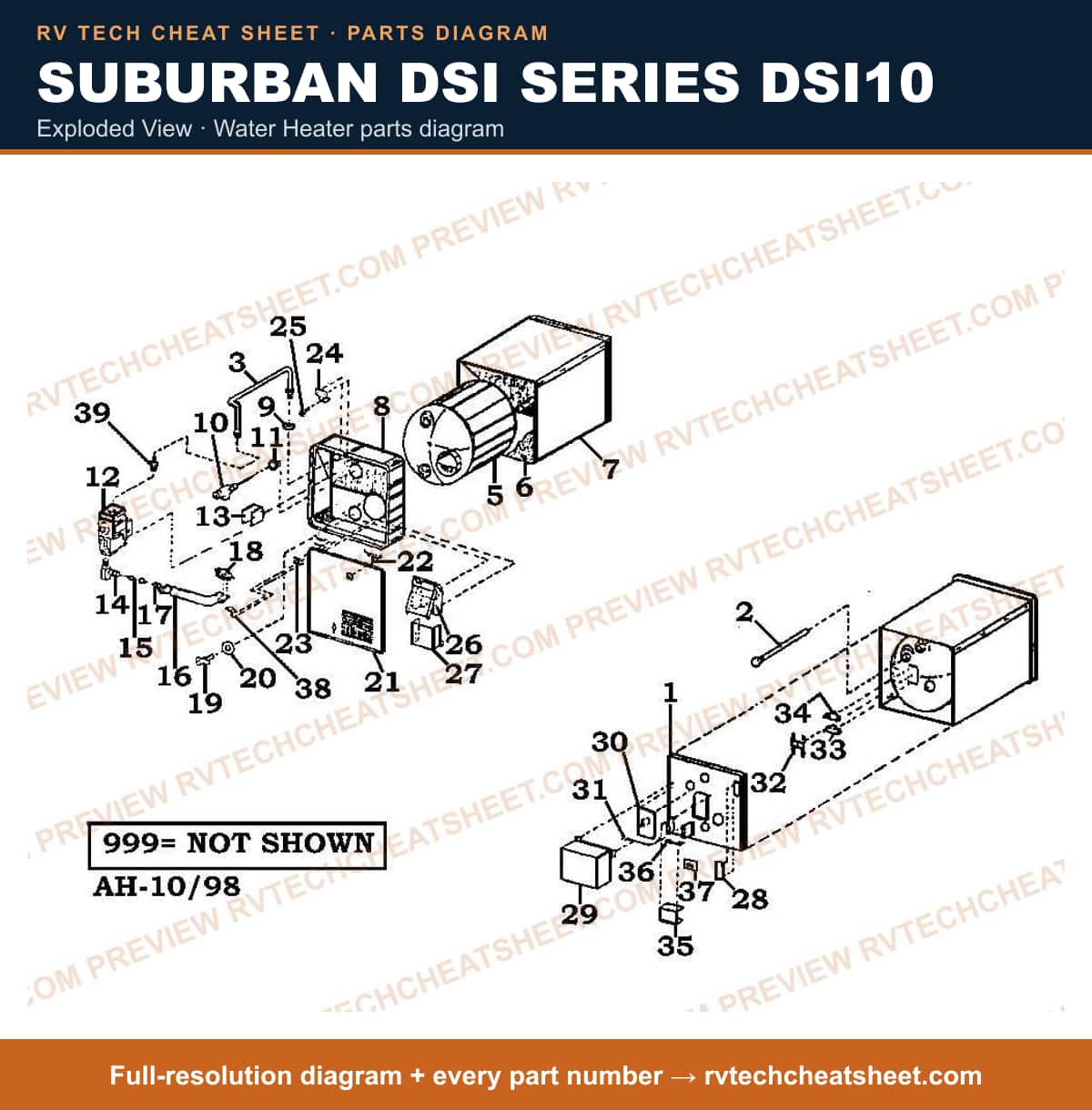

Exploded View

Components

80 items

1. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Magnesium; Also Use New Number 233514 MFR # 232767 Superseded: see description
2. #ANODE ROD MAGNESIUM USE 232767 MFR # 231624 Superseded: see description
3. #ROD,ANODE USE 231624 MFR # 4700242 Superseded: see description
4. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Magnesium MFR # 233514
5. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Aluminum MFR # 232768
6. #ANODE 9.5'X.75' MPT BULK LDFRE MFR # 69717
7. #GAS SUPPLY MANIFOLD MFR # 3700056
8. #MANIFOLD USE 171056 MFR # 3700041 Superseded: see description
9. #GROMMET GAS MANIFOLD MFR # 70828
10. #Water Heater Pressure Relief Valve; For Suburban All SW And V Series; 3/4 Inch Male NPT MFR # 525045
11. #CAMCO T & P VALVE 3/4IN W/ 4IN PROBE COATED, 150PSI, BULK MFR # 10471
12. #VALVE, PRESSURE 3/4" ***USE 50-0548*** MFR # 160926 Superseded: see description
13. #VALVE USE 73-0862 MFR # 4300024 Superseded: see description
14. #Water Heater Pressure Relief Valve; For Suburban All SW And V Series; 3/4 Inch Male NPT; Also Use New Number 525045 MFR # 161230 Superseded: see description
15. #NO GENERIC NAME;;Valve Relief 3/4" *N* MFR # MC7152
16. #APPLIANCE COMPONENTS RV; T&P Valve MFR # 161157
17. #APPLIANCE COMPONENTS RV; Gas Valve MFR # 520735
18. #GAS VALVE (SPARK) MFR # 3200186
19. #VALVE,GAS JOHNSON USE 520735 MFR # 160923 Superseded: see description
20. #BRKT VALVE MFR # 62852
21. #APPLIANCE COMPONENTS RV; Manifold Outlet MFR # 171068
22. #Water Heater Burner Orifice; For Suburban SW-Series Water Heater; Number 61 MFR # 180260
23. #ORIFICE USE 180260 MFR # 180255 Superseded: see description
24. #ORIFICE USE 180260 MFR # 3600042 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Suburban Burner Assy MFR # 10727
26. #Water Heater Burner; For Suburban Water Heater DSI (Direct Spark Ignition) V-Models; With Air Shutter And Electrode MFR # 10726
27. #APPLIANCE COMPONENTS RV; Shutter Air ** Use 10729 MFR # 3100039 Superseded: see description
28. #APPLIANCE COMPONENTS RV; Shutter Air MFR # 10729
29. #APPLIANCE COMPONENTS RV; Electrode Assy MFR # 231457
30. #ELECTRODE ASM (100+) MFR # 5100426
31. #ELECTRODE USE 231457 MFR # 3200198 Superseded: see description
32. #VALVE,DRAIN USE 160927 MFR # 4300043 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Plug Hex - Nla MFR # 171267
34. #VALVE,DRAIN USE 171267 MFR # 160927 Superseded: see description
35. #DOOR USE 697213 MFR # 2000153 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Door With Screen MFR # 697213
37. #SCREEN WATER HEATER DOOR 6 GALLONFLUSH MOUNT FOR 6255ACW,6255APW697221 MFR # 30747
38. #LATCH,DOOR USE 150079 MFR # 2600031 Superseded: see description
39. #APPLIANCE COMPONENTS RV; Plate Hinge MFR # 62849
40. #Access Door Latch; V-Series; Water Heater Door; Spring Loaded Thumb Screw; Also Use New Number 525008 MFR # 150079 Superseded: see description
41. #HINGE USE 150080 MFR # 2600107 Superseded: see description
42. #PLATE,HINGE USE 62849 PIN MFR # 2600030 Superseded: see description
43. #APPLIANCE COMPONENTS RV; Pin Door MFR # 150080
44. #APPLIANCE COMPONENTS RV; Door Catch Kit MFR # 520568
45. #BACK,FLUE COLLECTOR MFR # 101235
46. #FLUE COLL FRONT MFR # 101238
47. #COVER, INLET MANIFOLD MFR # 290138
48. #RECEIVER STAND W/HEADER MFR # 90340
49. #Ignition Control Circuit Board;;For Coleman/ Duo- Therm/ Hydro-Flame/ Suburban Furnaces And Atwood/ MFR # DNRUIBL
50. #BOARD,MODULE USE 520741 3-TRY 12V MFR # 231463 Superseded: see description
51. #ignition Control Circuit Board; For Suburban Furnace SF Series/ NT Series And All Water Heater DSI Series/ SW Series/ VDSI Series; Also Use New Number 521099 For Furnaces Or 520814 For Water Heaters MFR # 520741 Superseded: see description
52. #Ignition Control Circuit Board Cover;;Replacement For Dinosaurs Universal Igniter Boards; Large; Wh MFR # DNRLARGECOVER
53. #Ignition Control Circuit Board;;For Coleman/ Duo- Therm/ Hydro-Flame/ Suburban Furnaces And Atwood/ MFR # DNRUIBS
54. #Ignition Control Circuit Board; For Suburban Water Heater SW4D/ SW6D/ SW6DE/ SW6DEL/ SW6DEM/ SW6DM/ SW10D/ SW10DE/ SW10DEL/ SW10DEM/ SW10DM/ SW12D/ SW12DE/ SW12DEL/ SW12DEM/ SW16D/ SW16DE/ SW16DEL/ SW16DEM; With Module Board Cover And Foam Tape MFR # 520814
55. #Ignition Control Circuit Board;;Replaces Dinosaurs Earlier Small And Large Fan Boards; Can Also Be MFR # DNRFAN50PLUSPINS
56. #Ignition Control Circuit Board;;For Coleman/ Duo- Therm/ Hydro-Flame/ Suburban Furnaces And Atwood/ MFR # DNRUIBLPOST
57. #Ignition Control Circuit Board Cover;;Replacement For Dinosaurs Universal Igniter Boards; Small; Wh MFR # DNRSMALLCOVER
58. #Ignition Control Circuit Board;;For Atwood Water Heaters/ Norcold And Servel Refrigerators; Small; MFR # DNRUIBSPOST
59. #Furnace Wiring Harness; For Suburban Furnace DD17DSI/ NT-Series MFR # 232161
60. #BURNER, LARGE W/AIR SHUTTER USE 520564 MFR # 3000003 Superseded: see description
61. #Water Heater Electrode Wire; For Suburban V-Series Water Heater; 24 Inch length MFR # 232791
62. #APPLIANCE COMPONENTS RV; Wire Electrode MFR # 231462
63. #APPLIANCE COMPONENTS RV; Brkt Dbl Sw - Nla MFR # 62851
64. #Water Heater Thermostat Switch; For Suburban Water Heater (After Serial Number 940900091); Limit; 120 Volt; Without Reset Switch; 130 Degree MFR # 232306
65. #SWITCH,ON/OFF USE 520764 MFR # 4200059 Superseded: see description
66. #T-STAT,ELECTRIC USE 520809 MFR # 160925 Superseded: see description
67. #Water Heater Thermostat Switch; For Suburban Water Heater; Hi-Limit; 120 Volt; Without Reset Switch; 140 Degree MFR # 520788
68. #T-STAT,ELEC. USE 160921 MFR # 3200244 Superseded: see description
69. #Water Heater Thermostat Switch - Fits Suburban Water Heaters MFR # 232306MC
70. #T-STAT,ELEC USE 160925 MFR # 3200188 Superseded: see description
71. #Water Heater Thermostat; For Suburban FDSI-6/ FDSI-6M/ DSI-6/ DSI-6M/ DSI-10/ DSI-10M; Thermo Disc Style; 120 Volt; With High Limit Control; 130 Degree Limit Standard MFR # 160921
72. #Water Heater Thermostat Switch; For V Series Suburban Water Heater; Hi-Limit; 12 Volt; With Reset MFR # 231461
73. #APPLIANCE COMPONENTS RV; Cov Jct Box MFR # 90344
74. #HARNESS,WIRE USE 231641 MFR # 3200194 Superseded: see description
75. #WIRE HARNESS - N.L.A. MFR # 231641
76. #SWITCH & LIGHT W/PLATE MFR # 4200046
77. #SWITCH & LITE USE 520764 W/PLATE MFR # 231615 Superseded: see description
78. #Water Heater Power Switch; For Suburban V-Series Water Heater; 2-3/4 Inch Length x 2-1/4 Inch Width; Wall Mount; White; With Switch Plate And Light Assembly MFR # 520764
79. #APPLIANCE COMPONENTS RV; Fitting MFR # 170375
80. #NOT AVAILABLE MUST REPLACE WATER HEATER MFR # INNERTANK

Replacement Appliance

Components

11 items

1. #Water Heater; Gas-Electric; Model Number SW12DEM; 12 Gallon Tank; Motor Aided Spark Ignition; 1400 Watts; 12000 BTU; 16-7/32 Inch Width x 16-7/32 Inch Height x 22-1/2 Inch Depth; Without Access Door; Non Portable MFR # 5100A
2. #Water Heater; Gas-Electric; Model Number SW12DE; 12 Gallon Tank; Electronic Ignition (Direct Spark Ignition); 1400 Watts; 12000 BTU; 16-7/32 Inch Width x 16-7/32 Inch Height x 22-1/2 Inch Depth; Without Access Door; Non Portable MFR # 5247A
3. #Water Heater; Model Number SW12D; 12 Gallon; Direct Spark Ignition; 12000 BTU; 16-7/32 Inch Height x 16-7/32 Width x 22-1/4 Inch Depth; Non Portable MFR # 5246A
4. #Water Heater Power Switch; For Suburban Nautilus Series Water Heaters; White MFR # 234589
5. #Water Heater Access Door; For Suburban 10/ 12/ 16 Gallon Water Heater; Flush Mount; Black; Steel; With Frame And Screen MFR # 6259AEB
6. #Water Heater; Gas-Electric; 12 Gallon Tank; Direct Spark Ignition; 1440 Watts; 12000 BTU; 16-7/32 Inch Width x 16-7/32 Inch Height x 22-1/4 Inch Depth; 47 Pounds; Non Portable MFR # 5128A
7. #Water Heater; LP; 10 Gallon Tank; Direct Spark Ignition; 12000 BTU; 16-7/32 Inch Width x 16-7/32 Inch Height x 22-1/4 Inch Depth; 46.4 Pounds; Non Portable MFR # 5127A
8. #Water Heater Access Door; For Suburban 10/ 12/ 16 Gallon Water Heater; Flush Mount; Polar White; Galvanized Steel; With Frame And Screen MFR # 6259APW
9. #Water Heater Power Switch; For Suburban Nautilus Series Water Heaters; Black MFR # 234229
10. #Water Heater Power Switch; For Suburban Nautilus Series Water Heaters; Cream MFR # 234795
11. #Water Heater; LP; Model Number SW10D; 10 Gallon Tank; Direct Spark Ignition; 12000 BTU; 16-7/32 Inch Width x 16-7/32 Inch Height x 20-1/2 Inch Depth; 45.2 Pounds; Non Portable MFR # 5125A
