Suburban DSI Series DSI6 Parts Diagram · Exploded View

Water Heater · 2 assemblies · 2 diagram sheets · 65 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban DSI Series DSI6 RV water heater: 2 assemblies (Exploded View, Replacement Appliance) and 65 manufacturer part numbers. 10 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is inside the exterior access door, usually on the left of the burner area. Suburban model numbers encode capacity and ignition (e.g. SW6DE = 6 gal, DSI, electric); the serial number dates the board and thermostat generation.

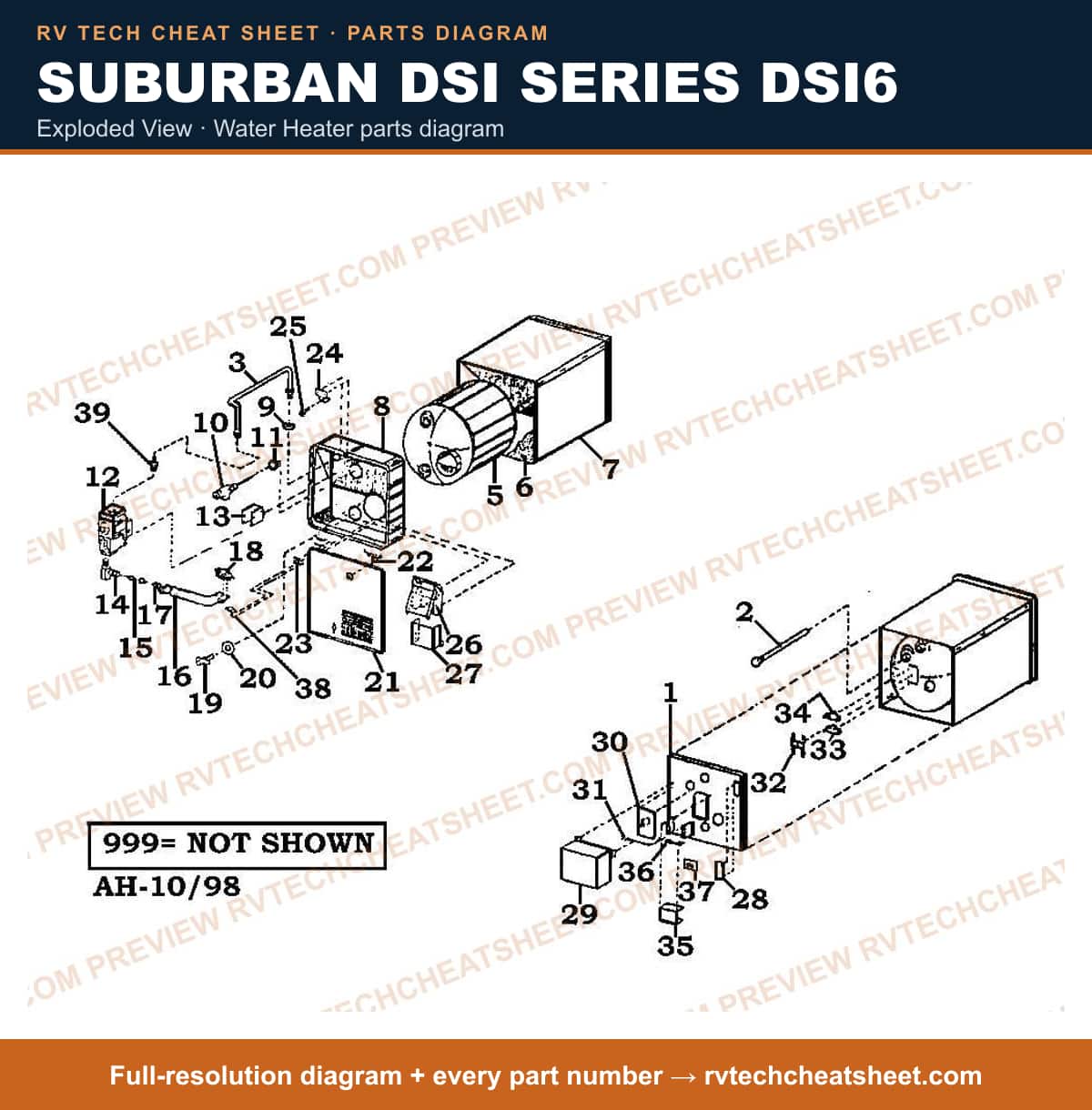

Exploded View

Components

61 items

1. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Aluminum MFR # 233516
2. #ANODE 9.5'X.75' MPT BULK LDFRE MFR # 69717
3. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Magnesium MFR # 233514
4. #ANODE ROD MAGNESIUM USE 232767 MFR # 231624 Superseded: see description
5. #Drive Shaft MFR # N/A
6. #GROMMET GAS MANIFOLD MFR # 70828
7. #LF RELIEF VALVE 3/4' 150PSI MFR # 0556000
8. #Water Heater Pressure Relief Valve; For Suburban All SW And V Series; 3/4 Inch Male NPT MFR # 525045
9. #NO GENERIC NAME;;Valve Relief 3/4" *N* MFR # MC7152
10. #CAMCO T & P VALVE 3/4IN W/ 4IN PROBE COATED, 150PSI, BULK MFR # 10471
11. #VALVE, PRESSURE 3/4" ***USE 50-0548*** MFR # 160926 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Gas Valve MFR # 520735
13. #VALVE,GAS JOHNSON USE 520735 MFR # 160923 Superseded: see description
14. #BRKT VALVE MFR # 62852
15. #APPLIANCE COMPONENTS RV; Manifold Outlet MFR # 171068
16. #Water Heater Burner Orifice; For Suburban SW-Series Water Heater; Number 61 MFR # 180260
17. #ORIFICE USE 180260 MFR # 180255 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Suburban Burner Assy MFR # 10727
19. #Water Heater Burner; For Suburban Water Heater DSI (Direct Spark Ignition) V-Models; With Air Shutter And Electrode MFR # 10726
20. #APPLIANCE COMPONENTS RV; Shutter Air MFR # 10729
21. #APPLIANCE COMPONENTS RV; Shutter Air ** Use 10729 MFR # 3100039 Superseded: see description
22. #Water Heater Electrode; For Suburban V-Series Water Heater; 2-Prong MFR # 231732
23. #APPLIANCE COMPONENTS RV; Plug Hex - Nla MFR # 171267
24. #VALVE,DRAIN USE 171267 MFR # 160927 Superseded: see description
25. #APPLIANCE COMPONENTS RV; 6Gal Flush MFR # 697221
26. #APPLIANCE COMPONENTS RV; Door Catch Kit MFR # 520568
27. #Water Heater Access Door; For Suburban Square Corner V-Model 3 Gallon/ 6 Gallon/ 8 Gallon Water Heater; Colonial White MFR # 690578
28. #SCREEN WATER HEATER DOOR 6 GALLONFLUSH MOUNT FOR 6255ACW,6255APW697221 MFR # 30747
29. #APPLIANCE COMPONENTS RV; Radius Door MFR # 697205
30. #APPLIANCE COMPONENTS RV; Pin Door MFR # 150080
31. #APPLIANCE COMPONENTS RV; Plate Hinge MFR # 62849
32. #Access Door Latch; V-Series; Water Heater Door; Spring Loaded Thumb Screw; Also Use New Number 525008 MFR # 525008 Superseded: see description
33. #BACK,FLUE COLLECTOR MFR # 101235
34. #FLUE COLL FRONT MFR # 101238
35. #COVER, INLET MANIFOLD MFR # 290138
36. #RECEIVER STAND W/HEADER MFR # 90340
37. #UIB L WITH POST TOP MFR # UIBLPOST
38. #Ignition Control Circuit Board; For Suburban Water Heater SW4D/ SW6D/ SW6DE/ SW6DEL/ SW6DEM/ SW6DM/ SW10D/ SW10DE/ SW10DEL/ SW10DEM/ SW10DM/ SW12D/ SW12DE/ SW12DEL/ SW12DEM/ SW16D/ SW16DE/ SW16DEL/ SW16DEM; With Module Board Cover And Foam Tape MFR # 520814
39. #Ignition Control Circuit Board - Quiet Start - Fits Suburban Water Heaters MFR # 520814MC
40. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
41. #COVER FOR UIB S MFR # SMALLCOVER
42. #UNIVERSAL IGN BRD LARGE MFR # UIBL
43. #UIB WITH FAN CONTROL MFR # FAN50PLUS
44. #BURNER, LARGE W/AIR SHUTTER USE 520564 MFR # 3000003 Superseded: see description
45. #BOARD,MODULE USE 520741 3-TRY 12V MFR # 231463 Superseded: see description
46. #Water Heater Burner; Large; For Suburban Water Heater SSRV6/ SSRV6M/ ESSRV6/ SSRV8/ SSRV8M/ ESSRV8/ SSRV10/ SSRV10M/ ESSWRV10/ 10ARVM/ E10ARV; With Target/ Burner Support Bracket/ Shutter/ Screw/ Nut/ Pilot Bracket/ Pilot Burner/ Thermocouple/ Tube/ Tube Fitting MFR # 520564
47. #Furnace Wiring Harness; For Suburban Furnace DD17DSI/ NT-Series MFR # 232161
48. #UNIVERSAL IGN BRD SMALL MFR # UIBS
49. #Water Heater Electrode Wire; For Suburban V-Series Water Heater; 24 Inch length MFR # 232791
50. #APPLIANCE COMPONENTS RV; Brkt Dbl Sw - Nla MFR # 62851
51. #Water Heater Thermostat Switch; For Suburban Water Heater; Hi-Limit; 120 Volt; Without Reset Switch; 140 Degree MFR # 520788
52. #Water Heater Thermostat Switch - Fits Suburban Water Heaters MFR # 232306MC
53. #Water Heater Thermostat Switch; For Suburban Water Heater (After Serial Number 940900091); Limit; 120 Volt; Without Reset Switch; 130 Degree MFR # 232306
54. #Water Heater Thermostat; For Suburban FDSI-6/ FDSI-6M/ DSI-6/ DSI-6M/ DSI-10/ DSI-10M; Thermo Disc Style; 120 Volt; With High Limit Control; 130 Degree Limit Standard MFR # 160921
55. #Water Heater Thermostat Switch; For V Series Suburban Water Heater; Hi-Limit; 12 Volt; With Reset MFR # 231461
56. #APPLIANCE COMPONENTS RV; Cov Jct Box MFR # 90344
57. #Water Heater Wiring Harness; For Suburban Water Heater DSI/ FDSI/ VDSI/ VEDSI/ VESSR/ VFDSI MFR # 231690
58. #Water Heater Power Switch; For Suburban V-Series Water Heater; 2-3/4 Inch Length x 2-1/4 Inch Width; Wall Mount; White; With Switch Plate And Light Assembly MFR # 520764
59. #SWITCH & LITE USE 520764 W/PLATE MFR # 231615 Superseded: see description
60. #APPLIANCE COMPONENTS RV; Fitting MFR # 170375
61. #NOT AVAILABLE MUST REPLACE WATER HEATER MFR # INNERTANK

Replacement Appliance

Components

4 items

1. #Water Heater; LP; Model Number SW6D; 6 Gallon Tank; Direct Spark Ignition; 12000 BTU; 12-11/16 Inch Width x 12-11/16 Inch Height x 19- 3/16 Inch Depth; 33.3 Pounds; Non Portable; Without Wall Switch MFR # SW6DN
2. #WATER HEATER,6 GAL ELEC/PILOT W/REIGNITER MFR # SW6PERN
3. #Water Heater; Gas-Electric; Model Number SW6DE; 6 Gallon Tank; Direct Spark Ignition; 1440 Watts; 12000 BTU; 12-11/16 Inch Width x 12-11/16 Inch Height x 19-3/16 Inch Depth; 34.3 Pounds; Non Portable MFR # SW6DEN
4. #Water Heater; Gas-Electric; Model Number SW6DEM; 6 Gallon Tank; Electronic Ignition (Direct Spark Ignition); 1400 Watts; 12000 BTU; 12-11/16 Inch Width x 12-11/16 Inch Height x 19-3/16 Inch Depth; Without Access Door; Non Portable MFR # SW6DEMN
