Suburban DSI Series DSI6M Parts Diagram

Water Heater · 1 diagram sheet · 66 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Suburban DSI Series DSI6M RV water heater: 66 manufacturer part numbers. 13 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is inside the exterior access door, usually on the left of the burner area. Suburban model numbers encode capacity and ignition (e.g. SW6DE = 6 gal, DSI, electric); the serial number dates the board and thermostat generation.

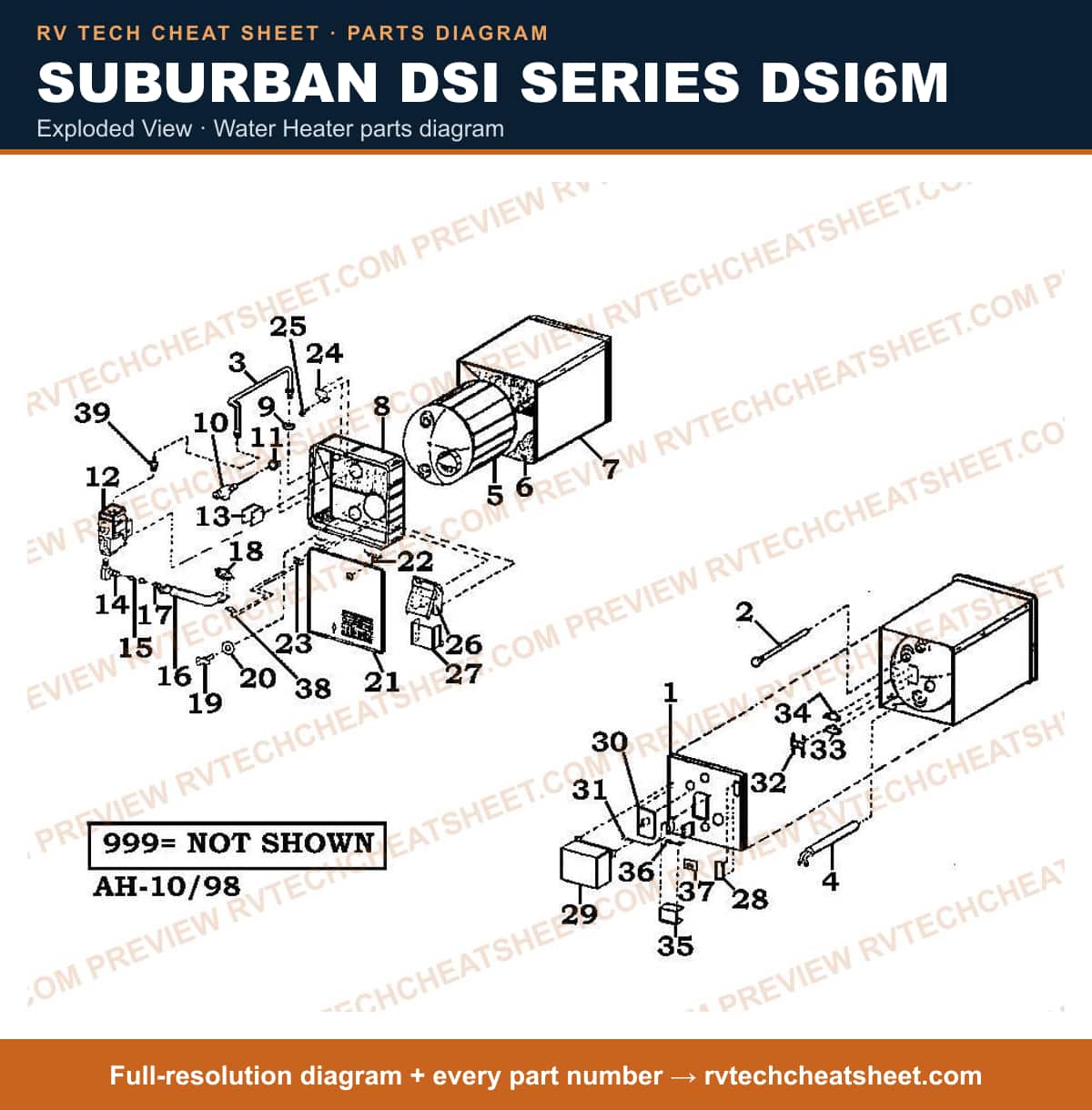

Exploded View

Components

66 items

1. #ANODE ROD MAGNESIUM USE 232767 MFR # 231624 Superseded: see description
2. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Magnesium MFR # 233514
3. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Magnesium; Also Use New Number 233514 MFR # 232767 Superseded: see description
4. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Aluminum MFR # 232768
5. #ANODE 9.5'X.75' MPT BULK LDFRE MFR # 69717
6. #EXCHANGER, HEAT MFR # 300036
7. #GROMMET GAS MANIFOLD MFR # 70828
8. #NO GENERIC NAME;;Valve Relief 3/4" *N* MFR # MC7152
9. #APPLIANCE COMPONENTS RV; T&P Valve MFR # 161157
10. #CAMCO T & P VALVE 3/4IN W/ 4IN PROBE COATED, 150PSI, BULK MFR # 10471
11. #Water Heater Pressure Relief Valve; For Suburban All SW And V Series; 3/4 Inch Male NPT MFR # 525045
12. #VALVE, PRESSURE 3/4" ***USE 50-0548*** MFR # 160926 Superseded: see description
13. #Water Heater Pressure Relief Valve; For Suburban All SW And V Series; 3/4 Inch Male NPT; Also Use New Number 525045 MFR # 161230 Superseded: see description
14. #VALVE,GAS JOHNSON USE 520735 MFR # 160923 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Gas Valve MFR # 520735
16. #BRKT VALVE MFR # 62852
17. #APPLIANCE COMPONENTS RV; Manifold Outlet MFR # 171068
18. #Water Heater Burner Orifice; For Suburban SW-Series Water Heater; Number 61 MFR # 180260
19. #ORIFICE USE 180260 MFR # 180255 Superseded: see description
20. #Water Heater Burner; For Suburban Water Heater DSI (Direct Spark Ignition) V-Models; With Air Shutter And Electrode MFR # 10726
21. #APPLIANCE COMPONENTS RV; Suburban Burner Assy MFR # 10727
22. #APPLIANCE COMPONENTS RV; Shutter Air MFR # 10729
23. #APPLIANCE COMPONENTS RV; Shutter Air ** Use 10729 MFR # 3100039 Superseded: see description
24. #Water Heater Electrode; For Suburban V-Series Water Heater; 2-Prong MFR # 231732
25. #APPLIANCE COMPONENTS RV; Electrode Assy MFR # 231457
26. #ELECTRODE ASM (100+) MFR # 5100426
27. #APPLIANCE COMPONENTS RV; Plug Hex - Nla MFR # 171267
28. #VALVE,DRAIN USE 171267 MFR # 160927 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Radius Door MFR # 697205
30. #SCREEN WATER HEATER DOOR 6 GALLONFLUSH MOUNT FOR 6255ACW,6255APW697221 MFR # 30747
31. #Water Heater Access Door; For Suburban Square Corner V-Model 3 Gallon/ 6 Gallon/ 8 Gallon Water Heater; Colonial White MFR # 690578
32. #APPLIANCE COMPONENTS RV; 6Gal Flush MFR # 697221
33. #APPLIANCE COMPONENTS RV; Pin Door MFR # 150080
34. #APPLIANCE COMPONENTS RV; Plate Hinge MFR # 62849
35. #Access Door Latch; V-Series; Water Heater Door; Spring Loaded Thumb Screw; Also Use New Number 525008 MFR # 150079 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Door Catch Kit MFR # 520568
37. #BACK,FLUE COLLECTOR MFR # 101235
38. #FLUE COLL FRONT MFR # 101238
39. #COVER, INLET MANIFOLD MFR # 290138
40. #RECEIVER STAND W/HEADER MFR # 90340
41. #BOARD,MODULE USE 520741 3-TRY 12V MFR # 231463 Superseded: see description
42. #Ignition Control Circuit Board; For Suburban Water Heater SW4D/ SW6D/ SW6DE/ SW6DEL/ SW6DEM/ SW6DM/ SW10D/ SW10DE/ SW10DEL/ SW10DEM/ SW10DM/ SW12D/ SW12DE/ SW12DEL/ SW12DEM/ SW16D/ SW16DE/ SW16DEL/ SW16DEM; With Module Board Cover And Foam Tape MFR # 520814
43. #UIB WITH FAN CONTROL MFR # FAN50PLUS
44. #UIB S WITH POST TOP MFR # UIBSPOST
45. #UNIVERSAL IGN BRD LARGE MFR # UIBL
46. #BURNER, LARGE W/AIR SHUTTER USE 520564 MFR # 3000003 Superseded: see description
47. #Furnace Wiring Harness; For Suburban Furnace DD17DSI/ NT-Series MFR # 232161
48. #UIB L WITH POST TOP MFR # UIBLPOST
49. #Water Heater Burner; Large; For Suburban Water Heater SSRV6/ SSRV6M/ ESSRV6/ SSRV8/ SSRV8M/ ESSRV8/ SSRV10/ SSRV10M/ ESSWRV10/ 10ARVM/ E10ARV; With Target/ Burner Support Bracket/ Shutter/ Screw/ Nut/ Pilot Bracket/ Pilot Burner/ Thermocouple/ Tube/ Tube Fitting MFR # 520564
50. #Ignition Control Circuit Board Cover; Replacement For Dinosaurs Universal Igniter Boards; Large; White; Fire Retardant ABS Plastic MFR # LCVR
51. #COVER FOR UIB S MFR # SMALLCOVER
52. #ignition Control Circuit Board; For Suburban Furnace SF Series/ NT Series And All Water Heater DSI Series/ SW Series/ VDSI Series; Also Use New Number 521099 For Furnaces Or 520814 For Water Heaters MFR # 520741 Superseded: see description
53. #Water Heater Electrode Wire; For Suburban V-Series Water Heater; 24 Inch length MFR # 232791
54. #APPLIANCE COMPONENTS RV; Wire Electrode MFR # 231462
55. #APPLIANCE COMPONENTS RV; Brkt Dbl Sw - Nla MFR # 62851
56. #Water Heater Thermostat Switch; For Suburban Water Heater (After Serial Number 940900091); Limit; 120 Volt; Without Reset Switch; 130 Degree MFR # 232306
57. #Water Heater Thermostat Switch - Fits Suburban Water Heaters MFR # 232306MC
58. #Water Heater Thermostat Switch; For Suburban Water Heater; Hi-Limit; 120 Volt; Without Reset Switch; 140 Degree MFR # 520788
59. #Water Heater Thermostat; For Suburban FDSI-6/ FDSI-6M/ DSI-6/ DSI-6M/ DSI-10/ DSI-10M; Thermo Disc Style; 120 Volt; With High Limit Control; 130 Degree Limit Standard MFR # 160921
60. #Water Heater Thermostat Switch; For V Series Suburban Water Heater; Hi-Limit; 12 Volt; With Reset MFR # 231461
61. #APPLIANCE COMPONENTS RV; Cov Jct Box MFR # 90344
62. #Water Heater Wiring Harness; For Suburban Water Heater DSI/ FDSI/ VDSI/ VEDSI/ VESSR/ VFDSI MFR # 231690
63. #Water Heater Power Switch; For Suburban V-Series Water Heater; 2-3/4 Inch Length x 2-1/4 Inch Width; Wall Mount; White; With Switch Plate And Light Assembly MFR # 520764
64. #SWITCH & LITE USE 520764 W/PLATE MFR # 231615 Superseded: see description
65. #APPLIANCE COMPONENTS RV; Fitting MFR # 170375
66. #NOT AVAILABLE MUST REPLACE WATER HEATER MFR # INNERTANK
