Suburban Sw Series SW16D Parts Diagram · Exploded View

Water Heater · 2 assemblies · 2 diagram sheets · 57 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Sw Series SW16D RV water heater: 2 assemblies (Exploded View, Replacement Water Heater) and 57 manufacturer part numbers. 15 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is inside the exterior access door, usually on the left of the burner area. Suburban model numbers encode capacity and ignition (e.g. SW6DE = 6 gal, DSI, electric); the serial number dates the board and thermostat generation.

Exploded View

Components

53 items

1. #APPLIANCE COMPONENTS RV; Suburban Jacket Kit MFR # 520961
2. #Water Heater Power Switch; For Suburban Nautilus Series Water Heaters; White MFR # 234589
3. #Water Heater Power Switch; For Suburban Water Heater SW6D; With Switch Plate And Light Assembly MFR # 232589
4. #Ignition Control Circuit Board - Quiet Start - Fits Suburban Water Heaters MFR # 520814MC
5. #UNIVERSAL IGN BRD SMALL MFR # UIBS
6. #Water Heater Control Circuit Board Cover; For Suburban Water Heater 520814 (After Serial Number 953900766) MFR # 90487
7. #APPLIANCE COMPONENTS RV; Bushing Snap 1/2" MFR # 70270
8. #Nut; Replacement For Suburban SW4D Model Water Heaters; Keps; 6 Point; #10 - 24; Green MFR # 121576
9. #APPLIANCE COMPONENTS RV; Jct Box Dc MFR # 90517
10. #Water Heater Flue Box; Replacement For Suburban Water Heater SW-10DEL/ SW-12D/ SW-12DE/ SW-12DEL/ SW-16D/SW-16DE/SW-16DEL/SW-16DEM/ SW-16V/ SW-16VE/ VEDSI-10/ VEDSI-10M MFR # 101777
11. #Screw; Furnace Blower Screw; #10 x 1/4 Inch; Single MFR # 121577
12. #APPLIANCE COMPONENTS RV; T&P Valve MFR # 161157
13. #Water Heater Pressure Relief Valve; For Suburban All SW And V Series; 3/4 Inch Male NPT MFR # 525045
14. #CAMCO T & P VALVE 3/4IN W/ 4IN PROBE COATED, 150PSI, BULK MFR # 10471
15. #Water Heater Pressure Relief Valve; For Suburban All SW And V Series; 3/4 Inch Male NPT; Also Use New Number 525045 MFR # 161230 Superseded: see description
16. #Water Heater Thermostat Cover Gasket; For Suburban SW Series Water Heater MFR # 70987
17. #Water Heater Thermostat Cover; Replacement For Suburban Water Heater Thermostat/ Limit Switch; Also Use New Number 525022 MFR # 90562 Superseded: see description
18. #Furnace Ignition Electrode Bracket; For Suburban SW-Series Water Heater MFR # 63187
19. #Water Heater Thermostat Access Plug; For Suburban Water Heater Thermostat; Black; Single; Also Use New Number 525027 MFR # 70874 Superseded: see description
20. #Water Heater Electrode; For Suburban SW-Series Water Heater; 2-Prong MFR # 232258MC
21. #Water Heater Electrode; For Suburban SW-Series Water Heater; 2-Prong; Also Use New Number 525005 MFR # 232258 Superseded: see description
22. #Water Heater Burner; For Suburban 6 Gallon Water Heater SW-Series (After Serial Number 953401118All)/ 10 Gallon SW-Series (After Serial Number 953601021); With Orifice; Also Use New Number 525023 MFR # 10843 Superseded: see description
23. #Water Heater Burner; For Use With Suburban Direct Spark Ignition Water Heater MFR # 011030 Superseded: see description
24. #Water Heater Burner Mounting Bracket; Replacement For Suburban Water Heaters MFR # 063827
25. #Water Heater Burner Orifice; For Use With Suburban Direct Spark Ignition Water Heater Gas Valve Part Number 161255; Number 61 MFR # 180323 Superseded: see description
26. #Water Heater Manifold Outlet Connector; For Suburban Water Heater SW-Series; 1/4 Inch NPT; Brass; Single; Also Use New Number 525030 MFR # 171463 Superseded: see description
27. #ANODE 9.5'X.75' MPT BULK LDFRE MFR # 69717
28. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Magnesium; Also Use New Number 233514 MFR # 232767 Superseded: see description
29. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Magnesium MFR # 233514
30. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Aluminum MFR # 232768
31. #Water Heater Gas Line Grommet; For Suburban Water Heater SW4D/ SW6D/ SW6DE MFR # 70989
32. #Water Heater Thermostat Switch; For SW Series Suburban Water Heater; Hi-Limit; 12 Volt; With Reset Switch; 130 Degree MFR # 232282
33. #APPLIANCE COMPONENTS RV; GROMMET MFR # 71246
34. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; 3/8 Inch; Single MFR # 525025
35. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; Also Use New Number 525025 MFR # 170374 Superseded: see description
36. #Water Heater Gas Valve; For Use With Suburban Direct Spark Ignition Water Heater; -3/8 Inch NPT Inlet; 1/8 Inch 27 NPT Outlet; 12 Volt DC MFR # 161306 Superseded: see description
37. #Gas Valve Solenoid; White Rodgers; Fits To Suburban Water Heater Gas Valve 161109; 0.48 Amp/ 12 Volt DC; Maximum 1/2 PSI; With 2 Solenoids/ 2 Wire Ties/ Instructions MFR # 521072
38. #Water Heater Gas Valve; For Suburban 6 Gallon SW-Series Water Heater; 3/8 Inch NPT Inlet x 1/4 Inch Loxit Outlet; Also Use New Number 525042 MFR # 161109 Superseded: see description
39. #Gas Valve Solenoid; Seven Universe; Fits To Suburban Water Heater Gas Valve 161109; 0.48 Amp/ 12 Volt DC; Maximum 1/2 PSI; With 2 Solenoids/ 2 Wire Ties/ Instructions MFR # 521073
40. #Water Heater Gas Valve; For Use With Suburban Direct Spark Ignition Water Heater; -3/8 Inch NPT Inlet; 1/8 Inch 27 NPT Outlet; 12 Volt DC; Also Use New Number 161306 MFR # 161255 Superseded: see description
41. #Water Heater Gas Valve Mounting Bracket; For Use With Suburban Gas Valve Part Number 161255 MFR # 063779 Superseded: see description
42. #Water Heater Manifold Outlet; For Suburban Water Heater DSI Models SW6D/ SW10D (After Serial Number 953401118); Fits Unit With A Pilot MFR # 171420
43. #Water Heater Gas Valve Mounting Bracket; For Suburban Water Heater SW4-D MFR # 63243
44. #Screw; For Suburban Water Heater SW4D/ SW6D/ SW6DE/ SW6DEM/ SW6DM/ SW16D/ SW16DE/ SW16DEM/ SW6DEL/ SW10DEL/ SW12DEl/ SW16DEL/ SW16V/ SW16VE; #8-32 x 3/8 Inch; Hex Slot MFR # 121958
45. #APPLIANCE COMPONENTS RV; Brkt Burner MFR # 63444
46. #Screw; For Suburban Water Heater SW4D/ SW6D/ SW6DE; 8 Milimeter-4 x 1/2 Hex; Hex Head MFR # 121943
47. #Water Heater Electrode Wire; For SW-Series Suburban Water Heater; With Boot And Spade Connector MFR # 232459
48. #APPLIANCE COMPONENTS RV; Clip Latch MFR # 62920
49. #Water Heater Access Door; For Suburban 10/ 12/ 16 Gallon Water Heater; Flush Mount; Black; Steel; With Frame And Screen MFR # 6259AEB
50. #NOT AVAILABLE MUST REPLACE WATER HEATER MFR # INNERTANK
51. #Water Heater Access Door; For Suburban 10/ 12/ 16 Gallon Water Heater; Flush Mount; Polar White; Galvanized Steel; With Frame And Screen MFR # 6259APW
52. #Access Door Latch; V-Series; Water Heater Door; Spring Loaded Thumb Screw; Also Use New Number 525008 MFR # 150079 Superseded: see description
53. #Water Heater Access Door; For Suburban 10/ 12/ 16 Gallon Water Heater; Flush Mount; Colonial White; Galvanized Steel; With Frame And Screen MFR # 6259ACW

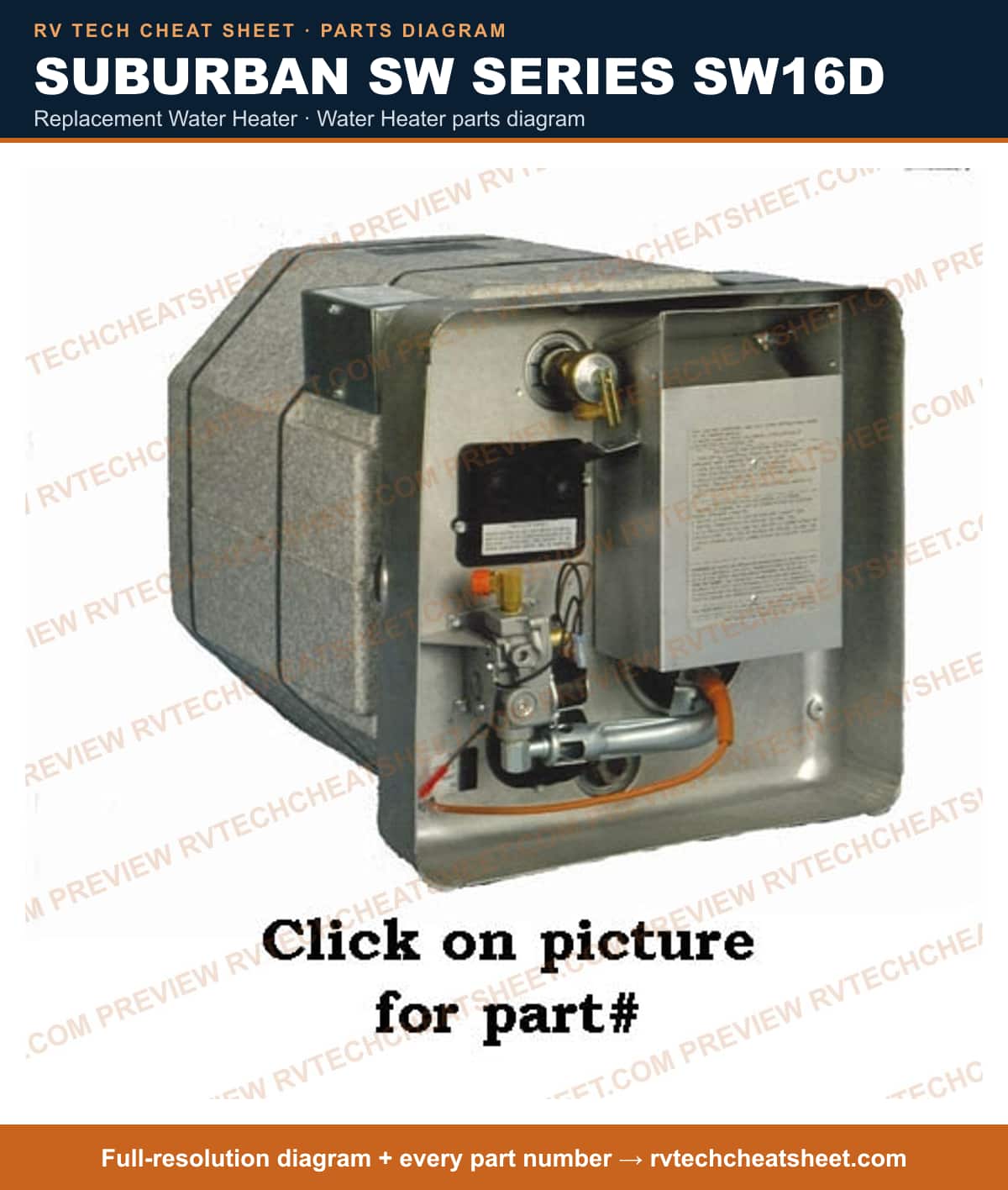

Replacement Water Heater

Components

8 items

1. #Water Heater Power Switch; For Suburban Nautilus Series Water Heaters; Black MFR # 234229
2. #Water Heater Access Door; For Suburban 10/ 12/ 16 Gallon Water Heater; Flush Mount; Colonial White; Galvanized Steel; With Frame And Screen MFR # 6259ACW
3. #Water Heater Access Door; For Suburban 10/ 12/ 16 Gallon Water Heater; Flush Mount; Black; Steel; With Frame And Screen MFR # 6259AEB
4. #Water Heater; LP; Model Number SW16D; 16 Gallon Tank; Electronic Ignition (Direct Spark Ignition); 12000 BTU; 16-7/32 Inch Width x 16-7/32 Inch Height x 27 Inch Depth; Without Access Door; Non Portable MFR # 5101A
5. #Water Heater; Model Number SW16D; 16 Gallon; Direct Spark Ignition; Non Portable MFR # 5150A
6. #Water Heater Power Switch; For Suburban Nautilus Series Water Heaters; White MFR # 234589
7. #Water Heater Access Door; For Suburban 10/ 12/ 16 Gallon Water Heater; Flush Mount; Polar White; Galvanized Steel; With Frame And Screen MFR # 6259APW
8. #Water Heater Power Switch; For Suburban Nautilus Series Water Heaters; Cream MFR # 234795
