Suburban Sw Series SW16V Parts Diagram · Replacement Water Heater

Water Heater · 2 assemblies · 2 diagram sheets · 45 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Sw Series SW16V RV water heater: 2 assemblies (Replacement Water Heater, Exploded View) and 45 manufacturer part numbers. 13 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is inside the exterior access door, usually on the left of the burner area. Suburban model numbers encode capacity and ignition (e.g. SW6DE = 6 gal, DSI, electric); the serial number dates the board and thermostat generation.

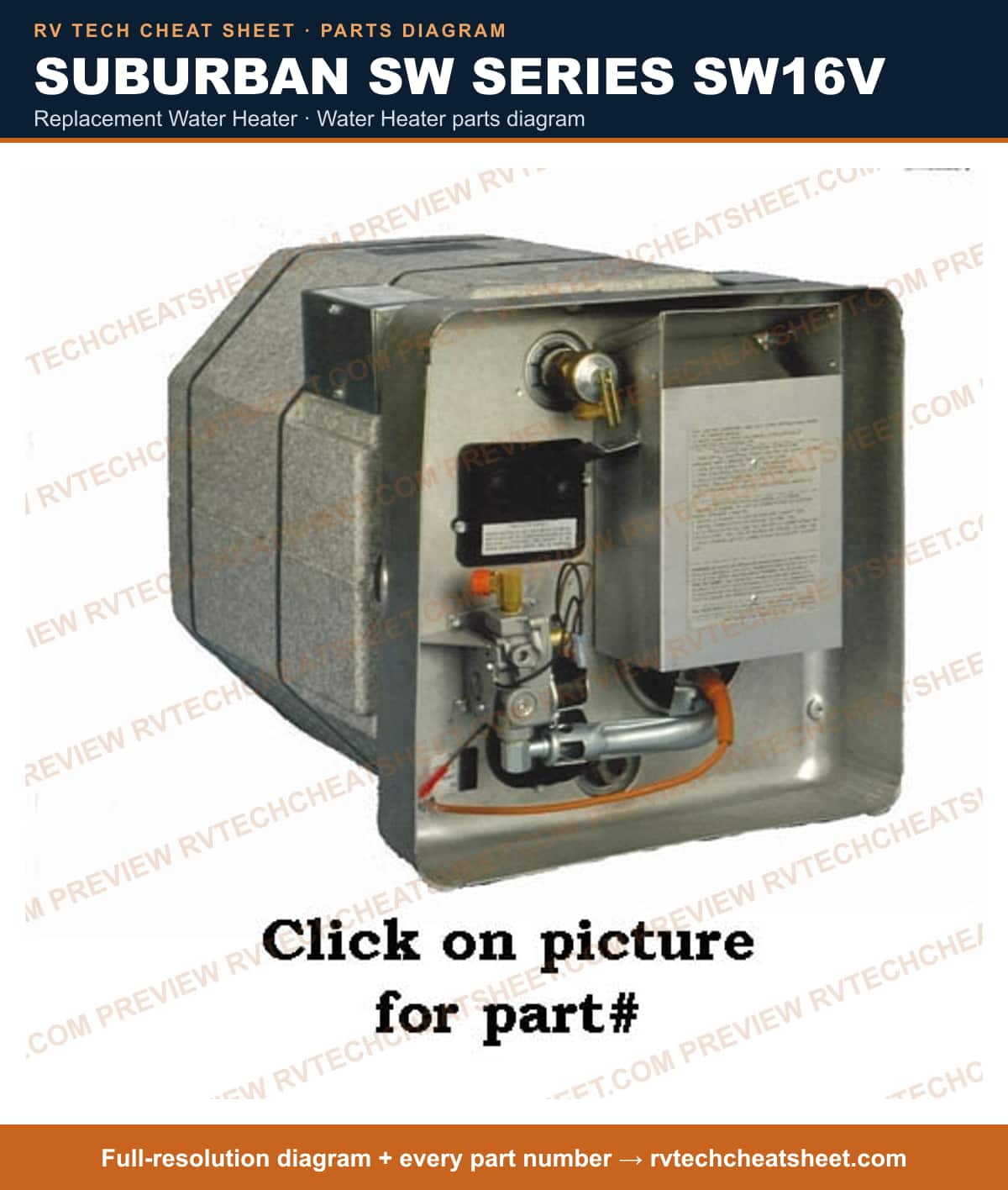

Replacement Water Heater

Components

1 item

1. #Water Heater; LP; Model Number SW16V; 16 Gallon Tank Capacity; Direct Spark Ignition; 12000 BTU; 16-7/32 Inch Height x 16-7/32 Inch Width x 27 Inch Depton Portable MFR # 5081A

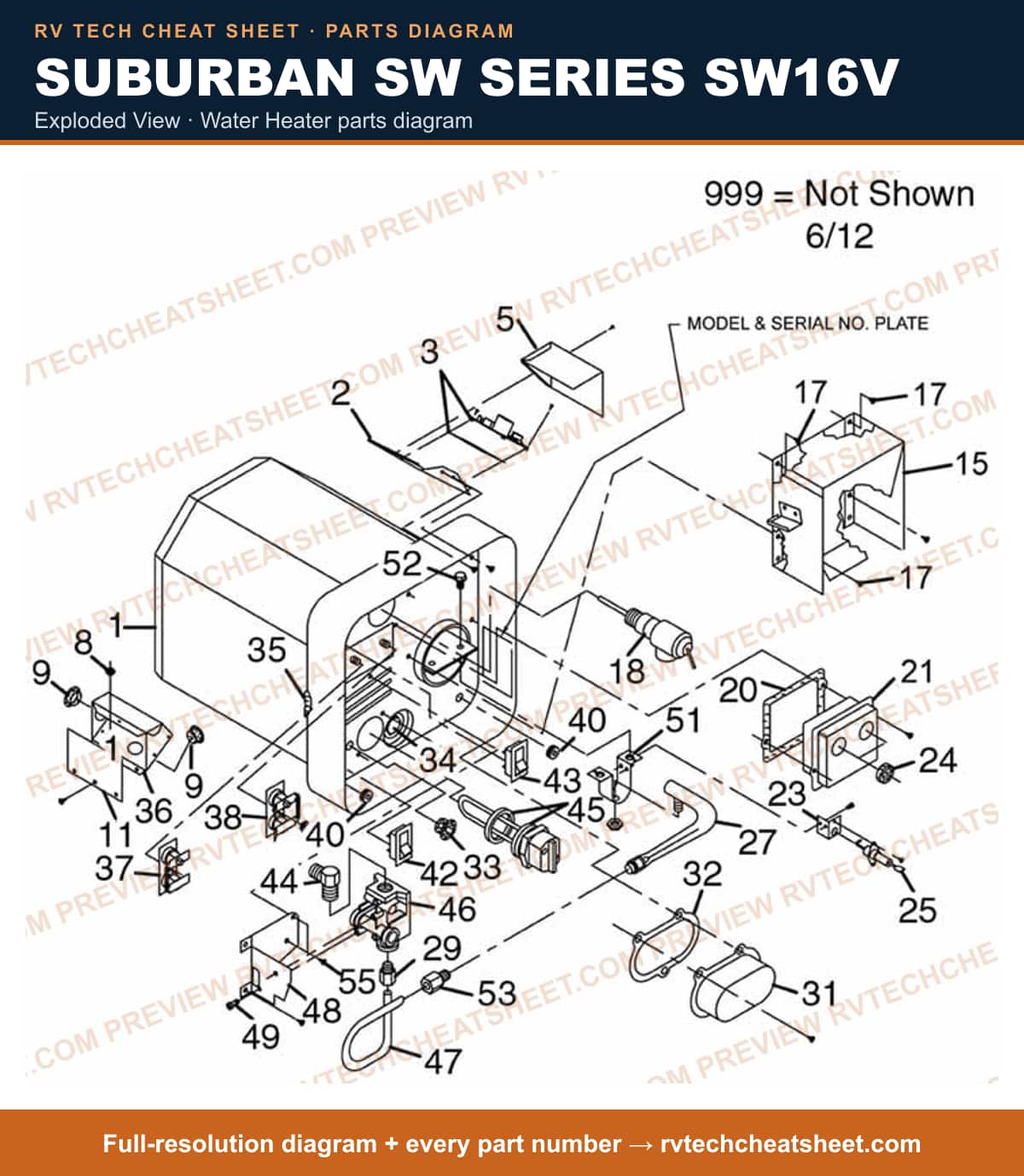

Exploded View

Components

44 items

1. #FOAM JACKET ASM COMPLETE MFR # 520994
2. #PLATE, MODULE BOARD MTG MFR # 63591S
3. #COVER MODULE BOARD MFR # 90584
4. #Nut; Replacement For Suburban SW4D Model Water Heaters; Keps; 6 Point; #10 - 24; Green MFR # 121576
5. #APPLIANCE COMPONENTS RV; Bushing Snap 7/8" MFR # 230218
6. #APPLIANCE COMPONENTS RV; BUSHING SNAP MFR # 231827
7. #APPLIANCE COMPONENTS RV; COV JCT BOX MFR # 90576
8. #Water Heater Flue Box; Replacement For Suburban Water Heater SW-10DEL/ SW-12D/ SW-12DE/ SW-12DEL/ SW-16D/SW-16DE/SW-16DEL/SW-16DEM/ SW-16V/ SW-16VE/ VEDSI-10/ VEDSI-10M MFR # 101777
9. #Screw; Furnace Blower Screw; #10 x 1/4 Inch; Single MFR # 121577
10. #Water Heater Pressure Relief Valve; For Suburban All SW And V Series; 3/4 Inch Male NPT MFR # 525045
11. #APPLIANCE COMPONENTS RV; T&P Valve MFR # 161157
12. #Water Heater Pressure Relief Valve; For Suburban All SW And V Series; 3/4 Inch Male NPT; Also Use New Number 525045 MFR # 161230 Superseded: see description
13. #Water Heater Thermostat Cover Gasket; For Suburban SW Series Water Heater MFR # 70987
14. #Water Heater Thermostat Cover; Replacement For Suburban Water Heater Thermostat/ Limit Switch; Also Use New Number 525022 MFR # 90562 Superseded: see description
15. #Furnace Ignition Electrode Bracket; For Suburban SW-Series Water Heater MFR # 63187
16. #Water Heater Thermostat Access Plug; For Suburban Water Heater Thermostat; Black; Single; Also Use New Number 525027 MFR # 70874 Superseded: see description
17. #Water Heater Electrode; For Suburban SW-Series Water Heater; 2-Prong; Also Use New Number 525005 MFR # 232258 Superseded: see description
18. #Water Heater Electrode; For Suburban SW-Series Water Heater; 2-Prong MFR # 232258MC
19. #Water Heater Burner; For Suburban 6 Gallon Water Heater SW-Series (After Serial Number 953401118All)/ 10 Gallon SW-Series (After Serial Number 953601021); With Orifice; Also Use New Number 525023 MFR # 10843 Superseded: see description
20. #Water Heater Burner; For Use With Suburban Direct Spark Ignition Water Heater MFR # 011030 Superseded: see description
21. #Water Heater Burner Orifice; For Use With Suburban Direct Spark Ignition Water Heater Gas Valve Part Number 161255; Number 61 MFR # 180323 Superseded: see description
22. #Water Heater Manifold Outlet Connector; For Suburban Water Heater SW-Series; 1/4 Inch NPT; Brass; Single; Also Use New Number 525030 MFR # 171463 Superseded: see description
23. #Water Heater Element Cover; For Suburban SW-Series Water Heaters; With Gasket MFR # 090681
24. #Water Heater Element Cover; For Suburban SW-Series Water Heaters; Also Use New Number 090681 MFR # 70988 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Bushing Snap 1/2" MFR # 70270
26. #ANODE 9.5'X.75' MPT BULK LDFRE MFR # 69717
27. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Magnesium MFR # 233514
28. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Aluminum MFR # 232768
29. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Magnesium; Also Use New Number 233514 MFR # 232767 Superseded: see description
30. #Water Heater Gas Line Grommet; For Suburban Water Heater SW4D/ SW6D/ SW6DE MFR # 70989
31. #APPLIANCE COMPONENTS RV; JCT BOX AC MFR # 90575
32. #Water Heater Thermostat Switch; For SW Series Suburban Water Heater; Hi-Limit; 12 Volt; With Reset Switch; 130 Degree MFR # 232282
33. #APPLIANCE COMPONENTS RV; GROMMET MFR # 71246
34. #Water Heater Element Switch; For Suburban Water Heater SW-Series; Also Use New Number 233357 MFR # 232259 Superseded: see description
35. #Water Heater Element Switch; For Suburban Water Heater SW10PE/ SW10PER MFR # 232362
36. #Water Heater Element Switch; For Suburban Water Heater SW-Series MFR # 233357
37. #Water Heater Element Switch; For Suburban Water Heater SW-Series; 0.551 Inch Width x 1-3/16 Inch Height x 0.996 Inch Depth; Also Use New Number 525001 MFR # 233358 Superseded: see description
38. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; 3/8 Inch; Single MFR # 525025
39. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; Also Use New Number 525025 MFR # 170374 Superseded: see description
40. #Water Heater Manifold Outlet; For Suburban Water Heater DSI Models SW6D/ SW10D (After Serial Number 953401118); Fits Unit With A Pilot MFR # 171420
41. #Water Heater Gas Valve Mounting Bracket; For Suburban Water Heater SW4-D MFR # 63243
42. #APPLIANCE COMPONENTS RV; Brkt Burner MFR # 63444
43. #Screw; For Suburban Water Heater SW4D/ SW6D/ SW6DE; 8 Milimeter-4 x 1/2 Hex; Hex Head MFR # 121943
44. #Water Heater Electrode Wire; Replacement For Suburban SW16V/ SW16VE Water Heater MFR # 232989
