Suburban Sw Series SW6DEA Parts Diagram · Exploded View

Water Heater · 2 assemblies · 2 diagram sheets · 43 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Sw Series SW6DEA RV water heater: 2 assemblies (Exploded View, Replacement Water Heater) and 43 manufacturer part numbers. 7 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is inside the exterior access door, usually on the left of the burner area. Suburban model numbers encode capacity and ignition (e.g. SW6DE = 6 gal, DSI, electric); the serial number dates the board and thermostat generation.

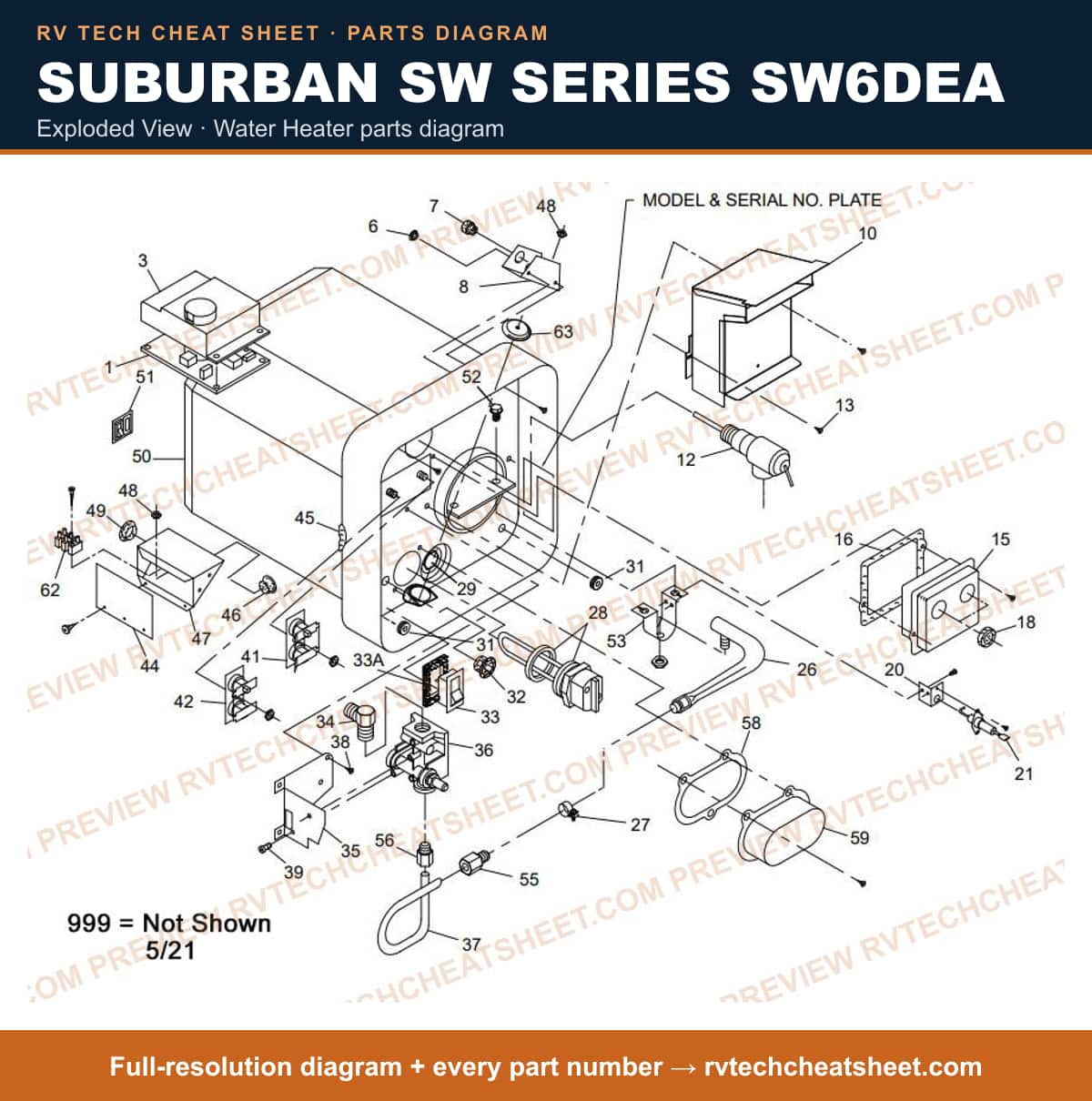

Exploded View

Components

41 items

1. #APPLIANCE COMPONENTS RV; KIT MOD BOARD CE MFR # 521114
2. #APPLIANCE COMPONENTS RV; COV MOD BD MFR # 090613
3. #APPLIANCE COMPONENTS RV; Bushing Snap 1/2" MFR # 070270
4. #APPLIANCE COMPONENTS RV; Jct Box Dc MFR # 090517
5. #APPLIANCE COMPONENTS RV; FLUE COLL/LIGHTING PLATE MFR # 102434
6. #APPLIANCE COMPONENTS RV; Valve Press Rel MFR # 161166
7. #Screw; Furnace Blower Screw; #10 x 1/4 Inch; Single MFR # 121577
8. #Water Heater Thermostat Cover; Replacement For Suburban Water Heater Thermostat/ Limit Switch; Also Use New Number 525022 MFR # 090562 Superseded: see description
9. #Water Heater Thermostat Cover Gasket; For Suburban SW Series Water Heater MFR # 070987
10. #Water Heater Thermostat Access Plug; For Suburban Water Heater Thermostat; Black; Single; Also Use New Number 525027 MFR # 070874 Superseded: see description
11. #Furnace Ignition Electrode Bracket; For Suburban SW-Series Water Heater MFR # 063187
12. #Water Heater Electrode; For Suburban SW-Series Water Heater; 2-Prong; Also Use New Number 525005 MFR # 232258 Superseded: see description
13. #Water Heater Burner; For Suburban 3 Gallon Water Heater SW-Series (After Serial Number 953602451); With Orifice MFR # 010844
14. #APPLIANCE COMPONENTS RV; Shutter Air MFR # 010857
15. #APPLIANCE COMPONENTS RV; Element Kit MFR # 520831
16. #APPLIANCE COMPONENTS RV; GROMMET MFR # 071246
17. #APPLIANCE COMPONENTS RV; Gskt Sw MFR # 071016
18. #APPLIANCE COMPONENTS RV; Element Sw MFR # 233110
19. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; 3/8 Inch; Single MFR # 525025
20. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; Also Use New Number 525025 MFR # 170374 Superseded: see description
21. #Water Heater Gas Valve Mounting Bracket; For Suburban Water Heater SW4-D MFR # 063243
22. #APPLIANCE COMPONENTS RV; Valve MFR # 161164
23. #Water Heater Manifold Outlet; For Suburban Water Heater DSI Models SW6D/ SW10D (After Serial Number 953401118); Fits Unit With A Pilot MFR # 171420
24. #Screw; For Suburban Cooktop SCNA3; M8-32 x 3/8 Inch MFR # 121934
25. #Water Heater Thermostat Switch; For Suburban DSI (Direct Spark Ignition) Water Heater; Limit; 12 Volt; Without Reset Switch; 140 Degree MFR # 232319
26. #Water Heater Thermostat Switch; For Suburban Water Heater; Limit; 120 Volt; Without Reset Switch; 140 Degree MFR # 232317
27. #APPLIANCE COMPONENTS RV; COV JCT BOX MFR # 090576
28. #Water Heater Gas Line Grommet; For Suburban Water Heater SW4D/ SW6D/ SW6DE MFR # 070989
29. #APPLIANCE COMPONENTS RV; Bushing Snap 7/8" MFR # 230218
30. #APPLIANCE COMPONENTS RV; JCT BOX AC MFR # 090575
31. #Nut; Replacement For Suburban SW4D Model Water Heaters; Keps; 6 Point; #10 - 24; Green MFR # 121576
32. #APPLIANCE COMPONENTS RV; Kit Jacket MFR # 520867
33. #Water Heater Insulation; For 6 Gallon Suburban Water Heater SW6D/ SW6DE; With Banding Kit MFR # 520868
34. #Water Heater Power Switch; For Suburban Water Heater SW6D; With Switch Plate And Light Assembly MFR # 232589
35. #Screw; For Suburban Water Heater SW4D/ SW6D/ SW6DE; 8 Milimeter-4 x 1/2 Hex; Hex Head MFR # 121943
36. #Water Heater Burner Mounting Bracket; For Suburban Water Heater SW-Series Water Heater MFR # 063444
37. #Water Heater Manifold Outlet Connector; For Suburban Water Heater SW-Series; 1/4 Inch NPT; Brass; Single; Also Use New Number 525030 MFR # 171463 Superseded: see description
38. #Water Heater Element Cover; For Suburban SW-Series Water Heaters; Also Use New Number 090681 MFR # 070988 Superseded: see description
39. #Water Heater Element Cover; For Suburban SW-Series Water Heaters; Also Use New Number 090681 MFR # 090445 Superseded: see description
40. #TERMINAL BLOCK (ONLY FOR SW4DEA, SW6DEA) MFR # 232669
41. #APPLIANCE COMPONENTS RV; PLUG BREAK THROUGH MFR # 233309

Replacement Water Heater

Components

2 items

1. #Water Heater; Gas-Electric; Model Number SW6DEA For Installation In Australia; 6 Gallon Tank; Direct Spark Ignition; 1440 Watt; 12000 BTU; 12.69 Inch Height x 12.69 Inch Width x 19.19 Inch Depth Overall Dimensions/ 12.75 Inch Height x 12.75 Inch Width x 19.19 Inch Depth Cutout Dimensions; 37.4 Pounds; Non Portable; With 120 Volt AC Element And Gasket; Access Doors And On/ Off Switch Sold Separately MFR # 5185A
2. #Water Heater; Gas-Electric; Model Number SW6DEA For Installation In Australia; 6 Gallon Tank; Direct Spark Ignition; 1440 Watt; 12000 BTU; 12.69 Inch Height x 12.69 Inch Width x 19.19 Inch Depth Overall Dimensions/ 12.75 Inch Height x 12.75 Inch Width x 19.19 Inch Depth Cutout Dimensions; 37.4 Pounds; Non Portable; With 120 Volt AC Element And Gasket; Access Doors And On/ Off Switch Sold Separately; Single MFR # 5193A
