Suburban Sw Series SW6DEM Parts Diagram · Replacement Water Heater

Water Heater · 3 assemblies · 3 diagram sheets · 90 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Sw Series SW6DEM RV water heater: 3 assemblies (Replacement Water Heater, Rear View, Front View) and 90 manufacturer part numbers. 20 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is inside the exterior access door, usually on the left of the burner area. Suburban model numbers encode capacity and ignition (e.g. SW6DE = 6 gal, DSI, electric); the serial number dates the board and thermostat generation.

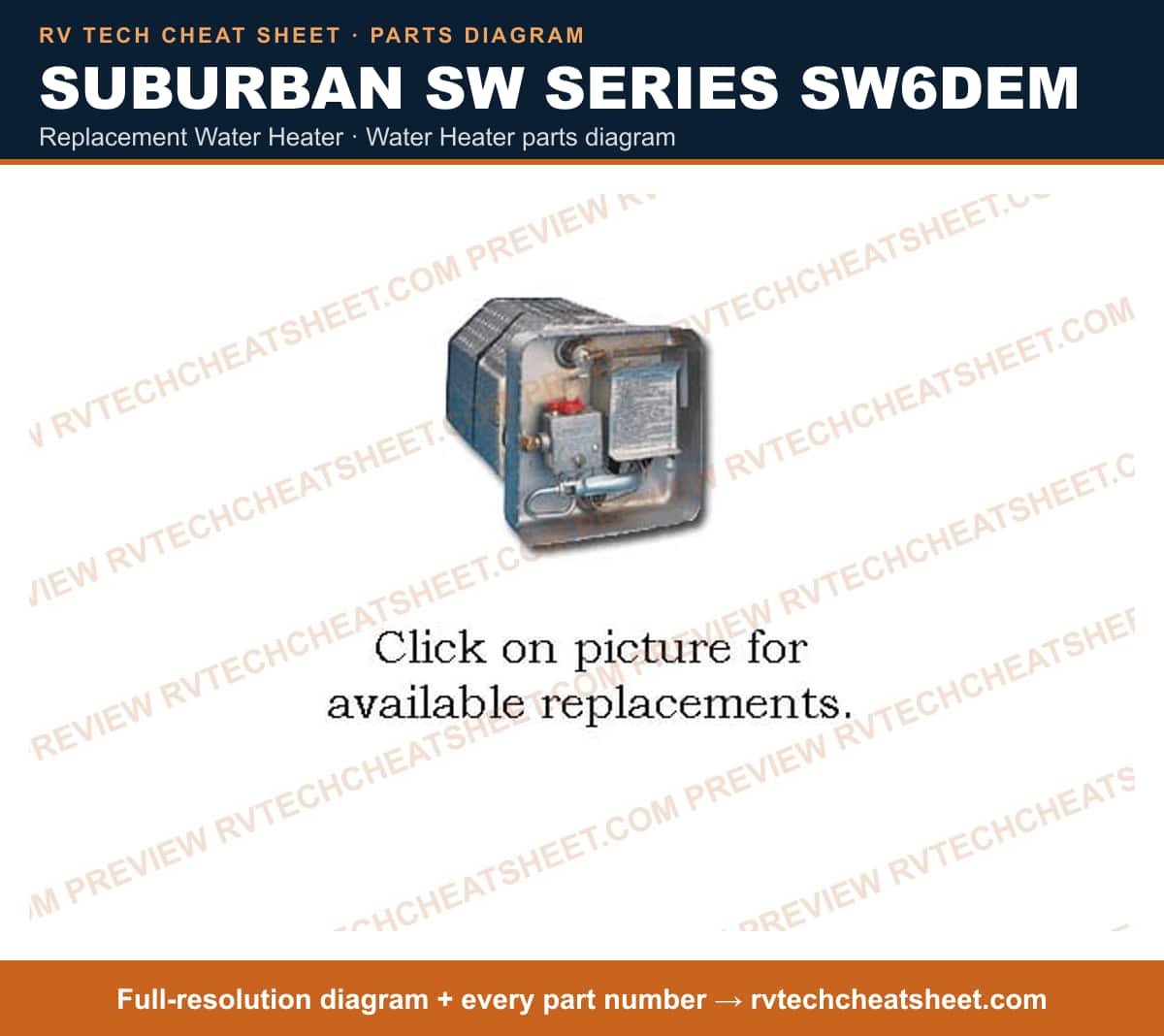

Replacement Water Heater

Components

11 items

1. #Water Heater; Gas-Electric; Model Number SW6DEM; 6 Gallon Tank; Electronic Ignition (Direct Spark Ignition); 1400 Watts; 12000 BTU; 12-11/16 Inch Width x 12-11/16 Inch Height x 19-3/16 Inch Depth; Without Access Door; Non Portable MFR # 5094A
2. #Water Heater Access Door; For Suburban 4/ 6 Gallon Water Heater; Flush Mount; Colonial White; Galvanized Steel MFR # 6255ACW
3. #Water Heater Access Door; For Suburban 6 Gallon Water Heater; Standard; Polar White; Galvanized Steel MFR # 6261APW
4. #Water Heater; Electric; Model Number SW6DEM; 6 Gallon; Direct Spark Ignition; Non Portable MFR # 5141A
5. #Water Heater Access Door; For Suburban Water Heater 4 Gallon Or 6 Gallon; Tough Black; Corrosion-Resistant Steel; With Water Heater Mounting Flange MFR # 6261AEB
6. #Water Heater Access Door; For Suburban 6 Gallon Water Heater; Standard; Colonial White; Galvanized Steel MFR # 6261ACW
7. #Water Heater Power Switch; For Suburban Nautilus Series Water Heaters; Cream MFR # 234795
8. #Water Heater Access Door; For Suburban 6 Gallon Water Heater; Flush Mount; Black; With Hinge/ Door Latch/ Mounting Hardware MFR # 6255AEB
9. #Water Heater Power Switch; For Suburban Nautilus Series Water Heaters; White MFR # 234589
10. #Water Heater Access Door; For Suburban 4/ 6 Gallon Water Heater; Flush Mount; Polar White; Galvanized Steel MFR # 6255APW
11. #Water Heater Power Switch; For Suburban Nautilus Series Water Heaters; Black MFR # 234229

Rear View

Components

17 items

1. #RECEIVER STAND W/HEADER MFR # 90340
2. #Screw; For Suburban Furnace NT-Series; Fits Suburban Furnace Combustion Chamber; #10 x 3/8 Inch MFR # 121252
3. #APPLIANCE COMPONENTS RV; Suburban Nut MFR # 121669
4. #APPLIANCE COMPONENTS RV; Cov Jct Box MFR # 90344
5. #APPLIANCE COMPONENTS RV; SCREW 10-32X3/8 GRE MFR # 121702
6. #APPLIANCE COMPONENTS RV; Screw 6 X 5/8 Ph Ph MFR # 121357
7. #APPLIANCE COMPONENTS RV; Plate Switch/Lamp ***Us MFR # 232625
8. #APPLIANCE COMPONENTS RV; BUSHING SNAP MFR # 231827
9. #APPLIANCE COMPONENTS RV; Bushing Snap 7/8" MFR # 230218
10. #APPLIANCE COMPONENTS RV; Insul Mod Board MFR # 70807
11. #Ignition Control Circuit Board - Quiet Start - Fits Suburban Water Heaters MFR # 520814MC
12. #UNIVERSAL IGN BRD SMALL MFR # UIBS
13. #Ignition Control Circuit Board; For Suburban Water Heater SW4D/ SW6D/ SW6DE/ SW6DEL/ SW6DEM/ SW6DM/ SW10D/ SW10DE/ SW10DEL/ SW10DEM/ SW10DM/ SW12D/ SW12DE/ SW12DEL/ SW12DEM/ SW16D/ SW16DE/ SW16DEL/ SW16DEM; With Module Board Cover And Foam Tape MFR # 520814
14. #Water Heater Junction Box Cover; For Suburban Water Heater SW12DEM/ SW6DEM/ SW16DEM MFR # 90464
15. #Nut; Replacement For Suburban SW4D Model Water Heaters; Keps; 6 Point; #10 - 24; Green MFR # 121576
16. #APPLIANCE COMPONENTS RV; BUSHING UNIV MFR # 70486
17. #NOT AVAILABLE MUST REPLACE WATER HEATER MFR # INNERTANK

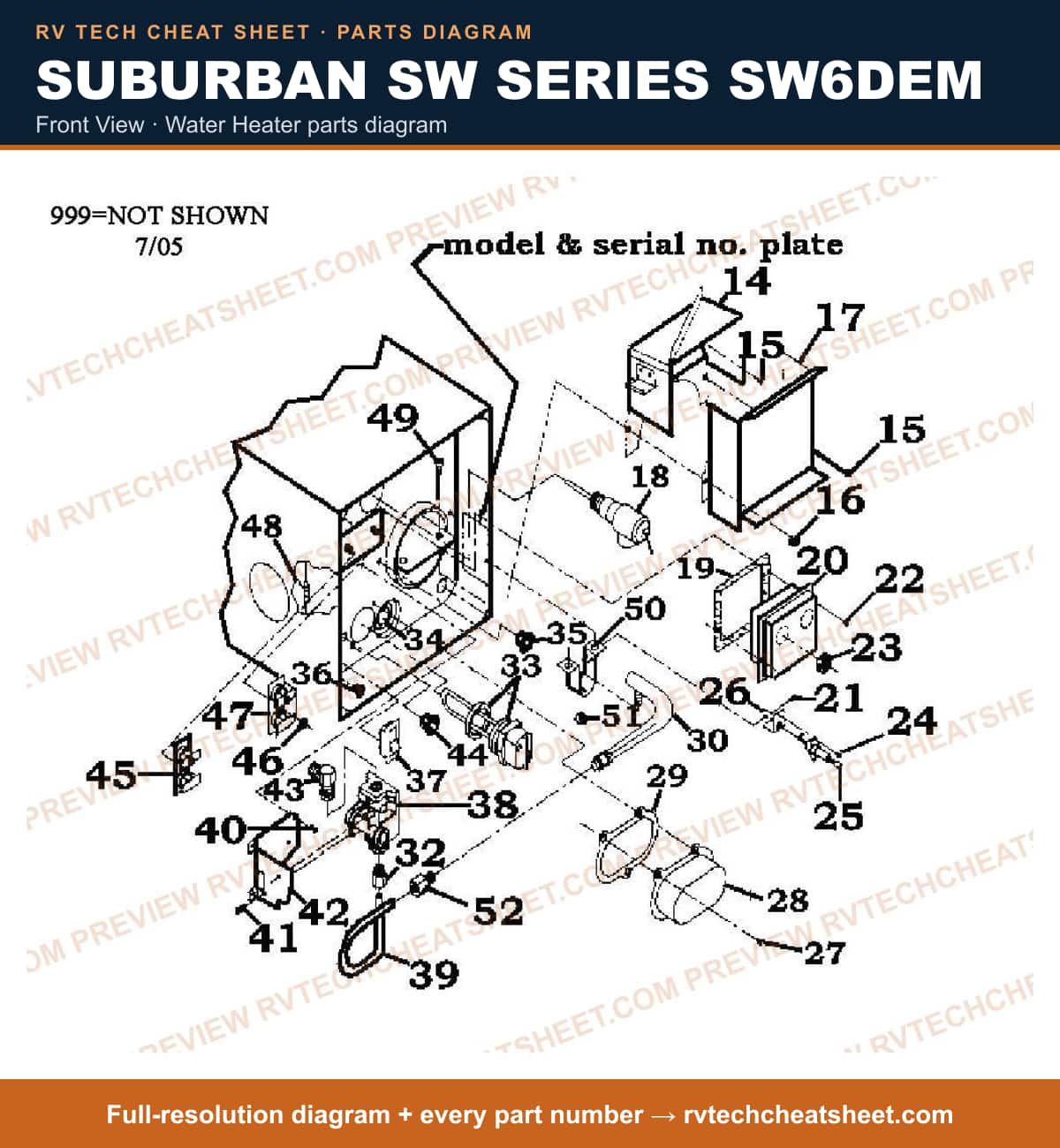

Front View

Components

70 items

1. #Water Heater Flue Box; For Suburban Water Heater SW-10DEL/ SW-12DEL/ SW-16DEL/ SW-3P/ SW-4D/ SW-4P/ SW-6D/ SW-6DE/ SW-6DEL/ SW-6DEM/ SW-6DM/ SW-6P/ SW-6PE/ SW-6PER/ SW-6PR; With Flue Box Back Only MFR # 101682
2. #Screw; For Suburban Furnace NT-Series; Fits Suburban Furnace Combustion Chamber; #10 x 3/8 Inch MFR # 121252
3. #Screw; Furnace Blower Screw; #10 x 1/4 Inch; Single MFR # 121577
4. #Water Heater Pressure Relief Valve; For Suburban All SW And V Series; 3/4 Inch Male NPT MFR # 525045
5. #APPLIANCE COMPONENTS RV; Front Flue Collector MFR # 101607
6. #Water Heater Pressure Relief Valve; For Suburban All SW And V Series; 3/4 Inch Male NPT MFR # 161231
7. #CAMCO T & P VALVE 3/4IN W/ 4IN PROBE COATED, 150PSI, BULK MFR # 10471
8. #Water Heater Pressure Relief Valve; For Suburban All SW And V Series; 3/4 Inch Male NPT; Also Use New Number 525045 MFR # 161230 Superseded: see description
9. #APPLIANCE COMPONENTS RV; T&P Valve MFR # 161157
10. #Water Heater Thermostat Cover Gasket; For Suburban SW Series Water Heater MFR # 70987
11. #Water Heater Thermostat Cover; Replacement For Suburban Water Heater Thermostat/ Limit Switch; Also Use New Number 525022 MFR # 90562 Superseded: see description
12. #COV TSTAT USE 80-8464 MFR # 90467 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Screw 8-32 X 3/8 Hex Hd MFR # 121407
14. #APPLIANCE COMPONENTS RV; Suburban Nut MFR # 121669
15. #Water Heater Thermostat Access Plug; For Suburban Water Heater Thermostat; Black; Single; Also Use New Number 525027 MFR # 70874 Superseded: see description
16. #Water Heater Electrode; For Suburban SW-Series Water Heater; 2-Prong; Also Use New Number 525005 MFR # 232258 Superseded: see description
17. #Igniter Electrode; Direct Spark Ignition; S-Probe; 0.250 Inch x 0.032 Inch Terminal MFR # 165918
18. #Water Heater Electrode; For Suburban SW-Series Water Heater; 2-Prong MFR # 232258MC
19. #Furnace Ignition Electrode Bracket; For Suburban SW-Series Water Heater MFR # 63187
20. #Water Heater Element Cover; For Suburban SW-Series Water Heaters; With Gasket MFR # 090681
21. #Water Heater Element Cover; For Suburban SW-Series Water Heaters; Also Use New Number 090681 MFR # 70988 Superseded: see description
22. #Water Heater Burner Mounting Bracket; Replacement For Suburban Water Heaters MFR # 063827
23. #Water Heater Burner; For Use With Suburban Direct Spark Ignition Water Heater MFR # 011030 Superseded: see description
24. #Water Heater Burner; For Suburban 6 Gallon Water Heater SW-Series (After Serial Number 953401118All)/ 10 Gallon SW-Series (After Serial Number 953601021); With Orifice; Also Use New Number 525023 MFR # 10843 Superseded: see description
25. #Water Heater Burner Orifice; For Use With Suburban Direct Spark Ignition Water Heater Gas Valve Part Number 161255; Number 61 MFR # 180323 Superseded: see description
26. #NUT,LOXIT 1/4" USE 171463 MFR # 171475 Superseded: see description
27. #APPLIANCE COMPONENTS RV; 1000W Element MFR # 520570
28. #Water Heater Element; Screw-In; 1440 Watt; 110 Volt; With Gasket MFR # 520789
29. #APPLIANCE COMPONENTS RV; Element Heating 1500W 12 MFR # 520571
30. #Water Heater Element; For Use WIth Suburban SW Series Water Heaters; Screw-In; 1440 Watt; 120 Volt; With Gasket MFR # 520900 Superseded: see description
31. #ANODE 9.5'X.75' MPT BULK LDFRE MFR # 69717
32. #ROD,ANODE USE 231624 MFR # 232419 Superseded: see description
33. #ANODE ROD MAGNESIUM USE 232767 MFR # 231624 Superseded: see description
34. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Magnesium; Also Use New Number 233514 MFR # 232767 Superseded: see description
35. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Magnesium MFR # 233514
36. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Aluminum MFR # 232768
37. #APPLIANCE COMPONENTS RV; Bushing Snap 3/8" MFR # 70483
38. #Water Heater Element Switch; For Suburban Water Heater SW10PE/ SW10PER MFR # 232362
39. #Water Heater Gas Valve Mounting Bracket; For Use With Suburban Gas Valve Part Number 161255 MFR # 063779 Superseded: see description
40. #Water Heater Gas Valve; For Use With Suburban Direct Spark Ignition Water Heater; -3/8 Inch NPT Inlet; 1/8 Inch 27 NPT Outlet; 12 Volt DC; Also Use New Number 161306 MFR # 161255 Superseded: see description
41. #Water Heater Gas Valve; For Suburban Water Heater (From Serial Number 92110443 To 953401118); 3/8 Inch NPT Inlet x 3/8 Inch NPT Outlet MFR # 161071
42. #Gas Valve Solenoid; White Rodgers; Fits To Suburban Water Heater Gas Valve 161109; 0.48 Amp/ 12 Volt DC; Maximum 1/2 PSI; With 2 Solenoids/ 2 Wire Ties/ Instructions MFR # 521072
43. #Water Heater Gas Valve; For Use With Suburban Direct Spark Ignition Water Heater; -3/8 Inch NPT Inlet; 1/8 Inch 27 NPT Outlet; 12 Volt DC MFR # 161306 Superseded: see description
44. #Gas Valve Solenoid; Seven Universe; Fits To Suburban Water Heater Gas Valve 161109; 0.48 Amp/ 12 Volt DC; Maximum 1/2 PSI; With 2 Solenoids/ 2 Wire Ties/ Instructions MFR # 521073
45. #Water Heater Gas Valve; For Suburban 6 Gallon SW-Series Water Heater; 3/8 Inch NPT Inlet x 1/4 Inch Loxit Outlet; Also Use New Number 525042 MFR # 161109 Superseded: see description
46. #Water Heater Manifold Outlet; For Suburban Water Heater DSI Models SW6D/ SW10D (After Serial Number 953401118); Fits Unit With A Pilot MFR # 171420
47. #Screw; For Suburban Water Heater SW4D/ SW6D/ SW6DE/ SW6DEM/ SW6DM/ SW16D/ SW16DE/ SW16DEM/ SW6DEL/ SW10DEL/ SW12DEl/ SW16DEL/ SW16V/ SW16VE; #8-32 x 3/8 Inch; Hex Slot MFR # 121958
48. #Water Heater Gas Valve Mounting Bracket; For Suburban Water Heater SW4-D MFR # 63243
49. #SERVICE KIT SCREW 8-15X3.5 SQUEAL MFR # 525026
50. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; Also Use New Number 525025 MFR # 170374 Superseded: see description
51. #APPLIANCE COMPONENTS RV; Bushing Snap 1/2" MFR # 70270
52. #Water Heater Thermostat Switch - Fits Suburban Water Heaters MFR # 232306MC
53. #Water Heater Thermostat Switch; For Suburban Water Heater (After Serial Number 940900091); Limit; 120 Volt; Without Reset Switch; 130 Degree MFR # 232306
54. #Nut; Used In Suburban Water Heater To Install Thermostat Switch Assembly Part Number 232319 MFR # 121698
55. #Water Heater Thermostat Switch; For Suburban Water Heater; Limit; 120 Volt; Without Reset Switch; 140 Degree MFR # 232317
56. #Water Heater Thermostat Switch; For SW Series Suburban Water Heater; Hi-Limit; 12 Volt; With Reset Switch; 130 Degree MFR # 232282
57. #Water Heater Gas Line Grommet; For Suburban Water Heater SW4D/ SW6D/ SW6DE MFR # 70989
58. #Screw; For Suburban Water Heater SW4D/ SW6D/ SW6DE; 8 Milimeter-4 x 1/2 Hex; Hex Head MFR # 121943
59. #APPLIANCE COMPONENTS RV; Brkt Burner MFR # 63444
60. #Nut; Water Heater Burner Mounting Bracket Nut; 1/4 Inch -20 Thread Size MFR # 121474
61. #Water Heater Manifold Outlet Connector; For Suburban Water Heater SW-Series; 1/4 Inch NPT; Brass; Single; Also Use New Number 525030 MFR # 171463 Superseded: see description
62. #Water Heater Access Door; For Suburban Water Heater 4 Gallon Or 6 Gallon; Tough Black; Corrosion-Resistant Steel; With Water Heater Mounting Flange MFR # 6261AEB
63. #APPLIANCE COMPONENTS RV; Clip Latch MFR # 062920
64. #Water Heater Access Door; For Suburban 4/ 6 Gallon Water Heater; Flush Mount; Polar White; Galvanized Steel MFR # 6255APW
65. #Water Heater Access Door; For Suburban 6 Gallon Water Heater; Flush Mount; Black; With Hinge/ Door Latch/ Mounting Hardware MFR # 6255AEB
66. #Water Heater Access Door; For Suburban 4/ 6 Gallon Water Heater; Flush Mount; Colonial White; Galvanized Steel MFR # 6255ACW
67. #Water Heater Access Door; For Suburban 6 Gallon Water Heater; Standard; Colonial White; Galvanized Steel MFR # 6261ACW
68. #Water Heater Access Door Grille; Water Heater Door Screen; For Suburban 6 Gallon Standard Water Heater; 6-1/4 Inch Width x 6-1/2 Inch Length; Flush Mount MFR # 030747
69. #Water Heater Access Door Grille; Water Heater Door Screen; For Suburban 6 Gallon Standard Water Heater; 7 Inch Width x 6 Inch Length MFR # 030742
70. #Water Heater Access Door; For Suburban 6 Gallon Water Heater; Standard; Polar White; Galvanized Steel MFR # 6261APW
