Suburban Sw Series SW6P Parts Diagram · Exploded View

Water Heater · 2 assemblies · 2 diagram sheets · 62 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Sw Series SW6P RV water heater: 2 assemblies (Exploded View, Replacement Water Heater) and 62 manufacturer part numbers. 12 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is inside the exterior access door, usually on the left of the burner area. Suburban model numbers encode capacity and ignition (e.g. SW6DE = 6 gal, DSI, electric); the serial number dates the board and thermostat generation.

Exploded View

Components

58 items

1. #Water Heater Flue Box; For Suburban Water Heater SW-10DEL/ SW-12DEL/ SW-16DEL/ SW-3P/ SW-4D/ SW-4P/ SW-6D/ SW-6DE/ SW-6DEL/ SW-6DEM/ SW-6DM/ SW-6P/ SW-6PE/ SW-6PER/ SW-6PR; With Flue Box Back Only MFR # 101682
2. #Water Heater Flue Box; For Suburban Water Heater MFR # 101683
3. #NO GENERIC NAME;;Valve Relief 3/4" *N* MFR # MC7152
4. #Water Heater Pressure Relief Valve; For Suburban All SW And V Series; 3/4 Inch Male NPT; Also Use New Number 525045 MFR # 161230 Superseded: see description
5. #CAMCO T & P VALVE 3/4IN W/ 4IN PROBE COATED, 150PSI, BULK MFR # 10471
6. #VALVE, PRESSURE 3/4" ***USE 50-0548*** MFR # 160926 Superseded: see description
7. #APPLIANCE COMPONENTS RV; T&P Valve MFR # 161157
8. #Water Heater Pressure Relief Valve; For Suburban All SW And V Series; 3/4 Inch Male NPT MFR # 525045
9. #Screw; Furnace Blower Screw; #10 x 1/4 Inch; Single MFR # 121577
10. #Screw; For Suburban Furnace NT-Series; Fits Suburban Furnace Combustion Chamber; #10 x 3/8 Inch MFR # 121252
11. #APPLIANCE COMPONENTS RV; Screw 8-32 X 3/8 Hex Hd MFR # 121407
12. #BURNER,PILOT USE 161156 MFR # 161097 Superseded: see description
13. #Water Heater Propane Pilot Assembly; For Suburban SW6P/ SW6PE/ SW6PR/ SW6PER/ SW10P/ SW10PE/ SW10PR/ SW10PER; 12 Inch Length; Also Use New Number 525012 MFR # 161156 Superseded: see description
14. #Water Heater Burner; For Suburban 6 Gallon Water Heater SW-Series (After Serial Number 953401118All)/ 10 Gallon SW-Series (After Serial Number 953601021); With Orifice; Also Use New Number 525023 MFR # 10843 Superseded: see description
15. #CITRUS ALL PURPOSE CLEANER 35 OZ MFR # 10815
16. #ROPE RING E-TRACK FITTING WLL 1 000 MFR # 01080
17. #Water Heater Burner; For Use With Suburban Direct Spark Ignition Water Heater MFR # 011030 Superseded: see description
18. #Water Heater Manifold Outlet Connector; For Suburban Water Heater SW-Series; 1/4 Inch NPT; Brass; Single; Also Use New Number 525030 MFR # 171463 Superseded: see description
19. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Magnesium; Also Use New Number 233514 MFR # 232767 Superseded: see description
20. #ANODE ROD MAGNESIUM USE 232767 MFR # 231624 Superseded: see description
21. #ANODE 9.5'X.75' MPT BULK LDFRE MFR # 69717
22. #ROD,ANODE USE 231624 MFR # 232419 Superseded: see description
23. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Aluminum MFR # 232768
24. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Magnesium MFR # 233514
25. #APPLIANCE COMPONENTS RV; Bushing Snap 1/2" MFR # 70270
26. #Water Heater Manifold Outlet; For Suburban SW-Series Water Heater MFR # 171421
27. #APPLIANCE COMPONENTS RV; Valve T-Stat (180) MFR # 610AC3
28. #APPLIANCE COMPONENTS RV; Knob Asm Reset Knob W/Br MFR # 1751011
29. #Water Heater Gas Valve; For Uni-Line 110 Series; 3/8 Inch Inlet x 3/8 Inch Outlet; 160 Degrees MFR # 110509
30. #Water Heater Gas Valve; For Suburban Water Heater SW6P (After Serial Number 962802561) SW10P (After Serial Number 95360121); 3/8 Inch NPT Inlet x 1/4 Inch Loxit Outlet MFR # 161111
31. #THERMOSTAT MFR # 161111MC
32. #Water Heater Gas Valve; For Uni-Line 110 Series; 3/8 Inch Inlet x 3/8 Inch Outlet; 160 Degrees MFR # 110507
33. #THERMOSTAT GAS CONTROL MFR # 161101MC
34. #THERMOSTAT GAS CONTROL MFR # 161101
35. #APPLIANCE COMPONENTS RV; Knob Reset Rv110 Series MFR # 1751311
36. #Water Heater Gas Valve; For Suburban Water Heater SW6P (9348XX And Before); 3/8 Inch Inverted Flare x 3/8 Inch Inverted Flare MFR # 160922
37. #THERMOSTAT GAS, 3/8" X 3/8" INVERTED IN/OUT MFR # 160922MC
38. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW3-P; 3/8 Inch x 3/8 Inch Flare; 30 Degree MFR # 171394
39. #Nut; Used In Suburban Water Heater To Install Thermostat Switch Assembly Part Number 232319 MFR # 121698
40. #Water Heater Gas Line Grommet; For Suburban Water Heater SW4D/ SW6D/ SW6DE MFR # 70989
41. #Water Heater Insulation; For 6 Gallon Suburban Water Heater; Half Jacket MFR # 101780
42. #Water Heater Tank Shroud Strap; For Suburban Water Heater SW12D/ SW12DE MFR # 520772
43. #JACKET,FOAM USE 101780 MFR # 101593 Superseded: see description
44. #APPLIANCE COMPONENTS RV; Screw 10-24X1/2 Whiz Lock MFR # 121459
45. #Water Heater Burner Mounting Bracket; For Suburban Water Heater SW6DM MFR # 63244
46. #Nut; Water Heater Burner Mounting Bracket Nut; 1/4 Inch -20 Thread Size MFR # 121474
47. #Water Heater Access Door; For Suburban 4/ 6 Gallon Water Heater; Flush Mount; Colonial White; Galvanized Steel MFR # 6255ACW
48. #NOT AVAILABLE MUST REPLACE WATER HEATER MFR # INNERTANK
49. #Water Heater Access Door Grille; Water Heater Door Screen; For Suburban 6 Gallon Standard Water Heater; 6-1/4 Inch Width x 6-1/2 Inch Length; Flush Mount MFR # 030747
50. #Water Heater Pilot Reigniter; For Suburban Water Heater SW-Series (Below Model 991801502); With Electrode/ Power And Ground Wires/ 2 Strain Reliefs/ Junction box/ Mounting Hardware/ Installation Instructions MFR # 520790
51. #APPLIANCE COMPONENTS RV; Reignitor Kit MFR # 520773
52. #Water Heater Access Door Grille; Water Heater Door Screen; For Suburban 6 Gallon Standard Water Heater; 7 Inch Width x 6 Inch Length MFR # 030742
53. #Water Heater Access Door; For Suburban 6 Gallon Water Heater; Standard; Colonial White; Galvanized Steel MFR # 6261ACW
54. #Door Hinge; For Suburban Water Heater SW6P/ SW6PE/ SW6PR/ SW6PER/ SW6D/ SW6DE/ SW10P/ SW10PE/ SW10PR/ SW10PER/ SW10D/ SW10DE/ SW10DEM MFR # 150117
55. #Water Heater Access Door; For Suburban 6 Gallon Water Heater; Flush Mount; Black; With Hinge/ Door Latch/ Mounting Hardware MFR # 6255AEB
56. #Igniter; For Suburban Water Heater (After Serial Number 997801501); Reigniter MFR # 520821
57. #CUP,ORIFICE USE 10843 MFR # 180300 Superseded: see description
58. #Water Heater Access Door; For Suburban 6 Gallon Water Heater; Standard; Polar White; Galvanized Steel MFR # 6261APW

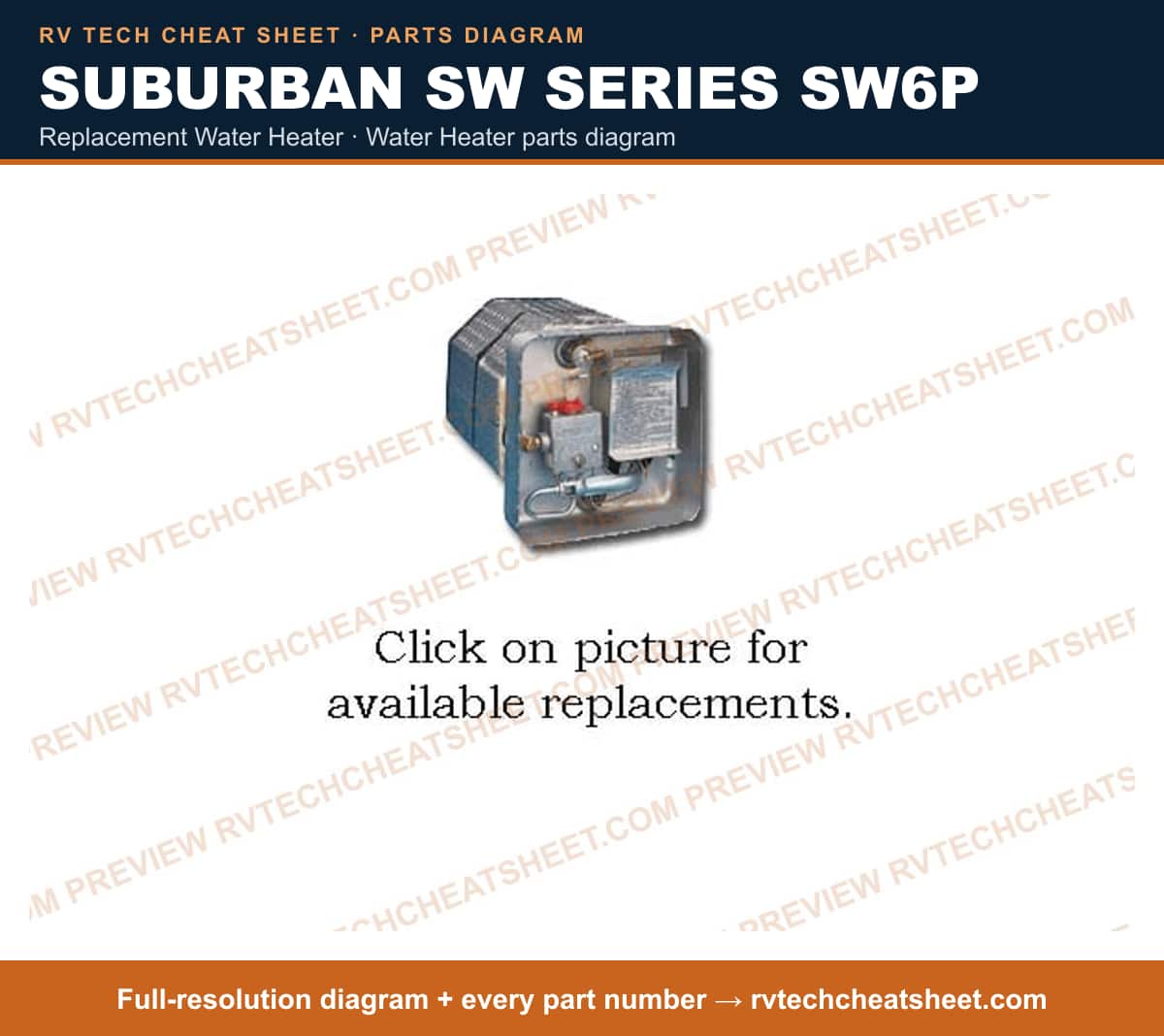

Replacement Water Heater

Components

9 items

1. #Water Heater Access Door; For Suburban 4/ 6 Gallon Water Heater; Flush Mount; Polar White; Galvanized Steel MFR # 6255APW
2. #Water Heater Access Door; For Suburban 6 Gallon Water Heater; Standard; Colonial White; Galvanized Steel MFR # 6261ACW
3. #Water Heater Access Door; For Suburban 6 Gallon Water Heater; Standard; Polar White; Galvanized Steel MFR # 6261APW
4. #Water Heater Access Door; For Suburban 6 Gallon Water Heater; Flush Mount; Black; With Hinge/ Door Latch/ Mounting Hardware MFR # 6255AEB
5. #Water Heater; LP; Model Number SW6P; 6 Gallon Tank; Pilot Ignition; 12000 BTU; 12-11/16 Inch Width x 12-11/16 Inch Height x 16-3/16 Inch Depth; 28.3 Pounds; Non Portable MFR # 5117A
6. #Water Heater Access Door; For Suburban Water Heater 4 Gallon Or 6 Gallon; Tough Black; Corrosion-Resistant Steel; With Water Heater Mounting Flange MFR # 6261AEB
7. #Water Heater Access Door; For Suburban 4/ 6 Gallon Water Heater; Flush Mount; Colonial White; Galvanized Steel MFR # 6255ACW
8. #Water Heater; LP; 6 Gallon Tank; Pilot Igniter; 12000 BTU; 12-11/16 Inch Width x 12-11/16 Inch Height x 19-3/16 Inch Depth; Without Access Door; Non Portable MFR # 5054A
9. #Igniter; For Suburban Water Heater (After Serial Number 997801501); Reigniter MFR # 520821
