Suburban Sw Series SW6PE Parts Diagram · Replacement Water Heater

Water Heater · 2 assemblies · 2 diagram sheets · 79 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Sw Series SW6PE RV water heater: 2 assemblies (Replacement Water Heater, Exploded View) and 79 manufacturer part numbers. 18 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is inside the exterior access door, usually on the left of the burner area. Suburban model numbers encode capacity and ignition (e.g. SW6DE = 6 gal, DSI, electric); the serial number dates the board and thermostat generation.

Replacement Water Heater

Components

8 items

1. #Water Heater Access Door; For Suburban 4/ 6 Gallon Water Heater; Flush Mount; Polar White; Galvanized Steel MFR # 6255APW
2. #Water Heater; Gas-Electric; 6 Gallon Tank; Pilot Igniter; 1400 Watts; 12000 BTU; 12-11/16 Inch Width x 12-11/16 Inch Height x 19-3/16 Inch Depth; Without Access Door; Non Portable MFR # 5055A
3. #Water Heater; Gas-Electric; Model Number SW6PE; 6 Gallon Tank; Pilot Ignition; 1440 Watts; 12000 BTU; 12-11/16 Inch Width x 12-11/16 Inch Height x 19-3/16 Inch Depth; 34.7 Pounds; Non Portable MFR # 5118A
4. #Water Heater Access Door; For Suburban 6 Gallon Water Heater; Standard; Colonial White; Galvanized Steel MFR # 6261ACW
5. #Water Heater Access Door; For Suburban 6 Gallon Water Heater; Flush Mount; Black; With Hinge/ Door Latch/ Mounting Hardware MFR # 6255AEB
6. #Water Heater Access Door; For Suburban 6 Gallon Water Heater; Standard; Polar White; Galvanized Steel MFR # 6261APW
7. #Water Heater Access Door; For Suburban 4/ 6 Gallon Water Heater; Flush Mount; Colonial White; Galvanized Steel MFR # 6255ACW
8. #Water Heater Access Door; For Suburban Water Heater 4 Gallon Or 6 Gallon; Tough Black; Corrosion-Resistant Steel; With Water Heater Mounting Flange MFR # 6261AEB

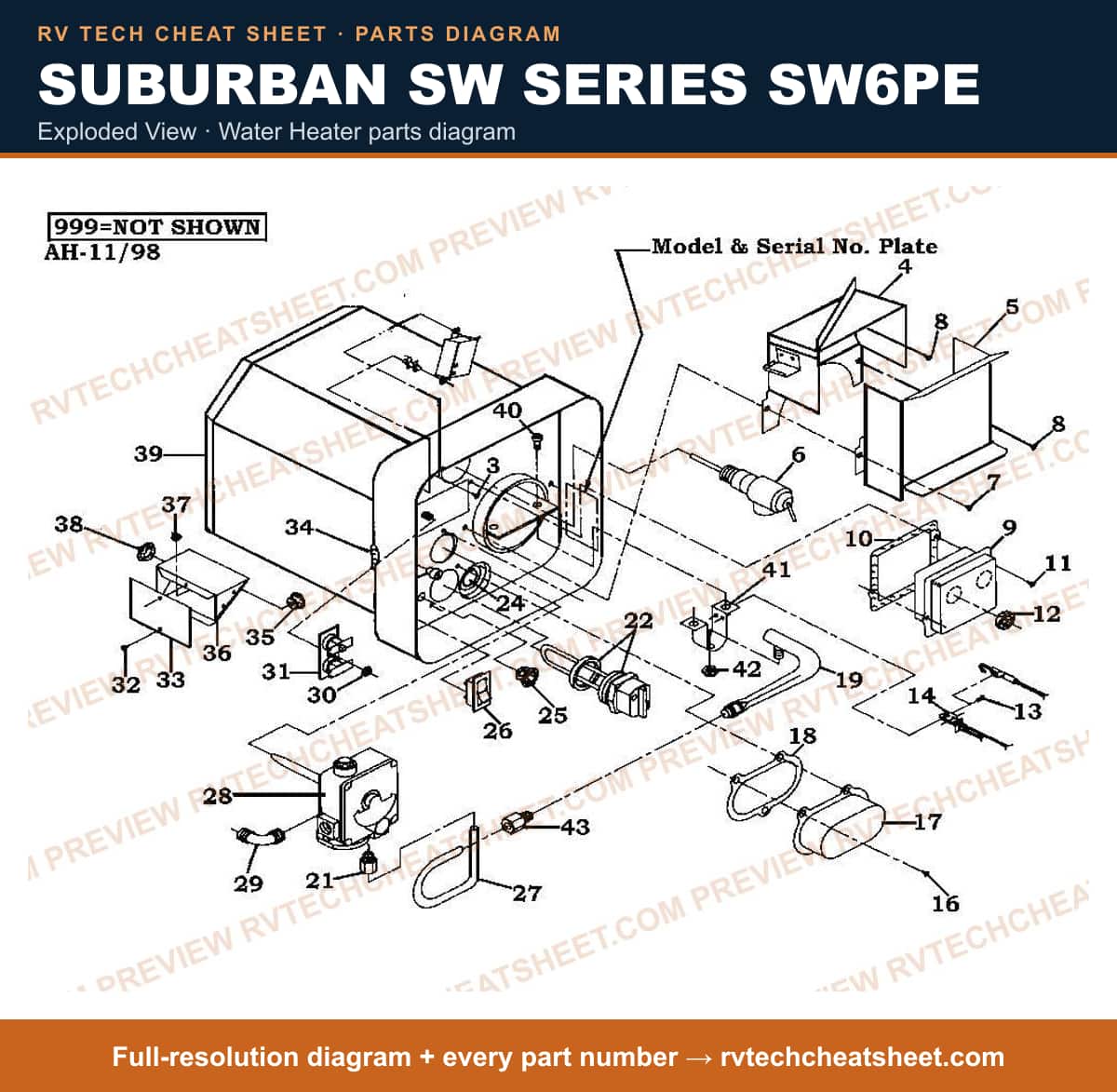

Exploded View

Components

74 items

1. #APPLIANCE COMPONENTS RV; Suburban Nut MFR # 121669
2. #Water Heater Flue Box; For Suburban Water Heater SW-10DEL/ SW-12DEL/ SW-16DEL/ SW-3P/ SW-4D/ SW-4P/ SW-6D/ SW-6DE/ SW-6DEL/ SW-6DEM/ SW-6DM/ SW-6P/ SW-6PE/ SW-6PER/ SW-6PR; With Flue Box Back Only MFR # 101682
3. #Water Heater Flue Box; For Suburban Water Heater MFR # 101683
4. #Water Heater Pressure Relief Valve; For Suburban All SW And V Series; 3/4 Inch Male NPT; Also Use New Number 525045 MFR # 161230 Superseded: see description
5. #CAMCO T & P VALVE 3/4IN W/ 4IN PROBE COATED, 150PSI, BULK MFR # 10471
6. #NO GENERIC NAME;;Valve Relief 3/4" *N* MFR # MC7152
7. #Water Heater Pressure Relief Valve; For Suburban All SW And V Series; 3/4 Inch Male NPT MFR # 525045
8. #VALVE, PRESSURE 3/4" ***USE 50-0548*** MFR # 160926 Superseded: see description
9. #APPLIANCE COMPONENTS RV; T&P Valve MFR # 161157
10. #Screw; Furnace Blower Screw; #10 x 1/4 Inch; Single MFR # 121577
11. #Screw; For Suburban Furnace NT-Series; Fits Suburban Furnace Combustion Chamber; #10 x 3/8 Inch MFR # 121252
12. #Water Heater Thermostat Cover; Replacement For Suburban Water Heater Thermostat/ Limit Switch; Also Use New Number 525022 MFR # 90562 Superseded: see description
13. #Water Heater Thermostat Cover Gasket; For Suburban SW Series Water Heater MFR # 70987
14. #Water Heater Thermostat Access Plug; For Suburban Water Heater Thermostat; Black; Single; Also Use New Number 525027 MFR # 70874 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Screw 8-32 X 3/8 Hex Hd MFR # 121407
16. #Water Heater Propane Pilot Assembly; For Suburban SW6P/ SW6PE/ SW6PR/ SW6PER/ SW10P/ SW10PE/ SW10PR/ SW10PER; 12 Inch Length; Also Use New Number 525012 MFR # 161156 Superseded: see description
17. #BURNER,PILOT USE 161156 MFR # 161097 Superseded: see description
18. #Water Heater Element Cover; For Suburban SW-Series Water Heaters; With Gasket MFR # 090681
19. #Water Heater Element Cover; For Suburban SW-Series Water Heaters; Also Use New Number 090681 MFR # 70988 Superseded: see description
20. #Water Heater Burner; For Use With Suburban Direct Spark Ignition Water Heater MFR # 011030 Superseded: see description
21. #Water Heater Burner; For Suburban 6 Gallon Water Heater SW-Series (After Serial Number 953401118All)/ 10 Gallon SW-Series (After Serial Number 953601021); With Orifice; Also Use New Number 525023 MFR # 10843 Superseded: see description
22. #ROPE RING E-TRACK FITTING WLL 1 000 MFR # 01080
23. #Water Heater Manifold Outlet Connector; For Suburban Water Heater SW-Series; 1/4 Inch NPT; Brass; Single; Also Use New Number 525030 MFR # 171463 Superseded: see description
24. #APPLIANCE COMPONENTS RV; 1000W Element MFR # 520570
25. #APPLIANCE COMPONENTS RV; Element Heating 1500W 12 MFR # 520571
26. #Water Heater Element; Screw-In; 1440 Watt; 110 Volt; With Gasket MFR # 520789
27. #Water Heater Element; For Use WIth Suburban SW Series Water Heaters; Screw-In; 1440 Watt; 120 Volt; With Gasket MFR # 520900 Superseded: see description
28. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Magnesium; Also Use New Number 233514 MFR # 232767 Superseded: see description
29. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Aluminum MFR # 232768
30. #ANODE ROD MAGNESIUM USE 232767 MFR # 231624 Superseded: see description
31. #ANODE 9.5'X.75' MPT BULK LDFRE MFR # 69717
32. #Water Heater Anode Rod; For Suburban Aluminum Water Heaters; 9 Inch Length x 3/4 Inch Pipe Thread; Magnesium MFR # 233514
33. #ROD,ANODE USE 231624 MFR # 232419 Superseded: see description
34. #APPLIANCE COMPONENTS RV; Bushing Snap 1/2" MFR # 70270
35. #Water Heater Element Switch; For Suburban Water Heater SW10PE/ SW10PER MFR # 232362
36. #Water Heater Element Switch; For Suburban Water Heater SW-Series MFR # 233357
37. #Water Heater Element Switch; For Suburban Water Heater SW-Series; 0.551 Inch Width x 1-3/16 Inch Height x 0.996 Inch Depth; Also Use New Number 525001 MFR # 233358 Superseded: see description
38. #Water Heater Element Switch; For Suburban Water Heater SW-Series; Also Use New Number 233357 MFR # 232259 Superseded: see description
39. #Water Heater Manifold Outlet; For Suburban SW-Series Water Heater MFR # 171421
40. #APPLIANCE COMPONENTS RV; Valve T-Stat (180) MFR # 610AC3
41. #APPLIANCE COMPONENTS RV; Knob Reset Rv110 Series MFR # 1751311
42. #Water Heater Gas Valve; For Suburban Water Heater SW6P (9348XX And Before); 3/8 Inch Inverted Flare x 3/8 Inch Inverted Flare MFR # 160922
43. #THERMOSTAT MFR # 161111MC
44. #Water Heater Gas Valve; For Uni-Line 110 Series; 3/8 Inch Inlet x 3/8 Inch Outlet; 160 Degrees MFR # 110509
45. #THERMOSTAT GAS CONTROL MFR # 161101
46. #THERMOSTAT GAS CONTROL MFR # 161101MC
47. #Water Heater Gas Valve; For Uni-Line 110 Series; 3/8 Inch Inlet x 3/8 Inch Outlet; 160 Degrees MFR # 110507
48. #THERMOSTAT GAS, 3/8" X 3/8" INVERTED IN/OUT MFR # 160922MC
49. #Water Heater Gas Valve; For Suburban Water Heater SW6P (After Serial Number 962802561) SW10P (After Serial Number 95360121); 3/8 Inch NPT Inlet x 1/4 Inch Loxit Outlet MFR # 161111
50. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW3-P; 3/8 Inch x 3/8 Inch Flare; 30 Degree MFR # 171394
51. #APPLIANCE COMPONENTS RV; Knob Asm Reset Knob W/Br MFR # 1751011
52. #Nut; Used In Suburban Water Heater To Install Thermostat Switch Assembly Part Number 232319 MFR # 121698
53. #Water Heater Thermostat Switch; For Suburban Water Heater (After Serial Number 940900091); Limit; 120 Volt; Without Reset Switch; 130 Degree MFR # 232306
54. #Water Heater Thermostat Switch - Fits Suburban Water Heaters MFR # 232306MC
55. #SWITCH,T-STAT USE 73-0865 110V 120 DEGREE MFR # 232509 Superseded: see description
56. #APPLIANCE COMPONENTS RV; Cov Jct Box MFR # 90447
57. #Water Heater Gas Line Grommet; For Suburban Water Heater SW4D/ SW6D/ SW6DE MFR # 70989
58. #APPLIANCE COMPONENTS RV; BUSHING SNAP MFR # 231827
59. #APPLIANCE COMPONENTS RV; Bushing Snap 7/8" MFR # 230218
60. #Nut; Replacement For Suburban SW4D Model Water Heaters; Keps; 6 Point; #10 - 24; Green MFR # 121576
61. #Water Heater Tank Shroud Strap; For Suburban Water Heater SW12D/ SW12DE MFR # 520772
62. #JACKET,FOAM USE 101780 MFR # 101593 Superseded: see description
63. #Water Heater Insulation; For 6 Gallon Suburban Water Heater; Half Jacket MFR # 101780
64. #APPLIANCE COMPONENTS RV; Screw 10-24X1/2 Whiz Lock MFR # 121459
65. #Water Heater Burner Mounting Bracket; For Suburban Water Heater SW6DM MFR # 63244
66. #Nut; Water Heater Burner Mounting Bracket Nut; 1/4 Inch -20 Thread Size MFR # 121474
67. #Water Heater Access Door Grille; Water Heater Door Screen; For Suburban 6 Gallon Standard Water Heater; 7 Inch Width x 6 Inch Length MFR # 030742
68. #Water Heater Access Door Grille; Water Heater Door Screen; For Suburban 6 Gallon Standard Water Heater; 6-1/4 Inch Width x 6-1/2 Inch Length; Flush Mount MFR # 030747
69. #NOT AVAILABLE MUST REPLACE WATER HEATER MFR # INNERTANK
70. #Water Heater Access Door; For Suburban 4/ 6 Gallon Water Heater; Flush Mount; Colonial White; Galvanized Steel MFR # 6255ACW
71. #Door Hinge; For Suburban Water Heater SW6P/ SW6PE/ SW6PR/ SW6PER/ SW6D/ SW6DE/ SW10P/ SW10PE/ SW10PR/ SW10PER/ SW10D/ SW10DE/ SW10DEM MFR # 150117
72. #Water Heater Access Door; For Suburban 6 Gallon Water Heater; Flush Mount; Black; With Hinge/ Door Latch/ Mounting Hardware MFR # 6255AEB
73. #Water Heater Access Door; For Suburban 4/ 6 Gallon Water Heater; Flush Mount; Polar White; Galvanized Steel MFR # 6255APW
74. #APPLIANCE COMPONENTS RV; Clip Latch MFR # 062920
