Coleman Mach 10 45203-8763 Parts Diagram

Air Conditioner · 1 diagram sheet · 32 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Coleman Mach 10 45203-8763 rooftop air conditioner: 32 manufacturer part numbers. 4 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

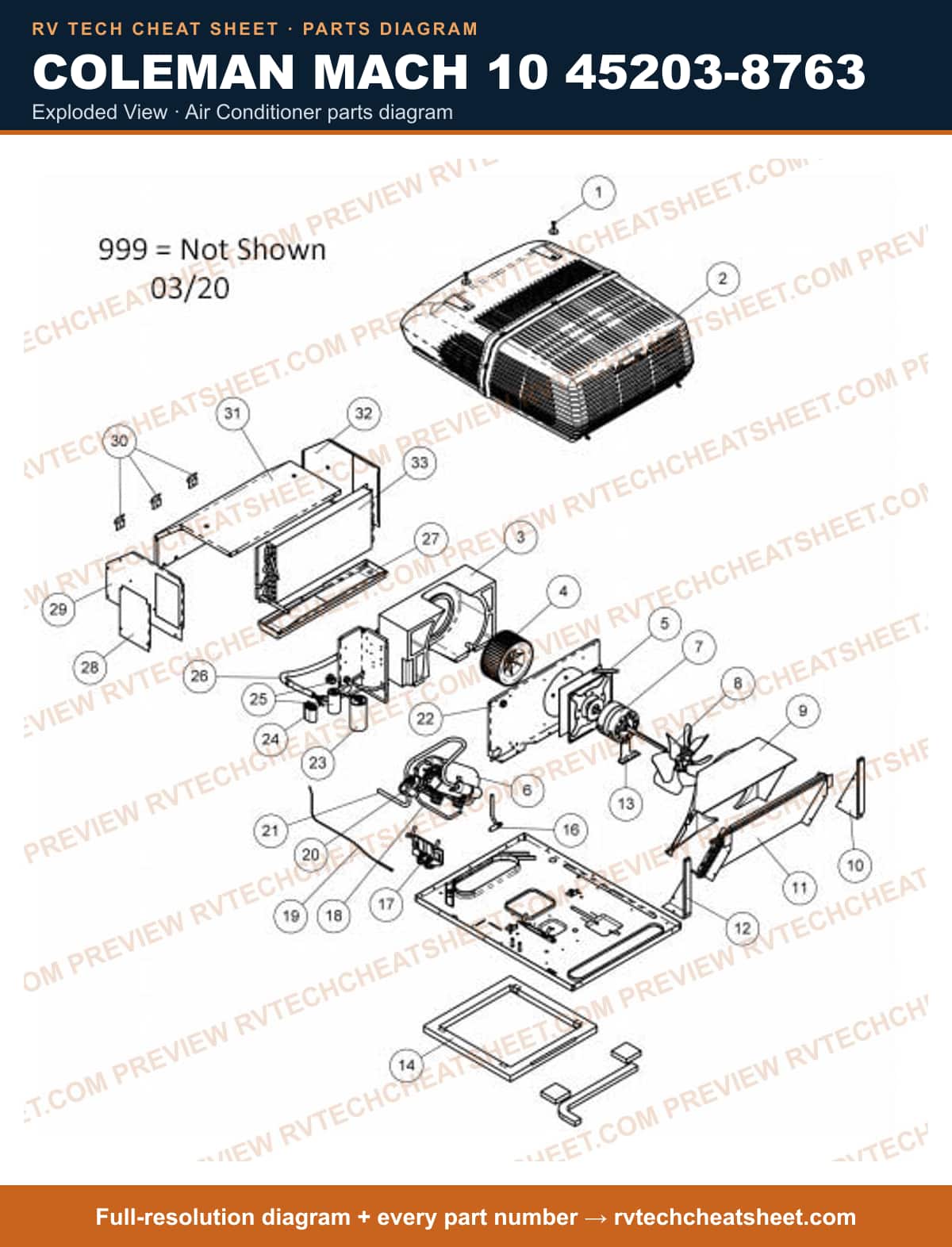

Exploded View

Components

32 items

1. #Air Conditioner Shroud Mounting Screw; For Use With Coleman Mach 45203/ 45204/ 45253/ 45254/ 45263/ 45303 Mach 10 Air Conditioners MFR # 452030011 Superseded: see description
2. #MACH 10 SHROUD - ARCTIC W MFR # 452035261
3. #A/C COMPONENTS RV; FOAM SCROLL MFR # 45203A325
4. #Air Conditioner Blower Wheel; For Use With Coleman Mach Air Conditioner MFR # 14721201 Superseded: see description
5. #SHROUD BRACKET MFR # 45203-114
6. #AIR CONDITIONERS RV; COMPRESSOR PACKAGE MFR # 14504249
7. #A/C FAN MOTOR (PKGD) MFR # 1468-3459
8. #FAN ACCESSORIES ELECTRIC; FAN BLADE MFR # 1472B5051
9. #CONDENSER COVER MFR # 45203-326
10. #CONDENSER SUPPORT; RIGHT MFR # 45203-110
11. #A/C COMPONENTS RV; OUTDOOR COIL PACKAGE MFR # 1452A2011
12. #CONDENSER SUPPORT; LEFT MFR # 45203-109
13. #MOTOR BRACKET MFR # 45203-122
14. #APPLIANCE COMPONENTS RV; GASKET PACKAGE MFR # 452033301
15. #COPPER TEE MFR # 1454-306
16. #APPLIANCE COMPONENTS RV; COMPRESSOR MOUNT KIT MFR # 453033081
17. #DISCHARGE LINE MFR # 45203A131
18. #CAPILLARY TUBE MFR # 45203-133
19. #Air Conditioner Compressor Overload Protector; For Use With Coleman Mach 48208B876/ 48208B879/ 48268B876 And 48268B879 Series Air Conditioners MFR # 14500221 Superseded: see description
20. #SUCTION LINE MFR # 45203B130
21. #BULKHEAD MFR # 45203A102
22. #CAPACITOR RUN MFR # 14995761
23. #CAPACITOR FAN MFR # 14995461
24. #Air Conditioner Capacitor; Hard Start Kit; For Coleman Mach 9213/ 9204/ 49201/ 49204/ 49224/ 49211/ 47003/ 470545/ 9213/ 9233/ 47214/ 47224 Model Air Conditioner; With Start Capacitor/ PTCT (Positive Temperature Co-Efficient Resistor)/ 2 Wires/ Metal Strap/ Instructions MFR # 93339021
25. #Air Conditioner Wiring Harness; For Use With Coleman 7632A896/ 7333B888 Model Air Conditioners MFR # 8333B3751 Superseded: see description
26. #DRAIN PAN MFR # 45203-350
27. #CONTROL BOX COVER MFR # 45203-107
28. #SIDE PANEL ASSEMBLY; LEFT MFR # 45203-503
29. #APPLIANCE COMPONENTS RV; Bracket Shroud (Req 3) MFR # 8333B1551
30. #EVAPORATOR COVER MFR # 45303-505
31. #SIDE PANEL ASSEMBLY; RIGHT MFR # 45203-504
32. #Air Conditioner Evaporator; Replacement For Coleman Mach 10 Model 45203-8763 Air Conditioners MFR # 14522021
