Guides / Air Conditioning
Coleman A/C'S
An Airxcel company
Thermostats

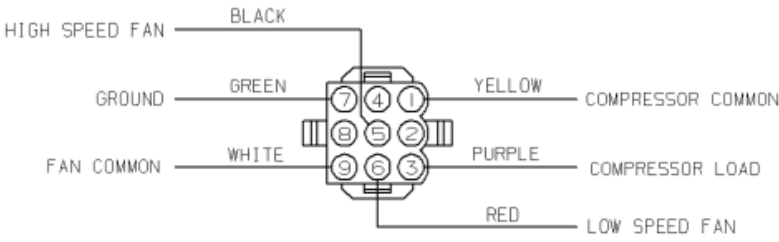

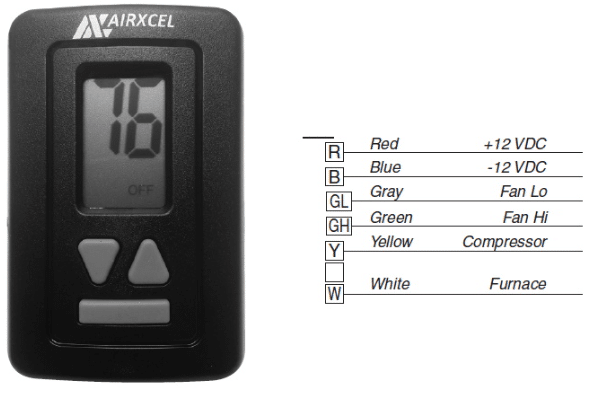

Coleman Thermostat Wiring has remained consistent for decades so with a voltmeter you can easily determine a faulty thermostat on any single zone A/C system.
The thermostat wire can easy be checked by checking voltage at the thermostat between blue wire and any other color while calling for it's function (High fan, compressor ect.) and then rechecking the same wires at the A/C control board
Model parts lists
Full exploded parts lists (part numbers cross-checked vs the manufacturer source) for these air conditioning models:
- DOMETIC - BRISK AIR 57915321 13,500 BTU — 3104999.002 ELECTRONIC CONTROL (20 parts)
- DOMETIC - BRISK AIR 58925613 13,500 BTU — SHROUD AND MAIN COMPONENTS (96 parts)
- DOMETIC - BRISK AIR 58915306 13,500 BTU — SHROUD AND MAIN COMPONENTS (73 parts)
- DOMETIC - PENGUIN 600015001 — SHROUD & MAIN COMPONENTS (102 parts)
- COLEMAN 45203-0753 13,500 BTU — MACH 10 REPLACEMENT AC (1 parts)
- COLEMAN 45003-8794 — MACH 10 EXPLODED VIEW (38 parts)
