6 Pin Out From AC to Control Box
- Terminal 1 BLUE Compressor
- Terminal 2 BLACK High Fan
- Terminal 3 YELLOW Medium Fan
(or Heat Pump Rev Valve CCC/Analog)
- Terminal 4 RED Low Fan
- Terminal 5 WHITE Neutral
- Terminal 6 GREEN/YELLOW Ground
(Ground is sometimes GREY)

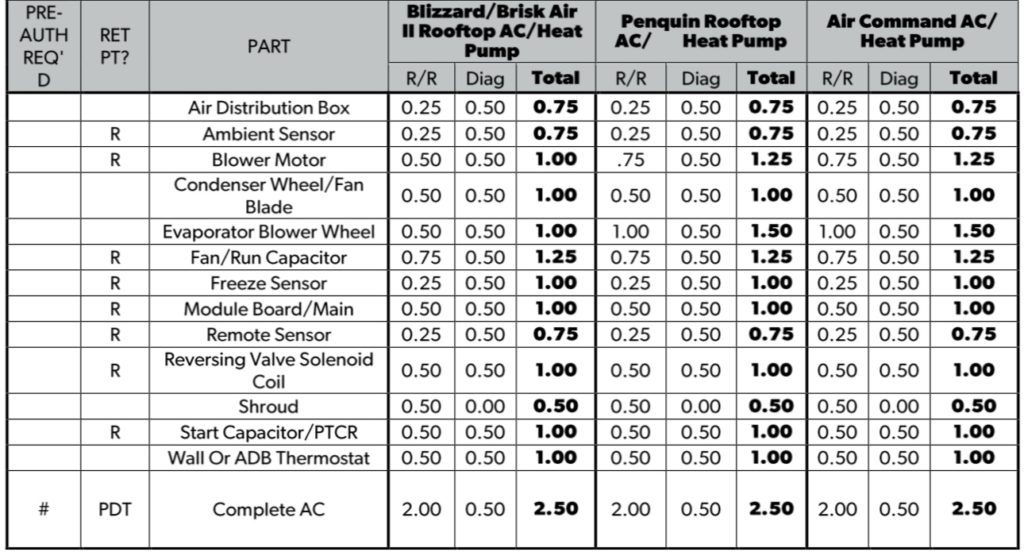

Manufacturer Flat Rate Schedule
The diag time is sometimes stackable on the manufacturer warranty as a separate code paid by Dometic
Model parts lists
Full exploded parts lists (part numbers cross-checked vs the manufacturer source) for these air conditioning models:
- DOMETIC - BRISK AIR 57915321 13,500 BTU — 3104999.002 ELECTRONIC CONTROL (20 parts)
- DOMETIC - BRISK AIR 58925613 13,500 BTU — SHROUD AND MAIN COMPONENTS (96 parts)
- DOMETIC - BRISK AIR 58915306 13,500 BTU — SHROUD AND MAIN COMPONENTS (73 parts)
- DOMETIC - PENGUIN 600015001 — SHROUD & MAIN COMPONENTS (102 parts)
- COLEMAN 45203-0753 13,500 BTU — MACH 10 REPLACEMENT AC (1 parts)
- COLEMAN 45003-8794 — MACH 10 EXPLODED VIEW (38 parts)
