Coleman Mach 10 45204-0762 Parts Diagram

Air Conditioner · 1 diagram sheet · 33 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Coleman Mach 10 45204-0762 rooftop air conditioner: 33 manufacturer part numbers. 3 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

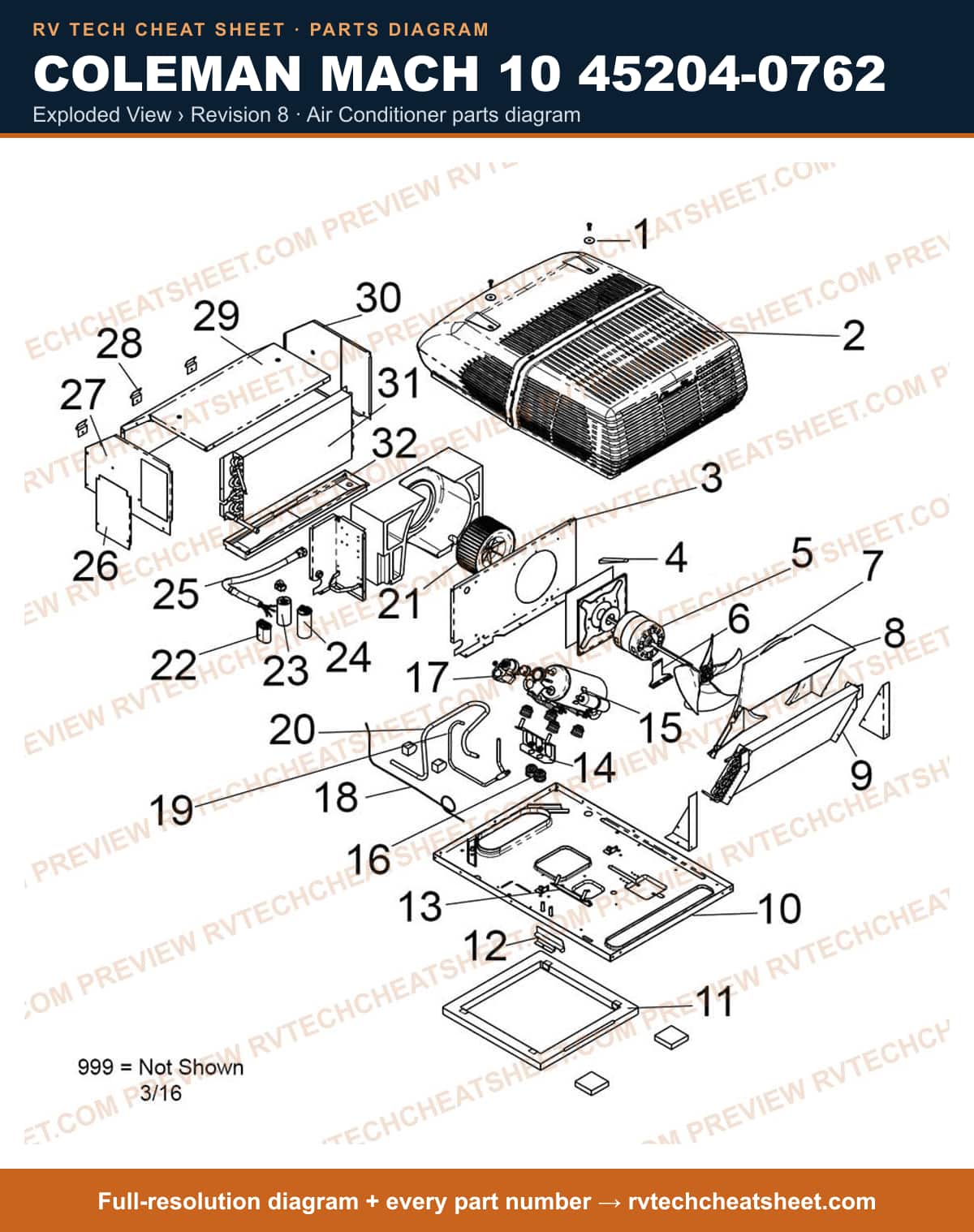

Exploded View › Revision 8

Components

33 items

1. #Air Conditioner Shroud Mounting Screw; For Use With Coleman Mach 45203/ 45204/ 45253/ 45254/ 45263/ 45303 Mach 10 Air Conditioners MFR # 452030011 Superseded: see description
2. #MACH 10 SHROUD - ARCTIC W MFR # 452035261
3. #BULKHEAD MFR # 45203102
4. #SHROUD SUPPORT BRACKET MFR # 45203114
5. #SRO MOTOR PKG MFR # 1468A3069
6. #MOTOR BRACKET MFR # 45203116
7. #FAN BLADE MFR # 14725051
8. #AIR CONDITIONERS RV; COVER FOR FAN BLADE MFR # 45203326
9. #CONDENSER COIL MFR # 1452211
10. #BASEPAN MFR # 45203A101
11. #GASKET KIT 14 X 14 MFR # 83323301
12. #GASKET KIT, 14 X 14 MFR # 65526
13. #BLOWER BAFFLE MFR # 45203117
14. #COMPRESSOR BRACKET LOWER MFR # 45203112
15. #COMPRESSOR BRACKET UPPER MFR # 45203113
16. #COMPRESSOR (TECUMSEH HGBB515BAA) MFR # 14504239
17. #Air Conditioner Compressor Mounting Hardware; Replacement For Coleman Mach 6746A/ 6749/ 7330/ 6757/ 6759/ 6770D/ 6701B/ 6759B Model Air Conditioner MFR # 67593081
18. #Air Conditioner Compressor Overload Protector; For Use With Coleman Mach 48004-866/ 48054-866/ 48004-869/ 48054-869/ 48203-8666/ 45204-8792 And 45004-8792 Series Air Conditioners MFR # 14500311 Superseded: see description
19. #CAP TUBE FORMED MFR # 45204135
20. #DISCHARGE LINE MFR # 45204531
21. #SUCTION LINE MFR # 45204130
22. #Air Conditioner Blower Wheel; For Use With Coleman Mach Air Conditioner MFR # 14721201 Superseded: see description
23. #CAPACITOR FAN MFR # 14995461
24. #Air Conditioner Capacitor; Hard Start Kit; For Coleman Mach 9213/ 9204/ 49201/ 49204/ 49224/ 49211/ 47003/ 470545/ 9213/ 9233/ 47214/ 47224 Model Air Conditioner; With Start Capacitor/ PTCT (Positive Temperature Co-Efficient Resistor)/ 2 Wires/ Metal Strap/ Instructions MFR # 93339021
25. #CAPACITOR RUN MFR # 14995761
26. #CONDUIT&WIRING ASSEMBLY -6WIRES MFR # 482033751
27. #CONTROL BOX DOOR MFR # 45203107
28. #SIDE PANEL LEFT MFR # 45203503
29. #APPLIANCE COMPONENTS RV; Bracket Shroud (Req 3) MFR # 8333B1551
30. #EVAPORATOR COVER MFR # 45203B505
31. #SIDE PANEL RIGHT MFR # 45203504
32. #EVAPORATOR COIL MFR # 1452206
33. #DRAIN PAN MFR # 45203350
