Coleman Mach 3 48203C866 Mach 3 Plus Ez Parts Diagram

Air Conditioner · 1 diagram sheet · 24 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Coleman Mach 3 48203C866 Mach 3 Plus Ez rooftop air conditioner: 24 manufacturer part numbers. 4 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

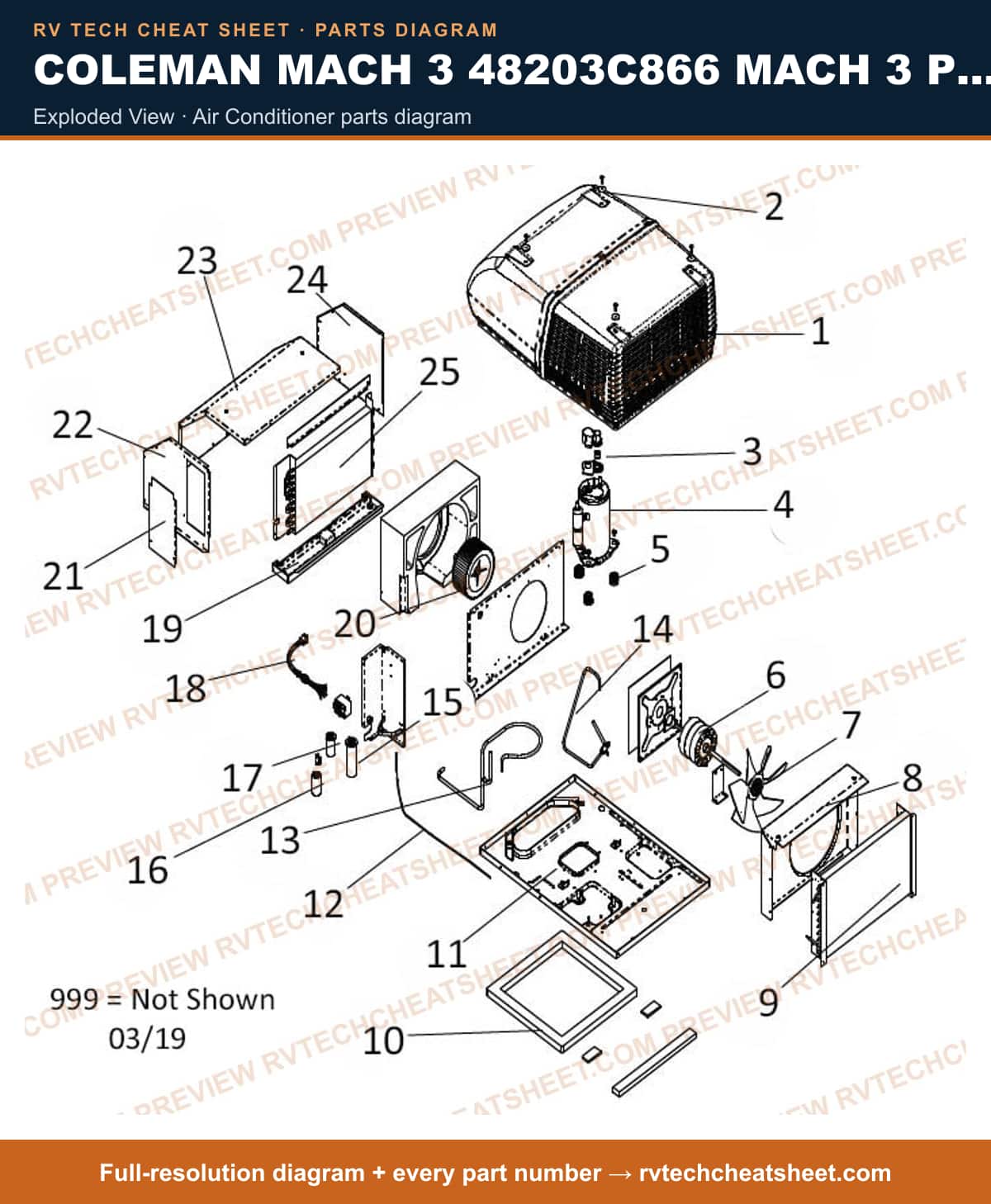

Exploded View

Components

24 items

1. #SHROUD ARCTIC WHITE MFR # 8335A5261
2. #SCREWS PKG OF 4 MFR # 67925111
3. #Air Conditioner Compressor Overload Protector; For Use With Coleman Mach 48203C9665/ 48203C9695/ 48213C9665/ 48203C966/ 48203C969/ 48253C966/ 48253C969 And 48263C966 Series Air Conditioners MFR # 14500251 Superseded: see description
4. #Air Conditioner Compressor; For Use With Coleman Mach 3 Plus EZ Series Air Conditioners MFR # 14504209 Superseded: see description
5. #Air Conditioner Compressor Mounting Hardware; Replacement For Coleman Mach 6746A/ 6749/ 7330/ 6757/ 6759/ 6770D/ 6701B/ 6759B Model Air Conditioner MFR # 67593081
6. #Air Conditioner Condenser Fan Motor; Replacement For Coleman Models 6797/ 6799/ 8332/ 8333/ 8335/ 8433/ 8535/ 48004/ 48014/ 48064/ 48203/ 48204/ 48213/ 48253/ 48254/ 48263/ 48264 MFR # 14683069
7. #Coleman Mach Air Conditioner Heat Pump Reversing Valve Solenoid Coil MFR # 67333221
8. #Cooling Fan Shroud; For Use With Coleman Mach Air Conditioners; Silver MFR # 67921071 Superseded: see description
9. #CONDENSER COIL MFR # 1492-1921
10. #GASKET KIT 14 X 14 MFR # 83323301
11. #Air Conditioner Base Pan; Replacement For Coleman Mach 48203/ 48204/ 48207/ 48208/ 48213/ 48253/ 48254/ 48257/ 48263/ 48264/ 48268 Model Air Conditioner MFR # 8333B1011
12. #APPLIANCE COMPONENTS RV; Capillary Tube MFR # 48203A135
13. #SUCTION LINE MFR # 48203B130
14. #APPLIANCE COMPONENTS RV; Drain Hose MFR # 48203C131
15. #CAPACITOR FAN MFR # 14995461
16. #CAPACITOR RUN MFR # 14995761
17. #Air Conditioner Wiring Harness; For Use With Coleman 7632A896/ 7333B888 Model Air Conditioners MFR # 8333B3751 Superseded: see description
18. #Air Conditioner Drain Pan; Replacement For Coleman Mach 48204/ 48254/ 48253/ 48004/ 48014/ 48204 Model Air Conditioner MFR # 8335A3501
19. #IMPELLER PKG MFR # 14721091
20. #APPLIANCE COMPONENTS RV; Door Wire Box MFR # 8333109
21. #SIDE PANEL (LEFT) MFR # 8333-507
22. #Air Conditioner Evaporator Cover; Replacement For Coleman Mach 48254/ 48207/ 48213/ 48004/ 48008/ 48058/ 8535/ 8534/ 48204/ 48208/ 8333 Model Air Conditioner; Center Panel MFR # 8333A5061
23. #SIDE PANEL (RIGHT) MFR # 8333-505
24. #EVAPORATOR COIL MFR # 1452B112
