Coleman Mach 8 47223B879 Mach 8 Plus Parts Diagram

Air Conditioner · 1 diagram sheet · 29 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Coleman Mach 8 47223B879 Mach 8 Plus rooftop air conditioner: 29 manufacturer part numbers. 4 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

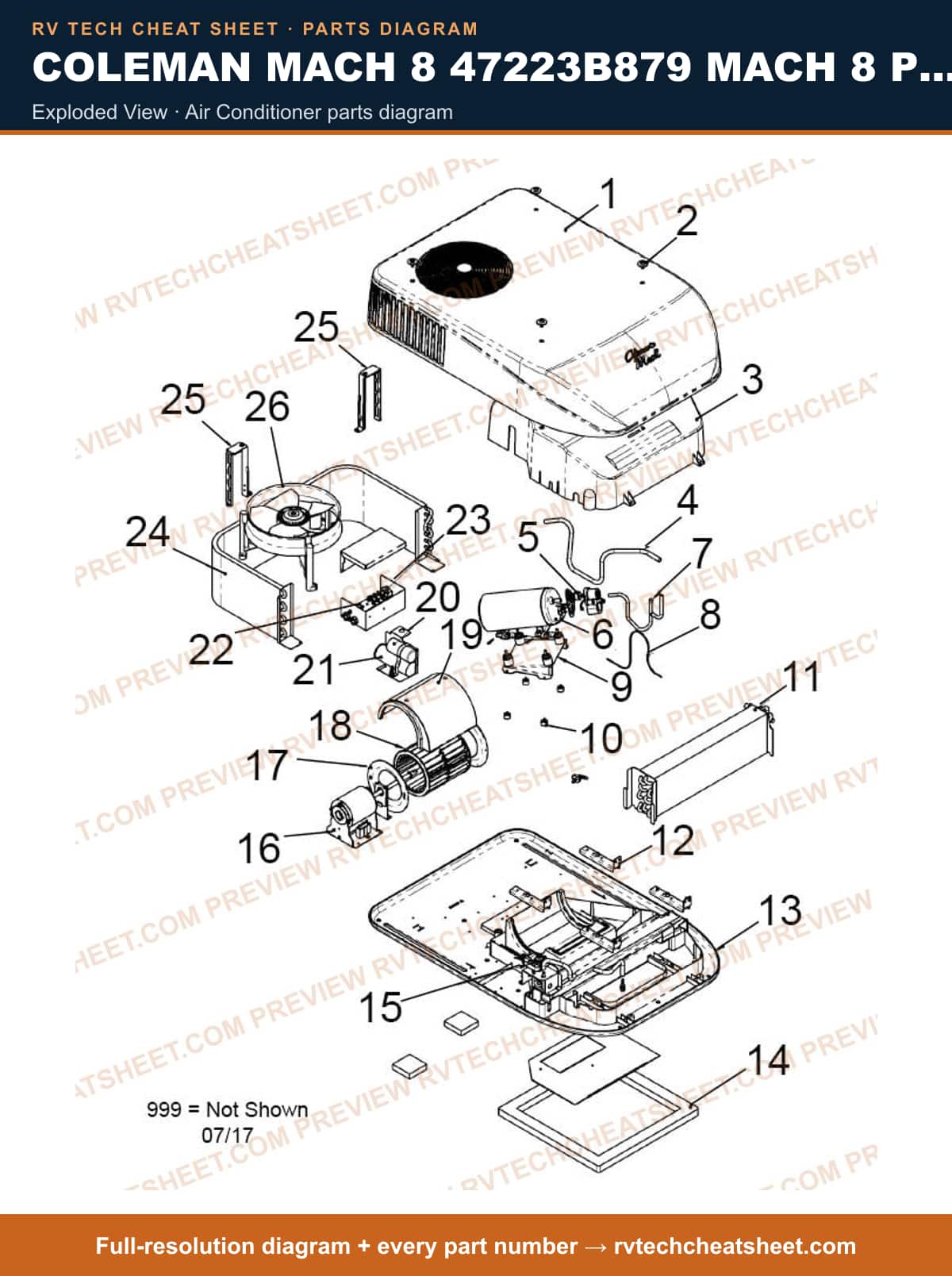

Exploded View

Components

29 items

1. #SHROUD - BLACK MFR # 472333291
2. #SCREWS PKG OF 4 MFR # 67925111
3. #EVAPORATOR TOP ASM MFR # 47233B535
4. #APPLIANCE COMPONENTS RV; SUCTION LINE MFR # 47234B130
5. #Air Conditioner Compressor Overload Protector; For Use With Coleman Mach 8 Series Air Conditioners MFR # 14500321 Superseded: see description
6. #Air Conditioner Compressor; Replacement For Coleman 470X3A87X Series Air Conditioners MFR # 14504229
7. #COMPRESSOR MOUNT PACKAGE MFR # 14509812
8. #DISCHARGE LINE ASM MFR # 47233A526
9. #CAPILLARY TUBE MFR # 47233A136
10. #COMPRESSOR MOUNTING PLATE MFR # 47233A1201
11. #ISOLATOR PACKAGE MFR # 47233A3172
12. #INDOOR COIL MFR # 1452A1951
13. #APPLIANCE COMPONENTS RV; MOUNTING BOLT CHANNEL MFR # 47233510
14. #Air Conditioner Base Pan; Replacement For Coleman Mach 47023/ 47073 Models; With Gasket MFR # 47233C2021
15. #Air Conditioner Installation Kit; For USe With Coleman 47054A876/ 47054A879/ 47074A876/ 47074A879/ 47004A876/ 47004A879/ 47024A876 And 47024A879 Model Air Conditioners; Gasket MFR # 472333301 Superseded: see description
16. #CONDENSATE PUMP ASM MFR # 47233A3092
17. #MOTOR PKG. MFR # 1468B3389
18. #Air Conditioner Blower Assembly; Venturi Ring Only; For Coleman 47003/ 47004/ 47014/ 47023/ 47024/ 47053/ 47054/ 47073/ 47074/ 47201/ 47203/ 47204/ 47214/ 47223/ 47224/ 47234/ 47253/ 47258/ 47273; Pack Of 2 MFR # 1472004
19. #BLOWER WHEEL PKG. MFR # 1472A1191
20. #Air Conditioner Blower Assembly; For Use With Mach 8 Air Conditioner And Heat Pump Assembled To The Base Pan; Scroll Top Assembly; Blower Wheel Top Cover; Plastic Scroll Top With Insulation; Also Use New Number 47233A5151 MFR # 47233A515 Superseded: see description
21. #START CAPACITOR PKG MFR # 14976881
22. #DUAL CAPACITOR PKG MFR # 14996601
23. #AIR CONDITIONERS RV; AIR CONDITIONER TERMINAL BOARD MFR # 472333031
24. #PTCR START DEVICE PKG. MFR # 14979021
25. #Air Conditioner Capacitor; Hard Start Kit; Replacement For Coleman 46413/ 48203/ 48204/ 48207/ 48208/ 48213/ 48253/ 48254/ 48257/ 48263/ 48264/ 48268/ 6633/ 6636/ 7333/ 7633/ 8333/ 8335/ 8433/ 8534/ 8535/ 8632/ 8633/ 9013/ 9021/ 9031/ 9201/ 9202/ 9232/ 6799/ 46515/ 48004/ 48008/ 48014/ 48058/ 48064/ 48068/ 6535/ 6537/ 8534/ 8535/ 9001/ 9002/ 9003/ 9013/ 9014/ 9022/ 9023/ 9024/ 9032/ 9033/ 9034 Model Air Conditioner; 88-108 MicroFarad; With Capacitor/ PTCR (Positive Temperature Co-Efficient Resistor)/ Bracket/ Wires MFR # 8333a-9021c
26. #Coleman Mach 8 Thermostat 12V Heat/Cool Single Stage MFR # 8333A9021
27. #OUTDOOR COIL MFR # 1452A1901
28. #Air Conditioner Bracket; Replacement For Coleman Mach 8 Plus Series Air Conditioners; Attaches To Shroud; Also Use New Number 47233B5111 MFR # 47233A511 Superseded: see description
29. #FAN ASSEMBLY PACKAGE MFR # 472333051
