Coleman Mach 8 47253A879 Mach 8 Parts Diagram

Air Conditioner · 1 diagram sheet · 30 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Coleman Mach 8 47253A879 Mach 8 rooftop air conditioner: 30 manufacturer part numbers. 3 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

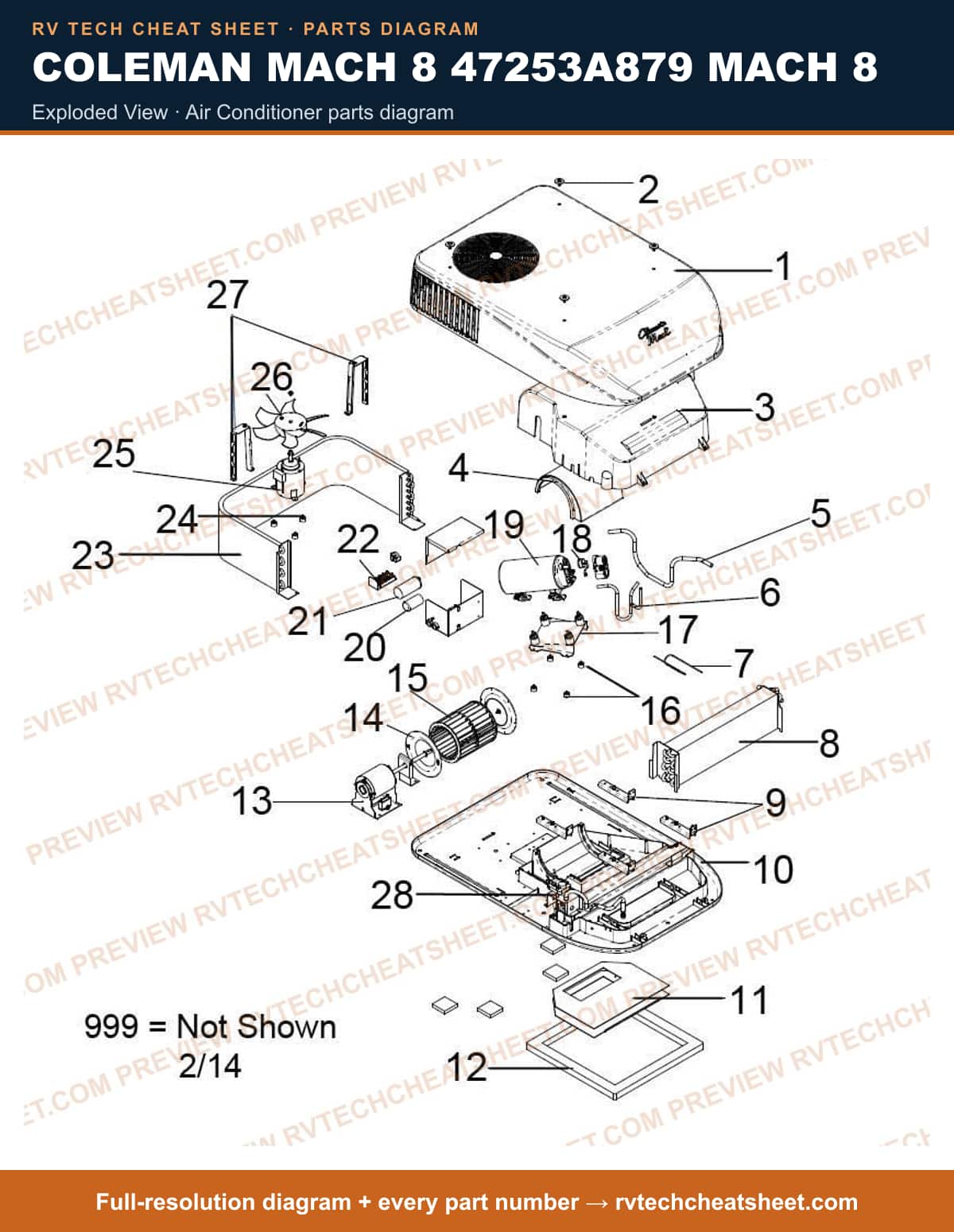

Exploded View

Components

30 items

1. #SHROUD - BLACK MFR # 472333291
2. #SCREWS PKG OF 4 MFR # 67925111
3. #A/C COMPONENTS RV; Evap Cover MFR # 47233535
4. #BLOWER BLOCK OFF ASM MFR # 47233515
5. #SUCTION LINE USE 47234A130 MFR # 47234130 Superseded: see description
6. #DISCHARGE LINE MFR # 47233525
7. #CAP TUBE MFR # 47233136
8. #Air Conditioner Evaporator; Replacement For Coleman Mach 47201A876 MACH 8 CUB/ 47204-876/ 47224-876 MACH 8 15K/ 47203A879/ 47223A879 MACH 8 Series Air Conditioners MFR # 14521951
9. #APPLIANCE COMPONENTS RV; MOUNTING BOLT CHANNEL MFR # 47233510
10. #BASEPAN MFR # 47233A2011
11. #BLOCK OFF PLATE MFR # 47233513
12. #GASKET KIT, 14 X 14 MFR # 65526
13. #GASKET KIT 14 X 14 MFR # 83323301
14. #Air Conditioner Evaporator Fan Motor; Replacement For Coleman Models 47003/ 47004/ 47014/ 47023/ 47024/ 47053/ 47054/ 47073/ 47074/ 47201/ 47203/ 47204/ 47214/ 47223/ 47224/ 47234/ 47253/ 47258; Inside MFR # 1468A3389
15. #Air Conditioner Blower Assembly; Venturi Ring Only; For Coleman 47003/ 47004/ 47014/ 47023/ 47024/ 47053/ 47054/ 47073/ 47074/ 47201/ 47203/ 47204/ 47214/ 47223/ 47224/ 47234/ 47253/ 47258/ 47273; Pack Of 2 MFR # 1472004
16. #BLOWER WHEEL PKG. MFR # 1472A1191
17. #COMPRESSOR ISOLATOR MFR # 47233317
18. #APPLIANCE COMPONENTS RV; Foot Compressor MFR # 14509811
19. #OVERLOAD MFR # 14500511
20. #COMPRESSOR , TECUMSEH MFR # 14504059
21. #CAPACITOR RUN MFR # 14995721
22. #Air Conditioner Capacitor; Hard Start Kit; For Coleman Mach 9213/ 9204/ 49201/ 49204/ 49224/ 49211/ 47003/ 470545/ 9213/ 9233/ 47214/ 47224 Model Air Conditioner; With Start Capacitor/ PTCT (Positive Temperature Co-Efficient Resistor)/ 2 Wires/ Metal Strap/ Instructions MFR # 93339021
23. #APPLIANCE COMPONENTS RV; Terminal Block Pkg. MFR # 472333181
24. #Air Conditioner Condenser; Replacement For Coleman 47201A876/ 47203A876/ 47203A879/ 47253A876/ 47253A879/ 47223A876/ 47223A879 And 47273A879 Mach 8 Series Air Conditioners MFR # 14521901
25. #MOTOR ISOLATOR; Use 47233A3171 MFR # 47233319 Superseded: see description
26. #ISOLATOR PKG. 3PK MFR # 47233A3171
27. #Air Conditioner Condenser Fan Motor; Replacement For Coleman Models 47003/ 47004/ 47014/ 47023/ 47024/ 47053/ 47054/ 47073/ 47074/ 47201/ 47203/ 47204/ 47214/ 47223/ 47224/ 47234/ 47253/ 47259; Outside MFR # 1468A3399
28. #FAN BLADE PKG. MFR # 1472D5041
29. #FAN BLADE ***USE 1472D5041*** MFR # 1472A5041 Superseded: see description
30. #SHROUD SUPPORT MFR # 47233511
