Coleman Park Model 46413-012 24V Parts Diagram · Exploded View › Revision 8

Air Conditioner · 2 assemblies · 2 diagram sheets · 52 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Coleman Park Model 46413-012 24V rooftop air conditioner: 2 assemblies (Exploded View › Revision 8, Exploded View › Revision 9) and 52 manufacturer part numbers. 3 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

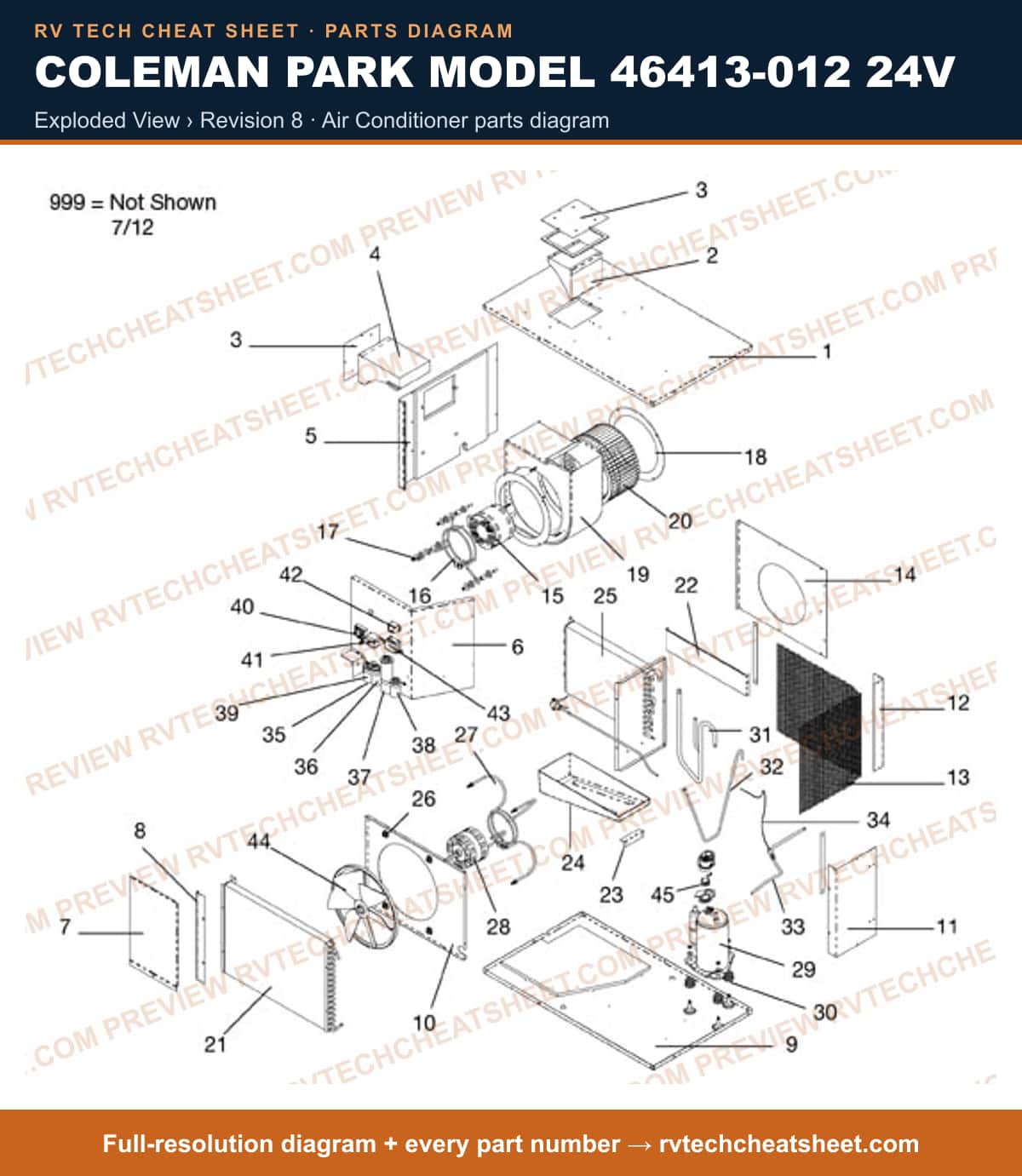

Exploded View › Revision 8

Components

49 items

1. #TOP W/INSULATION MFR # 6633602
2. #BLOCK,SCROLL TOP MFR # 6633325
3. #DOOR, BLOWER PAINTED MFR # 6633393
4. #BLOCK,SCROLL SIDE MFR # 6633326
5. #PANEL,END W/INSULATION MFR # 6633608
6. #BULKHEAD MFR # 6633A603
7. #COVER, ELECTRIC BOX PAINTED MFR # 6633390
8. #FILLER PLATE (PAINTED) MFR # 6633399
9. #BASEPAN, PAINTED MFR # 6633A601
10. #BULKHEAD,OUTDOOR MFR # 6633A104
11. #CORNER PANEL (PAINTED) MFR # 6633395
12. #CORNER POST (PAINTED) MFR # 6633396
13. #GRILL, PAINTED MFR # 6633402
14. #BACK PANEL (PAINTED) MFR # 6633397
15. #ID BLOWER MOTOR (PKGD) MFR # 1468A3129
16. #APPLIANCE COMPONENTS RV; MOUNT,MOTOR MFR # 6795A3021
17. #MOUNT,MOTOR USE 6795A3021 MFR # 67953021 Superseded: see description
18. #Air Conditioner Condenser Fan Motor Service Kit; Replacement For All The Models Of Coleman Mach Air Conditioner; With Grommet/ Washer MFR # 6795A3031
19. #I.D. BLOWER VENTURI MFR # 6795151
20. #SCROLL,BLOWER MFR # 6633520
21. #Air Conditioner Blower Wheel; For Use With All The Models Of Coleman Mach Air Conditioner; Indoor Air Blower Wheel MFR # 14721021 Superseded: see description
22. #EVAPORATOR COIL MFR # 1452A157
23. #PLATE,BLOCK OFF MFR # 6633111
24. #BRACKET,PAN MFR # 6633112
25. #PAN,DRAIN MFR # 6633350
26. #Air Conditioner Condenser; Replacement For Coleman 46413-812 Series Air Conditioner MFR # 14521791
27. #APPLIANCE COMPONENTS RV; Od Motor Grommet Pkg. MFR # 12120361
28. #OUTDOOR MOTOR MOUNT MFR # 6633A3011
29. #MOTOR OUTSIDE MFR # 14683189
30. #Air Conditioner Compressor; Replacement For Coleman 48203-8666 Series Air Conditioners With Serial Number Beginning 1501 And Later MFR # 14504219
31. #Air Conditioner Compressor Mounting Hardware; Replacement For Coleman Mach 6746A/ 6749/ 7330/ 6757/ 6759/ 6770D/ 6701B/ 6759B Model Air Conditioner MFR # 67593081
32. #SUCTION LINE MFR # 46413A130
33. #DISCHARGE LINE MFR # 46413A131
34. #WIRING & SERVICE ACCESSORYS RV; LIQUID LINE ASSEMBLEY/FILTER MFR # 46413535
35. #APPLIANCE COMPONENTS RV; CAPILLARY TUBE MFR # 46413135
36. #Air Conditioner Capacitor; For Use With Coleman Air Conditioners; Run Capacitor; 370 Volts AC; 7.5 MFD MFR # 14995471 Superseded: see description
37. #Air Conditioner Capacitor; Run Capacitor; Replacement For Coleman Models 67 MFR # 14995421
38. #CAPACITOR RUN MFR # 14995761
39. #GROUND LUG MFR # 1216228
40. #TERMINAL BOARD MFR # 6331322
41. #TRANSFORMER MFR # 14603521
42. #Air Conditioner Relay; For Coleman Mach 46413 Model Air Conditioner MFR # 1460A1061
43. #RELAY COMPRESSOR MFR # 14601171
44. #RELAY BRACKET MFR # 6633115
45. #BLADE FAN MFR # 1472A5011
46. #HIGH PRESSURE SWITCH MFR # 464135321
47. #OVERLOAD MFR # 14600241
48. #DUCT CONN F/PARK MODEL MFR # 66336151
49. #DRAIN TUBE MFR # 46413520

Exploded View › Revision 9

Components

48 items

1. #TOP W/INSULATION MFR # 6633602
2. #BLOCK,SCROLL TOP MFR # 6633325
3. #DOOR, BLOWER PAINTED MFR # 6633393
4. #BLOCK,SCROLL SIDE MFR # 6633326
5. #PANEL,END W/INSULATION MFR # 6633608
6. #BULKHEAD MFR # 6633A603
7. #COVER, ELECTRIC BOX PAINTED MFR # 6633390
8. #FILLER PLATE (PAINTED) MFR # 6633399
9. #BASEPAN, PAINTED MFR # 6633A601
10. #BULKHEAD,OUTDOOR MFR # 6633A104
11. #CORNER PANEL (PAINTED) MFR # 6633395
12. #CORNER POST (PAINTED) MFR # 6633396
13. #GRILL, PAINTED MFR # 6633402
14. #BACK PANEL (PAINTED) MFR # 6633397
15. #ID BLOWER MOTOR (PKGD) MFR # 1468A3129
16. #MOUNT,MOTOR USE 6795A3021 MFR # 67953021 Superseded: see description
17. #APPLIANCE COMPONENTS RV; MOUNT,MOTOR MFR # 6795A3021
18. #Air Conditioner Condenser Fan Motor Service Kit; Replacement For All The Models Of Coleman Mach Air Conditioner; With Grommet/ Washer MFR # 6795A3031
19. #I.D. BLOWER VENTURI MFR # 6795151
20. #SCROLL,BLOWER MFR # 6633520
21. #Air Conditioner Blower Wheel; For Use With All The Models Of Coleman Mach Air Conditioner; Indoor Air Blower Wheel MFR # 14721021 Superseded: see description
22. #EVAPORATOR COIL MFR # 1452A157
23. #PLATE,BLOCK OFF MFR # 6633111
24. #BRACKET,PAN MFR # 6633112
25. #PAN,DRAIN MFR # 6633350
26. #APPLIANCE COMPONENTS RV; Od Motor Grommet Pkg. MFR # 12120361
27. #OUTDOOR MOTOR MOUNT MFR # 6633A3011
28. #MOTOR OUTSIDE MFR # 14683189
29. #COMPRESSOR MFR # 14504119
30. #Air Conditioner Compressor Mounting Hardware; Replacement For Coleman Mach 6746A/ 6749/ 7330/ 6757/ 6759/ 6770D/ 6701B/ 6759B Model Air Conditioner MFR # 67593081
31. #SUCTION LINE MFR # 46413134
32. #DISCHARGE LINE MFR # 46413136
33. #WIRING & SERVICE ACCESSORYS RV; LIQUID LINE ASSEMBLEY/FILTER MFR # 46413535
34. #APPLIANCE COMPONENTS RV; CAPILLARY TUBE MFR # 46413135
35. #Air Conditioner Capacitor; For Use With Coleman Air Conditioners; Run Capacitor; 370 Volts AC; 7.5 MFD MFR # 14995471 Superseded: see description
36. #Air Conditioner Capacitor; Run Capacitor; Replacement For Coleman Models 67 MFR # 14995421
37. #CAPACITOR RUN MFR # 14995761
38. #GROUND LUG MFR # 1216228
39. #TERMINAL BOARD MFR # 6331322
40. #TRANSFORMER MFR # 14603521
41. #Air Conditioner Relay; For Coleman Mach 46413 Model Air Conditioner MFR # 1460A1061
42. #RELAY BRACKET MFR # 6633115
43. #RELAY COMPRESSOR MFR # 14601171
44. #BLADE FAN MFR # 1472A5011
45. #HIGH PRESSURE SWITCH MFR # 464135321
46. #OVERLOAD MFR # 14600241
47. #DUCT CONN F/PARK MODEL MFR # 66336151
48. #DRAIN TUBE MFR # 46413520
