Dometic Blizzard H540316.721C Parts Diagram · Exploded View
Air Conditioner · 2 assemblies · 2 diagram sheets · 19 parts · by Andrew Strick, mobile RV technician

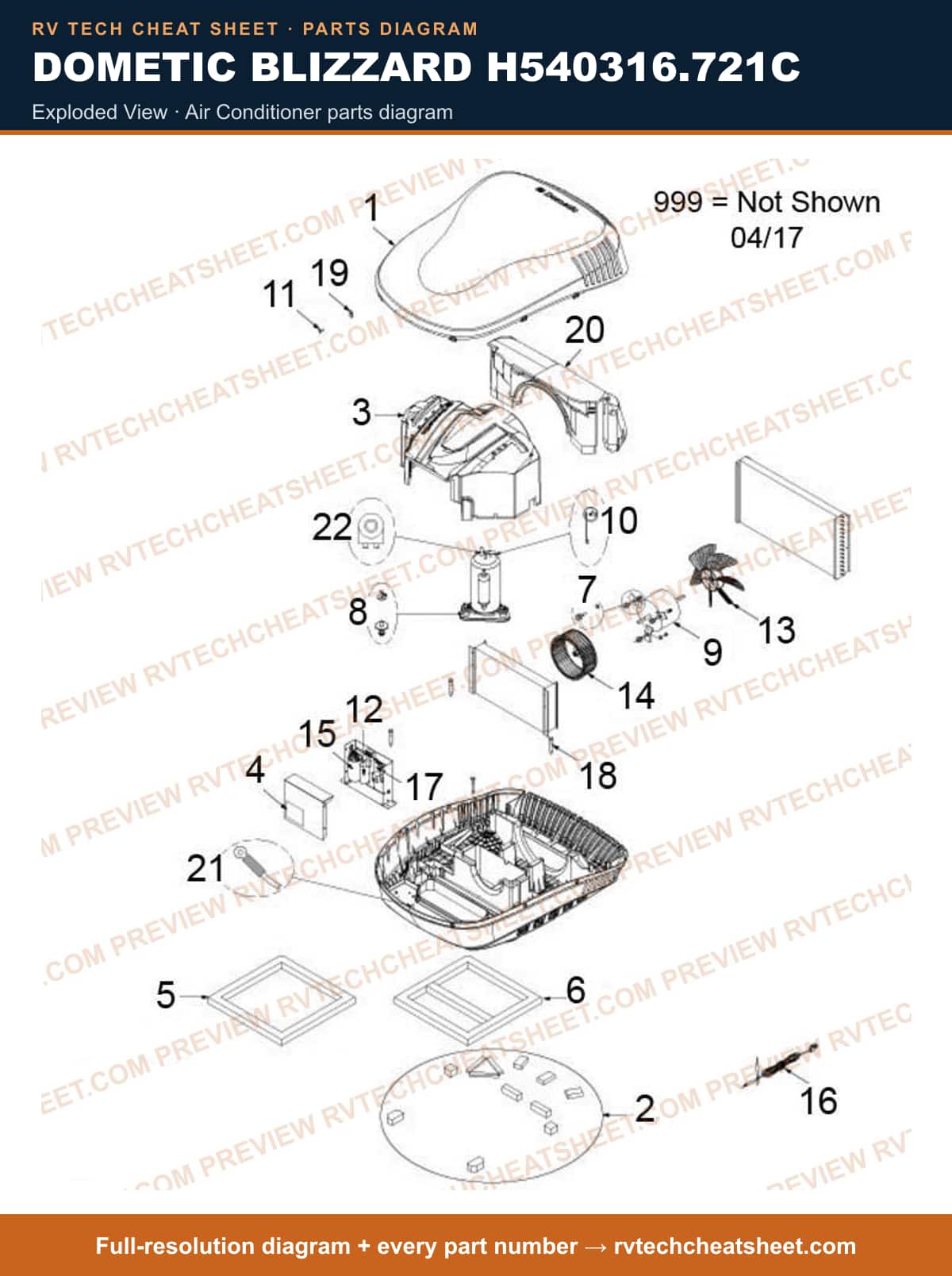

OEM exploded parts diagrams for the Dometic Blizzard H540316.721C rooftop air conditioner: 2 assemblies (Exploded View, Replacement) and 19 manufacturer part numbers.
On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.
