Dometic Blizzard H541816AXX1J0 Parts Diagram

Air Conditioner · 1 diagram sheet · 18 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Dometic Blizzard H541816AXX1J0 rooftop air conditioner: 18 manufacturer part numbers.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

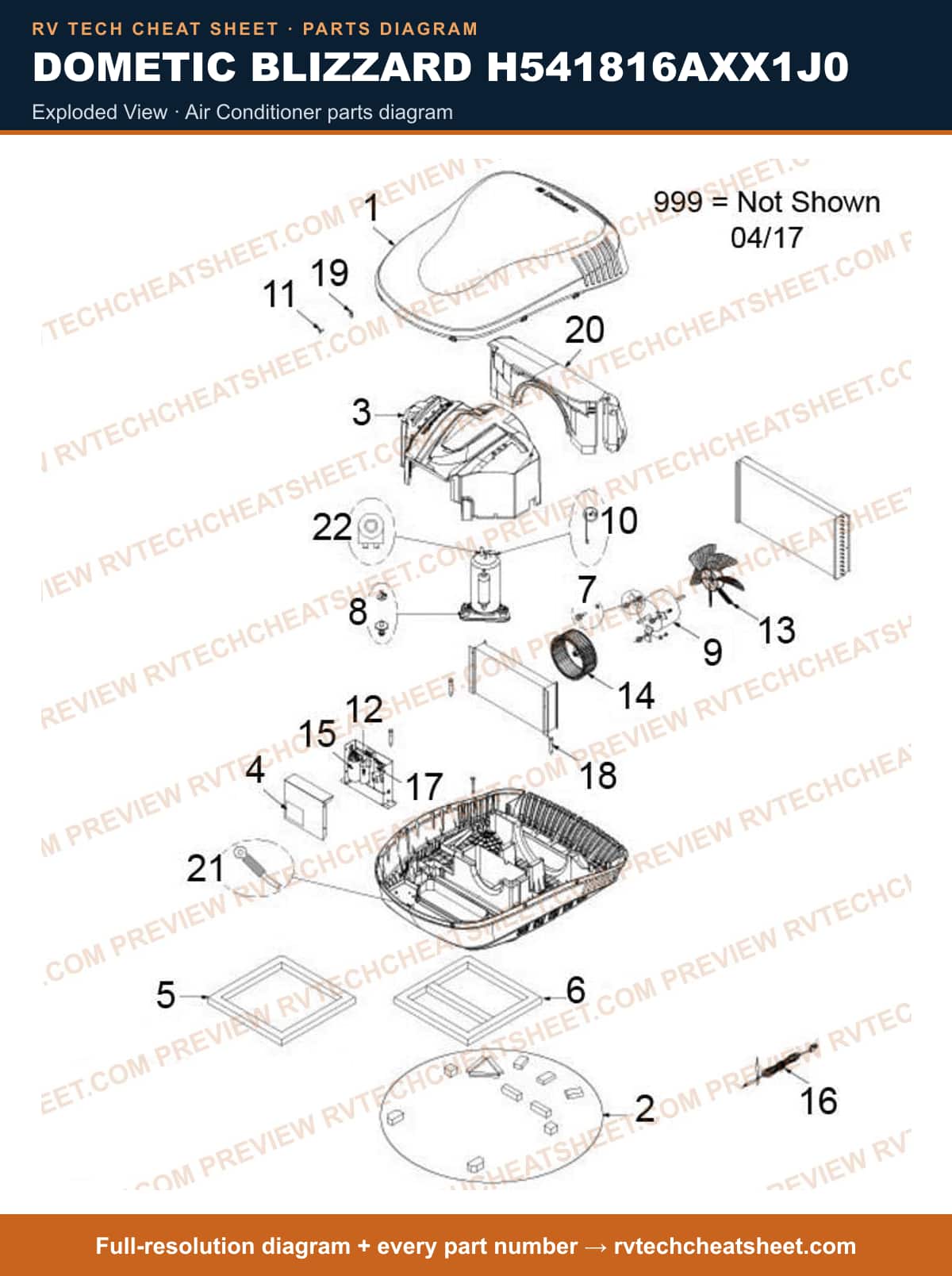

Exploded View

Components

18 items

1. #APPLIANCE COMPONENTS RV; KITSVC BLZZD NXT SHROUD WHITE MFR # 3316311000
2. #APPLIANCE COMPONENTS RV; KIT, FOAM FOR BLIZZARD NXT MFR # 3316316000
3. #RV COVERS-ACCESSORIES; KIT,SVC EVAPORATOR FOAM COVER MFR # 3316317000
4. #APPLIANCE COMPONENTS RV; KIT,SVC DECAL,WARNING MFR # 3310735000
5. #A/C COMPONENTS RV; SGASKETROOF MFR # 3316315000
6. #SERVICE KIT F/MOTOR MFR # 3310725001
7. #APPLIANCE COMPONENTS RV; KIT,SVC GROMMET-COMPRESSOR MFR # 3310717008
8. #Fan Motor Service Kit, Mechanical MFR # 3316314008
9. #Air Conditioner Compressor Overload Protector; Replacement For Dometic Brisk Air/ Brisk Air II/ Blizzard NXT Series Air Conditioners MFR # 3312138000
10. #TOOLS & FASTENERS RV; SCREW M5 15MM, DACROMET MFR # 3316312000
11. #Air Conditioner Capacitor; Hard Start Capacitor; For 15000 BTU Air Conditioner Units MFR # 3310727007
12. #KITSVC FAN BLADE MFR # 3310709005
13. #KIT SVC BLOWER WHEEL MFR # 3310708007
14. #THERMISTOR KIT WIRE HARNE MFR # 3312303005
15. #BOARD PCB CCC2 MFR # 3312022000
16. #TOOLS & FASTENERS RV; K,SCREWS,LAG,3/8-7*3.00 HHW MFR # 3316320000
17. #A/C COMPONENTS RV; A/C - CLIP - 3316313.000 - DOMETIC MFR # 3316313000
18. #APPLIANCE COMPONENTS RV; COVER,CONDENSOR FOAM MFR # 3316318000
