Diagrams › Dometic › Brisk Air Dometic Brisk Air Parts Diagram · 53210172
Air Conditioner · 45 assemblies · 45 diagram sheets · 253 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic Brisk Air rooftop air conditioner: 45 assemblies (53210172, 52712, 53212005, 53212036, 53210054 and more) and 253 manufacturer part numbers. 92 parts are marked as superseded — the description gives the replacement number to order instead.
On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.
53210172
Dometic Brisk Air 53210172 — parts list sheet Full-resolution diagram + every part number →
Components 67 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # BASE PAN MFR # 39998 # MOTOR USE 20285 MFR # 39648 Superseded: see description # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # MOTOR KIT MFR # 3108706916 # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # RELAY KIT START ROTARY MFR # 1318289001 # RELAY USE 1318289001 MFR # 35040006 Superseded: see description # CAPACITOR USE 35046014 MFR # 35046010 Superseded: see description # CAPACITOR USE 3100236144 MFR # 35046014 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # CAPACITOR,RUN USE 3100248065 MFR # 38087006 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065 # N/A CAPACITOR,FAN MFR # 38087003 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # COMPRESSOR MFR # 501648101Q35 # COMPRESSOR USE 501648101Q35 MFR # P11360 Superseded: see description # COMPRESSOR USE P11360 MFR # 37885001 Superseded: see description # SWITCH,OVERLOAD USE 3100250152 MFR # 37886002 Superseded: see description # SWITCH USE 3100250244 MFR # 3100250152 Superseded: see description # SWITCH,OVERLOAD MFR # 3100250244 # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # AIRBOX ASM 5461 5 A/C MFR # 39684 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # KIT SVC AIR FILTER MFR # 3313107103 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # KNOB USE 3100364011 MFR # 38151 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # CEILING TEMPLATE MFR # 39978 # ROOF FLASHING MFR # 310181 # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD 12' MFR # 3309518003 # J BOLTS USE 38174003 MFR # 39948 Superseded: see description # J BOLTS MDL# 55912-041 MFR # 38174003 # BOLT 53212 SERIES MFR # 39952 # BOLT 53212 SERIES MFR # 39953 # BOLT 53212 SERIES MFR # 39954 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A # COVER,VINYL MFR # 38762
52712
Dometic Brisk Air 52712 — parts list sheet Full-resolution diagram + every part number →
Components 38 items # CONDENSER COIL MFR # 36578 # Furnace Motor; Replacement For Atwood 8525-II Series Furnaces; PF-23175Q; Also Use New Number 30130MC MFR # 32774MC Superseded: see description # THE OLD REDMOND # THAT USED TO BE ON THIS MOTOR WAS PF23136Q. REDMOND MADE A CHANGE AND THE NEW # IS PF23175Q. IF YOU ARE REPLACING THIS MOTOR DUE ... MFR # 32774 # CAPACITOR, RUN USE 46-2352 MFR # 315010001 Superseded: see description # CAPACITOR USE 315010001 MFR # F7901 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248537 # CAPACITOR USE 315010001 MFR # 35190 Superseded: see description # CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description # Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235 # CAPACITOR, START MFR # 47C # APPLIANCE COMPONENTS RV; Capacitor Use 3100236235 MFR # 3100236177 Superseded: see description # FLASHING MFR # 36793 # AIR FILTER MFR # 36770D # AIR BOX MFR # 36794 # Motor Bracket Kit; Use With Easy Fit Model Toilets MFR # 36752 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,BLOWER MFR # 36763 # FRAME HITCH MFR # 36660 # CAPACITOR - RUN MFR # 36655 # ROUND TUBE FRAME HITCH MFR # 36597 # BLOWER WHEEL MFR # 36646 # STARTING RELAY MFR # 35040001 # RELAY,DELAY MDL# 52712 MFR # 36677 # MOTOR MFR # 36659 # COMPRESSOR (JRG1-0100 PAA-224) (52712C) MFR # 36610 # LP & CO ALARMS & DETECTORS RV; DUAL LP/CO ALARM MFR # 36681 # BLADE,FAN MFR # 36658 # DELAY,TIME MDL #52712C MFR # 36675 # SENSORS,HOLDING TANK MFR # 36743 # CAPILLARY TUBE (52712C) MFR # 36607 # KNOB MFR # 34779 # NO GENERIC NAME; Plate Mounting Use 7452 MFR # 36754 Superseded: see description # ANCHOR BOLT HOOK (FOR 5" ROOF, OPT.) MFR # 39141 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # VINYL COVER , OPT. MFR # 39140 # ANCHOR BOLT STUD (FOR 5" ROOF, OPT.) MFR # 39142
53212005
Dometic Brisk Air 53212005 — parts list sheet Full-resolution diagram + every part number →
Components 55 items # SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313 # BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description # BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description # FAN BLADE MFR # 3313107015 # PAN,BASE MFR # 39336001 # MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description # APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description # MOTOR KIT MFR # 3108706916 # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # CAPACITOR USE 3100236144 MFR # 35046011 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # RUN CAPACITOR MFR # 38087012 # N/A CAPACITOR,FAN MFR # 38087003 # COIL,EVAPORATOR MFR # 39305 # WHEEL,BLOWER USE 317958 MFR # 39302 Superseded: see description # APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958 # SEWER HOSE SEAL, FLEXIBLE 3-IN-1 MFR # 39318 # Air Conditioner Compressor; For Duo-Therm Air Conditioner Brisk Air Model 54615036; Fits Duo-Therm Air Conditioner Brisk Air Model 54615036 MFR # 139318 # CAPILLARY TUBE (1 REQUIRED) MFR # 39326 # SEWER HOSE SEAL 4IN X 3IN MFR # 39312 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,BLOWER MFR # 36763 # AIRBOX ASM MFR # 38230 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # KIT SVC AIR FILTER MFR # 3313107103 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # TEMPLATE,CEILING MFR # 38169 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD 12' MFR # 3309518003 # RHINOFLEX 90 DEGREE MFR # 39857 # ANCHOR BOLT (LONG STUD) MFR # 38173001 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422 # ANCHOR BOLT (HOOK) MFR # 38174001 # INSTALLATION KIT 5321 2-036 MFR # 3101421 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423
53212036

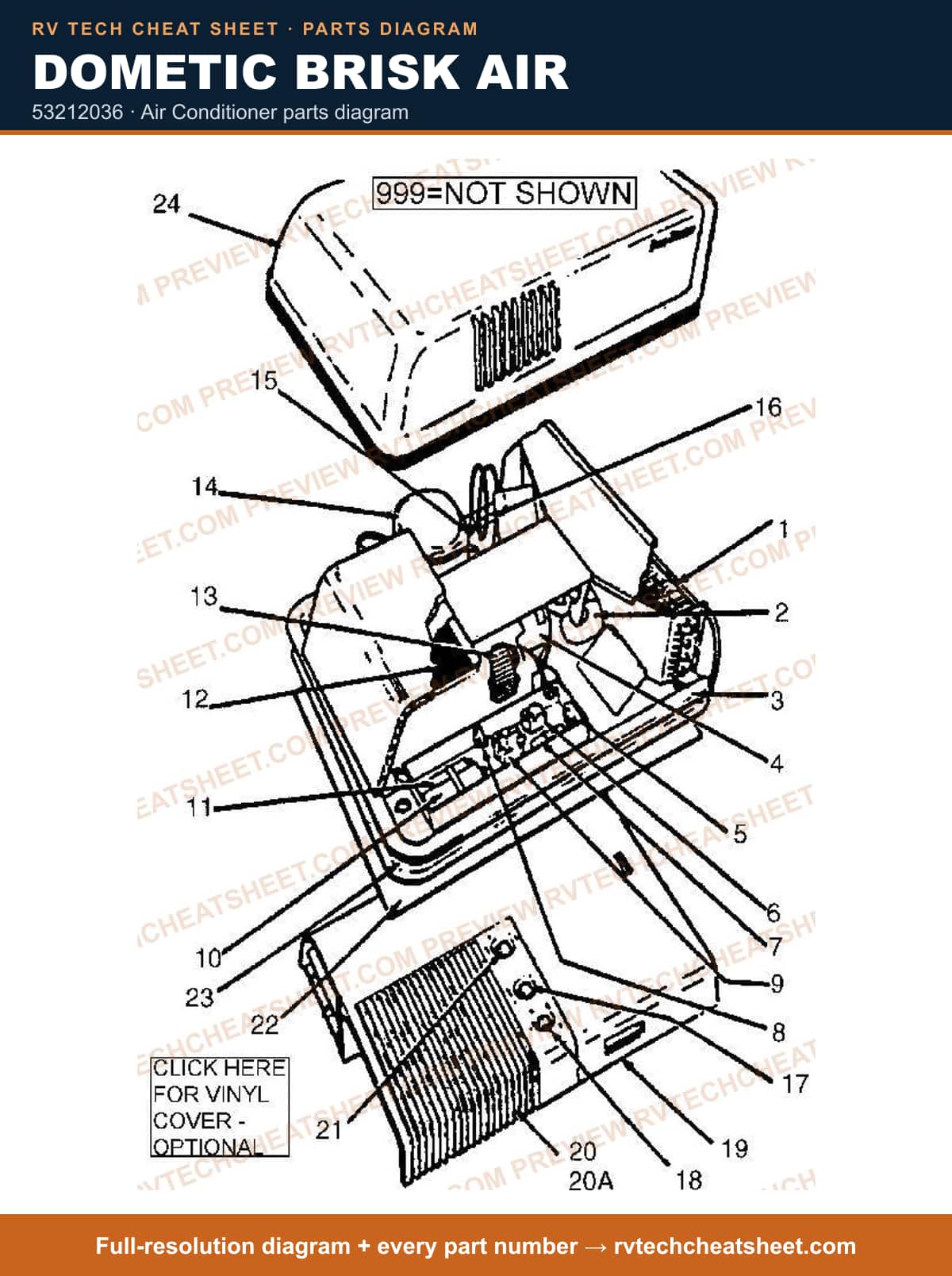

Dometic Brisk Air 53212036 — parts list sheet Full-resolution diagram + every part number →
Components 60 items # COIL,CONDENSER USE 1312936 MFR # 39311 Superseded: see description # COIL KIT 3093 12000 MFR # 1312936 # BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description # FAN BLADE MFR # 3313107015 # SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313 # BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description # PAN,BASE MFR # 39336001 # APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description # MOTOR KIT MFR # 3108706916 # MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description # MOTOR,A/C USE 20290 MFR # 39650 Superseded: see description # RELAY,TIME DELAY 532- 546 MFR # 310456 # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # CAPACITOR USE 3100236144 MFR # 35046011 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # RUN CAPACITOR MFR # 38087012 # N/A CAPACITOR,FAN MFR # 38087003 # COIL,EVAPORATOR MFR # 39305 # APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958 # WHEEL,BLOWER USE 317958 MFR # 39302 Superseded: see description # SEWER HOSE SEAL, FLEXIBLE 3-IN-1 MFR # 39318 # Air Conditioner Compressor; For Duo-Therm Air Conditioner Brisk Air Model 54615036; Fits Duo-Therm Air Conditioner Brisk Air Model 54615036 MFR # 139318 # CAPILLARY TUBE (1 REQUIRED) MFR # 39326 # SEWER HOSE SEAL 4IN X 3IN MFR # 39312 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # AIRBOX ASM 5461 5 A/C MFR # 39684 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD KIT CLOSED END SW MFR # 3309364028 # RHINOFLEX 90 DEGREE MFR # 39857 # SHROUD 12' MFR # 3309518003 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # ANCHOR BOLT (LONG STUD) MFR # 38173001 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # INSTALLATION KIT 5321 2-036 MFR # 3101421 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422
53210054

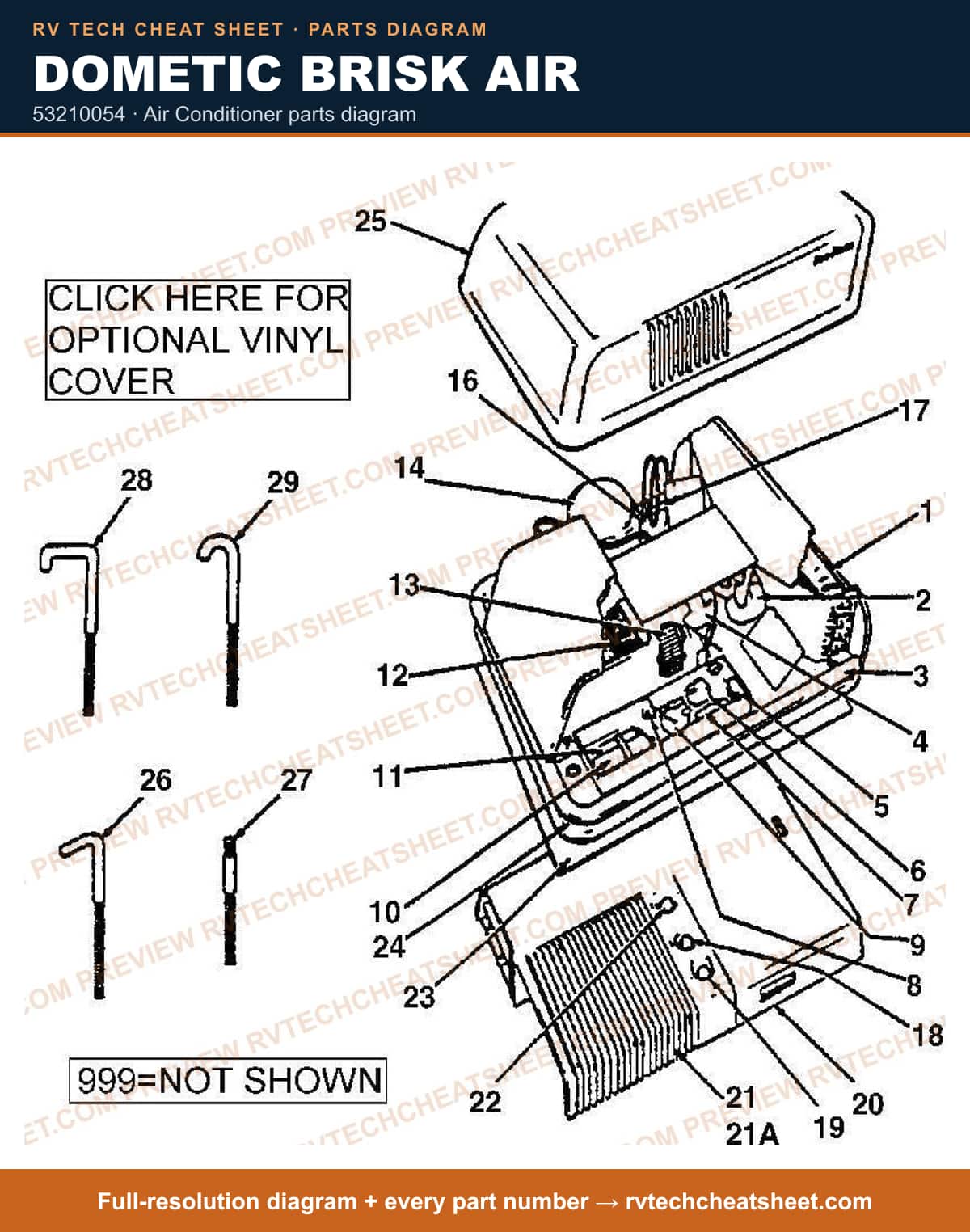

Dometic Brisk Air 53210054 — parts list sheet Full-resolution diagram + every part number →
Components 59 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # PAN,BASE USE 1317097 MFR # 39999 Superseded: see description # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # MOTOR USE 20285 MFR # 37892 Superseded: see description # MOTOR KIT MFR # 3108706916 # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # STARTING RELAY MFR # 35040001 # CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description # CAPACITOR, START MFR # 47C # APPLIANCE COMPONENTS RV; Capacitor Use 3100236235 MFR # 3100236177 Superseded: see description # Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE CONTACTOR MFR # 37924 # CAPACITOR,RUN USE 3100248065 MFR # 38087006 Superseded: see description # N/A CAPACITOR,FAN MFR # 38087003 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # COMPRESSOR USE 138184 MFR # 38184 Superseded: see description # APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008 # COMPRESSOR USE 46-2990 MFR # 138184 Superseded: see description # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,BLOWER MFR # 36763 # AIRBOX ASM MFR # 38230 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # KNOB USE 3100364011 MFR # 38151 Superseded: see description # CEILING TEMPLATE MFR # 39978 # ROOF FLASHING MFR # 310181 # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # SHROUD 12' MFR # 3309518003 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # J BOLTS MDL# 55912-041 MFR # 38174003 # J BOLTS USE 38174003 MFR # 39948 Superseded: see description # BOLT 53212 SERIES MFR # 39952 # BOLT 53212 SERIES MFR # 39953 # BOLT 53212 SERIES MFR # 39954 # COVER,VINYL MFR # 38762 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A
53212076

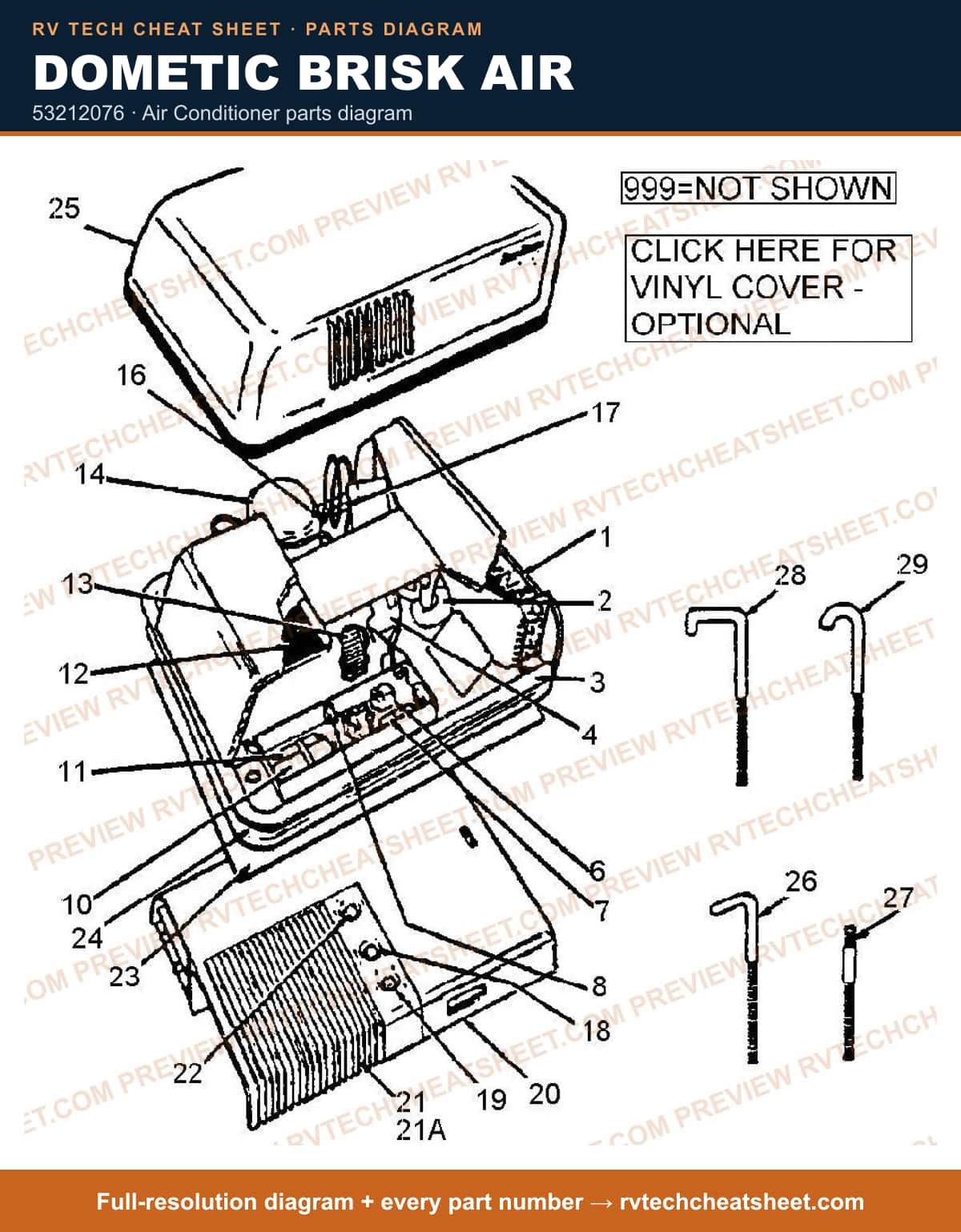

Dometic Brisk Air 53212076 — parts list sheet Full-resolution diagram + every part number →
Components 60 items # COIL,CONDENSER USE 1312936 MFR # 39311 Superseded: see description # COIL KIT 3093 12000 MFR # 1312936 # FAN BLADE MFR # 3313107015 # BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description # BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description # SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313 # BASE PAN MFR # 39997 # MOTOR,A/C USE 20290 MFR # 39650 Superseded: see description # MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description # APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description # MOTOR KIT MFR # 3108706916 # RELAY, START TECUMSEH MFR # P82965 # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # CAPACITOR USE 3100236144 MFR # 35046011 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # RUN CAPACITOR MFR # 38087012 # N/A CAPACITOR,FAN MFR # 38087003 # COIL,EVAPORATOR MFR # 39305 # APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958 # WHEEL,BLOWER USE 317958 MFR # 39302 Superseded: see description # Air Conditioner Compressor; For Duo-Therm Air Conditioner Brisk Air Model 54615036; Fits Duo-Therm Air Conditioner Brisk Air Model 54615036 MFR # 139318 # SEWER HOSE SEAL, FLEXIBLE 3-IN-1 MFR # 39318 # CAPILLARY TUBE (1 REQUIRED) MFR # 39326 # SEWER HOSE SEAL 4IN X 3IN MFR # 39312 # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # KNOB USE 3100364011 MFR # 38151 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # CEILING TEMPLATE MFR # 39978 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # RHINOFLEX 90 DEGREE MFR # 39857 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD 12' MFR # 3309518003 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # ROOF FLASHING MFR # 310181 # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # J BOLTS USE 38174003 MFR # 39948 Superseded: see description # J BOLTS MDL# 55912-041 MFR # 38174003 # BOLT 53212 SERIES MFR # 39952 # BOLT 53212 SERIES MFR # 39953 # BOLT 53212 SERIES MFR # 39954
53212024
Dometic Brisk Air 53212024 — parts list sheet Full-resolution diagram + every part number →
Components 56 items # COIL KIT 3093 12000 MFR # 1312936 # COIL,CONDENSER USE 1312936 MFR # 39311 Superseded: see description # SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313 # FAN BLADE MFR # 3313107015 # BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description # BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description # PAN,BASE MFR # 39336001 # MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description # APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description # MOTOR KIT MFR # 3108706916 # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # CAPACITOR USE 3100236144 MFR # 35046011 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # RUN CAPACITOR MFR # 38087012 # N/A CAPACITOR,FAN MFR # 38087003 # COIL,EVAPORATOR MFR # 39305 # APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958 # WHEEL,BLOWER USE 317958 MFR # 39302 Superseded: see description # SEWER HOSE SEAL, FLEXIBLE 3-IN-1 MFR # 39318 # Air Conditioner Compressor; For Duo-Therm Air Conditioner Brisk Air Model 54615036; Fits Duo-Therm Air Conditioner Brisk Air Model 54615036 MFR # 139318 # CAPILLARY TUBE (1 REQUIRED) MFR # 39326 # SEWER HOSE SEAL 4IN X 3IN MFR # 39312 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # SWITCH,BLOWER MFR # 36763 # AIRBOX ASM MFR # 38230 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # TEMPLATE,CEILING MFR # 38169 # RHINOFLEX 90 DEGREE MFR # 39857 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD 12' MFR # 3309518003 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # ANCHOR BOLT (HOOK) MFR # 38174001 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423 # ANCHOR BOLT (LONG STUD) MFR # 38173001 # INSTALLATION KIT 5321 2-036 MFR # 3101421
53212034
Dometic Brisk Air 53212034 — parts list sheet Full-resolution diagram + every part number →
Components 63 items # COIL KIT 3093 12000 MFR # 1312936 # COIL,CONDENSER USE 1312936 MFR # 39311 Superseded: see description # SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313 # BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description # BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description # FAN BLADE MFR # 3313107015 # PAN,BASE MFR # 39336001 # MOTOR KIT MFR # 3108706916 # APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description # MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # CAPACITOR USE 3100236144 MFR # 35046011 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # RUN CAPACITOR MFR # 38087012 # N/A CAPACITOR,FAN MFR # 38087003 # COIL,EVAPORATOR MFR # 39305 # APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958 # WHEEL,BLOWER USE 317958 MFR # 39302 Superseded: see description # SEWER HOSE SEAL, FLEXIBLE 3-IN-1 MFR # 39318 # Air Conditioner Compressor; For Duo-Therm Air Conditioner Brisk Air Model 54615036; Fits Duo-Therm Air Conditioner Brisk Air Model 54615036 MFR # 139318 # CAPILLARY TUBE (1 REQUIRED) MFR # 39326 # SEWER HOSE SEAL 4IN X 3IN MFR # 39312 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # AIRBOX ASM 5461 5 A/C MFR # 39684 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # KNOB USE 3100364011 MFR # 38151 Superseded: see description # TEMPLATE,CEILING MFR # 38169 # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD 12' MFR # 3309518003 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # RHINOFLEX 90 DEGREE MFR # 39857 # SHROUD KIT CLOSED END SW MFR # 3309364028 # INSTALLATION KIT 5321 2-036 MFR # 3101421 # ANCHOR BOLT (HOOK) MFR # 38174001 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422 # ANCHOR BOLT (LONG STUD) MFR # 38173001 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423
53212055
Dometic Brisk Air 53212055 — parts list sheet Full-resolution diagram + every part number →
Components 58 items # COIL,CONDENSER USE 1312936 MFR # 39311 Superseded: see description # COIL KIT 3093 12000 MFR # 1312936 # FAN BLADE MFR # 3313107015 # BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description # SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313 # BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description # BASE PAN MFR # 39997 # APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description # MOTOR KIT MFR # 3108706916 # MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # CAPACITOR USE 3100236144 MFR # 35046011 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # RUN CAPACITOR MFR # 38087012 # N/A CAPACITOR,FAN MFR # 38087003 # RING,BLOWER INLET MFR # 39304 # WHEEL,BLOWER USE 317958 MFR # 39302 Superseded: see description # APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958 # Air Conditioner Compressor; For Duo-Therm Air Conditioner Brisk Air Model 54615036; Fits Duo-Therm Air Conditioner Brisk Air Model 54615036 MFR # 139318 # SEWER HOSE SEAL, FLEXIBLE 3-IN-1 MFR # 39318 # CAPILLARY TUBE (1 REQUIRED) MFR # 39326 # SEWER HOSE SEAL 4IN X 3IN MFR # 39312 # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # SWITCH,BLOWER MFR # 36763 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # AIRBOX ASM MFR # 38230 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # CEILING TEMPLATE MFR # 39978 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # RHINOFLEX 90 DEGREE MFR # 39857 # ROOF FLASHING MFR # 310181 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD 12' MFR # 3309518003 # SHROUD KIT CLOSED END SW MFR # 3309364028 # J BOLTS USE 38174003 MFR # 39948 Superseded: see description # J BOLTS MDL# 55912-041 MFR # 38174003 # BOLT 53212 SERIES MFR # 39952 # BOLT 53212 SERIES MFR # 39953 # BOLT 53212 SERIES MFR # 39954
53210155
Dometic Brisk Air 53210155 — parts list sheet Full-resolution diagram + every part number →
Components 62 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # BASE PAN MFR # 39998 # MOTOR USE 20285 MFR # 37892 Superseded: see description # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # MOTOR KIT MFR # 3108706916 # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # RELAY KIT START ROTARY MFR # 1318289001 # RELAY USE 1318289001 MFR # 35040006 Superseded: see description # CAPACITOR USE 3100236144 MFR # 35046014 Superseded: see description # CAPACITOR USE 35046014 MFR # 35046010 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # CAPACITOR,RUN USE 3100248065 MFR # 38087006 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065 # N/A CAPACITOR,FAN MFR # 38087003 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # COMPRESSOR USE P11360 MFR # 37885001 Superseded: see description # COMPRESSOR MFR # 501648101Q35 # COMPRESSOR USE 501648101Q35 MFR # P11360 Superseded: see description # SWITCH USE 3100250244 MFR # 3100250152 Superseded: see description # SWITCH,OVERLOAD MFR # 3100250244 # SWITCH,OVERLOAD USE 3100250152 MFR # 37886002 Superseded: see description # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # AIRBOX ASM MFR # 38230 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # KIT SVC AIR FILTER MFR # 3313107103 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # CEILING TEMPLATE MFR # 39978 # ROOF FLASHING MFR # 310181 # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # J BOLTS USE 38174003 MFR # 39948 Superseded: see description # J BOLTS MDL# 55912-041 MFR # 38174003 # BOLT 53212 SERIES MFR # 39952 # BOLT 53212 SERIES MFR # 39953 # BOLT 53212 SERIES MFR # 39954 # COVER,VINYL MFR # 38762 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A

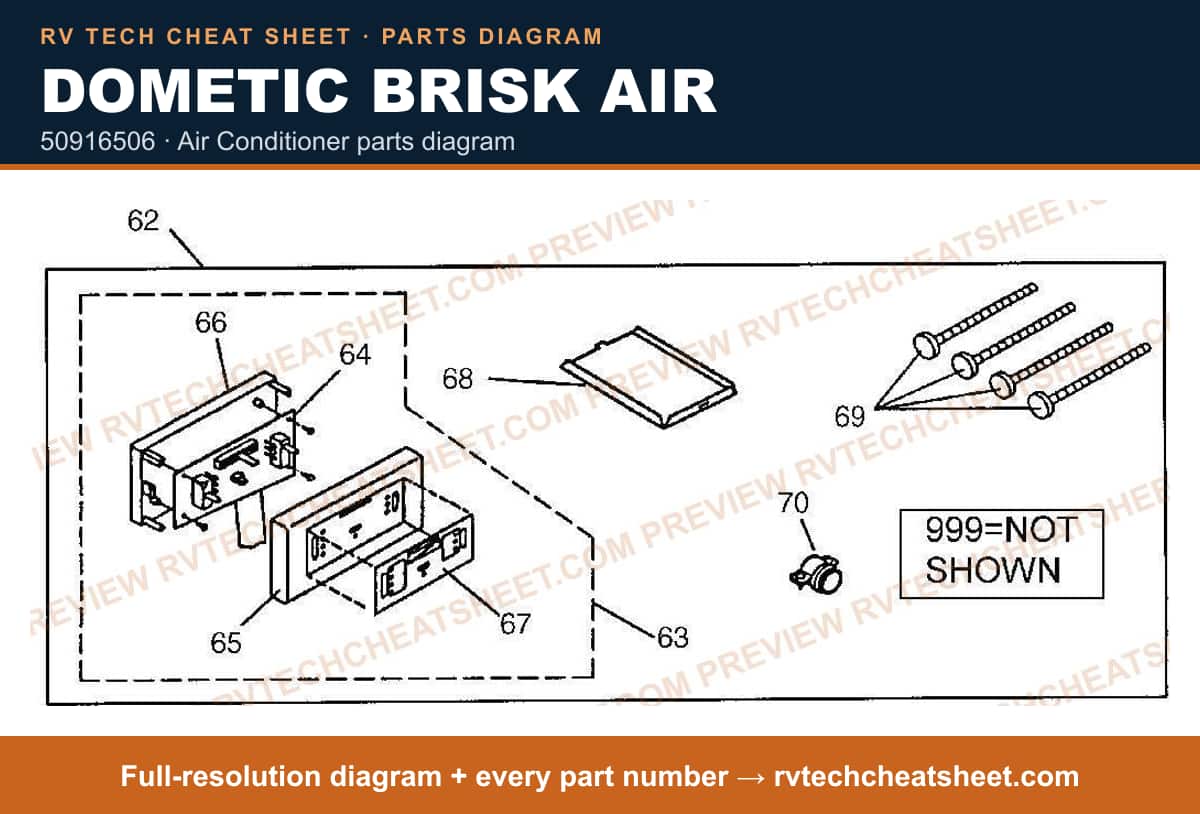

50916506
Dometic Brisk Air 50916506 — parts list sheet Full-resolution diagram + every part number →
Components 12 items # PACKAGE ASM. PARTS MFR # 3104889005 # BOARD KIT MFR # 3108701339 # T-STAT,WALL USE 3105325009 MFR # 3104890003 Superseded: see description # T-STAT USE 3108701339 WHITE MFR # 3105325009 Superseded: see description # THERMOSTAT COVER MFR # 3103809012 # APPLIANCE COMPONENTS RV; Base T-Stat 610 62001 MFR # 3103808006 # DECAL,T-STAT HT/COOL MFR # 3104856012 # COVER, JUNCTION BOX MFR # 3101316028 # APPLIANCE COMPONENTS RV; Bolt Mounting Use 331151 MFR # 3106756012 Superseded: see description # Screw; For Use With Dometic Air Conditioner Ceiling Assembly; 1/4 Inch-20 x 7 Inch Length; Hex; Pack Of 4 MFR # 3311511000 Superseded: see description # BOLT,MOUNTING USE 3106756012 MFR # 3100375041 Superseded: see description # APPLIANCE COMPONENTS RV; Connector Cable MFR # 20010000
53210105
Dometic Brisk Air 53210105 — parts list sheet Full-resolution diagram + every part number →
Components 42 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # PAN,BASE USE 1317097 & 1317098 MFR # 38466 Superseded: see description # HOUSING KIT 10" MFR # 1317098 # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # MOTOR MFR # H7892 # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY,START MFR # H50406 # BLOCK,TERMINAL MFR # H504610 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE CONTACTOR MFR # H7948 # RUN CAPACITOR MFR # 380876 # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # CAPACITOR,FAN USE 3100236144 MFR # 380873 Superseded: see description # COIL,EVAPORATOR MFR # H7922 # WHEEL,BLOWER MFR # H7930 # COMPRESSOR MFR # H78851 # OVERLOAD MFR # H78862 # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # T-STAT USE 34825 MFR # H4825 Superseded: see description # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,BLOWER MFR # H6763 # AIRBOX ASM MFR # 38230 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # TEMPLATE,CEILING MFR # 38169 # SHROUD MFR # H7960
53212075
Dometic Brisk Air 53212075 — parts list sheet Full-resolution diagram + every part number →
Components 60 items # COIL,CONDENSER USE 1312936 MFR # 39311 Superseded: see description # COIL KIT 3093 12000 MFR # 1312936 # BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description # BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description # FAN BLADE MFR # 3313107015 # SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313 # BASE PAN MFR # 39997 # MOTOR,A/C USE 20290 MFR # 39650 Superseded: see description # APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description # MOTOR KIT MFR # 3108706916 # MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # CAPACITOR USE 3100236144 MFR # 35046011 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # RUN CAPACITOR MFR # 38087012 # N/A CAPACITOR,FAN MFR # 38087003 # COIL,EVAPORATOR MFR # 39305 # APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958 # WHEEL,BLOWER USE 317958 MFR # 39302 Superseded: see description # SEWER HOSE SEAL, FLEXIBLE 3-IN-1 MFR # 39318 # Air Conditioner Compressor; For Duo-Therm Air Conditioner Brisk Air Model 54615036; Fits Duo-Therm Air Conditioner Brisk Air Model 54615036 MFR # 139318 # CAPILLARY TUBE (1 REQUIRED) MFR # 39326 # SEWER HOSE SEAL 4IN X 3IN MFR # 39312 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # CEILING TEMPLATE MFR # 39978 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # ROOF FLASHING MFR # 310181 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # RHINOFLEX 90 DEGREE MFR # 39857 # SHROUD 12' MFR # 3309518003 # J BOLTS MDL# 55912-041 MFR # 38174003 # J BOLTS USE 38174003 MFR # 39948 Superseded: see description # BOLT 53212 SERIES MFR # 39952 # BOLT 53212 SERIES MFR # 39953 # BOLT 53212 SERIES MFR # 39954
53210036
Dometic Brisk Air 53210036 — parts list sheet Full-resolution diagram + every part number →
Components 66 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # HOUSING KIT 10" MFR # 1317098 # PAN,BASE USE 1317097 & 1317098 MFR # 38466 Superseded: see description # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # MOTOR USE 20285 MFR # 39648 Superseded: see description # MOTOR KIT MFR # 3108706916 # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # RELAY,TIME DELAY 532- 546 MFR # 310456 # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description # CAPACITOR, START MFR # 47C # Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235 # APPLIANCE COMPONENTS RV; Capacitor Use 3100236235 MFR # 3100236177 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065 # CAPACITOR,RUN USE 3100248065 MFR # 38087006 Superseded: see description # N/A CAPACITOR,FAN MFR # 38087003 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # COMPRESSOR USE 46-2990 MFR # 138184 Superseded: see description # COMPRESSOR USE 138184 MFR # 38184 Superseded: see description # APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008 # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # AIRBOX ASM 5461 5 A/C MFR # 39684 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # TEMPLATE,CEILING MFR # 38169 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD 12' MFR # 3309518003 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A # COVER,VINYL MFR # 38762 # ANCHOR BOLT (LONG STUD) MFR # 38173001 # INSTALLATION KIT 5321 2-036 MFR # 3101421 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423 # ANCHOR BOLT (HOOK) MFR # 38174001
59516751 15,000 BTU
Dometic Brisk Air 59516751 15,000 btu — parts list sheet Full-resolution diagram + every part number →
Components 18 items # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD SVC KIT, CLOSED END GRAY MFR # 3309364036 # SHROUD CLOSED END BLACK MFR # 3309364010 # APPLIANCE COMPONENTS RV; KIT,SVC DECAL,WARNING MFR # 3310735000 # Air Conditioner Evaporator Cover; Replacement For Dometic brisk Model Air Conditioner; Center Panel MFR # 3310592000 # Air Conditioner Compressor Overload Protector; Replacement For Dometic Brisk Air/ Brisk Air II/ Blizzard NXT Series Air Conditioners MFR # 3312138000 # FAN BLADE MFR # 3313107015 # SERVICE KIT F/MOTOR MFR # 3310725001 # MOTOR KIT MFR # 3108706916 # WHEEL BLOWER MFR # 3313107033 # APPLIANCE COMPONENTS RV; KIT,SVC INLET RING MFR # 3313107116 # GASKET, GREY, 14 X 14 MFR # 6759A3281 # ROOF A/C GASKET KIT MFR # 3310718006 # Air Conditioner Capacitor; Hard Start Capacitor; For 15000 BTU Air Conditioner Units MFR # 3310727007 # CAPACITOR 70/10 MFD MFR # 3312137000 # Air Conditioner Foam Block Kit; Use With Dometic 640310C451/ 640312.831/ 459516.711/ 641716.301 Model Air Conditioners MFR # 3310726009 Superseded: see description # APPLIANCE COMPONENTS RV; KIT,SVC GROMMET-COMPRESSOR MFR # 3310717008 # Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Air Conditioners MFR # 3310733005
53210135
Dometic Brisk Air 53210135 — parts list sheet Full-resolution diagram + every part number →
Components 42 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # HOUSING KIT 10" MFR # 1317098 # PAN,BASE USE 1317097 & 1317098 MFR # 38466 Superseded: see description # MOTOR MFR # H7892 # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY,START MFR # H50406 # BLOCK,TERMINAL MFR # H504610 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE CONTACTOR MFR # H7948 # RUN CAPACITOR MFR # 380876 # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # CAPACITOR,FAN USE 3100236144 MFR # 380873 Superseded: see description # COIL,EVAPORATOR MFR # H7922 # WHEEL,BLOWER MFR # H7930 # COMPRESSOR MFR # H78851 # OVERLOAD MFR # H78862 # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # T-STAT USE 34825 MFR # H4825 Superseded: see description # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # SWITCH,BLOWER MFR # H6763 # AIRBOX ASM MFR # 38230 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # KNOB USE 3100364011 MFR # 38151 Superseded: see description # TEMPLATE,CEILING MFR # 38169 # SHROUD MFR # H7960
53210076
Dometic Brisk Air 53210076 — parts list sheet Full-resolution diagram + every part number →
Components 66 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # PAN,BASE USE 1317097 MFR # 39999 Superseded: see description # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # MOTOR KIT MFR # 3108706916 # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # MOTOR USE 20285 MFR # 39648 Superseded: see description # RELAY,TIME DELAY 532- 546 MFR # 310456 # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # CAPACITOR, START MFR # 47C # CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Use 3100236235 MFR # 3100236177 Superseded: see description # Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065 # CAPACITOR,RUN USE 3100248065 MFR # 38087006 Superseded: see description # N/A CAPACITOR,FAN MFR # 38087003 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # COMPRESSOR USE 46-2990 MFR # 138184 Superseded: see description # APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008 # COMPRESSOR USE 138184 MFR # 38184 Superseded: see description # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # AIRBOX ASM 5461 5 A/C MFR # 39684 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # KNOB USE 3100364011 MFR # 38151 Superseded: see description # CEILING TEMPLATE MFR # 39978 # ROOF FLASHING MFR # 310181 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD 12' MFR # 3309518003 # J BOLTS USE 38174003 MFR # 39948 Superseded: see description # J BOLTS MDL# 55912-041 MFR # 38174003 # BOLT 53212 SERIES MFR # 39952 # BOLT 53212 SERIES MFR # 39953 # BOLT 53212 SERIES MFR # 39954 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A # COVER,VINYL MFR # 38762
53210035
Dometic Brisk Air 53210035 — parts list sheet Full-resolution diagram + every part number →
Components 65 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # HOUSING KIT 10" MFR # 1317098 # PAN,BASE USE 1317097 & 1317098 MFR # 38466 Superseded: see description # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # MOTOR USE 20285 MFR # 39648 Superseded: see description # MOTOR KIT MFR # 3108706916 # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY, START TECUMSEH MFR # P82965 # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235 # CAPACITOR, START MFR # 47C # APPLIANCE COMPONENTS RV; Capacitor Use 3100236235 MFR # 3100236177 Superseded: see description # CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065 # CAPACITOR,RUN USE 3100248065 MFR # 38087006 Superseded: see description # N/A CAPACITOR,FAN MFR # 38087003 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # COMPRESSOR USE 138184 MFR # 38185 Superseded: see description # COMPRESSOR USE 138184 MFR # 38184 Superseded: see description # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # AIRBOX ASM 5461 5 A/C MFR # 39684 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # TEMPLATE,CEILING MFR # 38169 # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD 12' MFR # 3309518003 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A # COVER,VINYL MFR # 38762 # ANCHOR BOLT (HOOK) MFR # 38174001 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # INSTALLATION KIT 5321 2-036 MFR # 3101421 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423 # ANCHOR BOLT (LONG STUD) MFR # 38173001
53210132

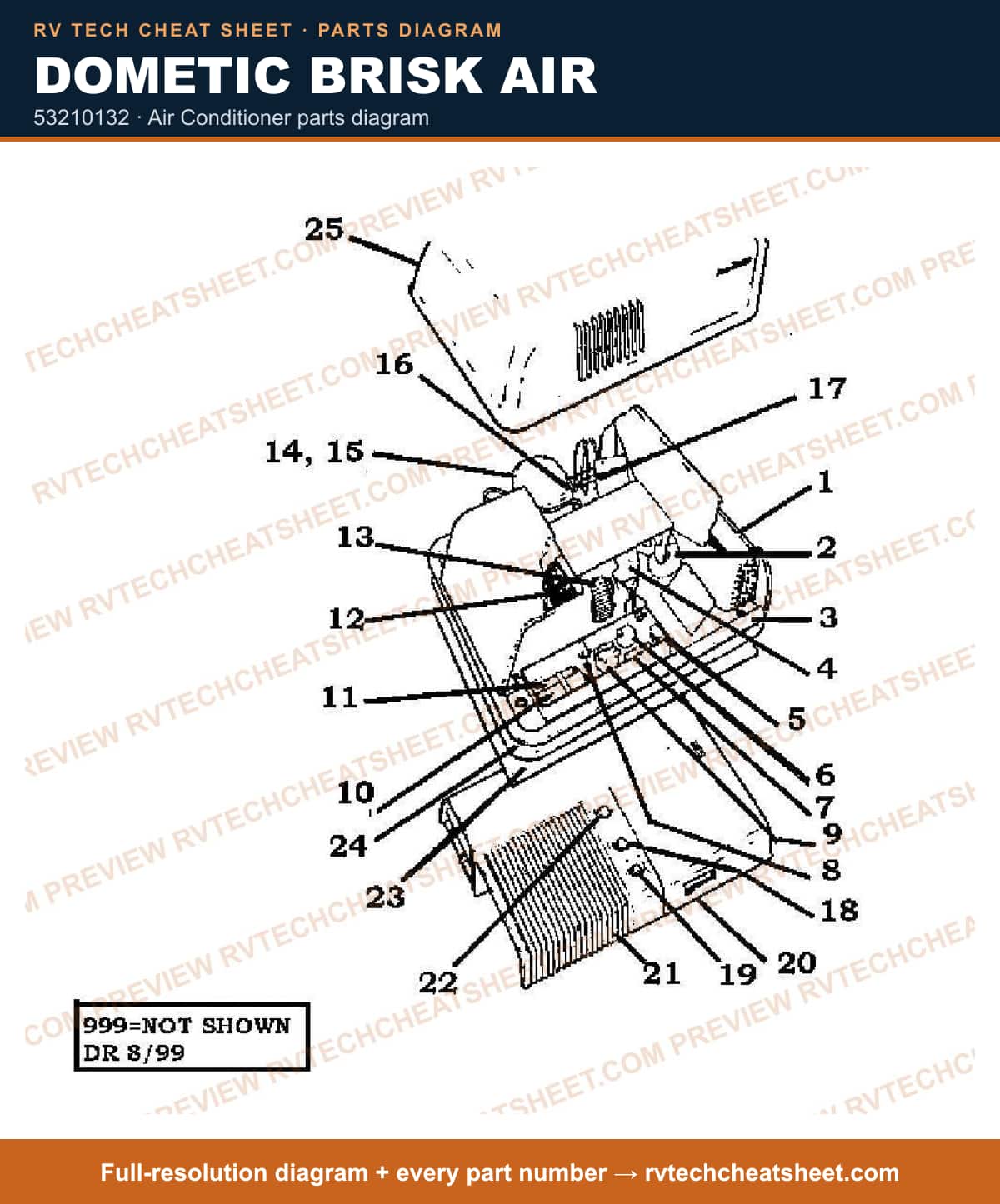

Dometic Brisk Air 53210132 — parts list sheet Full-resolution diagram + every part number →
Components 42 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # HOUSING KIT 10" MFR # 1317098 # PAN,BASE USE 1317097 & 1317098 MFR # 38466 Superseded: see description # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # MOTOR MFR # H7892 # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # RELAY,START MFR # H50406 # BLOCK,TERMINAL MFR # H504610 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE CONTACTOR MFR # H7948 # RUN CAPACITOR MFR # 380876 # CAPACITOR,FAN USE 3100236144 MFR # 380873 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # COIL,EVAPORATOR MFR # H7922 # WHEEL,BLOWER MFR # H7930 # COMPRESSOR MFR # H78851 # OVERLOAD MFR # H78862 # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # T-STAT USE 34825 MFR # H4825 Superseded: see description # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,BLOWER MFR # H6763 # AIRBOX ASM MFR # 38230 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # TEMPLATE,CEILING MFR # 38169 # SHROUD MFR # H7960
53210066
Dometic Brisk Air 53210066 — exploded parts diagram Full-resolution diagram + every part number →
Components 59 items # CONDENSER COIL MFR # 37957 # BLADE,FAN MFR # 37929 # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # HOUSING KIT 10" MFR # 1317098 # PAN,BASE USE 1317097 & 1317098 MFR # 38466 Superseded: see description # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # MOTOR KIT MFR # 3108706916 # MOTOR USE 20285 MFR # 39648 Superseded: see description # RELAY,TIME DELAY 532- 546 MFR # 310456 # N/A START RELAY MFR # 350407 # N/A START CAPACITOR MFR # 350462 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # CAPACITOR,RUN USE 3100248065 MFR # 38087006 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065 # N/A CAPACITOR,FAN MFR # 38087003 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # COMPRESSOR USE 138184 MFR # 38184 Superseded: see description # APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008 # COMPRESSOR USE 46-2990 MFR # 138184 Superseded: see description # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # AIRBOX ASM 5461 5 A/C MFR # 39684 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # N/A FILTER GRILLE MFR # 38054 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # TEMPLATE,CEILING MFR # 38169 # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD 12' MFR # 3309518003 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # COVER,VINYL MFR # 38762 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A # ANCHOR BOLT(STUD-LONG) MFR # 381731 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # BOLT,ANCHOR (HOOK) MFR # 381741 # INSTALLATION KIT 5321 2-036 MFR # 3101421 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422
53210074
Dometic Brisk Air 53210074 — exploded parts diagram Full-resolution diagram + every part number →
Components 65 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # PAN,BASE USE 1317097 MFR # 39999 Superseded: see description # MOTOR KIT MFR # 3108706916 # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # MOTOR USE 20285 MFR # 39648 Superseded: see description # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # CAPACITOR, START MFR # 47C # CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description # Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235 # APPLIANCE COMPONENTS RV; Capacitor Use 3100236235 MFR # 3100236177 Superseded: see description # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065 # CAPACITOR,RUN USE 3100248065 MFR # 38087006 Superseded: see description # N/A CAPACITOR,FAN MFR # 38087003 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # COMPRESSOR USE 138184 MFR # 38184 Superseded: see description # COMPRESSOR USE 46-2990 MFR # 138184 Superseded: see description # APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008 # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # AIRBOX ASM 5461 5 A/C MFR # 39684 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # KNOB USE 3100364011 MFR # 38151 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # CEILING TEMPLATE MFR # 39978 # ROOF FLASHING MFR # 310181 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD 12' MFR # 3309518003 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # J BOLTS USE 38174003 MFR # 39948 Superseded: see description # J BOLTS MDL# 55912-041 MFR # 38174003 # BOLT 53212 SERIES MFR # 39952 # BOLT 53212 SERIES MFR # 39953 # BOLT 53212 SERIES MFR # 39954 # COVER,VINYL MFR # 38762 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A
53212074
Dometic Brisk Air 53212074 — parts list sheet Full-resolution diagram + every part number →
Components 60 items # COIL KIT 3093 12000 MFR # 1312936 # COIL,CONDENSER USE 1312936 MFR # 39311 Superseded: see description # SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313 # BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description # BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description # FAN BLADE MFR # 3313107015 # BASE PAN MFR # 39997 # MOTOR KIT MFR # 3108706916 # MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description # MOTOR,A/C USE 20290 MFR # 39650 Superseded: see description # APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY, START TECUMSEH MFR # P82965 # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # CAPACITOR USE 3100236144 MFR # 35046011 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # RUN CAPACITOR MFR # 38087012 # N/A CAPACITOR,FAN MFR # 38087003 # RING,BLOWER INLET MFR # 39304 # APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958 # WHEEL,BLOWER USE 317958 MFR # 39302 Superseded: see description # Air Conditioner Compressor; For Duo-Therm Air Conditioner Brisk Air Model 54615036; Fits Duo-Therm Air Conditioner Brisk Air Model 54615036 MFR # 139318 # SEWER HOSE SEAL, FLEXIBLE 3-IN-1 MFR # 39318 # CAPILLARY TUBE (1 REQUIRED) MFR # 39326 # SEWER HOSE SEAL 4IN X 3IN MFR # 39312 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # SWITCH,BLOWER MFR # 36763 # AIRBOX ASM MFR # 38230 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # CEILING TEMPLATE MFR # 39978 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # RHINOFLEX 90 DEGREE MFR # 39857 # SHROUD 12' MFR # 3309518003 # SHROUD KIT CLOSED END SW MFR # 3309364028 # ROOF FLASHING MFR # 310181 # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # J BOLTS MDL# 55912-041 MFR # 38174003 # J BOLTS USE 38174003 MFR # 39948 Superseded: see description # BOLT 53212 SERIES MFR # 39952 # BOLT 53212 SERIES MFR # 39953 # BOLT 53212 SERIES MFR # 39954
53212004

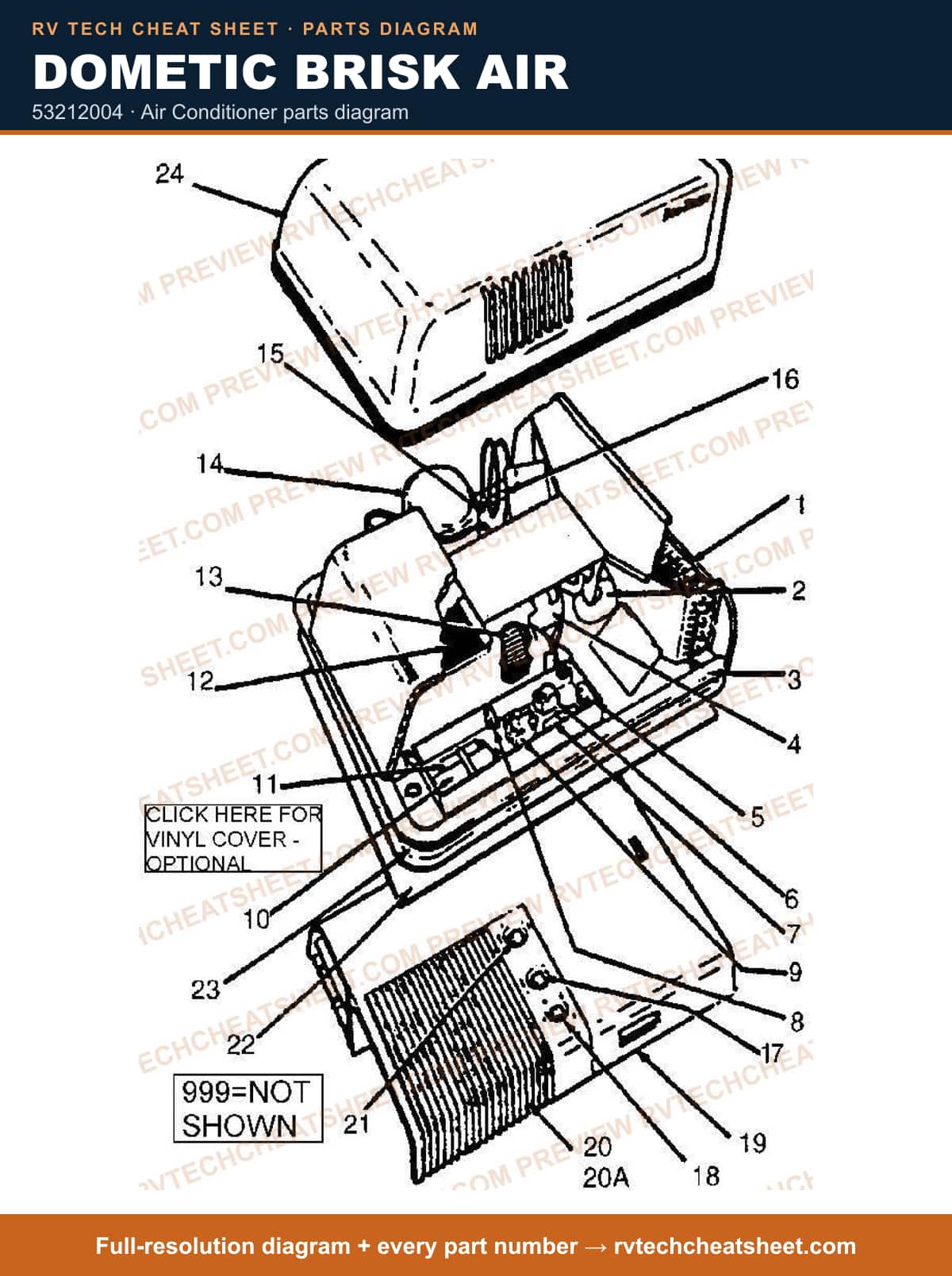

Dometic Brisk Air 53212004 — parts list sheet Full-resolution diagram + every part number →
Components 57 items # BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description # SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313 # BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description # PAN,BASE MFR # 39336001 # MOTOR KIT MFR # 3108706916 # APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description # MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # CAPACITOR USE 3100236144 MFR # 35046011 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # RUN CAPACITOR MFR # 38087012 # N/A CAPACITOR,FAN MFR # 38087003 # COIL,EVAPORATOR MFR # 39305 # WHEEL,BLOWER USE 317958 MFR # 39302 Superseded: see description # APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958 # Air Conditioner Compressor; For Duo-Therm Air Conditioner Brisk Air Model 54615036; Fits Duo-Therm Air Conditioner Brisk Air Model 54615036 MFR # 139318 # SEWER HOSE SEAL, FLEXIBLE 3-IN-1 MFR # 39318 # CAPILLARY TUBE (1 REQUIRED) MFR # 39326 # SEWER HOSE SEAL 4IN X 3IN MFR # 39312 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,BLOWER MFR # 36763 # AIRBOX ASM MFR # 38230 # KIT SVC AIR FILTER MFR # 3313107103 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # TEMPLATE,CEILING MFR # 38169 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # RHINOFLEX 90 DEGREE MFR # 39857 # SHROUD 12' MFR # 3309518003 # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # ANCHOR BOLT (LONG STUD) MFR # 38173001 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422 # INSTALLATION KIT 5321 2-036 MFR # 3101421 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423 # ANCHOR BOLT (HOOK) MFR # 38174001
53210055
Dometic Brisk Air 53210055 — parts list sheet Full-resolution diagram + every part number →
Components 61 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # PAN,BASE USE 1317097 MFR # 39999 Superseded: see description # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # MOTOR USE 20285 MFR # 37892 Superseded: see description # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # MOTOR KIT MFR # 3108706916 # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235 # CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description # CAPACITOR, START MFR # 47C # APPLIANCE COMPONENTS RV; Capacitor Use 3100236235 MFR # 3100236177 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # CAPACITOR,RUN USE 3100248065 MFR # 38087006 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065 # N/A CAPACITOR,FAN MFR # 38087003 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # COMPRESSOR USE 138184 MFR # 38184 Superseded: see description # APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008 # COMPRESSOR USE 46-2990 MFR # 138184 Superseded: see description # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,BLOWER MFR # 36763 # AIRBOX ASM MFR # 38230 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # KIT SVC AIR FILTER MFR # 3313107103 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # CEILING TEMPLATE MFR # 39978 # ROOF FLASHING MFR # 310181 # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD 12' MFR # 3309518003 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # J BOLTS USE 38174003 MFR # 39948 Superseded: see description # J BOLTS MDL# 55912-041 MFR # 38174003 # BOLT 53212 SERIES MFR # 39952 # BOLT 53212 SERIES MFR # 39953 # BOLT 53212 SERIES MFR # 39954 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A # COVER,VINYL MFR # 38762
53210004
Dometic Brisk Air 53210004 — exploded parts diagram Full-resolution diagram + every part number →
Components 65 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # PAN,BASE USE 1317097 & 1317098 MFR # 38466 Superseded: see description # HOUSING KIT 10" MFR # 1317098 # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # MOTOR USE 20285 MFR # 37892 Superseded: see description # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # MOTOR KIT MFR # 3108706916 # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # CAPACITOR, START MFR # 47C # APPLIANCE COMPONENTS RV; Capacitor Use 3100236235 MFR # 3100236177 Superseded: see description # Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235 # CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065 # CAPACITOR,RUN USE 3100248065 MFR # 38087006 Superseded: see description # N/A CAPACITOR,FAN MFR # 38087003 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # COMPRESSOR USE 46-2990 MFR # 138184 Superseded: see description # APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008 # COMPRESSOR USE 138184 MFR # 38184 Superseded: see description # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,BLOWER MFR # 36763 # AIRBOX ASM MFR # 38230 # KIT SVC AIR FILTER MFR # 3313107103 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # TEMPLATE,CEILING MFR # 38169 # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD 12' MFR # 3309518003 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # COVER,VINYL MFR # 38762 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A # ANCHOR BOLT (HOOK) MFR # 38174001 # INSTALLATION KIT 5321 2-036 MFR # 3101421 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422 # ANCHOR BOLT (LONG STUD) MFR # 38173001 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423
53210034
Dometic Brisk Air 53210034 — parts list sheet Full-resolution diagram + every part number →
Components 68 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # PAN,BASE USE 1317097 & 1317098 MFR # 38466 Superseded: see description # HOUSING KIT 10" MFR # 1317098 # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # MOTOR USE 20285 MFR # 39648 Superseded: see description # MOTOR KIT MFR # 3108706916 # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # CAPACITOR, START MFR # 47C # Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235 # APPLIANCE COMPONENTS RV; Capacitor Use 3100236235 MFR # 3100236177 Superseded: see description # CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # CAPACITOR,RUN USE 3100248065 MFR # 38087006 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065 # N/A CAPACITOR,FAN MFR # 38087003 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008 # COMPRESSOR USE 138184 MFR # 38184 Superseded: see description # COMPRESSOR USE 46-2990 MFR # 138184 Superseded: see description # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # AIRBOX ASM 5461 5 A/C MFR # 39684 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # KNOB USE 3100364011 MFR # 38151 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # TEMPLATE,CEILING MFR # 38169 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD 12' MFR # 3309518003 # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # COVER,VINYL MFR # 38762 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A # ANCHOR BOLT (LONG STUD) MFR # 38173001 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422 # INSTALLATION KIT 5321 2-036 MFR # 3101421 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423 # ANCHOR BOLT (HOOK) MFR # 38174001
53212054
Dometic Brisk Air 53212054 — parts list sheet Full-resolution diagram + every part number →
Components 59 items # COIL,CONDENSER USE 1312936 MFR # 39311 Superseded: see description # COIL KIT 3093 12000 MFR # 1312936 # BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description # SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313 # BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description # FAN BLADE MFR # 3313107015 # BASE PAN MFR # 39997 # APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description # MOTOR KIT MFR # 3108706916 # MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # CAPACITOR USE 3100236144 MFR # 35046011 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # RUN CAPACITOR MFR # 38087012 # N/A CAPACITOR,FAN MFR # 38087003 # RING,BLOWER INLET MFR # 39304 # APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958 # WHEEL,BLOWER USE 317958 MFR # 39302 Superseded: see description # SEWER HOSE SEAL, FLEXIBLE 3-IN-1 MFR # 39318 # Air Conditioner Compressor; For Duo-Therm Air Conditioner Brisk Air Model 54615036; Fits Duo-Therm Air Conditioner Brisk Air Model 54615036 MFR # 139318 # CAPILLARY TUBE (1 REQUIRED) MFR # 39326 # SEWER HOSE SEAL 4IN X 3IN MFR # 39312 # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,BLOWER MFR # 36763 # AIRBOX ASM MFR # 38230 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # KNOB USE 3100364011 MFR # 38151 Superseded: see description # CEILING TEMPLATE MFR # 39978 # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # RHINOFLEX 90 DEGREE MFR # 39857 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # ROOF FLASHING MFR # 310181 # SHROUD 12' MFR # 3309518003 # SHROUD KIT CLOSED END SW MFR # 3309364028 # J BOLTS USE 38174003 MFR # 39948 Superseded: see description # J BOLTS MDL# 55912-041 MFR # 38174003 # BOLT 53212 SERIES MFR # 39952 # BOLT 53212 SERIES MFR # 39953 # BOLT 53212 SERIES MFR # 39954
53210065
Dometic Brisk Air 53210065 — parts list sheet Full-resolution diagram + every part number →
Components 60 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # PAN,BASE USE 1317097 & 1317098 MFR # 38466 Superseded: see description # HOUSING KIT 10" MFR # 1317098 # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # MOTOR USE 20285 MFR # 39648 Superseded: see description # MOTOR KIT MFR # 3108706916 # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # N/A START RELAY MFR # 350407 # N/A START CAPACITOR MFR # 350462 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # RUN CAPACITOR MFR # 380876 # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # CAPACITOR,FAN USE 3100236144 MFR # 380873 Superseded: see description # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # COMPRESSOR USE 138184 MFR # 38184 Superseded: see description # APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008 # COMPRESSOR USE 46-2990 MFR # 138184 Superseded: see description # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # AIRBOX ASM 5461 5 A/C MFR # 39684 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # KIT SVC AIR FILTER MFR # 3313107103 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # TEMPLATE,CEILING MFR # 38169 # CARGO CARRIER 1- 1/4" RV MNT MFR # 38174 # SHROUD KIT CLOSED END SW MFR # 3309364028 # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD 12' MFR # 3309518003 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A # COVER,VINYL MFR # 38762 # ANCHOR BOLT(STUD-LONG) MFR # 381731 # INSTALLATION KIT 5321 2-036 MFR # 3101421 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422 # BOLT,ANCHOR (HOOK) MFR # 381741

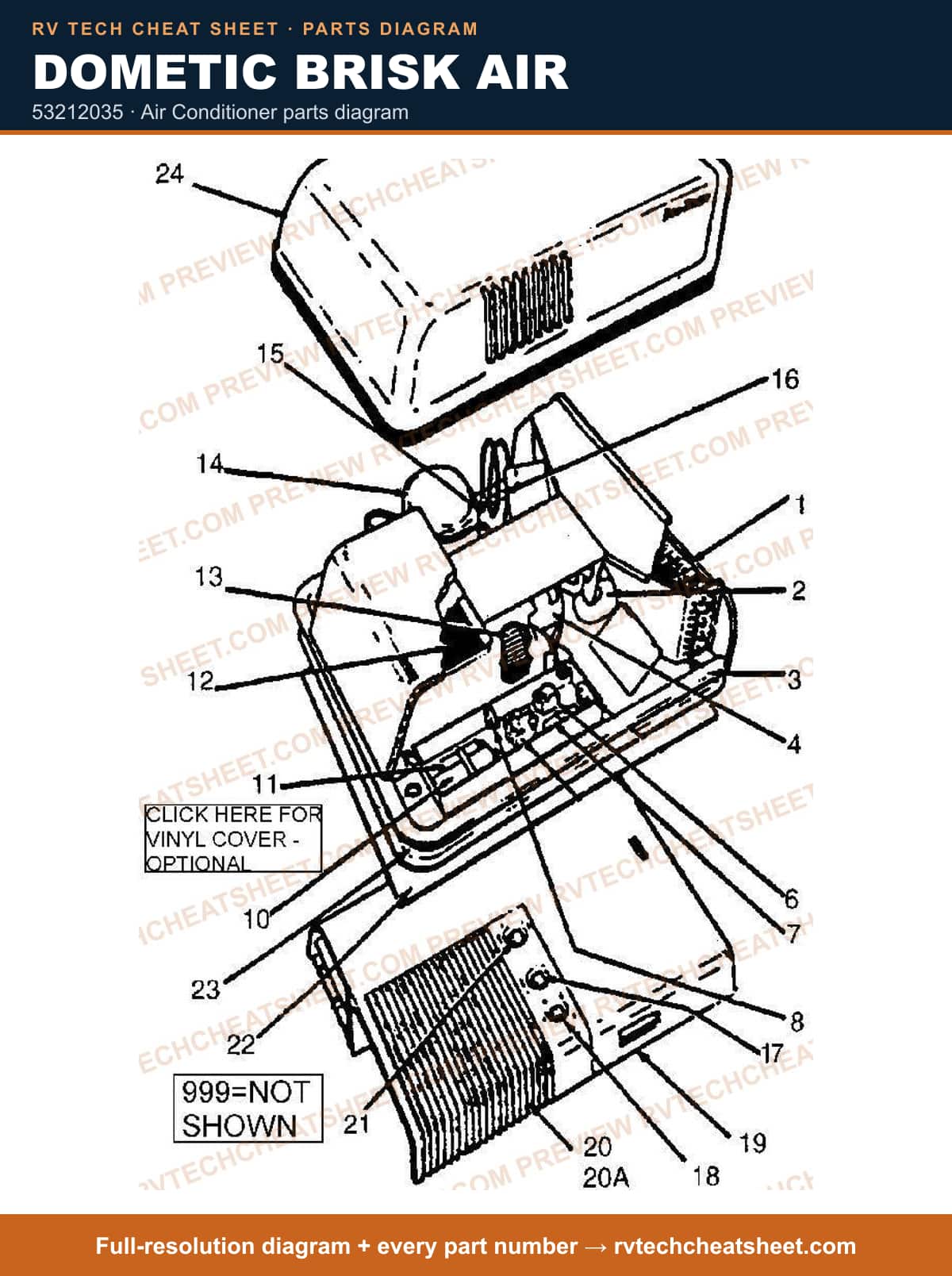

53212035
Dometic Brisk Air 53212035 — parts list sheet Full-resolution diagram + every part number →
Components 58 items # COIL,CONDENSER USE 1312936 MFR # 39311 Superseded: see description # COIL KIT 3093 12000 MFR # 1312936 # FAN BLADE MFR # 3313107015 # BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description # BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description # SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313 # PAN,BASE MFR # 39336001 # MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description # MOTOR KIT MFR # 3108706916 # MOTOR,A/C USE 20290 MFR # 39650 Superseded: see description # APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # CAPACITOR USE 3100236144 MFR # 35046011 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # RUN CAPACITOR MFR # 38087012 # N/A CAPACITOR,FAN MFR # 38087003 # COIL,EVAPORATOR MFR # 39305 # APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958 # WHEEL,BLOWER USE 317958 MFR # 39302 Superseded: see description # Air Conditioner Compressor; For Duo-Therm Air Conditioner Brisk Air Model 54615036; Fits Duo-Therm Air Conditioner Brisk Air Model 54615036 MFR # 139318 # SEWER HOSE SEAL, FLEXIBLE 3-IN-1 MFR # 39318 # CAPILLARY TUBE (1 REQUIRED) MFR # 39326 # SEWER HOSE SEAL 4IN X 3IN MFR # 39312 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # AIRBOX ASM 5461 5 A/C MFR # 39684 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # KNOB USE 3100364011 MFR # 38151 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # SHROUD 12' MFR # 3309518003 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # INSTALLATION KIT 5321 2-036 MFR # 3101421 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423 # ANCHOR BOLT (LONG STUD) MFR # 38173001 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422
53210064

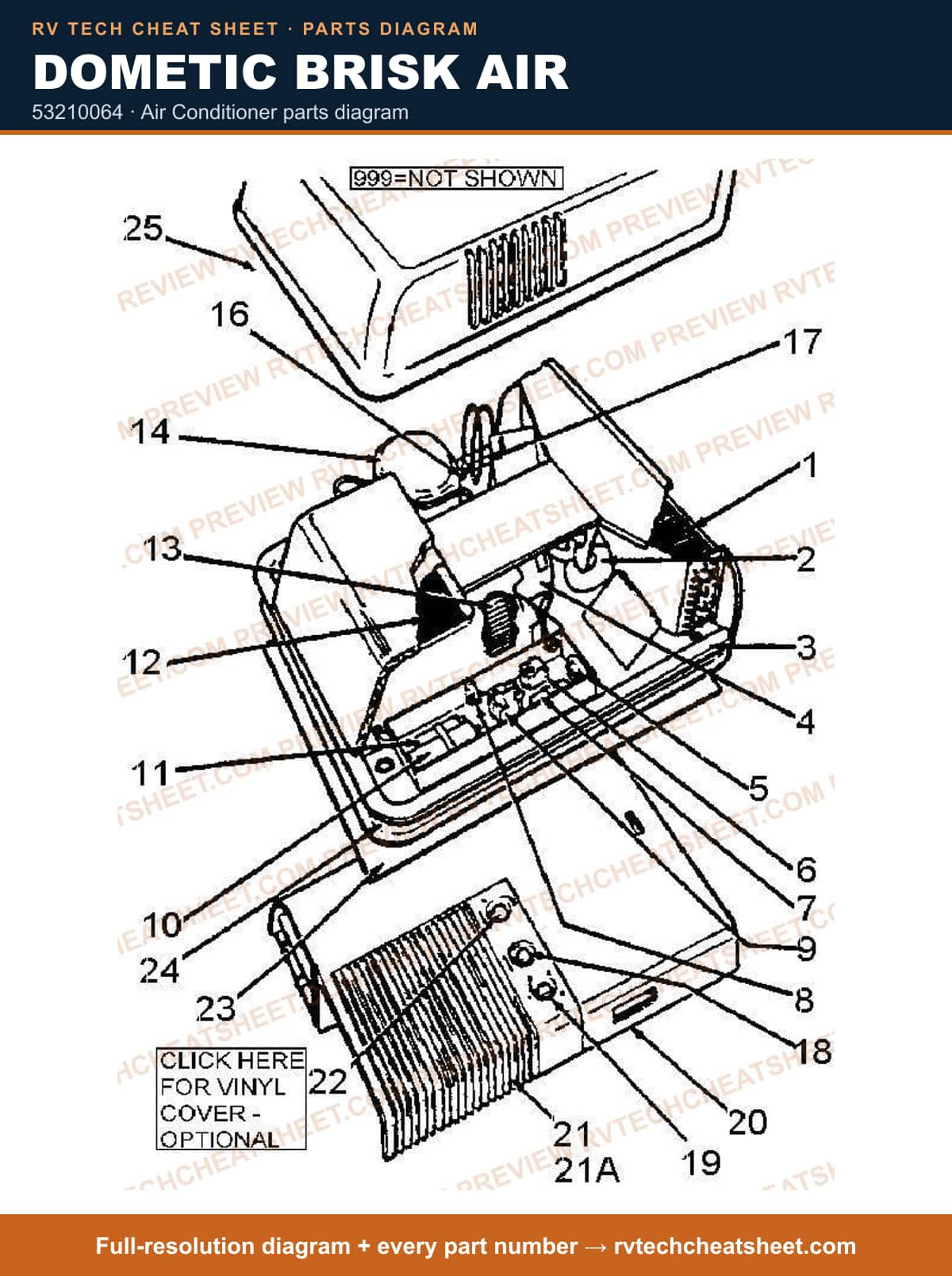

Dometic Brisk Air 53210064 — parts list sheet Full-resolution diagram + every part number →
Components 64 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # PAN,BASE USE 1317097 & 1317098 MFR # 38466 Superseded: see description # HOUSING KIT 10" MFR # 1317098 # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # MOTOR USE 20285 MFR # 39648 Superseded: see description # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # MOTOR KIT MFR # 3108706916 # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # N/A START RELAY MFR # 350407 # N/A START CAPACITOR MFR # 350462 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # RUN CAPACITOR MFR # 380876 # CAPACITOR,FAN USE 3100236144 MFR # 380873 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # COMPRESSOR USE 46-2990 MFR # 138184 Superseded: see description # COMPRESSOR USE 138184 MFR # 38184 Superseded: see description # APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008 # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # AIRBOX ASM 5461 5 A/C MFR # 39684 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # KIT SVC AIR FILTER MFR # 3313107103 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # N/A FILTER GRILLE MFR # 38054 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # KNOB USE 3100364011 MFR # 38151 Superseded: see description # TEMPLATE,CEILING MFR # 38169 # CARGO CARRIER 1- 1/4" RV MNT MFR # 38174 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD 12' MFR # 3309518003 # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A # COVER,VINYL MFR # 38762 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423 # ANCHOR BOLT(STUD-LONG) MFR # 381731 # INSTALLATION KIT 5321 2-036 MFR # 3101421 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422 # BOLT,ANCHOR (HOOK) MFR # 381741 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689
53206035
Dometic Brisk Air 53206035 — parts list sheet Full-resolution diagram + every part number →
Components 58 items # CONDENSER COIL MFR # 37957 # BLADE,FAN MFR # 37929 # PAN,BASE USE 1317097 & 1317098 MFR # 38466 Superseded: see description # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # HOUSING KIT 10" MFR # 1317098 # TRAILHEAD FOR SOLID STEP 2PC 20 MFR # 20287 # MOTOR USE 20287 A/C 54603 MFR # 39649 Superseded: see description # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # CAPACITOR, START MFR # 47C # Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235 # CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # CAPACITOR,RUN MFR # 38087004 # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248537 # CAPACITOR,FAN USE 3100248537 MFR # 38087001 Superseded: see description # CAPACITOR USE 315010001 MFR # F7901 Superseded: see description # COIL,EVAPORATOR 5460 8 MFR # 37923 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 38023 Superseded: see description # COMPRESSOR MFR # 38183 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # KNOB USE 3100364011 MFR # 38151 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # TEMPLATE,CEILING MFR # 38169 # SHROUD 12' MFR # 3309518003 # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # COVER,VINYL MFR # 38762 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A # ANCHOR BOLT (HOOK) MFR # 38174001 # ANCHOR BOLT (LONG STUD) MFR # 38173001 # INSTALLATION KIT 5321 2-036 MFR # 3101421 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689
53206005

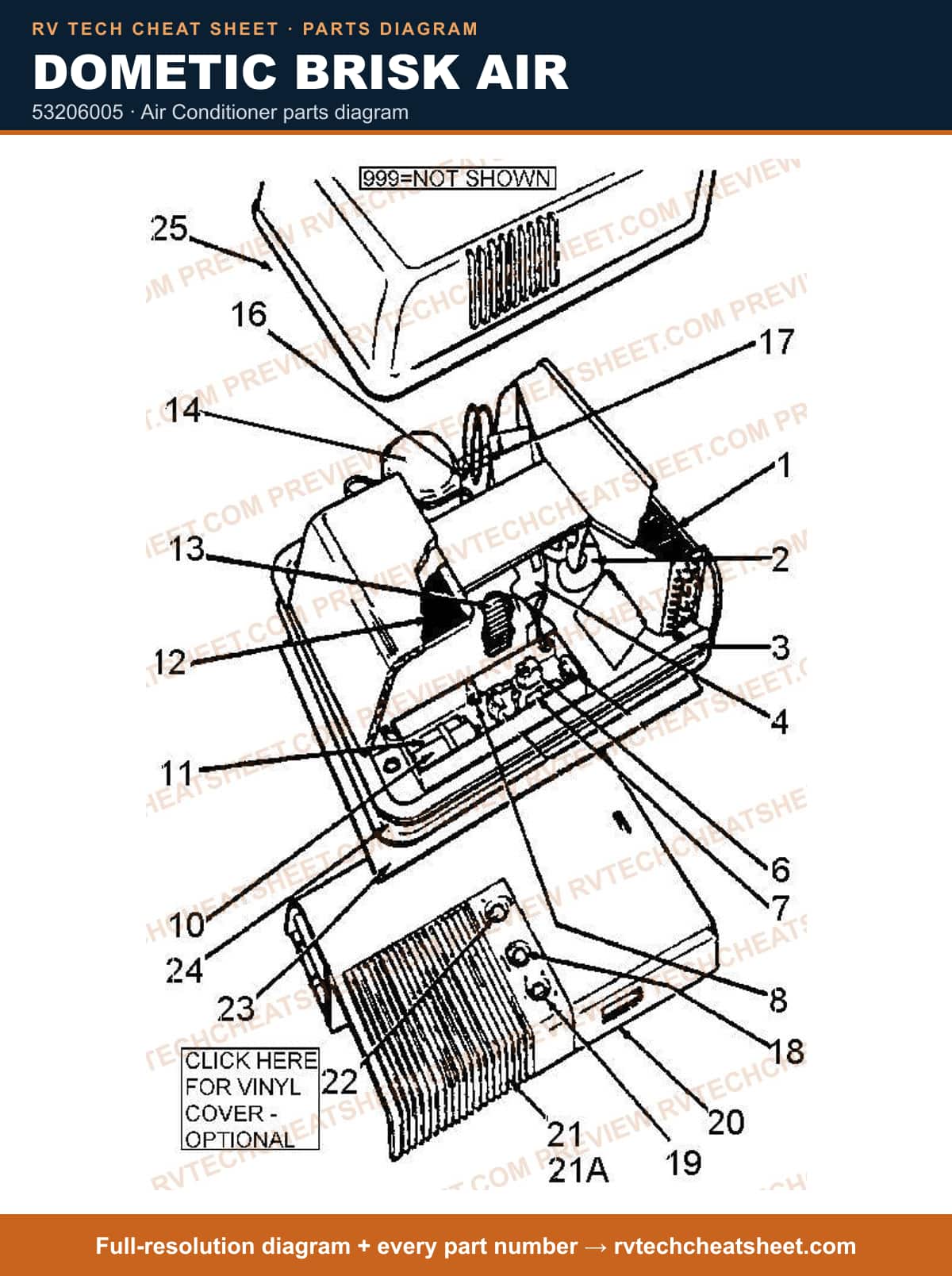

Dometic Brisk Air 53206005 — parts list sheet Full-resolution diagram + every part number →
Components 58 items # CONDENSER COIL MFR # 37957 # BLADE,FAN MFR # 37929 # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # HOUSING KIT 10" MFR # 1317098 # PAN,BASE USE 1317097 & 1317098 MFR # 38466 Superseded: see description # TRAILHEAD FOR SOLID STEP 2PC 20 MFR # 20287 # MOTOR,FAN USE 20287 MFR # 37893 Superseded: see description # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Use 3100236235 MFR # 3100236177 Superseded: see description # CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description # Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235 # CAPACITOR, START MFR # 47C # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # CAPACITOR,RUN MFR # 38087004 # CAPACITOR USE 315010001 MFR # F7901 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248537 # CAPACITOR,FAN USE 3100248537 MFR # 38087001 Superseded: see description # COIL,EVAPORATOR 5460 8 MFR # 37923 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 38023 Superseded: see description # COMPRESSOR MFR # 38183 # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,BLOWER MFR # 36763 # AIRBOX ASM MFR # 38230 # KIT SVC AIR FILTER MFR # 3313107103 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # TEMPLATE,CEILING MFR # 38169 # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD 12' MFR # 3309518003 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A # COVER,VINYL MFR # 38762 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423 # ANCHOR BOLT (LONG STUD) MFR # 38173001 # ANCHOR BOLT (HOOK) MFR # 38174001 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422 # INSTALLATION KIT 5321 2-036 MFR # 3101421 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689
53210102
Dometic Brisk Air 53210102 — parts list sheet Full-resolution diagram + every part number →
Components 42 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # PAN,BASE USE 1317097 & 1317098 MFR # 38466 Superseded: see description # HOUSING KIT 10" MFR # 1317098 # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # MOTOR MFR # H7892 # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # RELAY,START MFR # H50406 # BLOCK,TERMINAL MFR # H504610 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE CONTACTOR MFR # H7948 # RUN CAPACITOR MFR # 380876 # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # CAPACITOR,FAN USE 3100236144 MFR # 380873 Superseded: see description # COIL,EVAPORATOR MFR # H7922 # WHEEL,BLOWER MFR # H7930 # COMPRESSOR MFR # H78851 # OVERLOAD MFR # H78862 # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # T-STAT USE 34825 MFR # H4825 Superseded: see description # SWITCH,BLOWER MFR # H6763 # AIRBOX ASM MFR # 38230 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # TEMPLATE,CEILING MFR # 38169 # SHROUD MFR # H7960

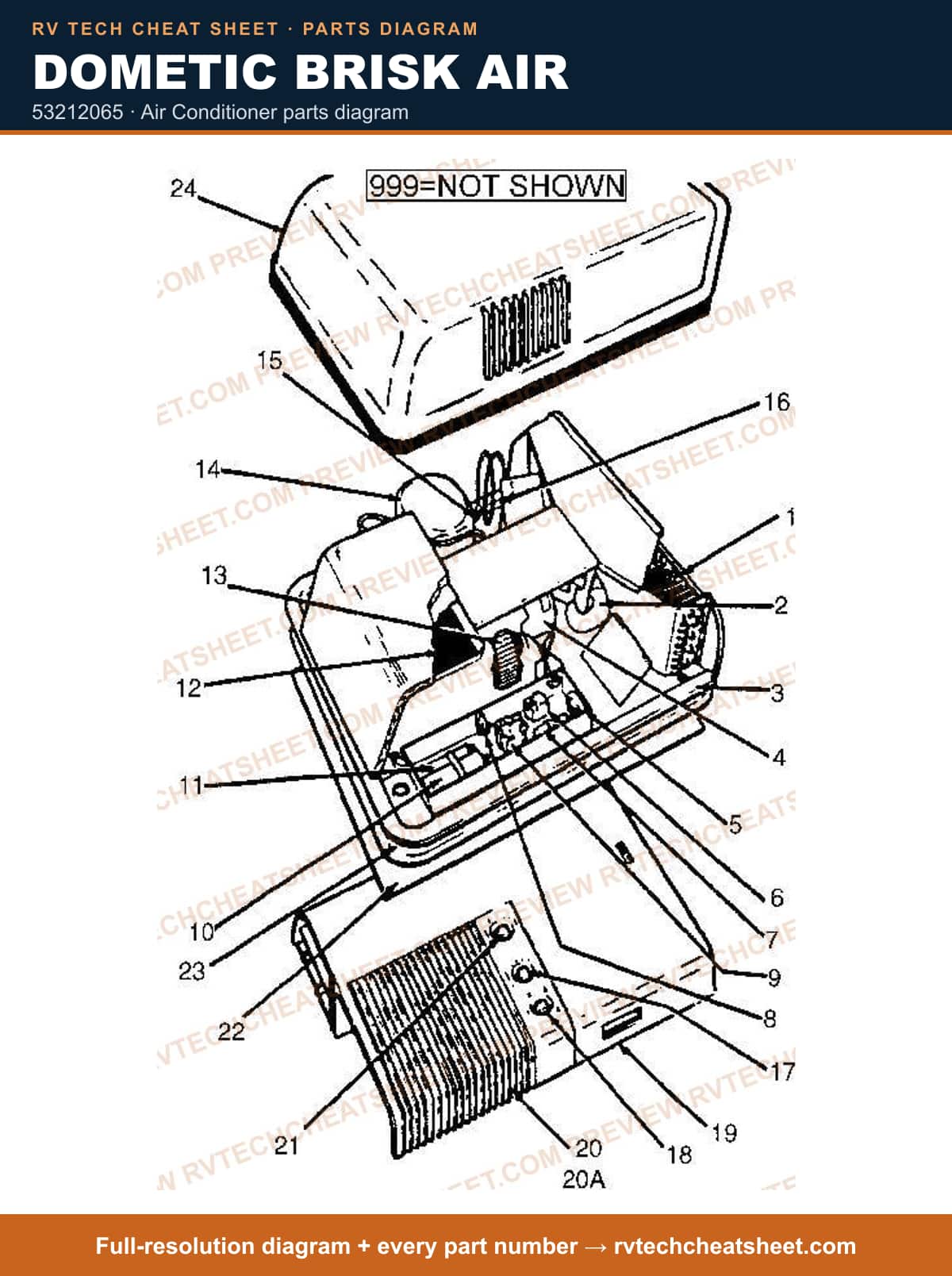

53212065
Dometic Brisk Air 53212065 — parts list sheet Full-resolution diagram + every part number →
Components 63 items # COIL KIT 3093 12000 MFR # 1312936 # COIL,CONDENSER USE 1312936 MFR # 39311 Superseded: see description # BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description # BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description # SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313 # FAN BLADE MFR # 3313107015 # PAN,BASE MFR # 39336001 # MOTOR KIT MFR # 3108706916 # MOTOR,A/C USE 20290 MFR # 39650 Superseded: see description # APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description # MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # CAPACITOR USE 3100236144 MFR # 35046011 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # RUN CAPACITOR MFR # 38087012 # N/A CAPACITOR,FAN MFR # 38087003 # COIL,EVAPORATOR MFR # 39305 # APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958 # WHEEL,BLOWER USE 317958 MFR # 39302 Superseded: see description # SEWER HOSE SEAL, FLEXIBLE 3-IN-1 MFR # 39318 # Air Conditioner Compressor; For Duo-Therm Air Conditioner Brisk Air Model 54615036; Fits Duo-Therm Air Conditioner Brisk Air Model 54615036 MFR # 139318 # CAPILLARY TUBE (1 REQUIRED) MFR # 39326 # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # Toilet Floor Mounting Bracket; For Installing Traveler ®/ SeaLand ® Toilets; Round 4 Bolt Style; Platinum MFR # 310141 # N/A FILTER GRILLE MFR # 38054 # KIT SVC AIR FILTER MFR # 3313107103 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # KNOB USE 3100364011 MFR # 38151 Superseded: see description # KNOB,BLACK USE 3100364011 MFR # 316517 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # TEMPLATE,CEILING MFR # 38169 # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # RHINOFLEX 90 DEGREE MFR # 39857 # SHROUD 12' MFR # 3309518003 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423 # BOLT FOR 3-13/16" TO 5-1/4" THICK ROOF MFR # 6101422 # ANCHOR BOLT (LONG STUD) MFR # 38173001 # INSTALLATION KIT 5321 2-036 MFR # 3101421 # ANCHOR BOLT (HOOK) MFR # 38174001 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689
53212064
Dometic Brisk Air 53212064 — parts list sheet Full-resolution diagram + every part number →
Components 60 items # COIL KIT 3093 12000 MFR # 1312936 # COIL,CONDENSER USE 1312936 MFR # 39311 Superseded: see description # BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description # BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description # SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313 # FAN BLADE MFR # 3313107015 # PAN,BASE MFR # 39336001 # APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description # MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description # MOTOR KIT MFR # 3108706916 # MOTOR,A/C USE 20290 MFR # 39650 Superseded: see description # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # CAPACITOR USE 3100236144 MFR # 35046011 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # RUN CAPACITOR MFR # 38087012 # N/A CAPACITOR,FAN MFR # 38087003 # COIL,EVAPORATOR MFR # 39305 # WHEEL,BLOWER USE 317958 MFR # 39302 Superseded: see description # APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958 # SEWER HOSE SEAL, FLEXIBLE 3-IN-1 MFR # 39318 # Air Conditioner Compressor; For Duo-Therm Air Conditioner Brisk Air Model 54615036; Fits Duo-Therm Air Conditioner Brisk Air Model 54615036 MFR # 139318 # CAPILLARY TUBE (1 REQUIRED) MFR # 39326 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # Toilet Floor Mounting Bracket; For Installing Traveler ®/ SeaLand ® Toilets; Round 4 Bolt Style; Platinum MFR # 310141 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # KIT SVC AIR FILTER MFR # 3313107103 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # N/A FILTER GRILLE MFR # 38054 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB,BLACK USE 3100364011 MFR # 316517 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # TEMPLATE,CEILING MFR # 38169 # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # RHINOFLEX 90 DEGREE MFR # 39857 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD 12' MFR # 3309518003 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # ANCHOR BOLT (LONG STUD) MFR # 38173001 # ANCHOR BOLT (HOOK) MFR # 38174001
53210175
Dometic Brisk Air 53210175 — parts list sheet Full-resolution diagram + every part number →
Components 65 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # BASE PAN MFR # 39998 # MOTOR KIT MFR # 3108706916 # MOTOR USE 20285 MFR # 39648 Superseded: see description # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # RELAY KIT START ROTARY MFR # 1318289001 # RELAY USE 1318289001 MFR # 35040006 Superseded: see description # CAPACITOR USE 3100236144 MFR # 35046014 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # CAPACITOR USE 35046014 MFR # 35046010 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065 # CAPACITOR,RUN USE 3100248065 MFR # 38087006 Superseded: see description # N/A CAPACITOR,FAN MFR # 38087003 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # COMPRESSOR USE P11360 MFR # 37885001 Superseded: see description # COMPRESSOR USE 501648101Q35 MFR # P11360 Superseded: see description # COMPRESSOR MFR # 501648101Q35 # SWITCH,OVERLOAD USE 3100250152 MFR # 37886002 Superseded: see description # SWITCH,OVERLOAD MFR # 3100250244 # SWITCH USE 3100250244 MFR # 3100250152 Superseded: see description # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # AIRBOX ASM 5461 5 A/C MFR # 39684 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # KIT SVC AIR FILTER MFR # 3313107103 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # CEILING TEMPLATE MFR # 39978 # ROOF FLASHING MFR # 310181 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD 12' MFR # 3309518003 # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # J BOLTS USE 38174003 MFR # 39948 Superseded: see description # J BOLTS MDL# 55912-041 MFR # 38174003 # BOLT 53212 SERIES MFR # 39952 # BOLT 53212 SERIES MFR # 39953 # BOLT 53212 SERIES MFR # 39954 # COVER,VINYL MFR # 38762 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A

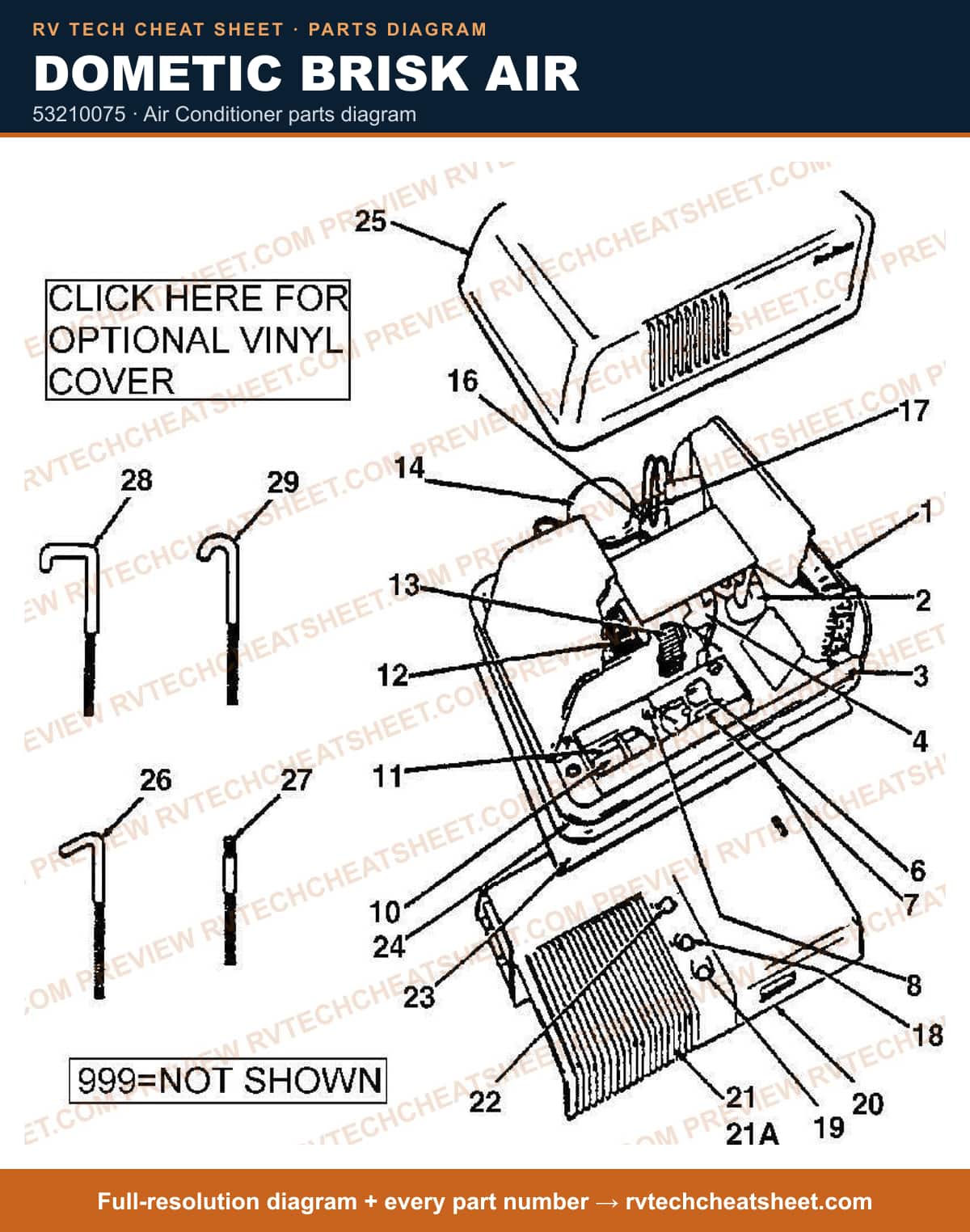

53210075
Dometic Brisk Air 53210075 — parts list sheet Full-resolution diagram + every part number →
Components 64 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # PAN,BASE USE 1317097 MFR # 39999 Superseded: see description # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # MOTOR USE 20285 MFR # 39648 Superseded: see description # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # MOTOR KIT MFR # 3108706916 # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description # CAPACITOR, START MFR # 47C # Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # CAPACITOR,RUN USE 3100248065 MFR # 38087006 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065 # N/A CAPACITOR,FAN MFR # 38087003 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008 # COMPRESSOR USE 138184 MFR # 38184 Superseded: see description # COMPRESSOR USE 46-2990 MFR # 138184 Superseded: see description # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # AIRBOX ASM 5461 5 A/C MFR # 39684 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # KIT SVC AIR FILTER MFR # 3313107103 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # CEILING TEMPLATE MFR # 39978 # ROOF FLASHING MFR # 310181 # SHROUD 12' MFR # 3309518003 # SHROUD KIT CLOSED END SW MFR # 3309364028 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # J BOLTS MDL# 55912-041 MFR # 38174003 # J BOLTS USE 38174003 MFR # 39948 Superseded: see description # BOLT 53212 SERIES MFR # 39952 # BOLT 53212 SERIES MFR # 39953 # BOLT 53212 SERIES MFR # 39954 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A # COVER,VINYL MFR # 38762
53212066
Dometic Brisk Air 53212066 — parts list sheet Full-resolution diagram + every part number →
Components 63 items # COIL KIT 3093 12000 MFR # 1312936 # COIL,CONDENSER USE 1312936 MFR # 39311 Superseded: see description # BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description # BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description # FAN BLADE MFR # 3313107015 # SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313 # PAN,BASE MFR # 39336001 # MOTOR,A/C USE 20290 MFR # 39650 Superseded: see description # APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description # MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description # MOTOR KIT MFR # 3108706916 # RELAY,TIME DELAY 532- 546 MFR # 310456 # RELAY, START TECUMSEH MFR # P82965 # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # CAPACITOR USE 3100236144 MFR # 35046011 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RUN CAPACITOR MFR # 38087012 # N/A CAPACITOR,FAN MFR # 38087003 # COIL,EVAPORATOR MFR # 39305 # APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958 # WHEEL,BLOWER USE 317958 MFR # 39302 Superseded: see description # Air Conditioner Compressor; For Duo-Therm Air Conditioner Brisk Air Model 54615036; Fits Duo-Therm Air Conditioner Brisk Air Model 54615036 MFR # 139318 # SEWER HOSE SEAL, FLEXIBLE 3-IN-1 MFR # 39318 # CAPILLARY TUBE (1 REQUIRED) MFR # 39326 # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # Toilet Floor Mounting Bracket; For Installing Traveler ®/ SeaLand ® Toilets; Round 4 Bolt Style; Platinum MFR # 310141 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # KIT SVC AIR FILTER MFR # 3313107103 # N/A FILTER GRILLE MFR # 38054 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # KNOB,BLACK USE 3100364011 MFR # 316517 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # TEMPLATE,CEILING MFR # 38169 # SHROUD 12' MFR # 3309518003 # RHINOFLEX 90 DEGREE MFR # 39857 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # ANCHOR BOLT (LONG STUD) MFR # 38173001 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # INSTALLATION KIT 5321 2-036 MFR # 3101421 # BOLT FOR 3-13/16" TO 5-1/4" THICK ROOF MFR # 6101422 # ANCHOR BOLT (HOOK) MFR # 38174001 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423
53210176
Dometic Brisk Air 53210176 — parts list sheet Full-resolution diagram + every part number →
Components 68 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # BASE PAN MFR # 39998 # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # MOTOR KIT MFR # 3108706916 # MOTOR USE 20285 MFR # 39648 Superseded: see description # RELAY,TIME DELAY 532- 546 MFR # 310456 # RELAY KIT START ROTARY MFR # 1318289001 # RELAY USE 1318289001 MFR # 35040006 Superseded: see description # CAPACITOR USE 35046014 MFR # 35046010 Superseded: see description # CAPACITOR USE 3100236144 MFR # 35046014 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065 # CAPACITOR,RUN USE 3100248065 MFR # 38087006 Superseded: see description # N/A CAPACITOR,FAN MFR # 38087003 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # COMPRESSOR USE P11360 MFR # 37885001 Superseded: see description # COMPRESSOR USE 501648101Q35 MFR # P11360 Superseded: see description # COMPRESSOR MFR # 501648101Q35 # SWITCH USE 3100250244 MFR # 3100250152 Superseded: see description # SWITCH,OVERLOAD USE 3100250152 MFR # 37886002 Superseded: see description # SWITCH,OVERLOAD MFR # 3100250244 # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # AIRBOX ASM 5461 5 A/C MFR # 39684 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # KIT SVC AIR FILTER MFR # 3313107103 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # CEILING TEMPLATE MFR # 39978 # ROOF FLASHING MFR # 310181 # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD 12' MFR # 3309518003 # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # J BOLTS USE 38174003 MFR # 39948 Superseded: see description # J BOLTS MDL# 55912-041 MFR # 38174003 # BOLT 53212 SERIES MFR # 39952 # BOLT 53212 SERIES MFR # 39953 # BOLT 53212 SERIES MFR # 39954 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A # COVER,VINYL MFR # 38762
53210005

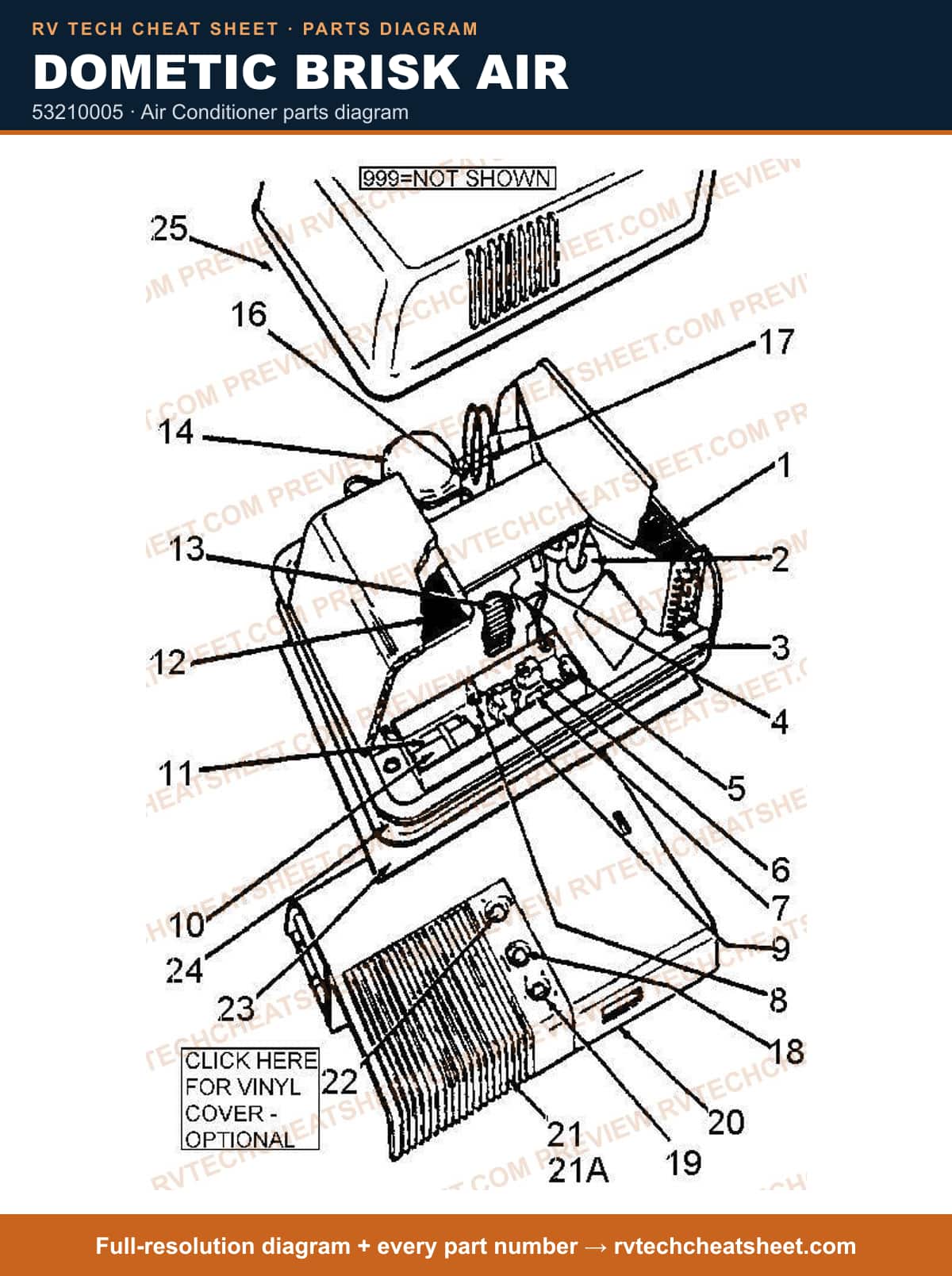

Dometic Brisk Air 53210005 — parts list sheet Full-resolution diagram + every part number →
Components 61 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # HOUSING KIT 10" MFR # 1317098 # PAN,BASE USE 1317097 & 1317098 MFR # 38466 Superseded: see description # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # MOTOR USE 20285 MFR # 37892 Superseded: see description # MOTOR KIT MFR # 3108706916 # RELAY, START TECUMSEH MFR # P82965 # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description # Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235 # APPLIANCE COMPONENTS RV; Capacitor Use 3100236235 MFR # 3100236177 Superseded: see description # CAPACITOR, START MFR # 47C # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # CAPACITOR,RUN USE 3100248065 MFR # 38087006 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065 # N/A CAPACITOR,FAN MFR # 38087003 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008 # COMPRESSOR USE 46-2990 MFR # 138184 Superseded: see description # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,BLOWER MFR # 36763 # AIRBOX ASM MFR # 38230 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # KIT SVC AIR FILTER MFR # 3313107103 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # TEMPLATE,CEILING MFR # 38169 # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD 12' MFR # 3309518003 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # COVER,VINYL MFR # 38762 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A # ANCHOR BOLT (HOOK) MFR # 38174001 # INSTALLATION KIT 5321 2-036 MFR # 3101421 # ANCHOR BOLT (LONG STUD) MFR # 38173001 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423
53210152
Dometic Brisk Air 53210152 — parts list sheet Full-resolution diagram + every part number →
Components 62 items # COIL,CONDENSER 54612 MFR # 37921 # BLADE,FAN MFR # 37929 # BASE PAN MFR # 39998 # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # MOTOR KIT MFR # 3108706916 # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # MOTOR USE 20285 MFR # 37892 Superseded: see description # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY KIT START ROTARY MFR # 1318289001 # RELAY USE 1318289001 MFR # 35040006 Superseded: see description # CAPACITOR USE 35046014 MFR # 35046010 Superseded: see description # CAPACITOR USE 3100236144 MFR # 35046014 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065 # CAPACITOR,RUN USE 3100248065 MFR # 38087006 Superseded: see description # N/A CAPACITOR,FAN MFR # 38087003 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # COMPRESSOR MFR # 501648101Q35 # COMPRESSOR USE P11360 MFR # 37885001 Superseded: see description # COMPRESSOR USE 501648101Q35 MFR # P11360 Superseded: see description # SWITCH,OVERLOAD MFR # 3100250244 # SWITCH USE 3100250244 MFR # 3100250152 Superseded: see description # SWITCH,OVERLOAD USE 3100250152 MFR # 37886002 Superseded: see description # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # AIRBOX ASM MFR # 38230 # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # KNOB USE 3100364011 MFR # 38151 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # CEILING TEMPLATE MFR # 39978 # ROOF FLASHING MFR # 310181 # SHROUD 12' MFR # 3309518003 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # J BOLTS USE 38174003 MFR # 39948 Superseded: see description # J BOLTS MDL# 55912-041 MFR # 38174003 # J BOLTS USE 38174004 MFR # 39949 Superseded: see description # BOLT 53212 SERIES MFR # 39953 # BOLT 53212 SERIES MFR # 39954 # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A # COVER,VINYL MFR # 38762
53210162
Dometic Brisk Air 53210162 — parts list sheet Full-resolution diagram + every part number →
Components 64 items # CONDENSER COIL MFR # 37957 # BLADE,FAN MFR # 37929 # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # PAN,BASE USE 1317097 & 1317098 MFR # 38466 Superseded: see description # HOUSING KIT 10" MFR # 1317098 # MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description # MOTOR KIT MFR # 3108706916 # TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285 # MOTOR USE 20285 MFR # 39648 Superseded: see description # CONVERSION KIT BRIS KAIR 53212 SERIES MFR # 1310514 # RELAY,DELAY USE 1310514 MFR # 38051 Superseded: see description # RELAY USE 1318289001 MFR # 35040006 Superseded: see description # RELAY KIT START ROTARY MFR # 1318289001 # CAPACITOR USE 35046014 MFR # 35046010 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # CAPACITOR USE 3100236144 MFR # 35046014 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # LINE,CONTACT USE 1310514 MFR # 37948 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065 # CAPACITOR,RUN USE 3100248065 MFR # 38087006 Superseded: see description # N/A CAPACITOR,FAN MFR # 38087003 # EVAPORATOR COIL MFR # 37922 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 37930 Superseded: see description # COMPRESSOR USE 501648101Q35 MFR # P11360 Superseded: see description # COMPRESSOR MFR # 501648101Q35 # COMPRESSOR USE P11360 MFR # 37885001 Superseded: see description # SWITCH,OVERLOAD MFR # 3100250244 # SWITCH,OVERLOAD USE 3100250152 MFR # 37886002 Superseded: see description # SWITCH USE 3100250244 MFR # 3100250152 Superseded: see description # APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # AIRBOX ASM 5461 5 A/C MFR # 39684 # KIT SVC AIR FILTER MFR # 3313107103 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # N/A FILTER GRILLE MFR # 38054 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB,BLACK USE 3100364011 MFR # 316517 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # TEMPLATE,CEILING MFR # 38169 # CARGO CARRIER 1- 1/4" RV MNT MFR # 38174 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # SHROUD 12' MFR # 3309518003 # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # ANCHOR BOLT (HOOK) MFR # 38174001 # ANCHOR BOLT (LONG STUD) MFR # 38173001
53206065
Dometic Brisk Air 53206065 — parts list sheet Full-resolution diagram + every part number →
Components 62 items # CONDENSER COIL MFR # 37957 # BLADE,FAN MFR # 37929 # HOUSING KIT 10" MFR # 1317098 # APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097 # PAN,BASE USE 1317097 & 1317098 MFR # 38466 Superseded: see description # MOTOR USE 20287 A/C 54603 MFR # 39649 Superseded: see description # TRAILHEAD FOR SOLID STEP 2PC 20 MFR # 20287 # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description # CAPACITOR, START MFR # 47C # Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # CAPACITOR,RUN MFR # 38087004 # CAPACITOR,FAN USE 3100248537 MFR # 38087001 Superseded: see description # CAPACITOR USE 315010001 MFR # F7901 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248537 # COIL,EVAPORATOR 5460 8 MFR # 37923 # Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 38023 Superseded: see description # COMPRESSOR MFR # 38183 # APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description # Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description # SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description # SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description # Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025 # SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description # AIRBOX ASM 5461 5 A/C MFR # 39684 # FILTER RETURN AIR(UNIVER MFR # 3108015003 # N/A FILTER GRILLE MFR # 38054 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # ATTACHMENT TAPE GREY-EACH MFR # 06384 # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # KIT SVC AIR FILTER MFR # 3313107103 # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # TEMPLATE,CEILING MFR # 38169 # CARGO CARRIER 1- 1/4" RV MNT MFR # 38174 # SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # SHROUD 12' MFR # 3309518003 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A # COVER,VINYL MFR # 38762 # INSTALLATION KIT 5321 2-036 MFR # 3101421 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423 # ANCHOR BOLT (HOOK) MFR # 38174001 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422 # ANCHOR BOLT (LONG STUD) MFR # 38173001
53212025
Dometic Brisk Air 53212025 — parts list sheet Full-resolution diagram + every part number →
Components 55 items # SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313 # BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description # FAN BLADE MFR # 3313107015 # BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description # PAN,BASE MFR # 39336001 # MOTOR KIT MFR # 3108706916 # MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description # APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description # RELAY, START TECUMSEH MFR # P82965 # RELAY USE 3100235070 MFR # 35040007 Superseded: see description # RELAY,START USE P82965 MFR # 3100235070 Superseded: see description # CAPACITOR USE 3100236144 MFR # 35046011 Superseded: see description # APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144 # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024 # RUN CAPACITOR MFR # 38087012 # N/A CAPACITOR,FAN MFR # 38087003 # COIL,EVAPORATOR MFR # 39305 # WHEEL,BLOWER USE 317958 MFR # 39302 Superseded: see description # APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958 # Air Conditioner Compressor; For Duo-Therm Air Conditioner Brisk Air Model 54615036; Fits Duo-Therm Air Conditioner Brisk Air Model 54615036 MFR # 139318 # SEWER HOSE SEAL, FLEXIBLE 3-IN-1 MFR # 39318 # CAPILLARY TUBE (1 REQUIRED) MFR # 39326 # SEWER HOSE SEAL 4IN X 3IN MFR # 39312 # T-STAT USE A22115435 MFR # 313620001 Superseded: see description # NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435 # SWITCH,T-STAT USE MFR # 34825 Superseded: see description # SWITCH,BLOWER MFR # 36763 # AIRBOX ASM MFR # 38230 # Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description # Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description # FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description # Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047 # KIT SVC AIR FILTER MFR # 3313107103 # ATTACHMENT TAPE GREY-EACH MFR # 06384 # FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description # FILTER RETURN AIR(UNIVER MFR # 3108015003 # Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description # APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007 # KNOB USE 3100364011 MFR # 38151 Superseded: see description # KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description # Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024 # TEMPLATE,CEILING MFR # 38169 # SHROUD KIT CLOSED END SW MFR # 3309364028 # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # RHINOFLEX 90 DEGREE MFR # 39857 # SHROUD 12' MFR # 3309518003 # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # ANCHOR BOLT (LONG STUD) MFR # 38173001 # ANCHOR BOLT (HOOK) MFR # 38174001 # BOLT FOR 5-1/4" TO 6-5/8" ROOF THICKNESS MFR # 3101423 # LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689 # BOLT 3-13/16" TO 5-1/4 ROOF THICKNESS MFR # 3101422 # INSTALLATION KIT 5321 2-036 MFR # 3101421

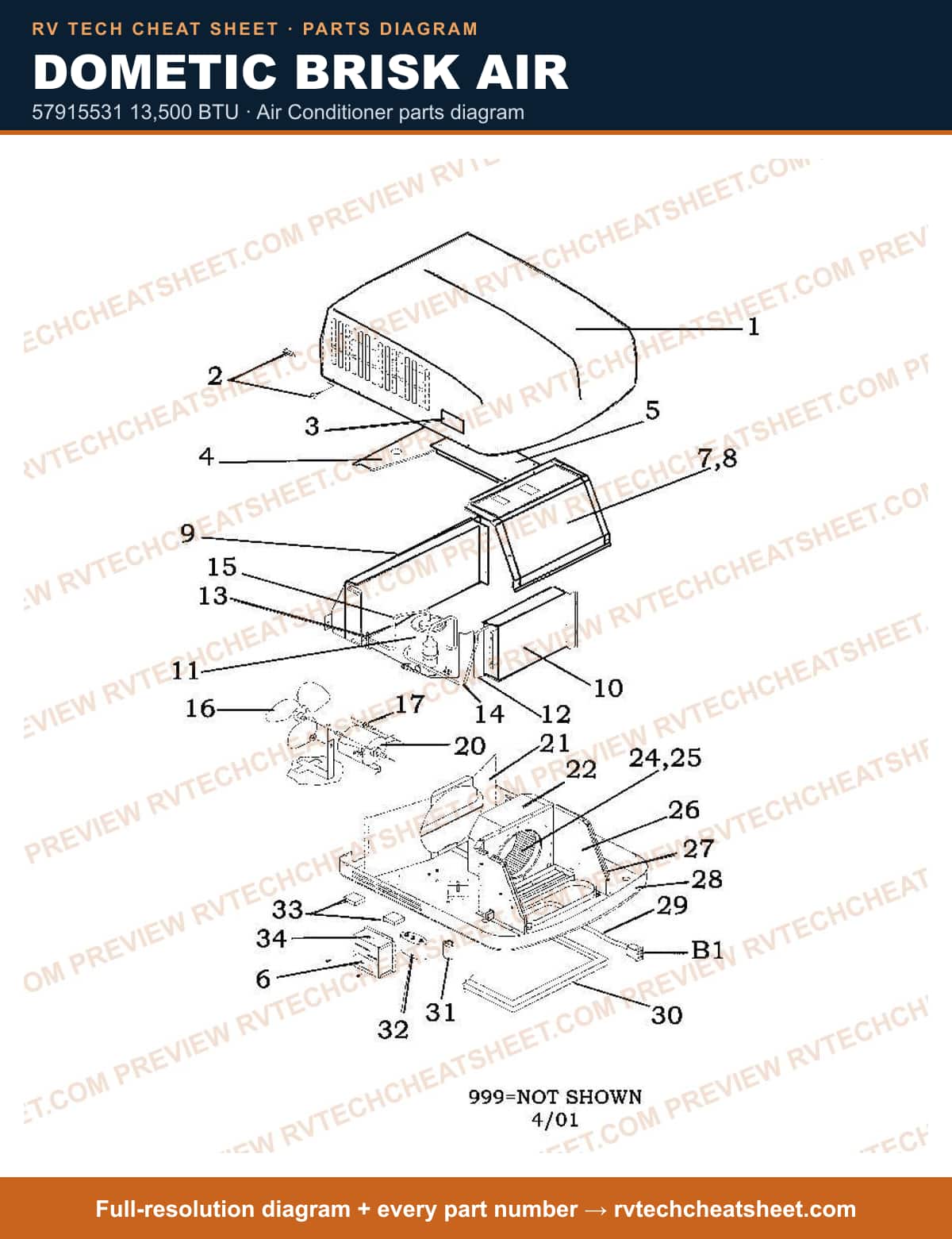

57915531 13,500 BTU
Dometic Brisk Air 57915531 13,500 btu — exploded parts diagram Full-resolution diagram + every part number →
Components 62 items # SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description # SHROUD AC CLOSED END POL WHT ***USE 49-9076*** MFR # 3308782006 Superseded: see description # APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description # SHROUD,AC CLOSED END GRAY MFR # 3308084023 # SHROUD,AC USE 3103144006 SHELL WHITE MFR # 3108239009 Superseded: see description # SHROUD,AC USE 3103148007 MFR # 3108239025 Superseded: see description # Wire Plug Connector; Replacement For Dometic Air Conditioner Compressor; 6 Pole MFR # 3310734003 # APPLIANCE COMPONENTS RV; Connector Plug MFR # 3106625019 # SHROUD,AC USE 3308781008 CLOSED END SHELL WHT MFR # 3308084007 Superseded: see description # SHROUD,AC USE 3308782006 CLOSED END POLAR WHITE MFR # 3308084015 Superseded: see description # Air Conditioner Shroud Mounting Screw; For Use With Dometic Brisk Model Air Conditioner MFR # 3310724004 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Shroud MFR # 313685001 # SHROUD KIT CLOSED END SW MFR # 3309364028 # SHROUD 12' MFR # 3309518003 # SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description # DECAL,SHROUD MFR # 3101380016 # DECAL,SHROUD USE 3101380016 MFR # 3101380008 Superseded: see description # APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017 # SHROUD,GRAY USE 3103148007 BRISK 59016 MFR # 3103146001 Superseded: see description # SHROUD ASM,GREY USE 3309518003 MFR # 3103148007 Superseded: see description # SHROUD,12" USE 3103144006 BEIGE MFR # 3103145003 Superseded: see description # APPLIANCE COMPONENTS RV; Decal MFR # 3100916018 # COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description # COVER, CONDENSER COIL MFR # 309383000 # APPLIANCE COMPONENTS RV; Brace Bulkhead MFR # 3100357023 # INSULATION,EVAPORATOR MFR # 317797001 # COVER,EVAPORATOR MFR # 314885001 # APPLIANCE COMPONENTS RV; Coil Condenser MFR # 3103014001 # APPLIANCE COMPONENTS RV; Compressor MFR # 3102619008 # PROTECTOR,OVERLOAD USE 49-8799 USE 3312301009 MFR # 3100250384 Superseded: see description # OVERLOAD USE 3100250384 MFR # 3100250228 Superseded: see description # APPLIANCE COMPONENTS RV; Coil Evaporator Use 31087 MFR # 3100818024 Superseded: see description # APPLIANCE COMPONENTS RV; Coil Kit Evaperator Sing MFR # 3108704523 # COIL,EVAP. USE 3100818024 MFR # 3100818008 Superseded: see description # Air Fuel Separator Suction Tube; Replacement For Duo-Therm 57912008/ 57912009L/ 57915602 Model Refrigerators MFR # 3101146003 # APPLIANCE COMPONENTS RV; Tube Cap .054 X 40 In MFR # 3100245343 # APPLIANCE COMPONENTS RV; Drier Filter MFR # 3100862006 # APPLIANCE COMPONENTS RV; Line Discharge 579 7 8 A MFR # 3101147001 # FAN BLADE MFR # 3313107015 # BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description # BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description # GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description # SERVICE KIT F/MOTOR MFR # 3310725001 # SUPPORT, MOTOR MFR # 317795002 # MOTOR,BLOWER USE 3108706916 MFR # 3100900004 Superseded: see description # MOTOR KIT,FAN USE 3108706916 MFR # 3108701365 Superseded: see description # MOTOR KIT MFR # 3108706916 # MOTOR W/SUPPORT USE 3108701365 MFR # 3108700448 Superseded: see description # APPLIANCE COMPONENTS RV; Bulkhead For Condensor MFR # 317923001 # BASE PAN MFR # 3100832041 # Air Conditioner Compressor Mounting Hardware; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner MFR # 3100238116 # BLOCKS, FOAM MFR # 3100587009 # APPLIANCE COMPONENTS RV; Plate Compressor Mtg MFR # 318203000 # APPLIANCE COMPONENTS RV; Plate Mounting Use 318203 MFR # 3103149005 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Electric Box MFR # 3100828007 # HOUSING,BLOWER USE 3100865033 MFR # 3101145005 Superseded: see description # APPLIANCE COMPONENTS RV; Housing Blower MFR # 3100865033 # INSULATION MFR # 3100833007 # APPLIANCE COMPONENTS RV; Bulkhead Evaporator MFR # 3102772021 # BULKHEAD,EVAP.USE 3102772021 57915-303 MFR # 3100831001 Superseded: see description # APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958 # RING,BLOWER INLET MFR # 39304
