Dometic Brisk Air 54412004 Parts Diagram

Air Conditioner · 1 diagram sheet · 33 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Dometic Brisk Air 54412004 rooftop air conditioner: 33 manufacturer part numbers. 9 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

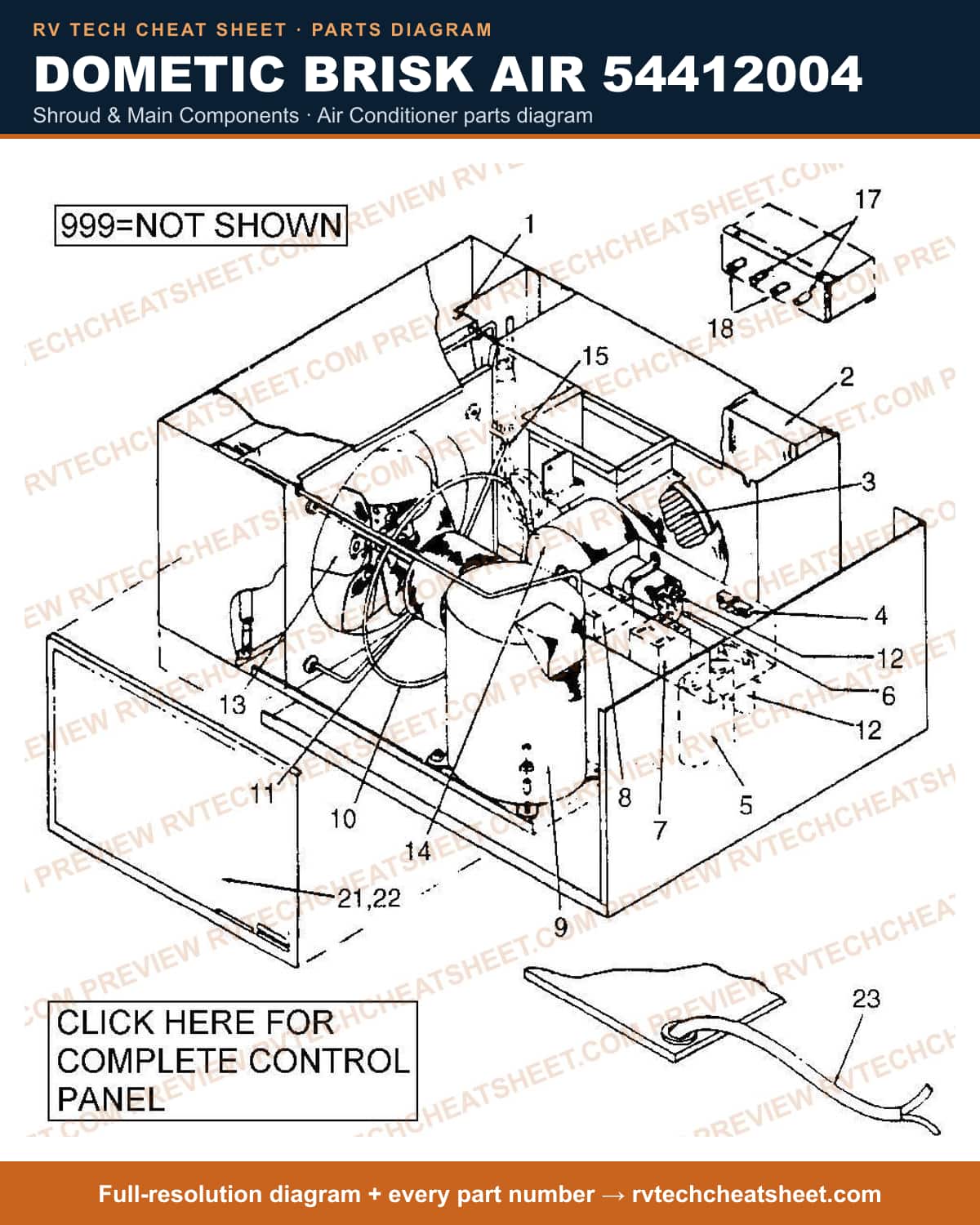

Shroud & Main Components

Components

33 items

1. #TRAILER HITCH MFR # 31071
2. #BLOWER WHEEL MFR # 310763
3. #TERMINAL BLOCK MFR # 310776
4. #RUN CAPACITOR MFR # 38087012
5. #APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144
6. #CAPACITOR USE 3100236144 MFR # 35046011 Superseded: see description
7. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
8. #CAPACITOR, START MFR # 47C
9. #APPLIANCE COMPONENTS RV; Capacitor St.Use 31002362 MFR # 3100236169 Superseded: see description
10. #RELAY USE 3100235161 54412003/.004 MFR # 35040016 Superseded: see description
11. #RELAY,TIME DELAY 532- 546 MFR # 310456
12. #KIT, FULL INDICATOR-VHT MFR # 385310629
13. #MOTOR MOUNT MFR # 3106130000
14. #FAN MOTOR MFR # 310700
15. #N/A CAPACITOR,FAN MFR # 38087003
16. #FAN BLADE MFR # 3107370000
17. #3107360000 MFR # 3107360000
18. #CAPILLARY TUBES MFR # 310829
19. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
20. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
21. #SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description
22. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
23. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
24. #T-STAT USE 313620001 MFR # 310730 Superseded: see description
25. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
26. #GRILLE MFR # 310699
27. #SCREW MFR # 37879001
28. #WIRE HARNESS MFR # 310771
29. #TERMINAL BLOCK MFR # 39208
30. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
31. #TOILET COMPONENTS RV; Board Kit Magnum Opus 24 MFR # 385310890
32. #FILTER DRIER KIT MFR # 311107005
33. #SEPARATOR MFR # 310748
