Dometic Brisk Air 54608235 Parts Diagram · Shroud & Main Components

Air Conditioner · 2 assemblies · 2 diagram sheets · 83 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 54608235 rooftop air conditioner: 2 assemblies (Shroud & Main Components, Ceiling Asm) and 83 manufacturer part numbers. 29 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Shroud & Main Components

Components

83 items

1. #SHROUD W/EXTENSION SHELL WHITE MFR # 313144006
2. #SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description
3. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
5. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
6. #SHROUD KIT CLOSED END SW MFR # 3309364028
7. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
8. #SHROUD 12' MFR # 3309518003
9. #SHROUD DECAL QUIC K START 546 STD MFR # 314195
10. #COVER, CONDENSER COIL MFR # 309383000
11. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
12. #CONDENSER COIL BRACE MFR # 37974
13. #CONDENSER COIL BULKHEAD MFR # 38055
14. #CONDENSER COIL MFR # 37957
15. #HOUSING KIT 10" MFR # 1317098
16. #EVAPORATOR HOUSING KIT MFR # 137098
17. #APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097
18. #COVER,EVAP. 10" MFR # 314884
19. #COIL,EVAPORATOR 5460 8 MFR # 37923
20. #BLOWER INLET RING MFR # 33692
21. #Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 38023 Superseded: see description
22. #CLOSE-OFF PLATE RIGHT SIDE MFR # 38053
23. #APPLIANCE COMPONENTS RV; Plate Close Off Rt 54608 MFR # 38052
24. #TUBE,CAP USE 3100245020 MFR # 315752002 Superseded: see description
25. #TUBE, CAP .049X44 IN 599,599,560 MFR # 3100245020
26. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
27. #PLATE,HOLD DOWN MFR # 3101828006
28. #TRAILHEAD FOR SOLID STEP 2PC 20 MFR # 20287
29. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
30. #GROMMET USE 3100230022 MFR # 6107779001 Superseded: see description
31. #SERVICE KIT F/MOTOR MFR # 3310725001
32. #SUPPORT,LOWER MOTOR RVA MFR # 316460
33. #SUPPORT,MOTOR UPPER MFR # 38101001
34. #BLADE,FAN MFR # 37929
35. #COVER CONT MFR # 38146
36. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
37. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
38. #SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description
39. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
40. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
41. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
42. #T-STAT USE 313620001 MFR # 34528 Superseded: see description
43. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
44. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
45. #CONDUIT,FLEX USE 3100237035 MFR # 35087003 Superseded: see description
46. #APPLIANCE COMPONENTS RV; Conduit Flex-All MFR # 3100237035
47. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
48. #KNOB,BLACK USE 3100364011 MFR # 316517 Superseded: see description
49. #KNOB USE 3100364011 MFR # 38151 Superseded: see description
50. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
51. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
52. #CAPACITOR USE 315010001 MFR # F7901 Superseded: see description
53. #CAPACITOR, RUN USE 46-2352 MFR # 315010001 Superseded: see description
54. #APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248537
55. #CAPACITOR *USE 315010016* 15M-440V MFR # 315010004 Superseded: see description
56. #APPLIANCE COMPONENTS RV; Capacitor MFR # 315010016
57. #RELAY,TIME DELAY 532- 546 MFR # 310456
58. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024
59. #RELAY, START TECUMSEH MFR # P82965
60. #RELAY USE 3100235070 MFR # 35040007 Superseded: see description
61. #RELAY,START USE P82965 MFR # 3100235070 Superseded: see description
62. #CAPACITOR, START MFR # 47C
63. #APPLIANCE COMPONENTS RV; Capacitor Use 3100236235 MFR # 3100236177 Superseded: see description
64. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
65. #CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description
66. #COVER,ELCT.BOX 10" 5590 8.041 MFR # 37980
67. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
68. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
69. #ELECTRICAL BOX MFR # 37979
70. #GASKET, GREY, 14 X 14 MFR # 6759A3281
71. #FLASHING,ROOF USE 3100247 MFR # 314931 Superseded: see description
72. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
73. #A/C SEAL, 14 X 14 WHITE MFR # A101414
74. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
75. #ROOF A/C GASKET KIT MFR # 3310718006
76. #TAPE, FOAM (SELL BY FT) RVA 1 X 1/2 MFR # 311300001
77. #APPLIANCE COMPONENTS RV; Seal Roof MFR # 38181
78. #COMPRESSOR MOUNTING GROMMET (4 REQUIRED) MFR # 310780002
79. #APPLIANCE COMPONENTS RV; Bolt Compressor MFR # 313684001
80. #COMPRESSOR MFR # 138183
81. #COMPRESSOR OVERLOAD MFR # 38183006
82. #RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A
83. #COVER,VINYL MFR # 38762

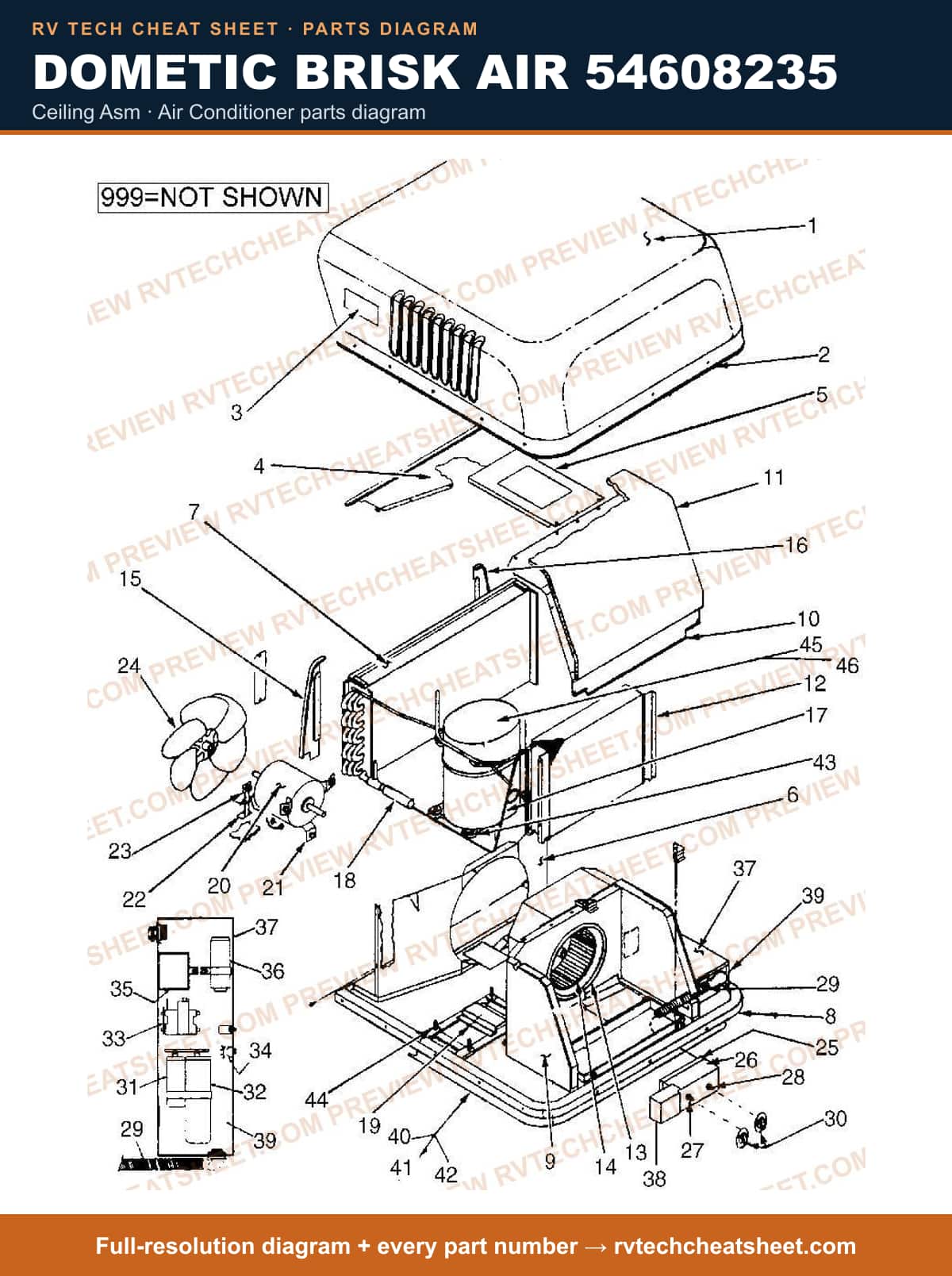

Ceiling Asm

Components

82 items

1. #SHROUD W/EXTENSION SHELL WHITE MFR # 313144006
2. #SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description
3. #SHROUD 12' MFR # 3309518003
4. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
5. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
6. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
7. #SHROUD KIT CLOSED END SW MFR # 3309364028
8. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
9. #SHROUD DECAL QUIC K START 546 STD MFR # 314195
10. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
11. #CONDENSER COIL BRACE MFR # 37974
12. #CONDENSER COIL BULKHEAD MFR # 38055
13. #CONDENSER COIL MFR # 37957
14. #EVAPORATOR HOUSING KIT MFR # 137098
15. #HOUSING KIT 10" MFR # 1317098
16. #APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097
17. #COVER,EVAP. 10" MFR # 314884
18. #COIL,EVAPORATOR 5460 8 MFR # 37923
19. #BLOWER INLET RING MFR # 33692
20. #Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 38023 Superseded: see description
21. #CLOSE-OFF PLATE RIGHT SIDE MFR # 38053
22. #APPLIANCE COMPONENTS RV; Plate Close Off Rt 54608 MFR # 38052
23. #TUBE, CAP .049X44 IN 599,599,560 MFR # 3100245020
24. #TUBE,CAP USE 3100245020 MFR # 315752002 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
26. #PLATE,HOLD DOWN MFR # 3101828006
27. #TRAILHEAD FOR SOLID STEP 2PC 20 MFR # 20287
28. #SERVICE KIT F/MOTOR MFR # 3310725001
29. #GROMMET USE 3100230022 MFR # 6107779001 Superseded: see description
30. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
31. #SUPPORT,LOWER MOTOR RVA MFR # 316460
32. #SUPPORT,MOTOR UPPER MFR # 38101001
33. #BLADE,FAN MFR # 37929
34. #COVER CONT MFR # 38146
35. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
36. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
37. #SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description
38. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
39. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
40. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
41. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
42. #T-STAT USE 313620001 MFR # 34528 Superseded: see description
43. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
44. #CONDUIT,FLEX USE 3100237035 MFR # 35087003 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Conduit Flex-All MFR # 3100237035
46. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
47. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
48. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
49. #KNOB,BLACK USE 3100364011 MFR # 316517 Superseded: see description
50. #KNOB USE 3100364011 MFR # 38151 Superseded: see description
51. #CAPACITOR, RUN USE 46-2352 MFR # 315010001 Superseded: see description
52. #CAPACITOR USE 315010001 MFR # F7901 Superseded: see description
53. #APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248537
54. #APPLIANCE COMPONENTS RV; Capacitor MFR # 315010016
55. #CAPACITOR *USE 315010016* 15M-440V MFR # 315010004 Superseded: see description
56. #RELAY,TIME DELAY 532- 546 MFR # 310456
57. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024
58. #RELAY, START TECUMSEH MFR # P82965
59. #RELAY,START USE P82965 MFR # 3100235070 Superseded: see description
60. #RELAY USE 3100235070 MFR # 35040007 Superseded: see description
61. #CAPACITOR, START MFR # 47C
62. #CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description
63. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
64. #APPLIANCE COMPONENTS RV; Capacitor Use 3100236235 MFR # 3100236177 Superseded: see description
65. #COVER,ELCT.BOX 10" 5590 8.041 MFR # 37980
66. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
67. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
68. #ELECTRICAL BOX MFR # 37979
69. #FLASHING,ROOF USE 3100247 MFR # 314931 Superseded: see description
70. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
71. #A/C SEAL, 14 X 14 WHITE MFR # A101414
72. #GASKET, GREY, 14 X 14 MFR # 6759A3281
73. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
74. #ROOF A/C GASKET KIT MFR # 3310718006
75. #TAPE, FOAM (SELL BY FT) RVA 1 X 1/2 MFR # 311300001
76. #APPLIANCE COMPONENTS RV; Seal Roof MFR # 38181
77. #COMPRESSOR MOUNTING GROMMET (4 REQUIRED) MFR # 310780002
78. #APPLIANCE COMPONENTS RV; Bolt Compressor MFR # 313684001
79. #COMPRESSOR MFR # 138183
80. #COMPRESSOR OVERLOAD MFR # 38183006
81. #RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A
82. #COVER,VINYL MFR # 38762
