Dometic Brisk Air 54608435 Parts Diagram · Shroud & Main Components

Air Conditioner · 2 assemblies · 2 diagram sheets · 114 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 54608435 rooftop air conditioner: 2 assemblies (Shroud & Main Components, Ceiling Asm) and 114 manufacturer part numbers. 40 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Shroud & Main Components

Components

83 items

1. #SHROUD 12' MFR # 3309518003
2. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
3. #SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description
4. #SHROUD W/EXTENSION SHELL WHITE MFR # 313144006
5. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
6. #SHROUD KIT CLOSED END SW MFR # 3309364028
7. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
8. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
9. #SHROUD DECAL QUIC K START 546 STD MFR # 314195
10. #COVER, CONDENSER COIL MFR # 309383000
11. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
12. #CONDENSER COIL BRACE MFR # 37974
13. #CONDENSER COIL BULKHEAD MFR # 38055
14. #CONDENSER COIL MFR # 37957
15. #HOUSING KIT 10" MFR # 1317098
16. #APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097
17. #EVAPORATOR HOUSING KIT MFR # 137098
18. #COVER,EVAP. 10" MFR # 314884
19. #COIL,EVAPORATOR 5460 8 MFR # 37923
20. #BLOWER INLET RING MFR # 33692
21. #Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 38023 Superseded: see description
22. #CLOSE-OFF PLATE RIGHT SIDE MFR # 38053
23. #APPLIANCE COMPONENTS RV; Plate Close Off Rt 54608 MFR # 38052
24. #TUBE, CAP .049X44 IN 599,599,560 MFR # 3100245020
25. #TUBE,CAP USE 3100245020 MFR # 315752002 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
27. #PLATE,HOLD DOWN MFR # 3101828006
28. #TRAILHEAD FOR SOLID STEP 2PC 20 MFR # 20287
29. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
30. #SERVICE KIT F/MOTOR MFR # 3310725001
31. #GROMMET USE 3100230022 MFR # 6107779001 Superseded: see description
32. #SUPPORT,LOWER MOTOR RVA MFR # 316460
33. #SUPPORT,MOTOR UPPER MFR # 38101001
34. #BLADE,FAN MFR # 37929
35. #COVER CONT MFR # 38146
36. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
37. #SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description
38. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
39. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
40. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
41. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
42. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
43. #T-STAT USE 313620001 MFR # 34528 Superseded: see description
44. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
45. #CONDUIT,FLEX USE 3100237035 MFR # 35087003 Superseded: see description
46. #APPLIANCE COMPONENTS RV; Conduit Flex-All MFR # 3100237035
47. #KNOB USE 3100364011 MFR # 38151 Superseded: see description
48. #KNOB,BLACK USE 3100364011 MFR # 316517 Superseded: see description
49. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
50. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
51. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
52. #CAPACITOR USE 315010001 MFR # F7901 Superseded: see description
53. #CAPACITOR, RUN USE 46-2352 MFR # 315010001 Superseded: see description
54. #APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248537
55. #APPLIANCE COMPONENTS RV; Capacitor MFR # 315010016
56. #CAPACITOR *USE 315010016* 15M-440V MFR # 315010004 Superseded: see description
57. #RELAY,TIME DELAY 532- 546 MFR # 310456
58. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024
59. #RELAY USE 3100235070 MFR # 35040007 Superseded: see description
60. #RELAY, START TECUMSEH MFR # P82965
61. #RELAY,START USE P82965 MFR # 3100235070 Superseded: see description
62. #CAPACITOR, START MFR # 47C
63. #APPLIANCE COMPONENTS RV; Capacitor Use 3100236235 MFR # 3100236177 Superseded: see description
64. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
65. #CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description
66. #COVER,ELCT.BOX 10" 5590 8.041 MFR # 37980
67. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
68. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
69. #ELECTRICAL BOX MFR # 37979
70. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
71. #FLASHING,ROOF USE 3100247 MFR # 314931 Superseded: see description
72. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
73. #GASKET, GREY, 14 X 14 MFR # 6759A3281
74. #A/C SEAL, 14 X 14 WHITE MFR # A101414
75. #ROOF A/C GASKET KIT MFR # 3310718006
76. #TAPE, FOAM (SELL BY FT) RVA 1 X 1/2 MFR # 311300001
77. #APPLIANCE COMPONENTS RV; Seal Roof MFR # 38181
78. #COMPRESSOR MOUNTING GROMMET (4 REQUIRED) MFR # 310780002
79. #APPLIANCE COMPONENTS RV; Bolt Compressor MFR # 313684001
80. #COMPRESSOR MFR # 138183
81. #COMPRESSOR OVERLOAD MFR # 38183006
82. #RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A
83. #COVER,VINYL MFR # 38762

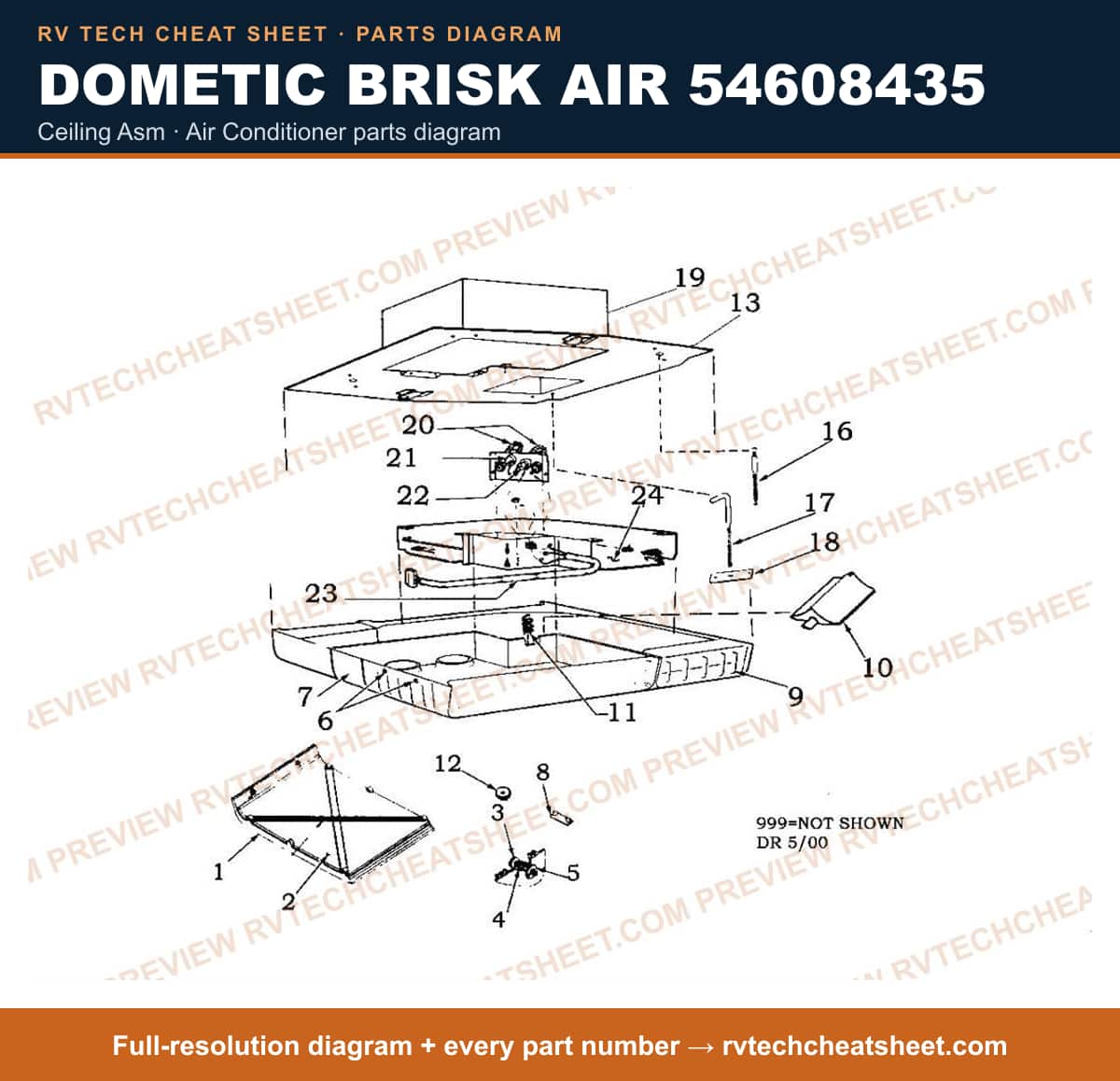

Ceiling Asm

Components

35 items

1. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
2. #FILTER RETURN AIR(UNIVER MFR # 3108015003
3. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
4. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
5. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
6. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
7. #ATTACHMENT TAPE GREY-EACH MFR # 06384
8. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
9. #STUD,LATCH RETURN AIR MFR # 311673001
10. #PIN USE 311673001 MFR # 311673 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
12. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
13. #RETAINER,RETURN AIR GRILLE MFR # 311675000
14. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
15. #DECAL AIR BOX MFR # 314203
16. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
17. #LOUVER ASM 2REQUIRED MFR # 310138
18. #Toilet; Tecma (R) Prestige; Permanent; High Profile; Round Seat MFR # 38040
19. #HEATERS & FURNACES RV; MOJAVE LARGE 40,000 BTU FURNANCE MFR # 38355
20. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
22. #KNOB USE 3100364011 MFR # 38151 Superseded: see description
23. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
24. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
25. #TEMPLATE USE 315427001 MFR # 315427 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
27. #BOLT,MOUNTING STRA IGHT MD#54612-236 MFR # 38173009
28. #BOLT,ANCHOR MFR # 38174006
29. #AWNING-REPAIR PARTS RV; Plate Anchor MFR # 313649
30. #Water Heater Heat Shield; Replacement For Dometic Water Heater MFR # 313588
31. #MOUNTING BOLT SET INCLUDES ITEMS 16,17 MFR # 1314913
32. #APPLIANCE COMPONENTS RV; Parts Bag 3-J & 1 S MFR # 313804
33. #DECAL ROTARY MFR # 316476
34. #DECAL USE 316476 MFR # 315625 Superseded: see description
35. #AIRBOX USE 3104234004 MFR # 314231 Superseded: see description
