Dometic Brisk Air 54612036 Parts Diagram · Shroud & Main Components

Air Conditioner · 2 assemblies · 2 diagram sheets · 83 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 54612036 rooftop air conditioner: 2 assemblies (Shroud & Main Components, Ceiling Asm) and 83 manufacturer part numbers. 34 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

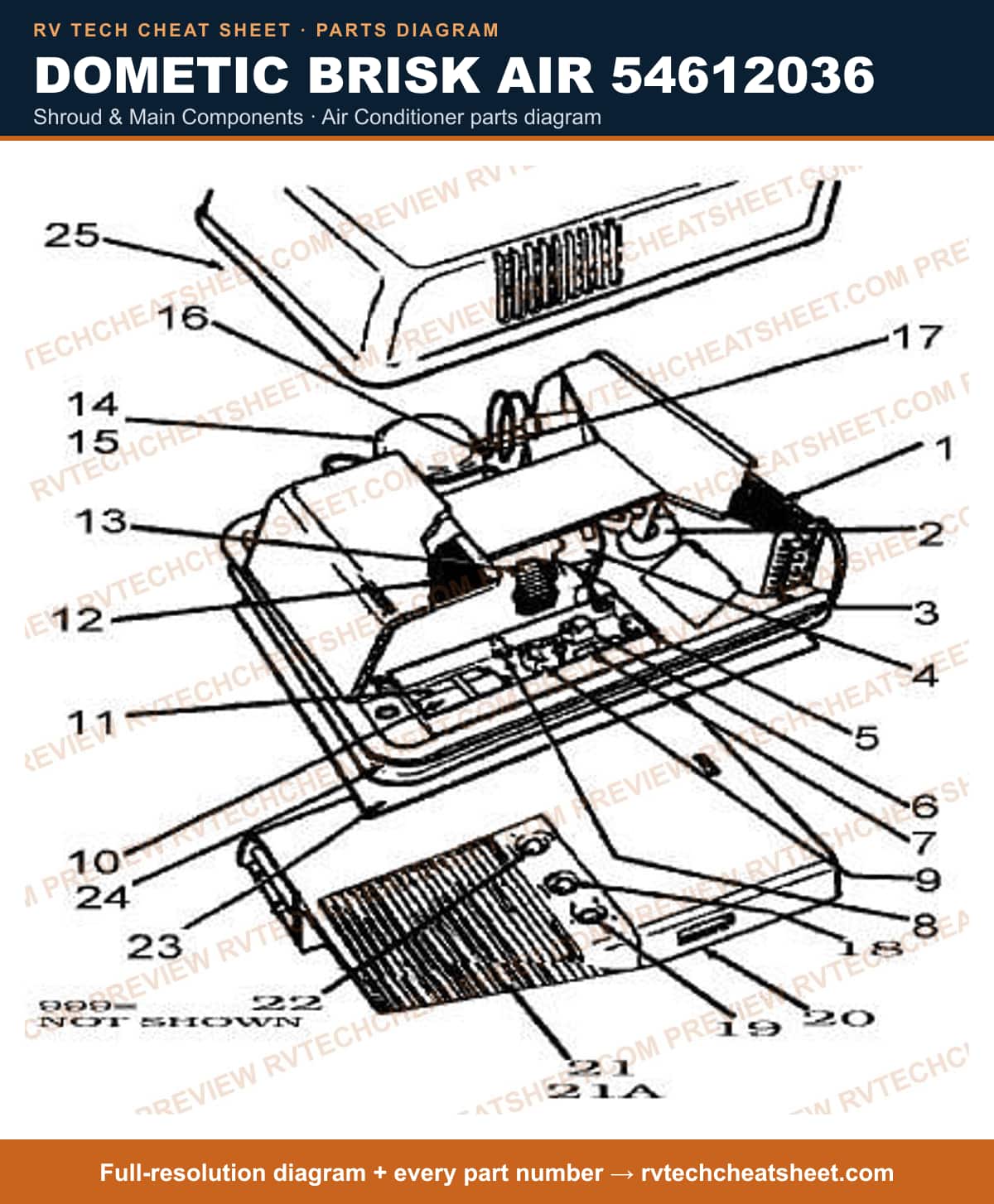

Shroud & Main Components

Components

61 items

1. #COIL,CONDENSER 54612 MFR # 37921
2. #BLADE,FAN MFR # 37929
3. #HOUSING KIT 10" MFR # 1317098
4. #PAN,BASE USE 1317097 & 1317098 MFR # 38466 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097
6. #MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description
7. #MOTOR USE 20285 MFR # 39648 Superseded: see description
8. #MOTOR KIT MFR # 3108706916
9. #TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285
10. #RELAY USE 3100235070 MFR # 35040007 Superseded: see description
11. #RELAY, START TECUMSEH MFR # P82965
12. #RELAY,START USE P82965 MFR # 3100235070 Superseded: see description
13. #CAPACITOR,START USE 3100236177 MFR # 35046002 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Capacitor Use 3100236235 MFR # 3100236177 Superseded: see description
15. #CAPACITOR, START MFR # 47C
16. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
17. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024
18. #CAPACITOR,RUN MFR # 39425006
19. #CAPACITOR USE 315010003 MFR # 39425003 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144
21. #CAPACITOR USE 3100236144 MFR # 315010003 Superseded: see description
22. #COIL,EVAPORATOR 5460 8 MFR # 37923
23. #Air Conditioner Blower Wheel; Use With Duo-Therm Air Conditioner MFR # 38023 Superseded: see description
24. #COMPRESSOR MFR # 38183
25. #APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012
26. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
27. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
28. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
29. #SWITCH,T-STAT USE MFR # 34825 Superseded: see description
30. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
31. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
32. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
33. #SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description
34. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
35. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
36. #AIRBOX ASM 5461 5 A/C MFR # 39684
37. #ATTACHMENT TAPE GREY-EACH MFR # 06384
38. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
39. #FILTER RETURN AIR(UNIVER MFR # 3108015003
40. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
41. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
42. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
43. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
44. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
46. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
47. #KNOB,BLACK USE 3100364011 MFR # 316517 Superseded: see description
48. #KNOB USE 3100364011 MFR # 38151 Superseded: see description
49. #TEMPLATE,CEILING MFR # 38169
50. #SHROUD 12' MFR # 3309518003
51. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
52. #SHROUD W/EXTENSION SHELL WHITE MFR # 313144006
53. #SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description
54. #SHROUD KIT CLOSED END SW MFR # 3309364028
55. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
56. #COVER,VINYL MFR # 38762
57. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
58. #RV COVERS-ACCESSORIES; A/C Cover D/T 7 & 11 C/W MFR # 2003A
59. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
60. #ANCHOR BOLT (LONG STUD) MFR # 38173001
61. #LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689

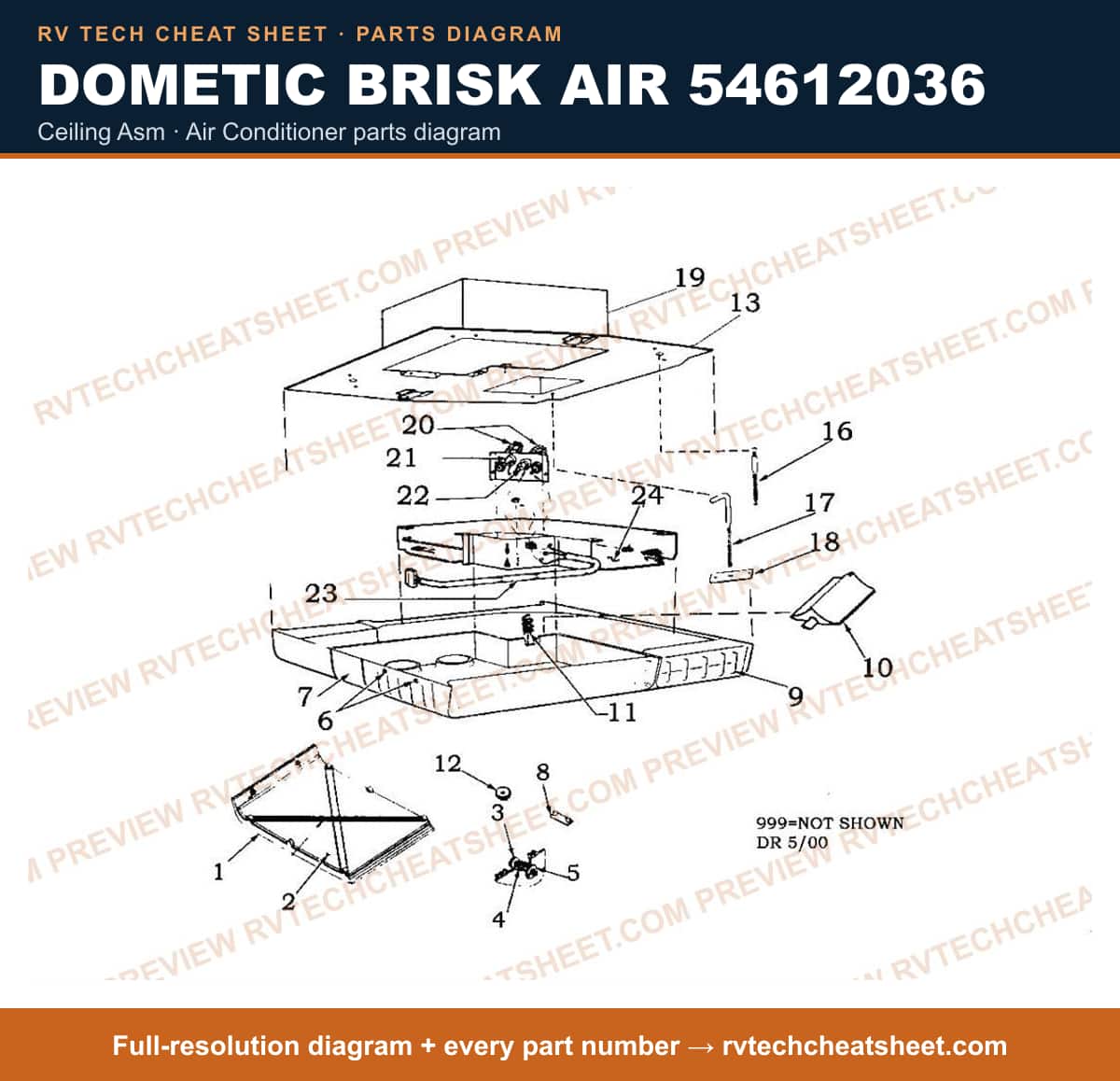

Ceiling Asm

Components

32 items

1. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
2. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
3. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
4. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
5. #FILTER RETURN AIR(UNIVER MFR # 3108015003
6. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
7. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
8. #PIN USE 311673001 MFR # 311673 Superseded: see description
9. #STUD,LATCH RETURN AIR MFR # 311673001
10. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
11. #RETAINER,RETURN AIR GRILLE MFR # 311675000
12. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
13. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
14. #DECAL AIR BOX MFR # 314203
15. #LOUVER ASM 2REQUIRED MFR # 310138
16. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
17. #Toilet; Tecma (R) Prestige; Permanent; High Profile; Round Seat MFR # 38040
18. #HEATERS & FURNACES RV; MOJAVE LARGE 40,000 BTU FURNANCE MFR # 38355
19. #KNOB USE 3100364011 MFR # 38151 Superseded: see description
20. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
21. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
22. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
23. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
24. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
25. #TEMPLATE USE 315427001 MFR # 315427 Superseded: see description
26. #BOLT,MOUNTING STRA IGHT MD#54612-236 MFR # 38173009
27. #BOLT,ANCHOR MFR # 38174006
28. #AWNING-REPAIR PARTS RV; Plate Anchor MFR # 313649
29. #Water Heater Heat Shield; Replacement For Dometic Water Heater MFR # 313588
30. #APPLIANCE COMPONENTS RV; Parts Bag 3-J & 1 S MFR # 313804
31. #MOUNTING BOLT SET INCLUDES ITEMS 16,17 MFR # 1314913
32. #AIRBOX USE 3104234004 MFR # 314231 Superseded: see description
