Dometic Brisk Air 54615045 Parts Diagram · Shroud & Main Components

Air Conditioner · 2 assemblies · 2 diagram sheets · 83 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 54615045 rooftop air conditioner: 2 assemblies (Shroud & Main Components, Ceiling Asm) and 83 manufacturer part numbers. 35 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Shroud & Main Components

Components

62 items

1. #COIL,CONDENSER USE 1312936 MFR # 39311 Superseded: see description
2. #COIL KIT 3093 12000 MFR # 1312936
3. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
4. #SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313
5. #FAN BLADE MFR # 3313107015
6. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
7. #PAN,BASE MFR # 39336001
8. #MOTOR,A/C USE 20290 MFR # 39650 Superseded: see description
9. #MOTOR KIT MFR # 3108706916
10. #APPLIANCE COMPONENTS RV; Motor Kit Use 3108706916 MFR # 3108704408 Superseded: see description
11. #MOTOR,BLOWER USE 3108704408 MFR # 20290 Superseded: see description
12. #RELAY,TIME DELAY 532- 546 MFR # 310456
13. #RELAY,START USE P82965 MFR # 3100235070 Superseded: see description
14. #RELAY, START TECUMSEH MFR # P82965
15. #RELAY USE 3100235070 MFR # 35040007 Superseded: see description
16. #CAPACITOR USE 3100236144 MFR # 35046011 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144
18. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024
19. #NO PART # GIVEN BY VENDOR MFR # NPG
20. #CAPACITOR,RUN, USE 46-2358 MFR # 3100248123 Superseded: see description
21. #CAPACITOR,30/15 MFR # 3100248610
22. #CAPACITOR,RUN USE 3100248123 MFR # 39425012 Superseded: see description
23. #CAPACITOR USE 3100236144 MFR # 315010003 Superseded: see description
24. #CAPACITOR USE 315010003 MFR # 39425003 Superseded: see description
25. #COIL,EVAPORATOR MFR # 39305
26. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
27. #SEWER HOSE SEAL, FLEXIBLE 3-IN-1 MFR # 39318
28. #CAPILLARY TUBE (1 REQUIRED) MFR # 39326
29. #SEWER HOSE SEAL 4IN X 3IN MFR # 39312
30. #SWITCH,T-STAT USE MFR # 34825 Superseded: see description
31. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
32. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
33. #Air Conditioner Ceiling Assembly Rotary Switch; For Dometic 3314851.000 Series Ceiling Assembly; On-Off And Fan Speed Control; 8 Position Switch; Without Knob; Single MFR # 3313107025
34. #SWITCH,SELECTOR USE 20250 MFR # 39610 Superseded: see description
35. #SWITCH,POSITION ROTARY ***USE 49-9715*** MFR # 3105273001 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Switch Rotary Use 3106077 MFR # 20250 Superseded: see description
37. #AIRBOX ASM 5461 5 A/C MFR # 39684
38. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
39. #KIT SVC AIR FILTER MFR # 3313107103
40. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
41. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
42. #FILTER RETURN AIR(UNIVER MFR # 3108015003
43. #ATTACHMENT TAPE GREY-EACH MFR # 06384
44. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
45. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
46. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
47. #KNOB USE 3100364011 MFR # 38151 Superseded: see description
48. #KNOB,BLACK USE 3100364011 MFR # 316517 Superseded: see description
49. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
50. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
51. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
52. #TEMPLATE,CEILING MFR # 38169
53. #SHROUD 12' MFR # 3309518003
54. #RHINOFLEX 90 DEGREE MFR # 39857
55. #SHROUD KIT CLOSED END SW MFR # 3309364028
56. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
57. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
58. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
59. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
60. #ANCHOR BOLT (HOOK) MFR # 38174001
61. #ANCHOR BOLT (LONG STUD) MFR # 38173001
62. #LP & CO ALARMS & DETECTORS RV; SURFACE MOUNT BOX DUAL MFR # 36689

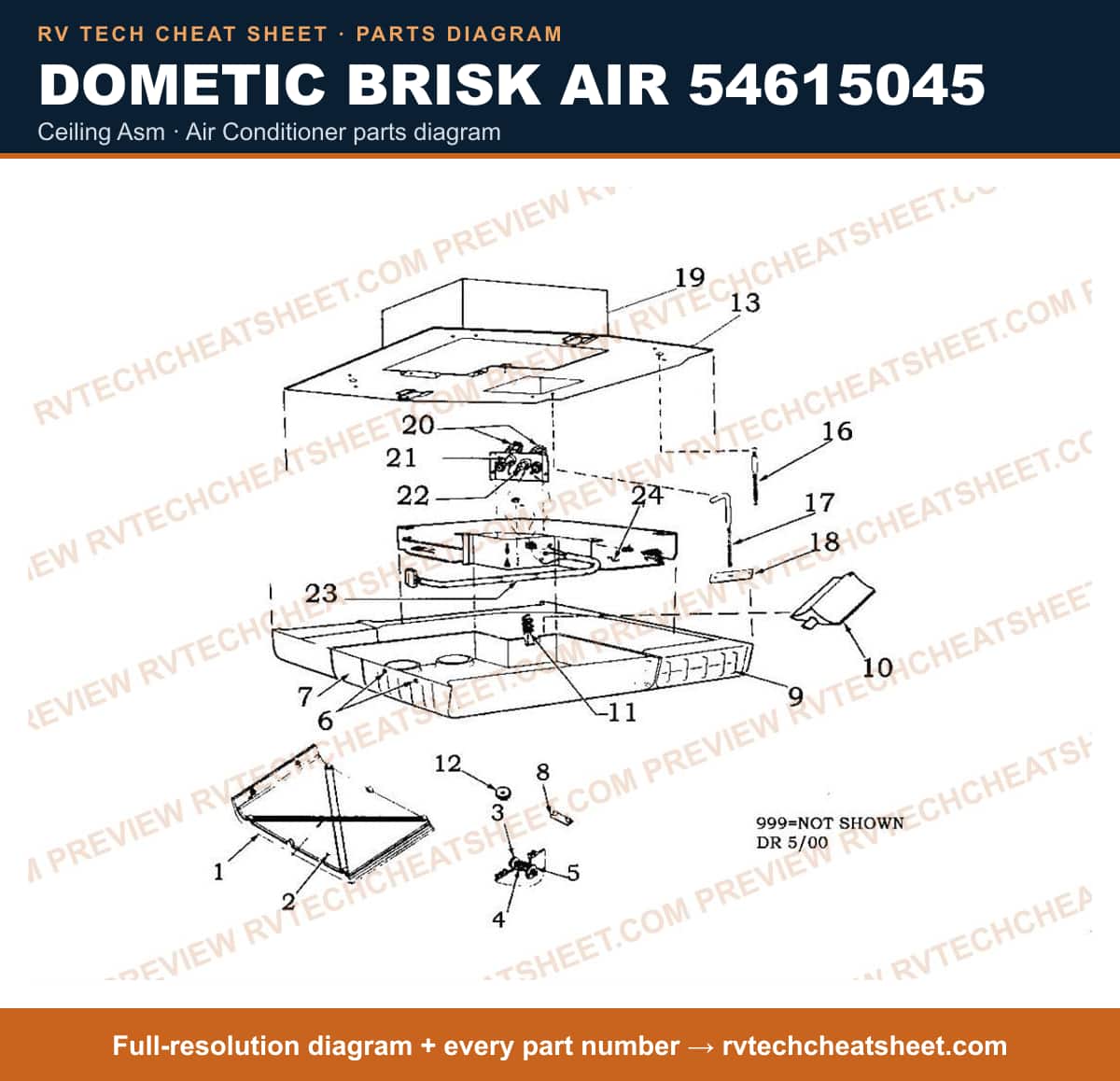

Ceiling Asm

Components

33 items

1. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
2. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
3. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
4. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
5. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
6. #ATTACHMENT TAPE GREY-EACH MFR # 06384
7. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
8. #FILTER RETURN AIR(UNIVER MFR # 3108015003
9. #PIN USE 311673001 MFR # 311673 Superseded: see description
10. #STUD,LATCH RETURN AIR MFR # 311673001
11. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
12. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
13. #RETAINER,RETURN AIR GRILLE MFR # 311675000
14. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
15. #DECAL AIR BOX MFR # 314203
16. #LOUVER ASM 2REQUIRED MFR # 310138
17. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
18. #Toilet; Tecma (R) Prestige; Permanent; High Profile; Round Seat MFR # 38040
19. #HEATERS & FURNACES RV; MOJAVE LARGE 40,000 BTU FURNANCE MFR # 38355
20. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
21. #KNOB USE 3100364011 MFR # 38151 Superseded: see description
22. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
23. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
24. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
25. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
26. #TEMPLATE USE 315427001 MFR # 315427 Superseded: see description
27. #BOLT,MOUNTING STRA IGHT MD#54612-236 MFR # 38173009
28. #BOLT,ANCHOR MFR # 38174006
29. #AWNING-REPAIR PARTS RV; Plate Anchor MFR # 313649
30. #Water Heater Heat Shield; Replacement For Dometic Water Heater MFR # 313588
31. #APPLIANCE COMPONENTS RV; Parts Bag 3-J & 1 S MFR # 313804
32. #MOUNTING BOLT SET INCLUDES ITEMS 16,17 MFR # 1314913
33. #AIRBOX USE 3104234004 MFR # 314231 Superseded: see description
