Dometic Brisk Air 54815435 Parts Diagram · Installation Parts Package

Air Conditioner · 3 assemblies · 3 diagram sheets · 128 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 54815435 rooftop air conditioner: 3 assemblies (Installation Parts Package, Shroud & Main Components, Installation Parts) and 128 manufacturer part numbers. 46 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

Installation Parts Package

Components

41 items

1. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
2. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
3. #KIT SVC AIR FILTER MFR # 3313107103
4. #FILTER RETURN AIR(UNIVER MFR # 3108015003
5. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
6. #ATTACHMENT TAPE GREY-EACH MFR # 06384
7. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
8. #FILTER,AC USE 3108015003 MFR # 308166 Superseded: see description
9. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
10. #STUD,LATCH RETURN AIR MFR # 311673001
11. #PIN USE 311673001 MFR # 311673 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
13. #RETAINER,GRILLE USE 311675000 MFR # 311675 Superseded: see description
14. #RETAINER,RETURN AIR GRILLE MFR # 311675000
15. #RECEPTACLE,LATCH RVA AIRBOX MFR # 311672
16. #AIR BOX DECAL MFR # 313597
17. #LOUVER ASM 2REQUIRED MFR # 310138
18. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
19. #Toilet; Tecma (R) Prestige; Permanent; High Profile; Round Seat MFR # 38040
20. #HEATERS & FURNACES RV; MOJAVE LARGE 40,000 BTU FURNANCE MFR # 38355
21. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
22. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
23. #KNOB USE 3100364011 MFR # 38151 Superseded: see description
24. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Template MFR # 315427001
26. #SHELL,AIRBOX SHEL L WHITE MFR # 3104234004
27. #TEMPLATE USE 315427001 MFR # 315427 Superseded: see description
28. #BOLT,MOUNTING STRA IGHT MD#54612-236 MFR # 38173009
29. #BOLT,ANCHOR MFR # 38174006
30. #AWNING-REPAIR PARTS RV; Plate Anchor MFR # 313649
31. #ELEMENT,HEAT W/O FUSE LINK MFR # 313642D
32. #ELEMENT,HEAT W/FUSE LINK MFR # 313642
33. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
34. #LINK,FUSE USE 3100244007 MFR # 315068 Superseded: see description
35. #LIMIT SWITCH MFR # 313629
36. #HARNESS,RVA HEAT STRIP MFR # 313590
37. #Water Heater Heat Shield; Replacement For Dometic Water Heater MFR # 313588
38. #DECAL USE 316476 MFR # 315625 Superseded: see description
39. #AIRBOX USE 3104234004 LESS DECALS MFR # 316810 Superseded: see description
40. #MOUNTING BOLT SET INCLUDES ITEMS 16,17 MFR # 1314913
41. #APPLIANCE COMPONENTS RV; Parts Bag 3-J & 1 S MFR # 313804

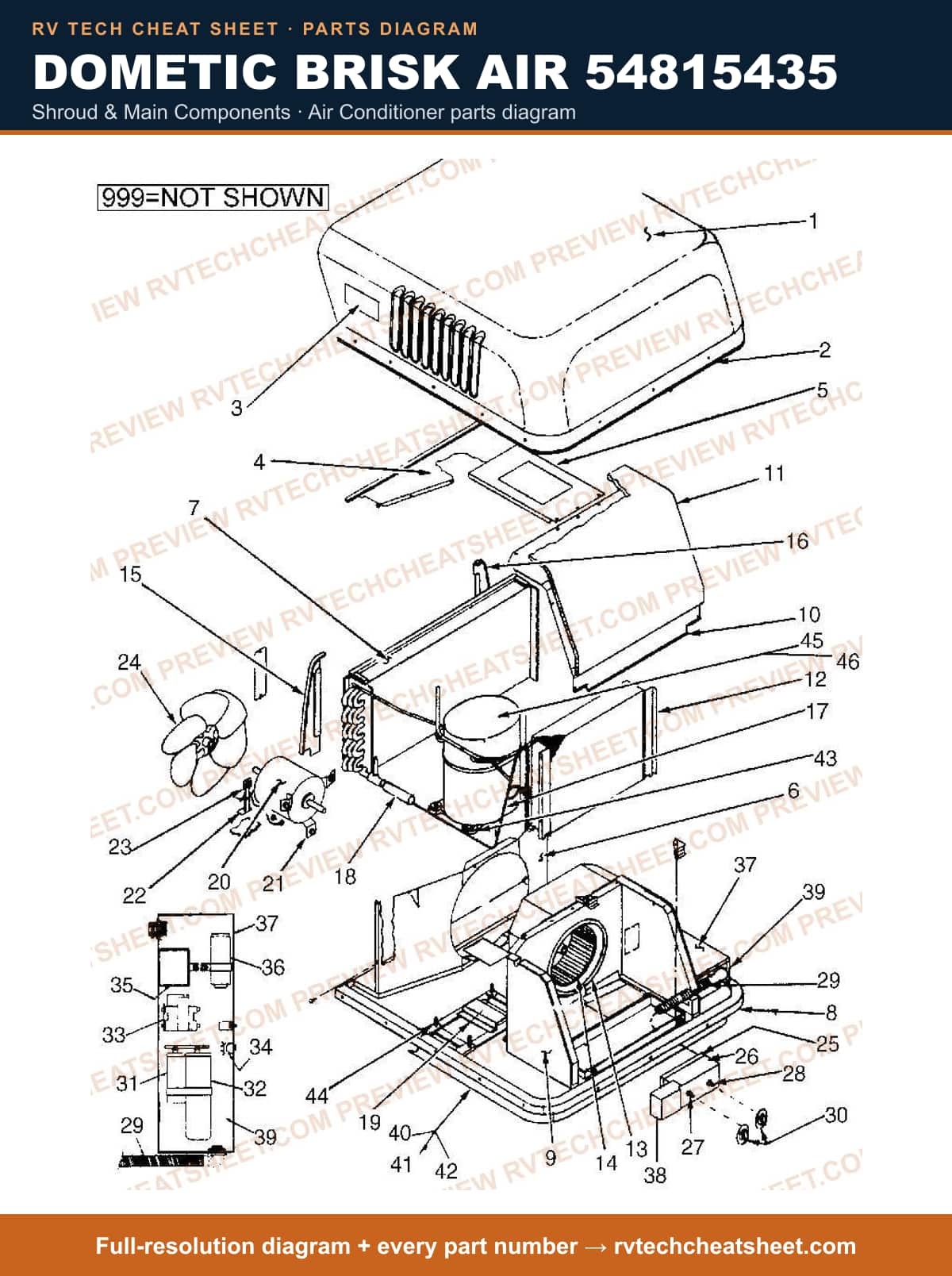

Shroud & Main Components

Components

90 items

1. #SHROUD USE 3103144006 MFR # 3101991002 Superseded: see description
2. #SHROUD USE 3103144006 MFR # 316404001 Superseded: see description
3. #SHROUD KIT CLOSED END SW MFR # 3309364028
4. #APPLIANCE COMPONENTS RV; Shroud Asm Use 3309518003 MFR # 3103144006 Superseded: see description
5. #SHROUD ASM USE 3309518003 POLAR WHITE MFR # 3103147009 Superseded: see description
6. #SHROUD 12' MFR # 3309518003
7. #SHROUD 10" SHELL USE 49-9199 WHITE CLOSED END MFR # 3308781008 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Extension Formed Shroud MFR # 3102812017
9. #SHROUD W/EXTENSION SHELL WHITE MFR # 313144006
10. #DECAL,SHROUD QUIK START 548 LUX MFR # 314194
11. #DECAL MFR # 314196
12. #DECAL SHROUD SURE START 548 LUX MFR # 314193
13. #SHROUD DECAL QUIC K START 546 STD MFR # 314195
14. #COVER,COND COIL USE 309383000 CONDENSOR COIL MFR # 39383 Superseded: see description
15. #CONDENSER COIL BRACE MFR # 37974
16. #CONDENSER COIL BULKHEAD MFR # 38055
17. #COIL,CONDENSER 54612 MFR # 37921
18. #APPLIANCE COMPONENTS RV; Base Pan Kit Brisk Air MFR # 1317097
19. #HOUSING KIT 10" MFR # 1317098
20. #COVER,EVAP. 10" MFR # 314884
21. #COIL,EVAPORATOR MFR # 39305
22. #BLOWER INLET RING MFR # 33692
23. #APPLIANCE COMPONENTS RV; Wheel Blower Plastic MFR # 317958
24. #CLOSE-OFF PLATE RIGHT SIDE MFR # 38053
25. #APPLIANCE COMPONENTS RV; Plate Close Off Rt 54608 MFR # 38052
26. #APPLIANCE COMPONENTS RV; Tube Capillary MFR # 3100245012
27. #TUBE,CAP USE 3100245020 MFR # 315752002 Superseded: see description
28. #Air Conditioner Line; Duo Therm ™; Replacement Filter Drier For Dometic Air Conditioners MFR # 3103882001
29. #DRIER,FILTER USE 3100246002 MFR # 316371 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Drier Filter ***Use 46- MFR # 3100246002 Superseded: see description
31. #PLATE,HOLD DOWN MFR # 3101828006
32. #TRLLIPSOLSTP 4PC 24.125I BUCBRO MFR # 20285
33. #MOTOR KIT MFR # 3108706916
34. #MOTOR KIT USE 3108706916 MFR # 3108704416 Superseded: see description
35. #MOTOR USE 20285 MFR # 39648 Superseded: see description
36. #GROMMET, MOTOR MOUNTING ***USE 49-8471*** MFR # 3100230022 Superseded: see description
37. #GROMMET USE 3100230022 MFR # 6107779001 Superseded: see description
38. #SERVICE KIT F/MOTOR MFR # 3310725001
39. #SUPPORT,LOWER MOTOR RVA MFR # 316460
40. #SUPPORT,MOTOR UPPER MFR # 38101001
41. #BLADE, FAN PLASTIC ***USE 49-9558*** MFR # 3107914008 Superseded: see description
42. #SEWER HOSE SEAL 4IN X 3IN, SKINPACK MFR # 39313
43. #FAN BLADE MFR # 3313107015
44. #BLADE,FAN USE 3107914008 MFR # 317937 Superseded: see description
45. #COVER CONT MFR # 38146
46. #APPLIANCE COMPONENTS RV; Box Control MFR # 313645
47. #Air Conditioner Ceiling Assembly Rotary Switch; Replacement For Dometic Duo-Therm Brisk Model Air Conditioner; 10 Position MFR # 3100291016
48. #DECAL USE 3104083005 MFR # 3101398 Superseded: see description
49. #SWITCH,POSITION USE 3105273001 ROTARY MFR # 3106077005 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Decal Air Box MFR # 3104083005
51. #SWITCH,SELECTOR USE 3100291016 MFR # 313539 Superseded: see description
52. #T-STAT USE A22115435 MFR # 313620001 Superseded: see description
53. #T-STAT USE A22115435* MFR # 313620 Superseded: see description
54. #NO GENERIC NAME;;T-Stat Heat & Cool ***Us MFR # A22115435
55. #APPLIANCE COMPONENTS RV; Conduit Flex-All MFR # 3100237035
56. #CONDUIT,FLEX USE 3100237035 MFR # 35087003 Superseded: see description
57. #APPLIANCE COMPONENTS RV; Knob Control MFR # 3107052007
58. #Air Conditioner Ceiling Assembly Control Knob; For Dometic Duo-Therm Air Conditioners; Set Of 2 MFR # 3313107024
59. #KNOB,BLACK USE 3100364011 MFR # 316517 Superseded: see description
60. #KNOB, T-STAT USE 3107052007 2 REQUIRED MFR # 3100364011 Superseded: see description
61. #CAPACITOR USE 3100236144 MFR # 315010003 Superseded: see description
62. #APPLIANCE COMPONENTS RV; Capacitor Fan64-7 7M/33 MFR # 3100236144
63. #APPLIANCE COMPONENTS RV; Capacitor Run MFR # 3100248065
64. #CAPACITOR, *USE 3100248065 TIM 55908.041 MFR # 316615006 Superseded: see description
65. #RELAY,TIME DELAY 532- 546 MFR # 310456
66. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38024
67. #RELAY,START USE P82965 MFR # 3100235070 Superseded: see description
68. #RELAY,START USE 3100235120 MFR # 35040012 Superseded: see description
69. #Air Conditioner Capacitor; Start Capacitor; 47 To 56 Micro Farad; 250 Volt AC; 50 To 60 HZ; 1-1/2 Inch Diameter x 3-3/8 Inch Height; Black MFR # 3100236235
70. #CAPACITOR USE 3100236177 MFR # 35046017 Superseded: see description
71. #CAPACITOR, START MFR # 47C
72. #APPLIANCE COMPONENTS RV; Capacitor Use 3100236235 MFR # 3100236177 Superseded: see description
73. #ELECTRICAL BOX COVER MFR # 39306
74. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650000
75. #Air Conditioner Control Box Assembly; Replacement For Dometic Brisk Air CAS/ 546/ 548/ 557/ 558/ 559/ 570/ 578/ 579 Series Air Conditioners MFR # 313650
76. #BOX,ELECT. USE 318187003 MFR # 318187 Superseded: see description
77. #BOX,ELECTRICAL 5791 5 SERIES MFR # 318187003
78. #ROOF A/C GASKET KIT MFR # 3310718006
79. #A/C SEAL, 14 X 14 WHITE MFR # A101414
80. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
81. #GASKET, GREY, 14 X 14 MFR # 6759A3281
82. #FLASHING,ROOF USE 3100247 MFR # 314931 Superseded: see description
83. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
84. #TAPE, FOAM (SELL BY FT) RVA 1 X 1/2 MFR # 311300001
85. #APPLIANCE COMPONENTS RV; Seal Roof MFR # 38181
86. #COMPRESSOR MOUNTING GROMMET (4 REQUIRED) MFR # 310780003
87. #APPLIANCE COMPONENTS RV; Bolt Compressor MFR # 313684001
88. #Air Conditioner Compressor; For Duo-Therm Air Conditioner Brisk Air Model 54615036; Fits Duo-Therm Air Conditioner Brisk Air Model 54615036 MFR # 139318
89. #OVERLOAD,COMPRESSOR MFR # 3100250004
90. #OVERLOAD USE 3100250004 COMPRESSOR MFR # 39318006 Superseded: see description

Installation Parts

Components

8 items

1. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
2. #FLASHING,ROOF USE 3100247 MFR # 314931 Superseded: see description
3. #GASKET, GREY, 14 X 14 MFR # 6759A3281
4. #A/C SEAL, 14 X 14 WHITE MFR # A101414
5. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
6. #ROOF A/C GASKET KIT MFR # 3310718006
7. #TAPE, FOAM (SELL BY FT) RVA 1 X 1/2 MFR # 311300001
8. #APPLIANCE COMPONENTS RV; Seal Roof MFR # 38181
