Dometic Brisk Air 55815041 Parts Diagram · 55815041 › Optional Electric Heat Kit

Air Conditioner · 4 assemblies · 4 diagram sheets · 41 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Brisk Air 55815041 rooftop air conditioner: 4 assemblies (55815041 › Optional Electric Heat Kit, 55815041 › Installation Part, 55815041 › Air Box Assembly, 55815041 › Installation Parts) and 41 manufacturer part numbers. 14 parts are marked as superseded — the description gives the replacement number to order instead.

On rooftop units the model and serial plate is under the shroud on the base pan, and a second label usually sits on the ceiling assembly behind the return-air grille. Dometic model numbers are 8 digits (e.g. 57915.xxx); write down the full number including any suffix, because shrouds and control boards change with it.

55815041 › Optional Electric Heat Kit

Components

15 items

1. #ELEMENT,HEAT W/FUSE LINK MFR # 313642
2. #ELEMENT,HEAT W/O FUSE LINK MFR # 313642D
3. #LINK,FUSE USE 3100244007 MFR # 315068 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Link Fuse MFR # 3100244007
5. #SWITCH,LIMIT USE 3100241011 MFR # 313629001 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Switch Auto Limit 5791 MFR # 3100241011
7. #HARNESS,RVA HEAT STRIP MFR # 313590
8. #Water Heater Heat Shield; Replacement For Dometic Water Heater MFR # 313588
9. #APPLIANCE COMPONENTS RV; Decal Add On Heat MFR # 316516
10. #APPLIANCE COMPONENTS RV; Parts Bag 3-J & 1 S MFR # 313804
11. #HEAT STRIP,NON-DUCTED MFR # 3101121030
12. #3-3/4" TO 5-1/4" MFR # 313804002
13. #1" TO 2-1/4" MFR # 313804001
14. #5-1/4" TO 6-1/4" MFR # 313804003
15. #STRIP,HEAT USE 3101121030 MFR # 315603 Superseded: see description

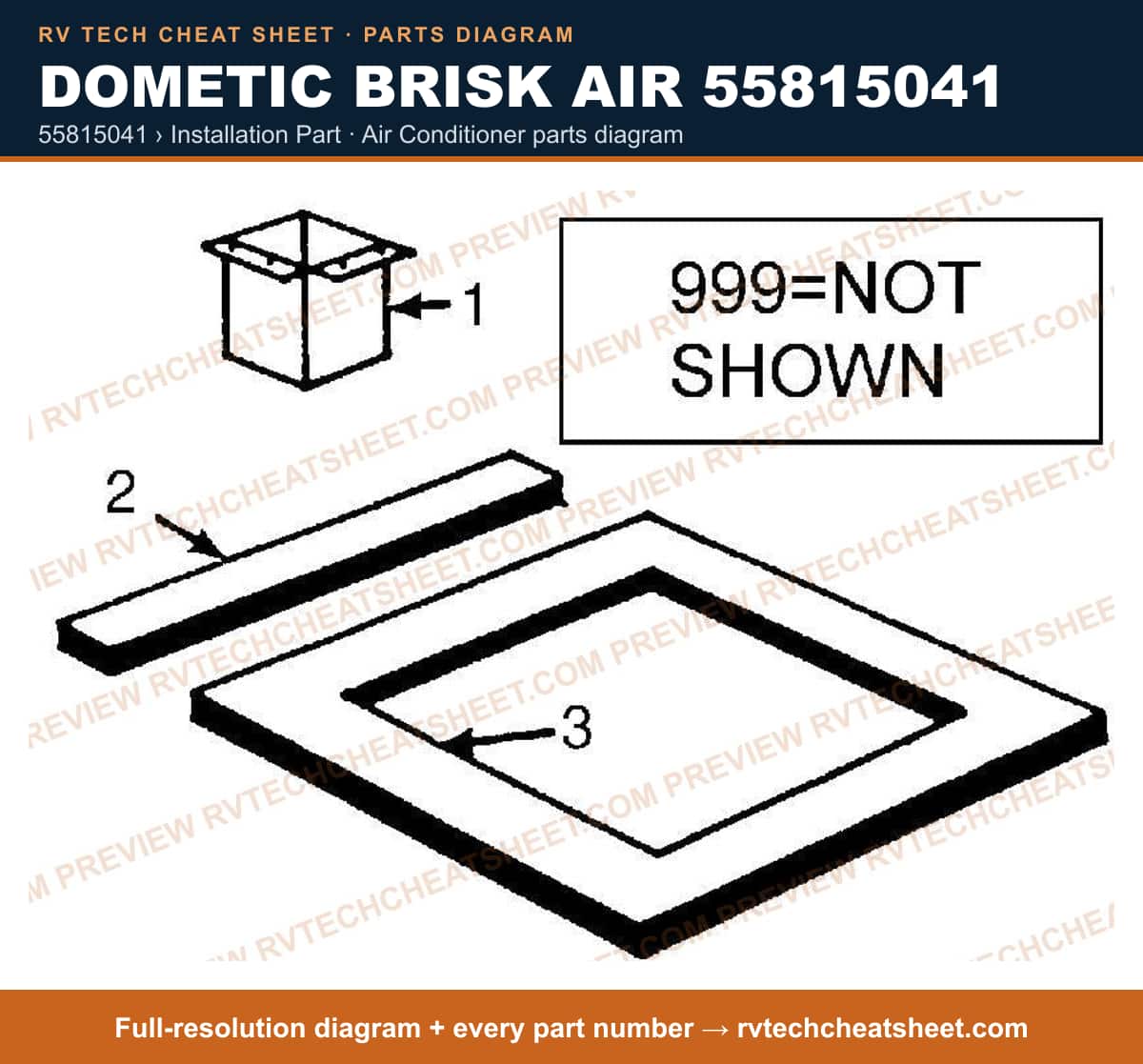

55815041 › Installation Part

Components

11 items

1. #DUCT,DISCHARGE USE 316450000 MFR # 316450 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450000
3. #APPLIANCE COMPONENTS RV; Duct Upper MFR # 316450001
4. #APPLIANCE COMPONENTS RV; Gasket Roof .69X1.5 X MFR # 3100286016
5. #GASKET USE 3100286016 MFR # 316462 Superseded: see description
6. #GASKET,ROOF SEAL USE 3100247 MFR # 316461 Superseded: see description
7. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
8. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
9. #GASKET, GREY, 14 X 14 MFR # 6759A3281
10. #A/C SEAL, 14 X 14 WHITE MFR # A101414
11. #ROOF A/C GASKET KIT MFR # 3310718006

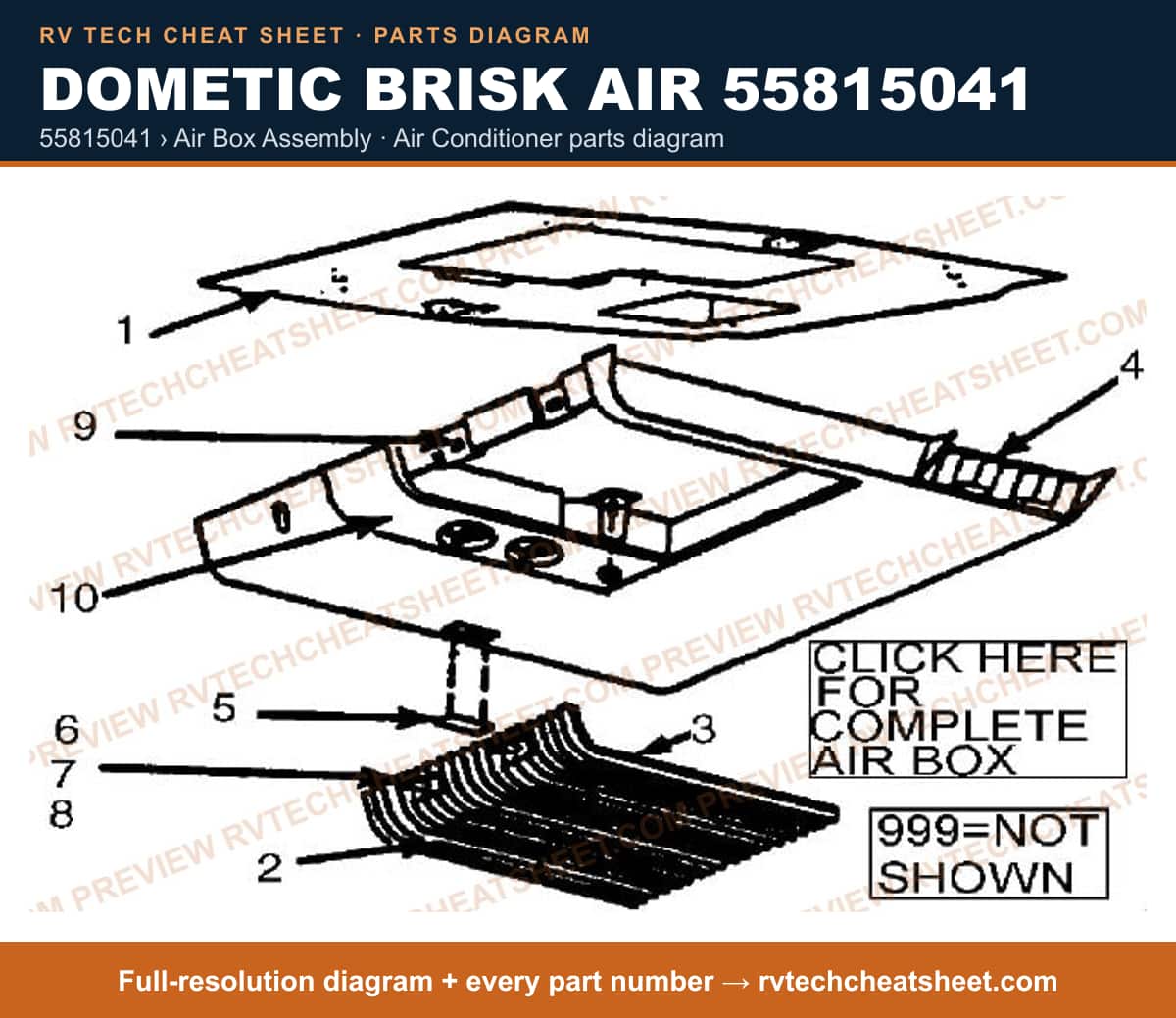

55815041 › Air Box Assembly

Components

12 items

1. #Permanent; High Profile; Round Seat With 17 Inch Seat Height MFR # 38047
2. #FILTER RETURN AIR(UNIVER MFR # 3108015003
3. #FILTER,AIR A/C USE 308166 MFR # 38166 Superseded: see description
4. #Air Conditioner Filter; Use With DV8 Air Conditioners; Also Use New Part Number 457722 MFR # 2401175 Superseded: see description
5. #Air Conditioner Filter; Use With Dometic RV Air Conditioners; MERV 6 Rating; 13-1/2 Inch Length x 7.375 Inch Width x 3/4 Inch Depth; Removes Dust/ Pollen/ Pet Dander MFR # AC105G Superseded: see description
6. #Air Conditioner Filter; Use With Duo-Therm/Dometic Air Conditioners; 16 Inch x 11-3/4 Inch MFR # 457722 Superseded: see description
7. #LOUVER USE 310138 MFR # 310138000 Superseded: see description
8. #LOUVER ASM 2REQUIRED MFR # 310138
9. #RETAINER,RETURN AIR GRILLE MFR # 311675000
10. #AIRBOX USE 3104234004 LESS DECALS MFR # 316810 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Spring Latch Return Air MFR # 311674
12. #STUD,LATCH RETURN AIR MFR # 311673001

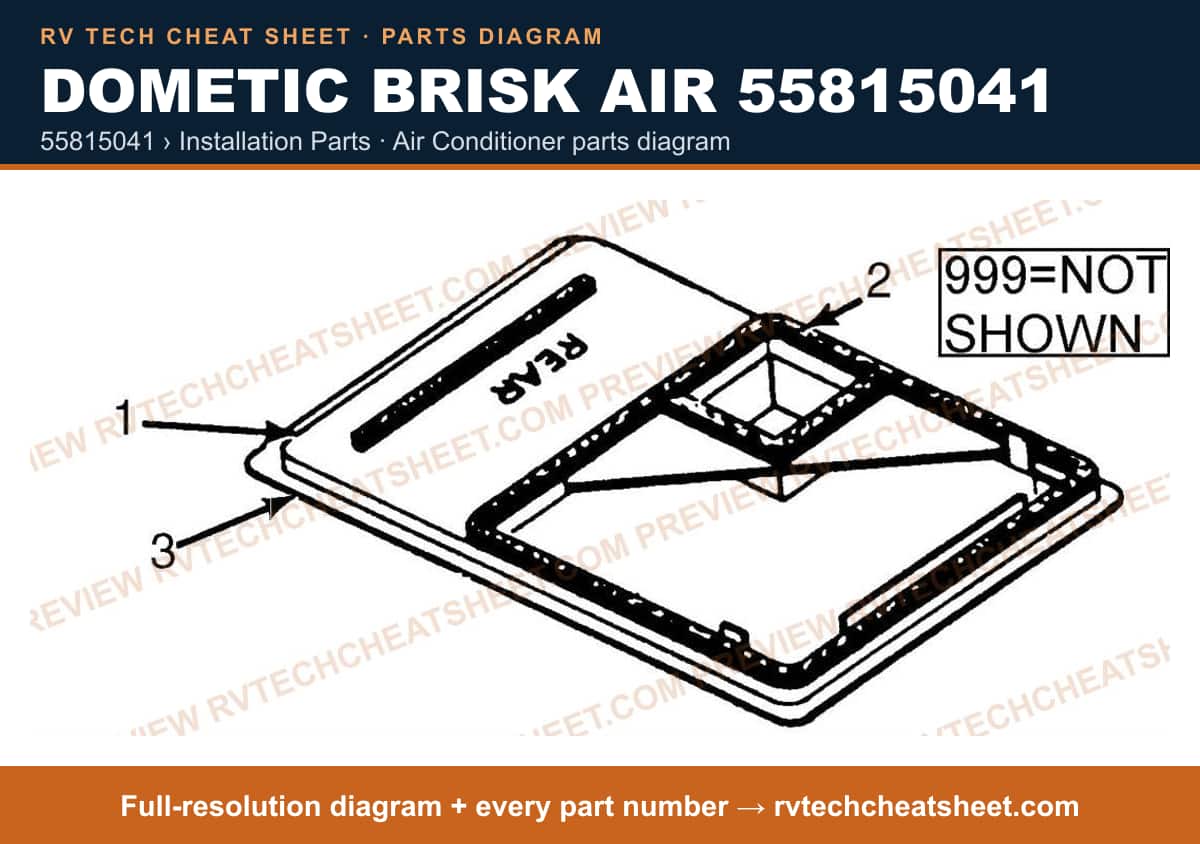

55815041 › Installation Parts

Components

8 items

1. #GASKET, GREY, 14 X 14 MFR # 6759A3281
2. #A/C SEAL, 14 X 14 WHITE MFR # A101414
3. #ROOF A/C GASKET KIT MFR # 3310718006
4. #FLASHING,ROOF USE 3100247 MFR # 314931 Superseded: see description
5. #GASKET, ROOF USE 3310718006 KIT MFR # 3100247 Superseded: see description
6. #A/C GASKET 14IN X 14IN UNIVERSAL MFR # 25071
7. #TAPE, FOAM (SELL BY FT) RVA 1 X 1/2 MFR # 311300001
8. #APPLIANCE COMPONENTS RV; Seal Roof MFR # 38181
